Service Manual

Models: PFV30600MS

PFV30500MW

UPRIGHT FREEZER

SUPER DESIGN

CONTENT

1. Content.

2. Product code illumination and Series Introduction2

3. Specifications.... 3

4. Safety precautions.... 4

5. Function Schedule........ 7

6. System Flow Chart..... 8

7. Circuit Diagram..... 9

8. Maintenance Service and Trouble Shooting.... 10

9. Exploded View... 30

10. List of Parts...31

Specifications

Models

capacity

(L)

PFV30500MW，

PFV30600MS

Color

White/Silver

Power Supply

(V/Hz)

115V/60HZ

Rated Input Power

(W)

100

Power Consumption

(kW·h/Y)

240

Net Weight

(kg)

Gross Weight

(kg)

Unit Dimension

(D*W*H)

(mm)

Packing Dimension

(D*W*H)

(mm)

Container Quantity

40'HQ

(PCS)

501x540x860

540X576X886

264

Safety precautions

Outside the range 97~126V unless a regulator with a

This appliance uses 115V/60Hz

Safety precautions

Function Schedule

●Energy efficiency

●Micro foam technology

●Low noise operation

●Thick insulation for energy efficiency

System Flow Chart

1 Schematic diagram of System Flow Chart

flows in the sequence: 1->2->3->4->5>1

Circuit Diagram

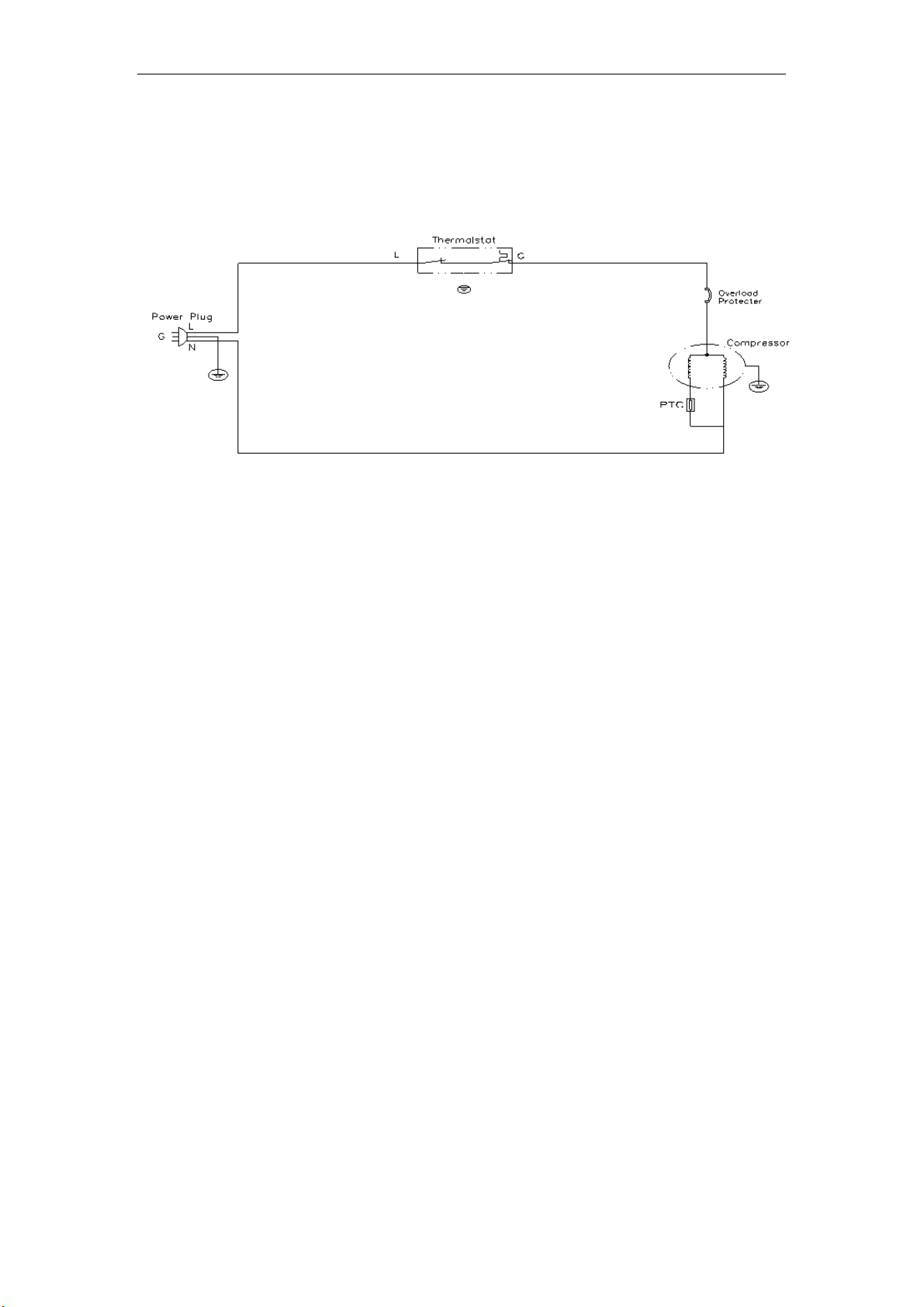

1Schematic Circuit Diagram

Maintenance Service and Trouble Shooting

1. No cooling

No cooling

If compressor

can run after it stop to

run five minutes and

give power.

Check and repair according to

the section of "the compessor

doesn't work".

YES

If compressor

can run naturally and

temperature raising

of condenser is

very low

YES

Refrigerant

leak,check and

repair charge

refrigerant again.

Block by ice or dirty

things,change filter and change

refrigerant again.

When charging refrigerant,we must

notice to make refrigerant true.
