This product manual contains important information about the safe installation and use of

this projector. Please read and follow these instructions carefully and keep this manual in

a safe place for future reference.

PR LIGHTING LTD.

No. 571, Yingbin Road, Dashi Panyu, Guangzhou, 511430 China

http://www.pr-lighting.com

MEGA 4000_ Last Revision_En.doc

2/6

WARNING!

Make sure be disconnected from mains before

any service is done.

CAUTION!EYEDAMAGES!

Avoid looking directly into the light source (meant

especially for epileptics)!

WARNING!

Keep at least a distance of 3m between the

apparatus and imflammable materials.

CAUTION! HOT LAMP！

Disconnect from mains before replacing the lamp.

And allow cooling for 10 minutes before open the

cover.

WARNINGS

WARNING！

Change lens and lamp if they become damaged!

WARNING!

Keep at least a distance of 3m between the

apparatus and striking materials.

MEGA 4000_ Last Revision_En.doc

3/6

Thank you for your purchasing of our innovative product MEGA 4000. Please read

this manual carefully before you start to use this apparatus, that can protect you from

personal hurt or device damage.

MEGA 4000 is our newly developed luminaire for outdoor use. The frame is made

from high intensity alloy alumininium. The style is beautiful and the structure is strong and

reasonable. It represents the features of modern luminaires. The Xenon 4000W lamp is

powerful and has good color rendering property. MEGA 4000 adopts innovative optical

system which can adjust beam focus from 5m to 10,000m and beam angles from 0 to 25

degrees.

MEGA 4000 can adjust speed, rotating angle and tilt angle. It has good water-proof

property and safety device for high temperature. The operation is simple and the usage is

wide.

! The apparatus is for outdoor use only.

! The apparatus can be Installed, operated and maintained by qualified personnel only.

! Please check if there is any damage during transportation before use.

! Be sure to locate the device in a place with adequate ventilation at least 15cm from the

walls. Be sure that the fans are good and no ventilational holes are blocked.

! Make sure that the power cord is never crimped or damaged by sharp edges. Never let

the power cord come into contact with other cables.

! Never use lamps and fuses which do not match the requirements of the apparatus.

! The electric connection must be carried out by qualified personnel.

! Before installation, make sure that the voltage and frequency of the power supply match

the power requirements of the apparatus.

! There is no any parts inside the fixture can be maintained by user. Please do not open

the housing.

! Please do never run the device without lamp.

! Please make sure that the housing is closed firmly with all the necessary screws

tightened up before use. Never use the fixture with the covers opened.

!Do not touch the device’s housing with bare-hand during operation (housing becomes

hot).

!Do not connect this device to any dimmer pack.

!Installation, operation and maintenance by unprofessional personnel is not permitted.

Most damages are the result of unprofessional operation.

! Do not shake the device.

!Do not switch the fixture on and off in short intervals as this would reduce the device and

lamp’s life.

! Regular rest for the luminaire is useful to prolong the luminaire’ life and to reduce

triubles. Please do not let the luminaire continuously work for a long time.

!When lenses are cracked or damaged, please contact with dealer and replace them.

! The lamp should be changed immediately if it becomes damaged or less bright.

! The using fuse is 150A. Please use the fuse with the same type and rating only.

! Please use the original packaging when the device is to be transported again.

SAFETY

INTRODUCTION

MEGA 4000_ Last Revision_En.doc

4/6

Use the plug provided to connect the mains power to the projector paying attention to the

voltage and frequency marked on the panel of the projector. It is recommended that each

projector is supplied separately so that they may be individually switched on and off. It is

recommended that the projector connect to the mains using a 3-pin 32A plug.

Remove the front and back covers of the projector-head.

Install the lamp in the proper position.

Fix the both ends of the lamp via tight the two nuts.

● Power supply: 230V AC 50Hz

● Power consumption: 4150W at 220V

● IP rating: IP44

● Lamp: Xenon 4000W

● Colour temperature: 6000°K

● Beam angle: 0 to 25 degrees, adjustable, visible for up to 10 kilometres

● Rotating angle: 0 to 180 degrees, adjustable

● Control: Automatic stand-alone operation

● Head movement: Pan 180°, tilt manually adjustable through 40°

●Dimensions: 750mm×680mm×1000mm

●Net weight：97kg

● Others: Safety device for high temperature

● The cleaning of internal and external optical lenses and mirrors must be carried out

periodically to optimize light output. Cleaning frequency depends on the environment in

which the fixture operates: damp, smoke or particularly dirty surroundings can cause

greater accumulation of dirt on the unit’s optics. A soft cloth and the typital products of

cleaning glass should be used in cleaning. It is recommended that clean the external

optics at least once every 20 days and clean the internal optics at least once every 30

/60 days.

● Do not touch the glass-bulb with bare-hand during installation. Before operation, please

clean the lamp with alcohol so as to improve the lamp’s effect and prolong the lamp’s

life.

● Please do not use any organic solvent, e.g. alcohol, to clean the housing of the

apparatus.

TECHNICAL SPECIFICATIONS

MAINTENANCE AND CLEANING

POWER SUPPLY -MAINS

FITTING THE LAMP

MEGA 4000_ Last Revision_En.doc

5/6

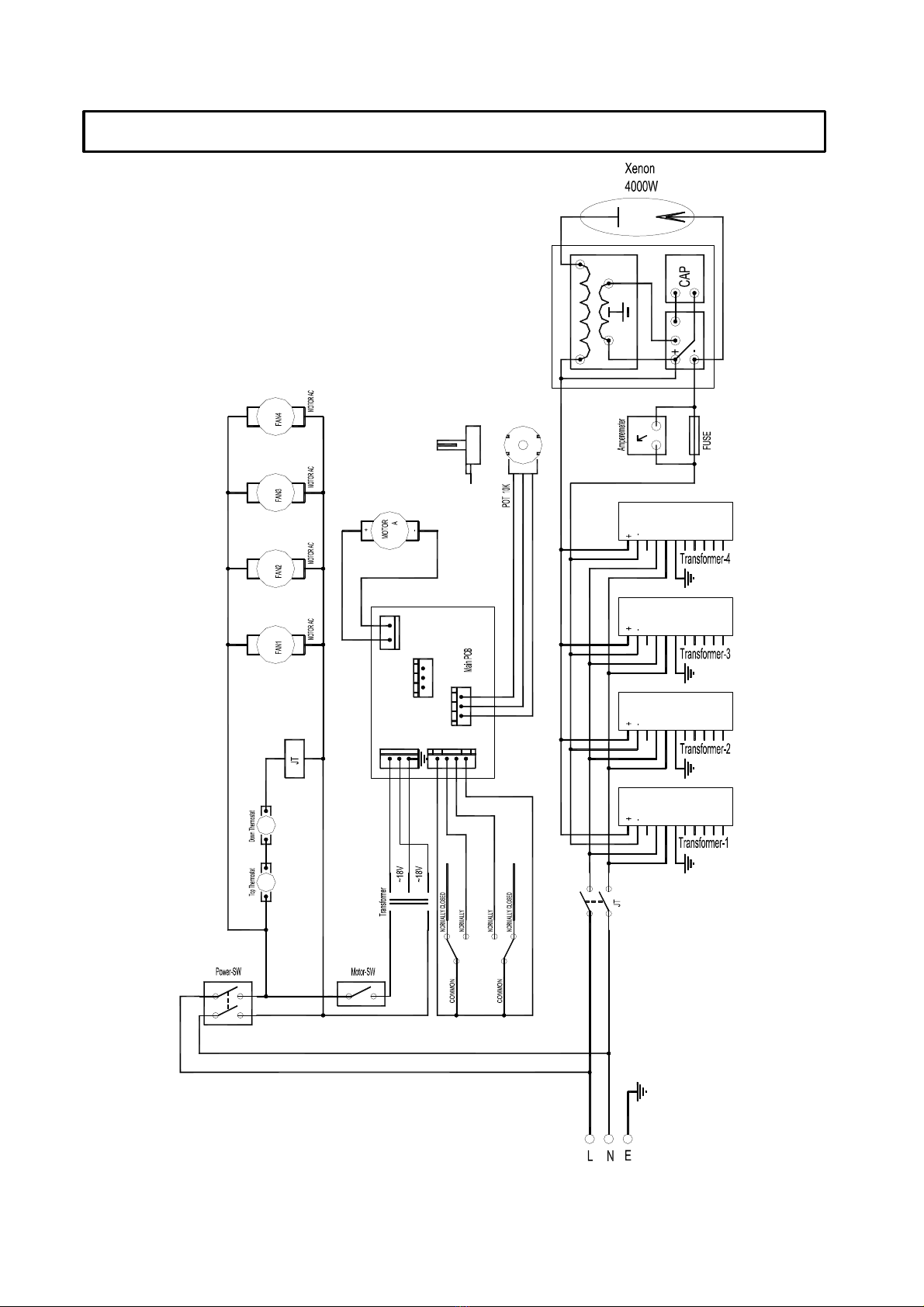

ELECTRICAL DIAGRAM

MEGA 4000_ Last Revision_En.doc

6/6

The apparatus is tested and packed properly by the manufacturer. Please make

sure the packing and / or the apparatus in good conditions before installation and use.

Any loss caused by improper uses according this manual will not be assumed by the

manufacturer and / or dealers.

This manual is subject to change without notification.

PR LIGHTING LTD.

No. 571, Yingbin Road, Dashi, Panyu, Guangzhou, China

Post-Code: 511430

TEL: +86-20-8478 1888

FAX: +86-20-8478 6023

P/N: 320040002

Last Revision: 17:04:2004

IMPORTANT STATEMENT
