OWNER’S MANUAL

Viper 150-E Dirt Bike

No one under the age of 16 should operate this Dirt bike without adult supervision. Parents

should consider child’s age, size, maturity and ability before allowing to ride.

Max. Weight Limit: 250lbs. (113kg)

Always wear a helmet; It could save your Life!

This manual should be considered as a permanent part of the vehicle and should remain with

the vehicle when resold or otherwise transferred to a new user or operator. The manual

contains important safety information and instructions which should be read carefully before

operating the vehicle.

Please obtain, review, and follow the municipal, provincial and government acts and

regulations pertaining to owning and operating an off-road vehicle.

Congratulations on your purchase of the Ricky Power Sports LLC. Viper 150-E Dirt

Bike. Your bike is warranted to be free of manufacturing defects in the material and

workmanship for a period of 90 days from the date of purchase. During the warranty

period Ricky Power Sports LLC. will at its option, repair, provide replacement parts or

replace your Ricky Power Sports LLC. Viper Dirt bike at no charge. This warranty

does not cover normal wear items or damage caused by neglect or misuse of the

product.

Engine Warranty –90 days

Frame Warranty –90 days

Warranty is void if:

Frame is bent or broken due to abuse

Wheels are bent or broken

Fender bent or broken due to abuse

Any sign of impact, accident, jumping, spin-outs or roll over.

Ricky Power Sports LLC. is not liable for any damage claim or liability claim person

or otherwise resulting from the operation of this product in any way.

Should you experience a problem with your vehicle, please call Ricky Power Sports

LLC. .customer service line toll free at 1- 844-250-2199. You will be instructed how

to proceed.

A COPY OF THE SALES RECEIPT IS REQUIRED.

WARNING

This manual should be considered as a permanent part of the

vehicle and should remain with the vehicle when resold or

otherwise transferred to a new user of operator. The manual

contains important safety information and instructions which

should be read carefully before operating the vehicle.

TABLE OF CONTENTS

NOTICE TO USER’S............................................................................................. 2

SAFE OPERATION............................................................................................... 3

PRE-RIDE CHECKLIST ......................................................................................... 3

SAFTY GEAR ...................................................................................................... 4

LOCATION OF WARNING LABELS......................................................................... 5

MAIN DATA........................................................................................................ 5

PARTS & SUBASSEMBLES.................................................................................... 7

OPERATION ....................................................................................................... 8

FUEL VALVE ....................................................................................................... 8

ENGINE STARTING ............................................................................................. 9

BREAKING IN THE ENGINE................................................................................ 10

SWITCHES ON RIGHT HANDLEBAR.................................................................... 11

GEAR SHIFTING ............................................................................................... 11

CHECK-UPS, ADJUSTMENT AND MAINTENANCE.................................................. 12

CHANGING THE OIL, CLEANING OIL FILTER SCREEN .......................................... 13

CHECK-UP OF SPARK PLUG ............................................................................... 13

VALVE INSPECTION.......................................................................................... 14

CHECKING & CLEANING THE AIR FILTER ........................................................... 14

ADJUSTING THE THROTTLE CABLE.................................................................... 15

ADJUSTING THE CARBURETOR.......................................................................... 15

INSPECTION OF FRONT HYDRAULIC DISK BRAKE............................................... 16

CLUTCH ADJUSTMENT ...................................................................................... 17

ADJUSTMENT OF CHAIN ................................................................................... 18

GREASING PROCEDURES TO THE DRIVING CHAIN ............................................. 18

TROUBLESHOOTING......................................................................................... 19

FUEL SUPPLYING CHECK................................................................................... 19

IGNITION SYSTEM CHECK................................................................................. 20

VEHICLE WASHING........................................................................................... 21

INSTRUCTIONS FOR STORAGE.......................................................................... 21

RESUMPTION OF SERVICE AFTER STORAGE....................................................... 22

TABLE OF TORQUE OF FASTENERS.................................................................... 22

RESUMPTION OF SERVICE ................................................................................ 23

INSPECTION AND MAINTENANCE ...................................................................... 23

BATTERY ......................................................................................................... 23

MAINTENANCE SCHEDULE ................................................................................ 26

SERIAL NUMBER LOCATION .............................................................................. 27

WIRE DIAGRAM................................................................................................ 28

RICKY POWER SPORTS, LLC. –EMISSION CONTROL SYSTEM WARRANTY............ 28

NOTICE TO USER’S

Please read this manual and follow all instructions carefully. To emphasize special information, the

symbol and the words WARNING or CAUTION have some special meanings. Pay great

attention to the messages.

WARNING

Indicates a potential hazard that could result in death or injury.

CAUTION

Indicates a potential hazard that could result in vehicle damage.

NOTE: Indicating special information which is to make maintenance easier or

instructions clearer.

WARNING and CAUTION are arranged like this:

WARNING -or-CAUTION

The first part will identify a POTENTIAL HAZARD.

The second part will describe WHAT COULD HAPPEN if you ignore the WARNING or CAUTION.

The third part will describe HOW TO AVOID THE HAZARD.

This user’s manual contains important safety and maintenance information.

Read it carefully before riding. Failing to follow the warnings contained in this manual could result

in INJURY or DEATH.

It is important that this manual remain with the vehicle when you transfer it to another user or

owner.

All information, illustrations, photographs and specifications contained in this manual are based on

the latest product information available at the time of publication. Due to improvements or other

changes, there will be some discrepancies in this manual. We reserve the right to make product

changes at any time, without notice and without incurring any obligation to make the same or

similar changes to the vehicle previously built or sold.

SAFE OPERATION

A pre-operation check must be conducted before starting the engine.

This check will insure safety, prevent mishaps, and prevent damage to components.

It is strongly suggested that all operators take a certified motorcycle rider’s course prior to

operating the vehicle.

Full attention is required during driving; paying close attention to the following points to avoid any

injury to you by other motorized vehicles:

·Do not drive too close to other vehicles.

·Never carry a passenger. This dirt bike is for one operator only.

·Never operate this dirt bike at night. Night is defined as the period of time 30 minutes before

sunset to 30 minutes after sunrise.

·Driving at high speeds is the cause of many accidents; do not drive at a speed that the actual

situation does not permit.

·Always avoid operating this dirt bike on paved surfaces, including; sidewalks, paths, parking

lots, driveways, streets, roads, and highways.

Never operated this or any Off-Road Vehicle on a public street, road or highway where motor

vehicles are in operation.

PRE-RIDE CHECKLIST

1. Engine oil level

a) Check for leaks

b) Tighten filler cap securely.

c) Add oil if required.

2. Fuel level

a) Add fuel as necessary.

b) Do not overfill (no fuel in the filler neck).

c) Do not mix oil with gas.

d) Replace cap tightly.

e) Do not refuel a hot engine. Allow engine to cool before adding fuel.

3. Warning decals

a) Make sure all warning decals are legible and securely attached.

b) Replace as necessary.

4. Tires

a) Ensure that both tires are in safe riding condition.

b) Properly inflate both tires. We recommend that you inflate the front tire to 15 psi and the rear

tire to 20 psi. Do not exceed 32 psi.

5. Drive chain

a) Check condition and tension.

b) Lubricate and adjust tension as necessary.

6. Throttle

a) Check for smooth operation. Make sure the throttle “snaps” back to idle.

b) Check for frayed cable or damaged cable housing. Replace damaged cable.

c) Check for mud, debris and ice in the throttle cable/mechanism.

Clean out any contamination.

SAFTY GEAR

A DOT approved motorcycle helmet is the most important part of you safety gear. A DOT

approved motorcycle helmet can help prevent a serious head injury. Choose a helmet that fits

snugly. Motorcycle dealers can help in selecting a good quality helmet which fits properly.

WARNING

Operating this Dirt bike without WARNING an approved DOAT motorcycle helmet, eye protection,

and protective clothing could be hazardous.

Operating without an approved DOT motorcycle helmet or eye protection increases your chances

of severe head injury or death in an accident. Operating without protective clothing also increases

your chances of severe injury in as accident.

Always wear an approved DOT motorcycle helmet which fits properly. Always wear eye protection

(goggles or face shield). You should also wear gloves, boots, long sleeve shirt or jacket, and long

pants.

You should wear eye protection when you ride. If a rock or a branch hits your eyes, you could be

severely injured. Wear goggles or a face shield.

Wear proper clothing when you ride. The proper clothes can protect you from injury. Wear a good

pair of gloves, strong boots that are over the ankle, long pants, and a long sleeve shirt.

LOCATION OF WARNING LABELS

Read and follow all of the warnings labels on your Dirt bike. Make sure you understand all the

labels. Keep the labels on the Dirt bike. Do not remove them for any reason. If a label come off or

become difficult to read, you should get a replacement by contacting Ricky Power Sports LLC.

MAIN DATA

DESCRIPTION

DATA

DESCRIPTION

DATA

Overall length

1540mm

Cylinder bore x stroke

62mm x 49.5mm

Overall width

640mm

Compression ratio

9.0 : 1

Overall height

880mm

Related Power

8.0Kw/8500rpm

Wheelbase

1270mm

Related torque

10.0N.m/6500rpm

Curb mass

92Kg

Idle speed

1500±150 r/min

Payload

113Kg

Displacement of cylinder

149cc

Ground Clearance

230mm

Spark plug

D8RTC (Torch)

Gap:0.6~0.8mm

Max speed

80Km/h

Front wheel

70/100-19

Transmission

5 gear mesh

Rear wheel

90/100-16

Capacity of fuel tank

6.0L

Ignition means

C.D.I.

Oil capacity

1.0L

Brake

Front: Disc

Rear: Disc

Lubrication method

Pressure, splash

Clutch

Manual / wet

PARTS & SUBASSEMBLES

Viper

OPERATION

FUEL VALVE

Fuel filling

The capacity of the fuel tank is 6.0L. Unscrew the gas cap by turning it counter clockwise and

carefully fill the tank with unleaded gasoline through the opening. DO NOT MIX GAS AND OIL

TOGETHER, THIS IS A 4-STROKE ENGINE. Replace the gas cap by carefully aligning the threads

on the cap and the tank and turning the cap clock wise. Wipe any spilled fuel from the dirt bike

using a cloth and dispose of the cloth properly. DO NOT SMOKE OR REFUEL THE VEHICLE NEAR

OPEN FLAMES OR NEAR HEATING UNITS.

ONLY REFUEL THE VEHICLE IN OPEN AREAS TO REDUCE THE LIKELIHOOD OF THE BUILD UP OF

GASOLINE FUMES.

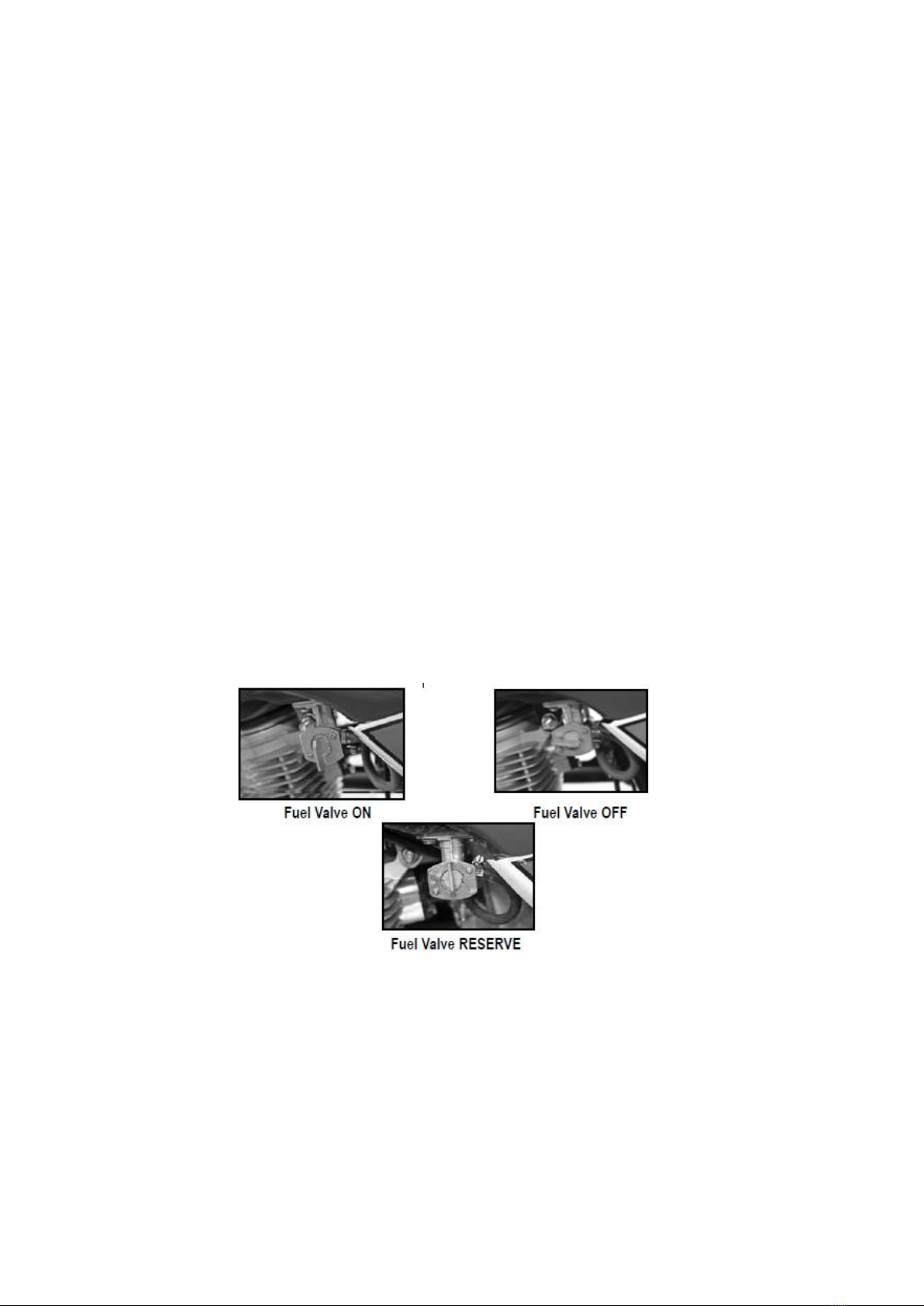

Operation of the fuel valve (the valve under the fuel tank)

ON: With the handle of the fuel valve at “ON” position, the fuel supply will flow to the carburetor.

OFF: With the handle of the fuel valve at “OFF” position, the fuel supply will not flow to the

carburetor.

RES: If fuel level in the fuel tank becomes too low for engine to stay running while fuel valve is at

“ON” position, turn fuel valve to “RESERVE”. Turning fuel valve to “RESERVE” will allow engine to

begin using reserve fuel supply.

You will need to re-fuel as soon as possible. There is approximately 1L of fuel left in tank when

fuel valve is placed at “RESERVE”. Once re-fueled, turn fuel valve back to the “ON “ Position

Table des matières

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur
