POWERBX, Inc. iPad Wall Mount Installation Instructions 1
COVER
COVER
POE-Link
(Purchased
Separately)
MOUNT SCREWS POWER OUTPUT
CABLE
Outlet Box
(Part of finished wall)
Step 1:
bottom of Cover away from Base and then pull
Coverup.
Remove two Cover Screws. Rotate Step 2: Attach Power Input (Ethernet) and
Power Output (USB/iPad) cables to POE-Link
adaptor (purchased separately). Place POE-

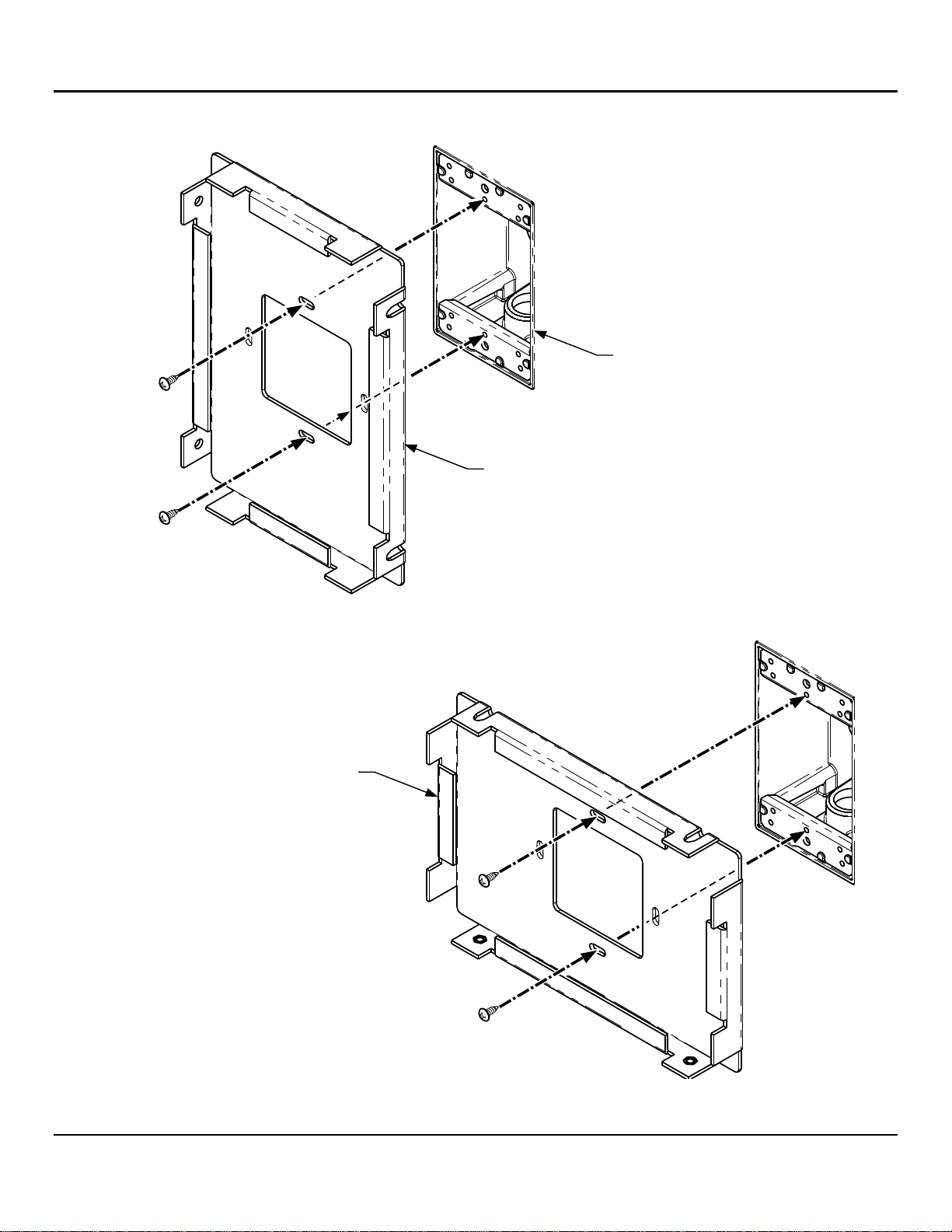

Link inside outlet box, and then attach Base to
outlet box using supplied #6 self-tapping
screws. See page two for alternate mounting
Step 3: Attach Power Output cable
from POE-Link to iPad (customer
supplied). Position iPad on Base
and hold in place while installing
Cover.
Step 4: Replace the Cover by
positioning studs on inside of Cover
into the slots on the top of the Base.
Then rotate the Cover into place as
shown.
Step 5: ReplaceCoverScrews
toholdCover inplace.Donot
overtighten.
iPad
(Customer supplied)
Ver 1.4
