PowerAcoustik PD-348B Manuel utilisateur

PD-348B

Flip-down/Detachable 3.4” Monitor

DVD/CD/MP3/MP4 Player

AM/FM Radio

Support Bluetooth

Owner‟s Manual

Take the time to read through this owner’s manual.

Familiarity with installation and operation procedures will help you obtain the best

Performance from your new DVD-receiver.

Important Safeguards

Using the device at temperature below -10℃may cause the breakage of the device.

BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE

RECOMMENDED TEMPERATURE!

Read carefully through this manual to familiarize you with this high-quality sound

system.

Disconnect the vehicle's negative battery terminal while mounting and connecting the

unit.

When replacing the fuse, be sure to use one with an identical amperage rating. Using a

fuse with a higher amperage rating may cause serious damage to the unit.

DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are

dangerous to the eyes.

Make sure that pins or other foreign objects do not get inside the unit; they may cause

malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

If you have parked the car for a long time in hot or cold weather, wait until the

temperature in the car becomes normal before operating the unit.

DO NOT open covers and do not repair yourself. Consult the dealer or an experienced

technician for help.

Make sure you disconnect the power supply and aerial if you will not use the system for

a long period or during a thunderstorm.

Make sure you disconnect the power supply if the system appears to be working

incorrectly, (For example: making unusual sounds, smelling strange, emitting smokes

from inside or liquid having gotten inside it）Have a qualified technician check the

system.

The unit is designed for negative terminal of the battery, which is connected to the

vehicle metal. Please confirm it before installation.

Do not allow the speaker wires to be shorted together when the unit is switched on.

Otherwise it may overload or burn out the power amplifier.

Do not install the detachable panel before connecting the wire.

Don't remove the detachable panel when encoding.

Contents

Important Safeguards ..............................................................................................................2

Contents...................................................................................................................................3

Accessories..............................................................................................................................4

Installation/Un-Installation........................................................................................................5

Wiring Connections..................................................................................................................6

Front panel...............................................................................................................................7

Inner panel...............................................................................................................................7

Remote control.........................................................................................................................8

Remove battery........................................................................................................................8

Main Menu...............................................................................................................................9

General Operation ...................................................................................................................9

Radio operation......................................................................................................................13

DVD/USB/SD/MMC Operation...............................................................................................14

Bluetooth Section...................................................................................................................17

Anti-theft system....................................................................................................................19

Handling & Cleaning DISC.....................................................................................................19

Troubleshooting guide ...........................................................................................................20

Specification...........................................................................................................................21

Bluetooth connection attention instructions............................................................................22

Video file conversion..............................................................................................................23

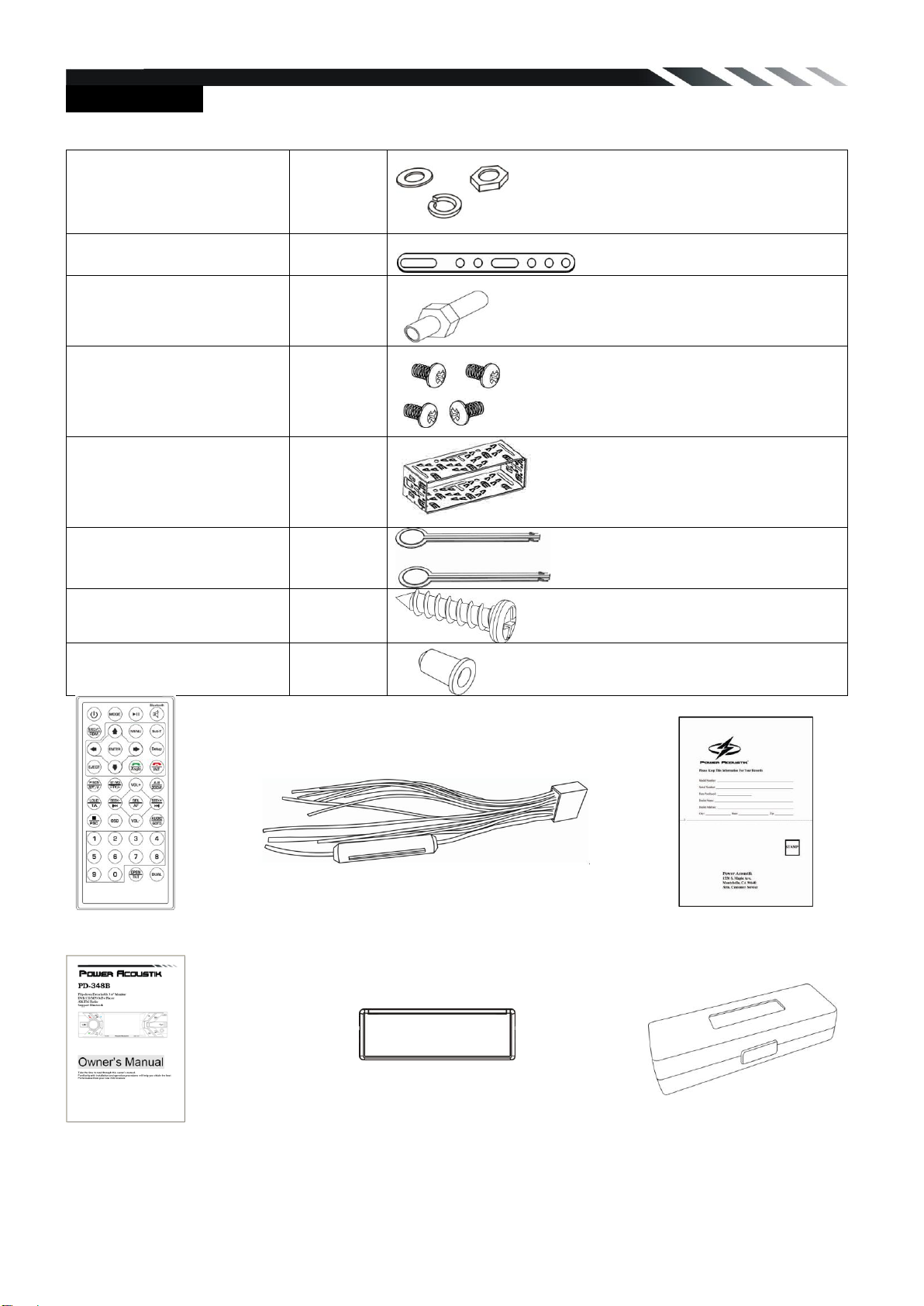

Accessories

Package contains the following accessories for installation and operation of the unit.

(1) Washer, Spring

Washer, M5 Nut

1 each

(2) Mounting Strap

(3) Bolt

(4) Screw

(5) Mounting Collar

(6) Release Key

(7) Screw

(8) Rubber Cushion

Remote Control Power cable Warranty card

User Manual Trim ring

Note:

Product image may vary from the actual delivery.

1x front panel protection case

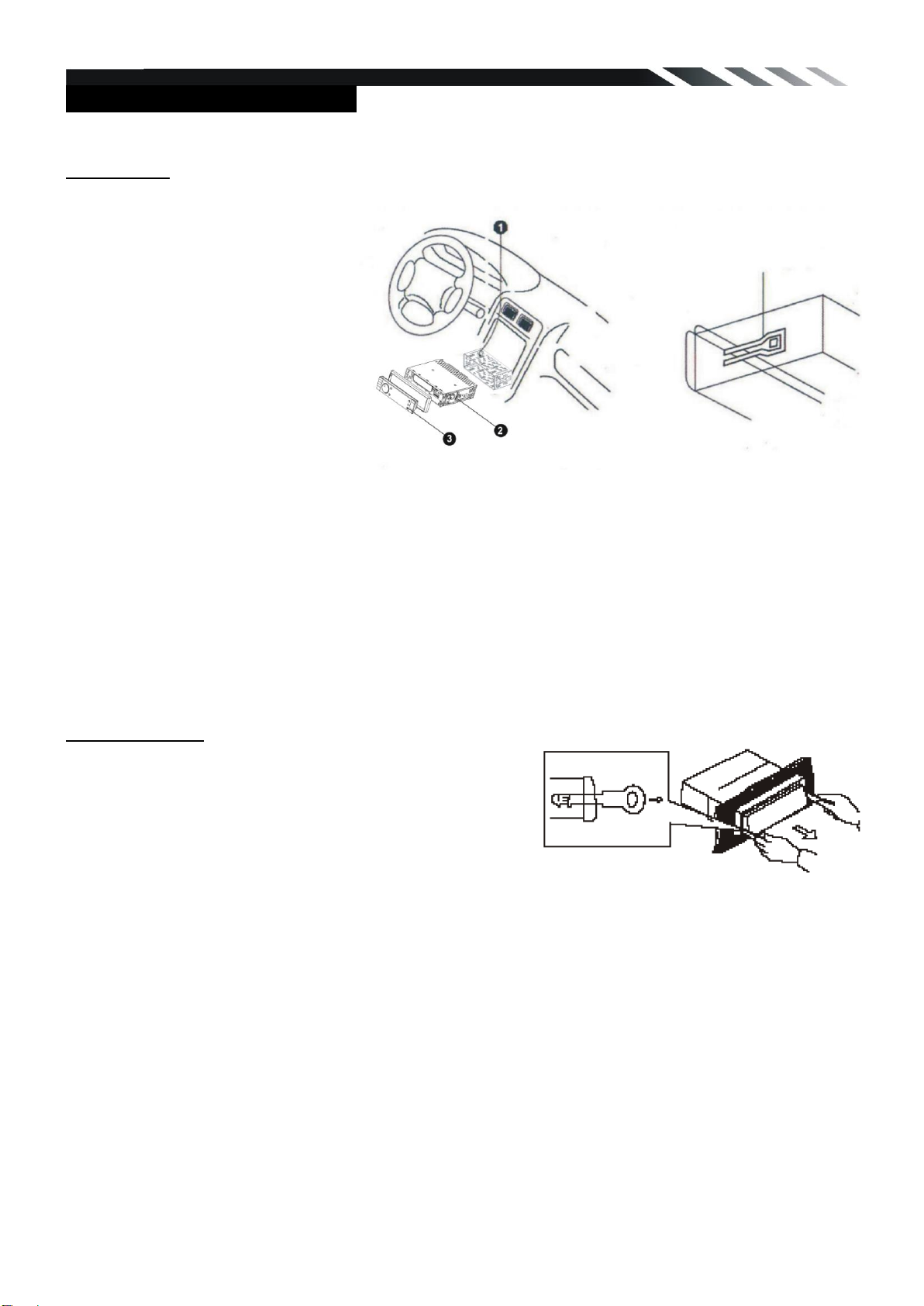

Installation/Un-Installation

First complete the electrical connections, and then check them for correctness.

Installation

This unit can be installed in any

dashboard having an opening as

shown on the picture. The

dashboard should be 4.75 –5.56

mm thick in order to be able to

support the unit.

1. Insert mounting collar into the

dashboard, and bend the

mounting tabs out with a

screwdriver.

Make sure that lock lever（※）is

flush with the mounting collar (not

projecting outward).

2. Secure the rear of the unit.

After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber

cushion.

3. Insert trim plate.

When you prepare to insert trim plate, please check its direction. Once it was up side down, it

cannot be fixed.

Un-installation

Remove Trim Ring and insert Release Keys into left and

right side-end holes as shown in below picture and pull

the unit out of the dashboard.

Lock lever（※）

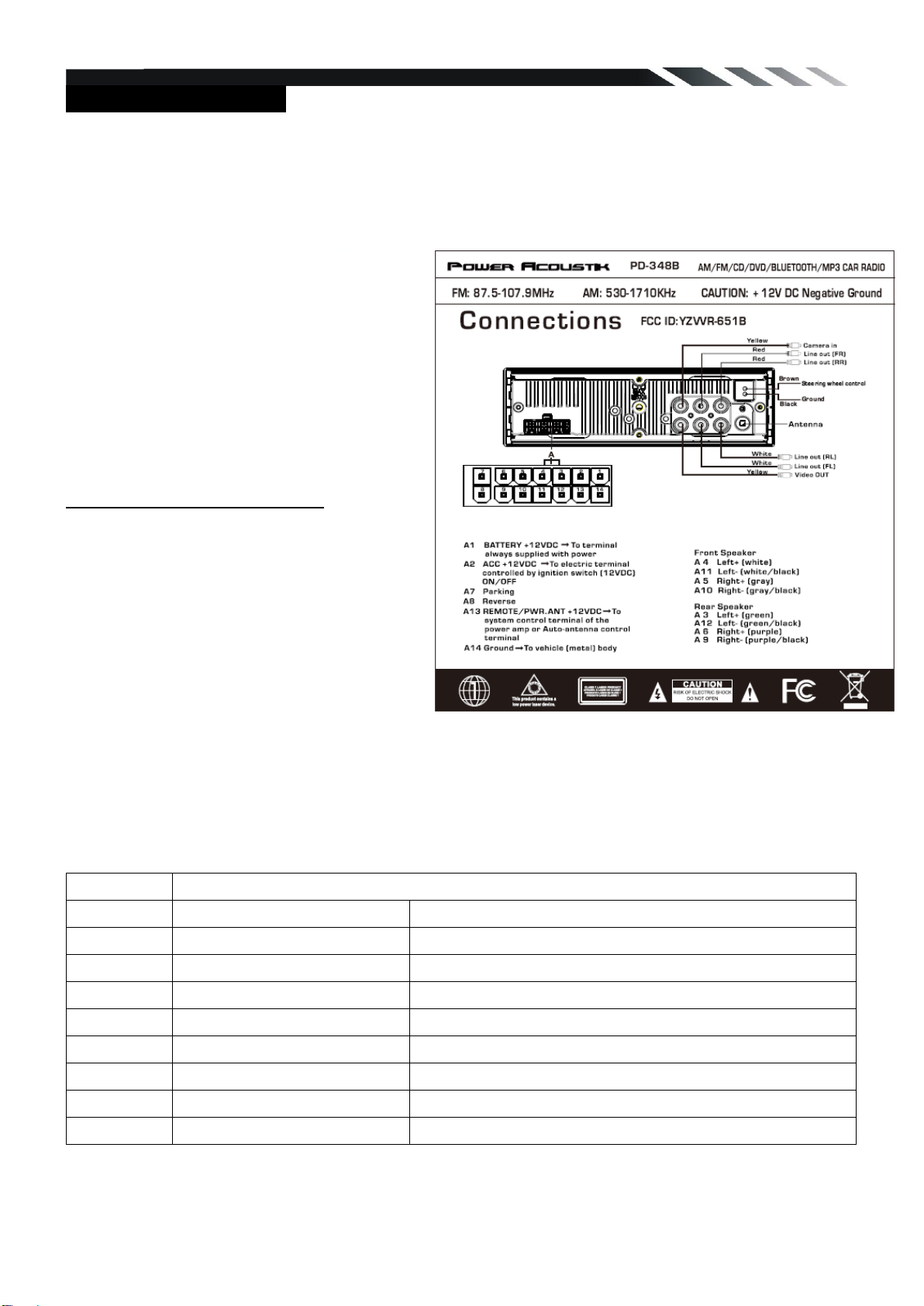

Wiring Connections

Make sure you have good chassis ground. A good ground connection will eliminate most

electrical noise problems. A good chassis ground requires a tight connection to the vehicle‟s

metal chassis. The area around the ground connection should be clean, bare metal without rust,

paint, plastic, dust, or dirt for a good electrical connection.

Caution: Do not interchange the

connection of the wiring!!!

For some car models you may need to

modify wiring of the supplied power cord.

Contact your authorized car dealer before

installing this unit.

Using the power connector

Cut the connector; connect the colored

leads of the power cord to the car battery

as shown in the color code table below for

speaker and power cable connections.

Location

Function

Connector A

Connector B

Rear Right(+)---Purple

Camera (12V DC)--Pink

Rear Right(-)---Purple/Black Stripe

Parking (GND)--Brown

Front Right(+)---Grey

Battery 12V (+)--Yellow

Front Right(-)---Grey/Black Stripe

Auto Antenna--Blue

Front Left(+)---White

Front Left(-)---White/Black Stripe

ACC(+)--Red

Rear Left(+)---Green

Ground--Black

Rear Left(-)---Green/Black Stripe

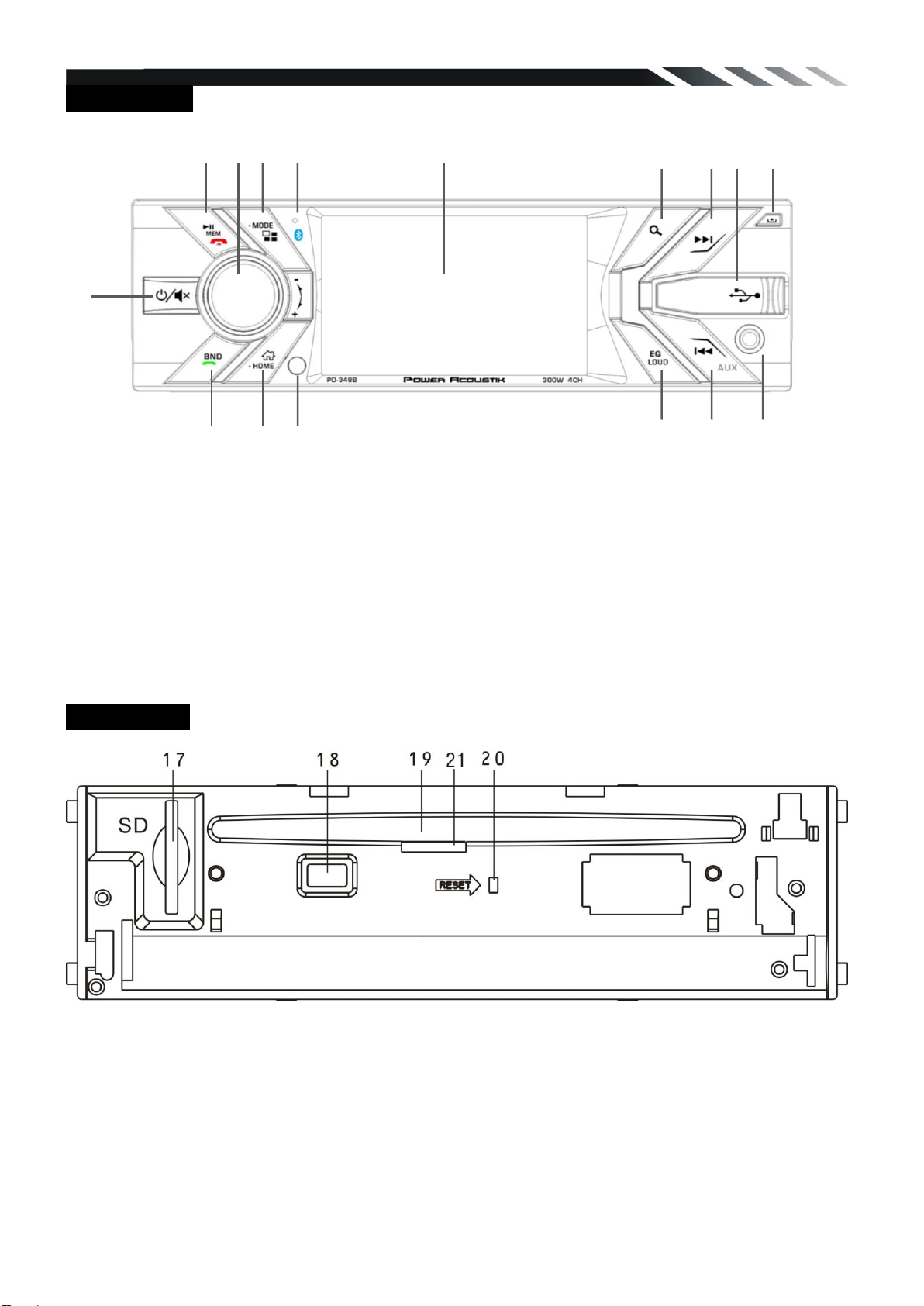

Front panel

1）Power /Mute button

2）Play/Pause /Reject button

3）Volume/OK button

4）Mode button

5）MIC

6）BAND / Media select /Accept button

7）HOME button

8）IR sensor

9）LCD Screen

10）AS/PS button

11）Next / Forward button

12）USB slot

13）Release Button

14）EQ /LOUD button

15）Previous / Reverse button

16）AUX IN jack

Inner panel

17）SD/MMC card slot

18）Eject button

19）Disc loading slot

20）Reset button (hole)

21）Anti-Theft LED flash

NOTE：When turn off the power, the unit will switch to standby mode unless cut the ACC power.

The power light will continue lighting.

14 15 16

11 12 13

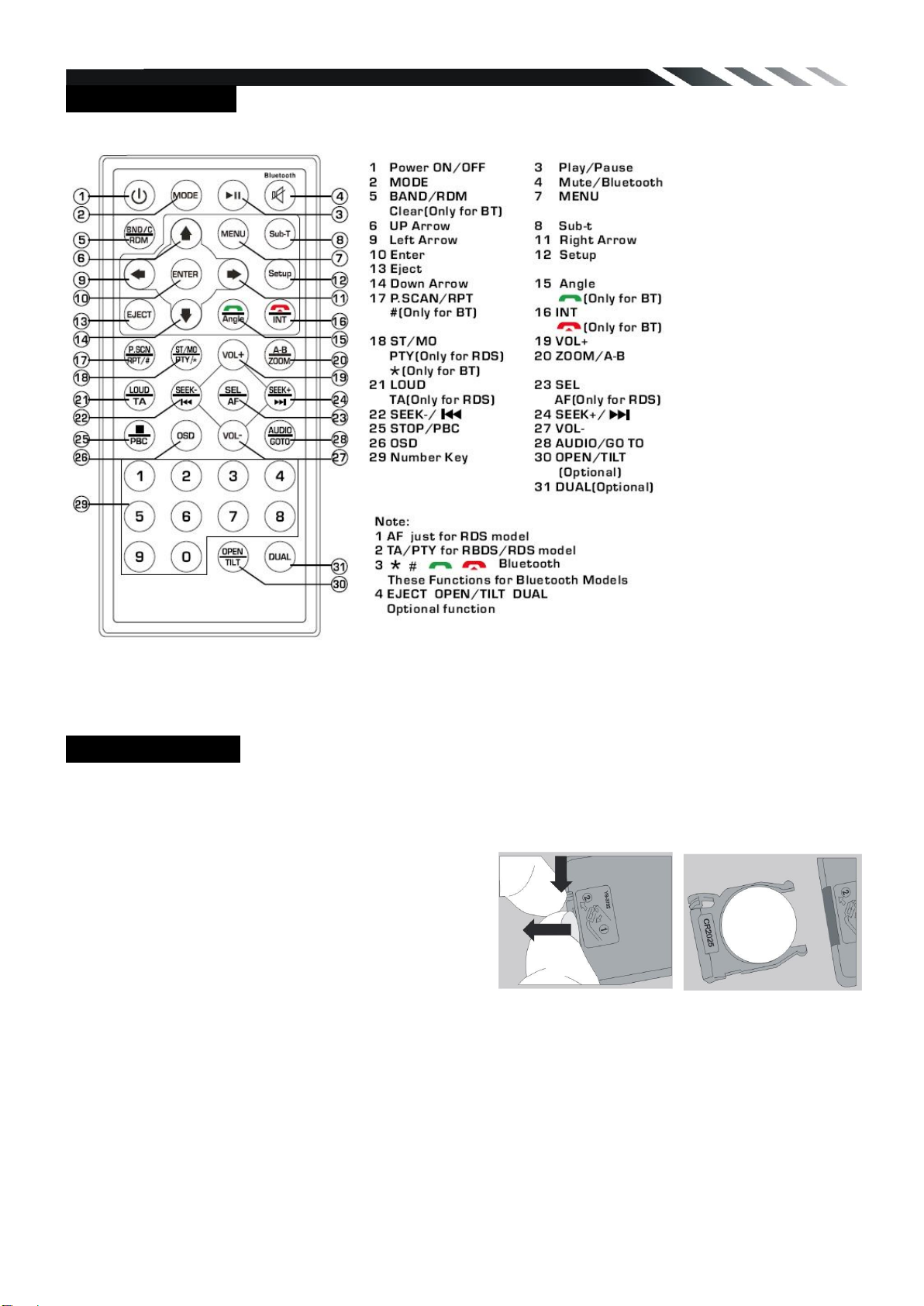

Remote control

Noted：The RC is the universal and full-featured. Some options are available with the

corresponding model.

Remove battery

Note:

The distance may vary according to the brightness of ambient light.

If the remote is not used for an extended period of time, remove the battery to prevent

possible damage from battery leakage and corrosion.

Do not place any objects between the remote

control unit and the sensor on the unit.

Do not drop the remote control onto the floor; it

will damage it beyond repair.

Do not use the remote control unit, while

simultaneously operating the remote control

unit of any other equipment; they may interfere

resulting in improper operation.

The battery normally last for about one year although depending how often the remote

control is used. If the remote control unit isn‟t working even when it is operated near the unit,

replace the battery with a new battery of the same make and use only a lithium cell battery

type: CR2025 (3V).

Dispose empty batteries in accordance with your local governmental regulations.

Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.

Keep the battery out of reach of children, should the battery be swallowed, immediately

consult a doctor.

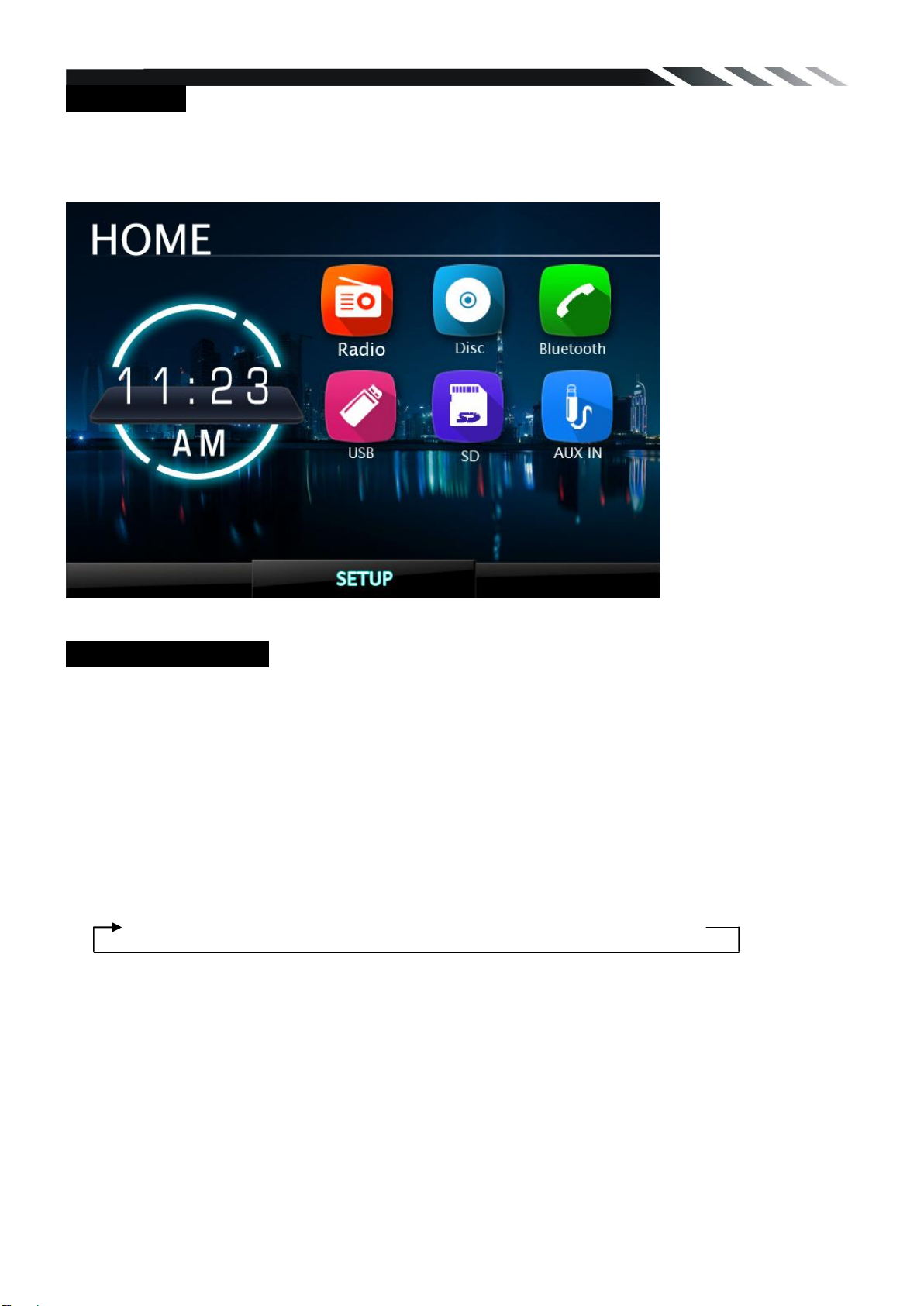

Main Menu

The best way to discover the program is to explore each screen in detail, and to find out how to

move from one to another. Read this chapter for a guided tour.

Unit starts by displaying the Main menu.

This is the root of the screen hierarchy, you can simply take knowledge of the features.

General Operation

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press OPEN button on the panel to open the panel and press RESET button to restore the unit

to its original factory settings.

Power on or off

Press any button (except open button) to turn on the unit.

Long press POWER button on front panel or press power button on the RC to power off the unit..

Mode setting

Press the MODE button repeatedly to switch between inputs:

RADIO→DISC* →Bluetooth* →USB* →SD* →AUX IN→RADIO

(* available only if there is media device in disc, SD, USB slot and Bluetooth connection is OK.)

Volume/OK

Adjust the volume level by turning the VOL knob on the panel clockwise to increase or

counterclockwise to decrease or pressing VOL+ or VOL- on the RC to increase or decrease the

volume.

In any mode, rotate VOL knob to select the file you want to playback, press the OK button to

enter the next menu.

Sound Adjustments

Press the SEL button on the RC or front panel to select the audio settings consisting of following

items:

EQ: Select the digital sound effect FLAT→CLASSIC→POP→ROCK→USER.

BASS: Bass up/down.

TREBLE: Treble up/down.

BALANCE: Left/right Balance control.

FADER: Front/rear Fader control.

BEEP: Keypad sound setting.

LOUDNESS: Set the loudness on or off.

Rotate Volume knob on the front panel or press up/down arrow on the RC to select any items

and then press OK button on the panel or Enter button on the RC to confirm the item.

Rotate Volume knob or press LEFT/RIGHT buttons on the RC to adjust the audio setting. Press

OK button on the panel or Enter button on the RC to confirm and again press SEL button return

to current mode.

Note:

If the unit is turned off, all the settings of each mode will be saved.

If cutting off battery power or resetting the unit, all the settings will return to factory default

settings.

When EQ is set to any mode (except USER mode), Bass and Treble are not adjustable.

Mute function

Press POWER/MUTE button on the panel or MUTE button on the RC to turn the sound off. Press

it again to resume the volume.

Loudness

Press LOUD button on RC or long press the LOUD button on the front panel to set loudness or

off.

Short press the EQ button on the panel to choose sound effect in the sequence of FLAT→

CLASSIC→POP→ROCK→EQ OFF.

Press Menu button to show main menu. In DVD mode press and hold for two seconds to enter

title menu (Enable only if the DVD disc with title menu).

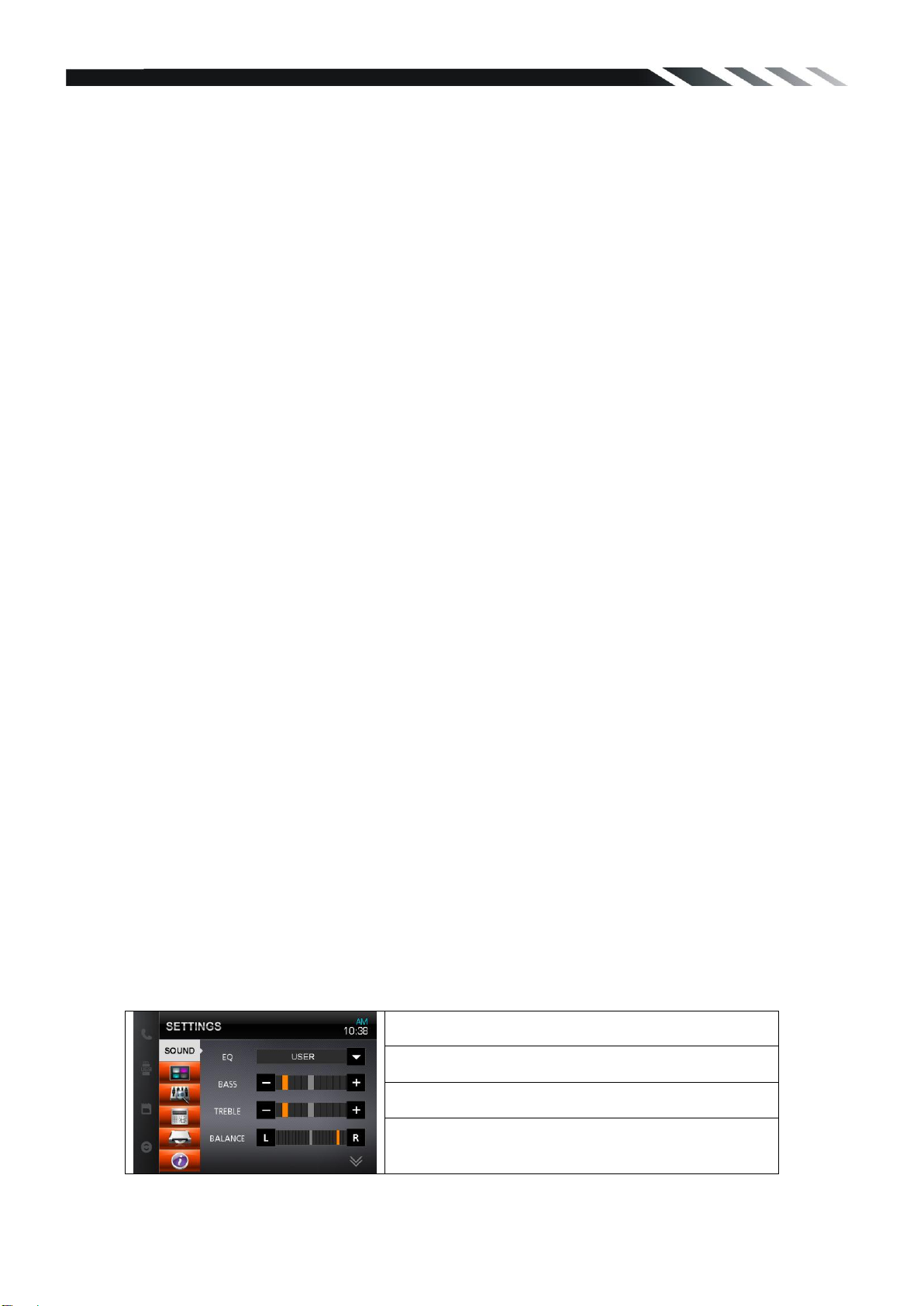

Setup

Press SETUP button on the RC or SETTING icon on the main menu to go to setup pages.

1) Rotate Volume knob on the front panel or press up/down arrow on the RC to select any items

and then press OK button on the panel or Enter button on the RC to confirm the item

2) Rotate Volume knob or press LEFT/RIGHT buttons on the RC to adjust the audio setting.

Press OK button on the panel or Enter button on the RC to confirm.

3）Press SETUP button again return to current mode.

Sound

EQ: select the digital sound effect.

BASS: bass up/down.

Treble: treble up/down.

Balance: Left/right Balance control.

Table des matières

Autres manuels PowerAcoustik Récepteur de voiture

PowerAcoustik

PowerAcoustik PTID-4360 Manuel utilisateur

PowerAcoustik

PowerAcoustik PL-10A Manuel utilisateur

PowerAcoustik

PowerAcoustik PADVD-340TV Manuel utilisateur

PowerAcoustik

PowerAcoustik PD-712 Manuel utilisateur

PowerAcoustik

PowerAcoustik PACD-888R Manuel utilisateur

PowerAcoustik

PowerAcoustik PAUS-850 Manuel utilisateur

PowerAcoustik

PowerAcoustik PAVN-4210 Manuel utilisateur

PowerAcoustik

PowerAcoustik PADVD-340B Manuel utilisateur

PowerAcoustik

PowerAcoustik PADVD-220 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-8940N Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-4003 Manuel utilisateur

PowerAcoustik

PowerAcoustik PADVD-240 Manuel utilisateur

PowerAcoustik

PowerAcoustik PCD-42B Manuel utilisateur

PowerAcoustik

PowerAcoustik PACD-509 Manuel utilisateur

PowerAcoustik

PowerAcoustik PACD-506 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-8940NRBT Gen 2 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-4002 Manuel utilisateur

PowerAcoustik

PowerAcoustik PDR-654 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-8950 Manuel utilisateur

PowerAcoustik

PowerAcoustik PL-52B Manuel utilisateur

PowerAcoustik

PowerAcoustik PA-442R Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-4003TV Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-8940NBT Manuel utilisateur

PowerAcoustik

PowerAcoustik PA-551D Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
