PowerAcoustik PACD-507 Manuel utilisateur

MUTE

SEL

ENTU

REL

CLK

INT

LO UD

LO C

RPT RDM

BA N D

PWR

CAR COMPACT DISC PLAYER

INSTRUCTION MANUAL

AUTO-LOADING COMPACT DISC PLAYER

AM/FM STEREO MANUAL TUNING RADIO

PACD-507

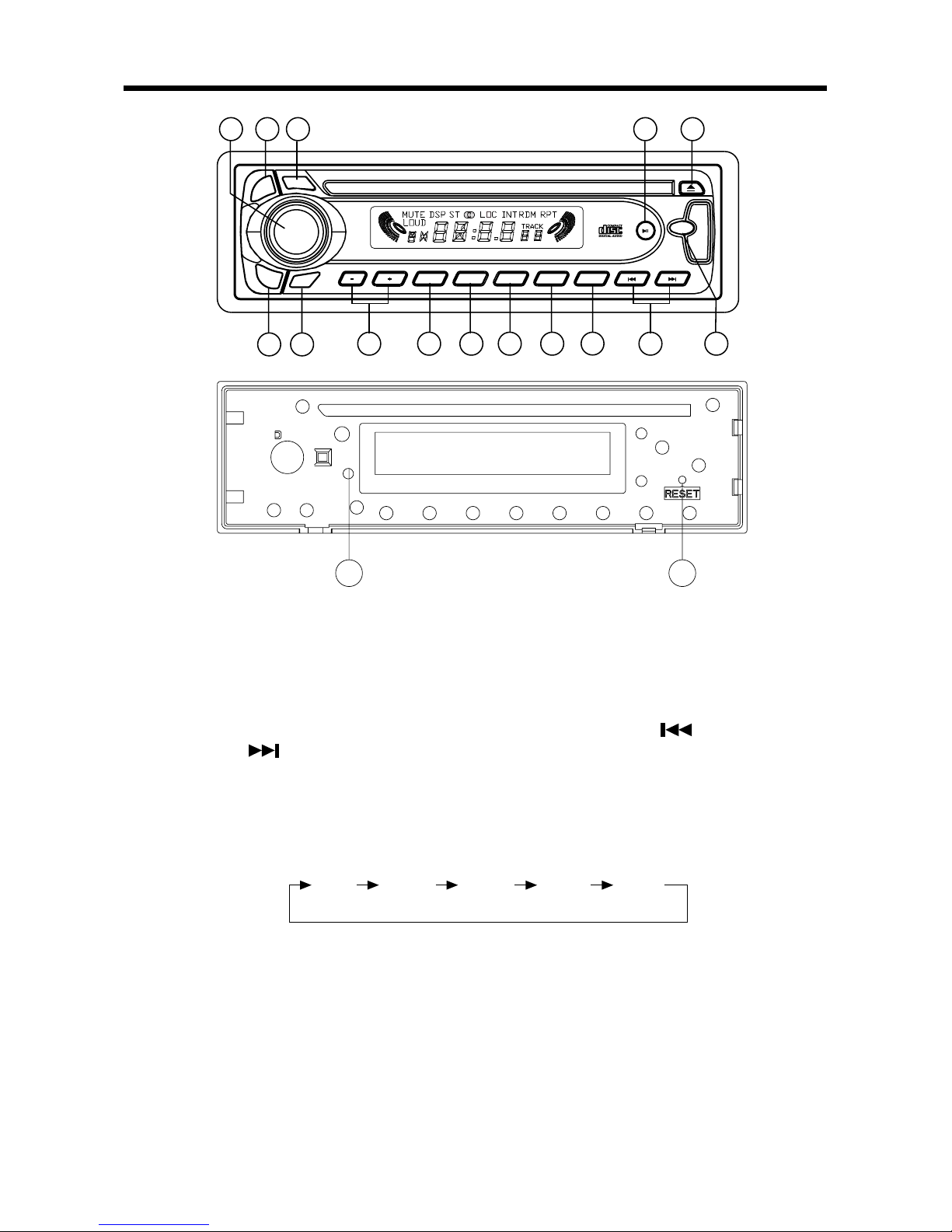

BASIC OPERATION

5647 8 9 10 11 12

31 2 13 15

MUTE

SEL

ENTU

REL

CLK

INT

LO UD

LO C

RPT RDM

BA N D

PWR

CAR COMPACT DISC PLAYER

16 17

1. REL BUTTON

Press it to detach the front panel when you want to take the unit away.

2. CLOCK ADJUSTMENT BUTTON

Press it to change the display to clock display. In clock display, press CLK button

for more than 2 seconds until time flashes on LCD, then press button to adjust

hour. Press button to adjust minute. When adjustment is completed, release it.

3. TUNE BUTTON

Rotate it to select your desired broadcasting station.

4.5. VOLUME +/- & SEL BUTTON

Press SEL button to change the mode as below:

VOL BAS TRE BAL FAD

(Volume) (Bass) (Treble) (Balance) (Fader)

A. The volume level can be adjusted at any time by pressing the + or – button as

select mode has been initially defaulted at volume mode.

B. Press the SEL button to select volume, bass, treble, balance, fader mode, then

use volume + or – button to adjust them.

Note: The fader function for 4 speakers system only.

6. EQ BUTTON

Press it repeatedly to switch between 3 preset equalizer curves: CLAS, POP and

ROCK. The sound quality will be changed.

BASIC OPERATION

7. MO/INT BUTTON

MO MODE: Press it to select mono or stereo mode.

INT MODE: During CD mode, press “INT”(intro) button to hear the first 10 seconds

of each track on the disc. Press this button again to restore the player to its normal

play mode.

8. LOC/RPT BUTTON

LOCAL/DISTANCE MODE: When in the radio mode, press it to select local or

distance broadcast station receive sensitivity.

REPEAT MODE : During CD mode, press RPT button to repeat a single track.

9. LUD/RDM BUTTON

LUD MODE: When reduce the volume to half level, press it to enhance the bass

effect.

RDM MODE: During CD mode, press RDM button for more than 2 seconds to play

all tracks in the random order, press it again to cancel the function.

10. MUTE BUTTON

Press it to eliminate the sound immediately. Press it again to release this mode and

recover the previous volume level.

11. BAND BUTTON

RADIO MODE: Press it to select your desired radio band and the word which band

is selected will be displayed on LCD.

CD MODE: Press it to change the mode to radio mode.

12. PWR BUTTON

Press power button to turn on or off the unit.

13. BUTTON

RADIO MODE: Change the mode to CDP mode.

CDP MODE: During CD playback, press it will stop play temporarily. Press it again

to return to normal play back.

14. or BUTTON

A. In CD mode, press / button during playback to skip to next or back one track.

B. In CD mode, press and hold / button for several seconds during playback

to fast forward or fast reverse. Releasing the button to stop fast playing.

15. BUTTON

Press (EJECT) button to stop CD play and eject CD from the slot.

16. LED INDICATOR

Flashing when detachable panel is removed.

17. RESET BUTTON

Press it to rehabilitate the distorted program to zero.

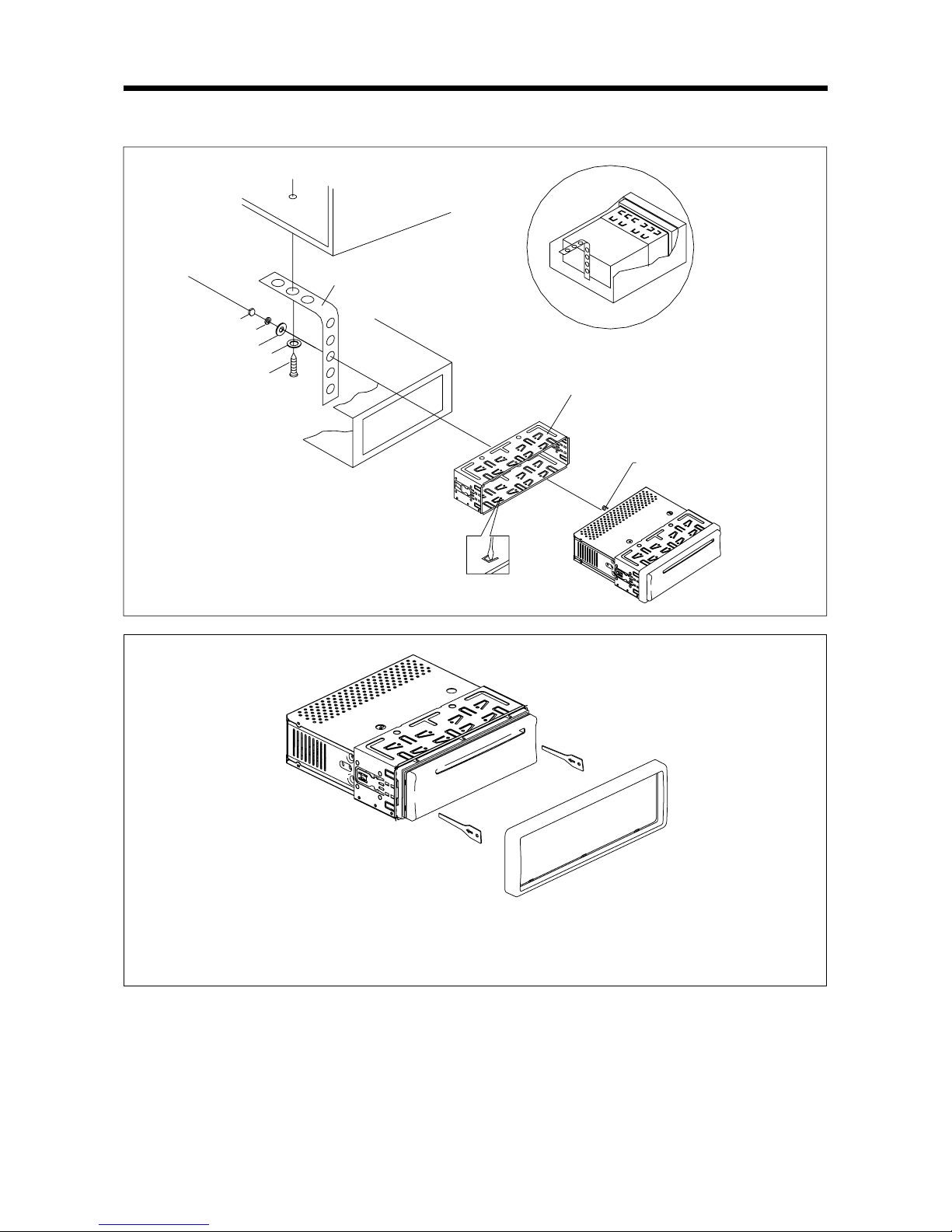

METAL MOUNTING STRAP

DASH BOARD

CONSOLE

SLIDE BRACKET HOUSING

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

HEX BOLT

INSTALLATION

ELECTRIC CONNECTION

FOR 4X7W

RED

YELLOW

BLACK

BLUE

VIOLET

VIOLET/BLACK

FRONT RCA

OUTPUT CABLE (optional

FRONT

RchSPK

REAR

RchSPK

REAR

LchSPK

FRONT

LchSPK

AUTO

ANTENNA

GROUND(B-

MEMORY (B+

IGNITION

SWITCH (B+

ANTENNA CONNECTOR

FUSEBOX

GREEN

GREEN/BLACK

GREY

GREY/BLACK

WHITE

WHITE/BLACK

Rch RED

Lch WHITE

MAIN UNIT

DISC NOTICE

DISC PLAY:

Cleaning discs

Before playing, clean the disc with a clean, lint-free.

Flip the disc in the direction of the arrow.

NOTE:

Do not use so solvents such as benzine, thinners. Commercially available

cleaners or anti static spray damage the unit.

Insert a disc with the label surface down. Doing so may damage the unit.

NOTE:

Do not try to insert another disc when one has been already inserted. Doing so may

damage the unit.

Handle the disc by its edge. And to keep the disc clean, do not touch the surface.

Do not stick paper or tape on the disc.

Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Or leave

it in a car parked in direct sunlight where there can be a considerable rise in

temperature.

Label

surface up

SPECIFICATIONS

Supply voltage : 12V DC (11V-15V), test voltage 14.4V, negative ground

Current consumption : Less than 5A

Audio signal output

characteristics : (1) Frequency response 20 Hz-20 kHz

(2) S/N Radio 85 dB (JIS)

(3) Wow and Flutter Below measurable limits

FM SECTION:

Frequency Coverage ............................................................................. 88 to 108 MHz

IF ................................................................................................................... 10.7 MHz

Sensitivity (S/N = 30 dB).................................................................................... 20 dBu

Stereo Separation.............................................................................................. >30 dB

AM SECTION:

Frequency Coverage.......................................................................... 530 to 1710 KHz

IF...................................................................................................................... 455 KHz

Sensitivity (S/N = 30 dB).................................................................................... 40 dBu

Note:

Specifications and design are subject to modification, without notice, due to improvements

in technology.

TROUBLE SHOOTING

Before going through the check list, check wiring connection. Should any of the

problem persist after check list has been made, consult your nearest service dealer.

Symptom Cause Solution

No power. The car ignition switch is If the power supply is properly

not on. connected to the car accessory

terminal, switch the ignition key

to “ACC”.

The fuse is blown. Replace the fuse.

Disc cannot be Presence of disc inside Remove the disc in the player,

loaded or ejected. the player. then put a new one.

Inserting the disc in reverse Insert the compact disc with

direction. the label facing upward.

The disc is extremely Clean the disc or try to play a

dirty or defective. new one.

Temperature inside the car Cool off or until the ambient

is too high. temperature return to normal.

Condensation. Leave the player off for an hour,

then try again.

No sound. Volume is in minimum.

Adjust volume to a desired level.

Wiring is not properly Check wiring connection.

connected.

Sound skips. The installation angle is Adjust the installation angle less

more than 30 degrees. than 30 degrees.

The disc is extremely dirty Clean the compact disc, then

or defective disc. try to play a new one.

The operation keys The built-in microcomputer Press the RESET button.

do not work. is not operating properly Front panel is not properly fixed

due to noise. into its place.

The radio does not The antenna cable is not Insert the antenna cable firmly.

work. connected.

The signals are too weak. Select a station manually.

88-C2950-14
