Power Master T Instructions d'installation

READ THIS MANUAL CAREFULLY

BEFORE INSTALLATION OR USE.

SAVE THESE INSTRUCTIONS.

Serial #:

Date Installed:

Your Dealer:

As of date of manufacture,

meets all ANSI/UL 325

Safety Requirements for

Vehicular door operators.

INSTALLATION AND OWNER’S MANUAL

MODEL T

Trolley Door Operator

UL 325 and UL 991 Listed

Table of Contents

Model T Drawbar Operator

Product Features....................................................................................................3

Preparation.............................................................................................................4

Component Identication........................................................................................5

Important Installation Notes (Things to do Before & During Installation)................6

Installation Instructions................................................................................. 7-14

Rail/Track Assembly .......................................................................................7

Operator Assembly..................................................................................... 8-9

Mounting the Operator ........................................................................... 10-13

Setting the Limit Switches ............................................................................14

Electrical Wiring Instructions ................................................................................15

Accepted Safety Equipment .................................................................................16

Important Safety Notes for Owner........................................................................17

Operation and Adjustment Instructions..................................................... 18-19

Clutch Adjustment ........................................................................................18

Testing ..........................................................................................................19

Maintenance.........................................................................................................20

Trouble Shooting Chart ........................................................................................21

Warranty ...............................................................................................................23

CAUTION

READ THESE STATEMENTS CAREFULLY AND FOLLOW THE

INSTRUCTIONS CLOSELY

The Warning and Caution boxes throughout this manual are there to protect you and your

equipment. Pay close attention to these boxes as you follow the manual.

Indicates a MECHANICAL

hazard of injury or death.

Gives instructions to avoid

the hazard.

Indicates a MECHANICAL

hazard of damage to your

operator or equipment. Gives

instructions to avoid the hazard.

Indicates an ELECTRICAL

hazard of injury or death.

Gives instructions to avoid

the hazard.

Indicates an ELECTRICAL

hazard of damage to your

operator or equipment. Gives

instructions to avoid the hazard.

CAUTION

WARNING

The purpose of this booklet is to provide assembly, installation, and operation information

concerning PowerMaster Model T Drawbar Commercial Vehicular Garage Door Operators and

related Accessory Products.

NOTE: IT IS IMPORTANT THAT THIS INSTRUCTION MANUAL BE READ AND

UNDERSTOOD COMPLETELY BEFORE INSTALLATION OR OPERATION IS ATTEMPTED.

IT IS INTENDED THAT THE INSTALLATION OF THIS UNIT WILL BE DONE ONLY BY

PERSONS TRAINED AND QUALIFIED IN THE INSTALLATION, ADJUSTMENT, AND

SERVICE OF COMMERCIAL OVERHEAD DOORS AND DOOR OPERATORS, AND BY

QUALIFIED ELECTRICIANS.

The important safeguards and instructions in this manual cannot cover all possible

conditions and situations which may occur during its use. It must be understood that

common sense and caution be exercised by the person(s) installing, maintaining, and

operating the equipment described herein.

Do not use this equipment for any purpose other than its intended use: the operation of an

overhead commercial vehicular garage door.

STANDARD FEATURES

Limit Switches: Rotary limit switches, easily adjusted over a wide range. The motor may be

removed without aecting the limit switch adjustments.

Manual Release: Permits manual operation of the door in the event of a power failure. The

Model T operator is equipped with a door arm disconnect to aid in manual operation. Use of

this feature will not aect the limit switch adjustment.

Control circuit: Standard 3-button open, close, and stop. 24 Volts AC.

Connections for Auxiliary Entrapment Protection Devices: Use with reversing door edge

components or a photo-electric beam device across the opening.

Constant pressure to close: Standard operation.

MODEL T OPERATOR APPLICATIONS

Drawbar operators are intended for commercial and industrial use on sectional overhead

doors which use horizontal track with normal radius. A drawbar operator is not suitable for

doors with high lift or vertical lift doors. The installation requires a minimum clearance of 8

inches above the highest point of the door at any point in its travel. Please refer to Figure 10

for back room requirements.

A drawbar operator - when properly installed - will eectively lock the door in the closed

position.

PRODUCT FEATURES

Before starting the installation of the

operator, the door must be in good

working condition, properly operating,

and be properly counterbalanced. Inspect

the door and track for loose or missing

hardware. Test the door manually for

balance and ease of operation. Lubricate

door hinges and rollers. If necessary,

employ a qualied technician to adjust

the springs for proper counterbalance of

the door.

Before removing the operator powerhead

from the shipping carton, inspect the

nameplate on the cover of the operator

control box to verify that it is the correct

model for the intended application,

and that the voltage and phase are

in accordance with electrical power

provided at the job site. The rails are

shipped separately from the powerhead.

Model T Drawbar operators are used in the following applications:

• Continuous Duty, Indoor Commercial installations only

• Up to 22 foot high doors with a maximum area of 480 square feet for 3/4HP, 360 square

feet for 1/2HP, and 270 square feet for 1/3HP. Maximum area slightly higher for lighter

doors - consult factory.

• Use with reversing door edge or photoelectric device - REQUIRED where the 3-button

station is out of sight of the door, or any other automatic, remote, or manual control is

used to activate the door.

OPTIONAL FEATURES:

Digital Radio Controls: Open, Close and Stop operation. Radio units are available to control

up to 27 doors from one transmitter.

Keyless Entry System: Connection terminals provided for hard wired or wireless keyless

entry systems.

ELECTRIC DOOR OPERATORS ARE DESIGNED FOR DOORS IN

GOOD WORKING CONDITION: PROPERLY OPERATING, PROPERLY

COUNTERBALANCED, AND PROPERLY ADJUSTED IN ACCORDANCE

WITH THE DOOR MANUFACTURER’S INSTALLATION INSTRUCTIONS.

WARNING

PREPARATION

SPRINGS ARE SUBJECT TO VERY HIGH

FORCES AT ALL TIMES. ADJUSTMENTS

ARE TO BE MADE BY A QUALIFIED

PROFESSIONAL DOOR INSTALLER ONLY.

WARNING

ROPE OFF THE AREA TO KEEP

PERSONNEL AND VEHICLES CLEAR OF

THE DOOR AND FLOOR SPACE IN THE

VICINITY OF THE OPERATOR DURING

THE INSTALLATION.

WARNING

REMOVE OR DISABLE ANY LOCKING

DEVICES FROM DOOR. REMOVE

ALL ROPES.

WARNING

COMPONENT IDENTIFICATION LISTING

Item# Description Quantity

1 Track Rails 2

2Front Track Bracket 1

3 Idler Roller Assembly 1

4 Track Spreader Bars 2

5 Upper Half of Trolley Assembly 1

6 Lower Half of Trolley Assembly 1

7Chain Take-Up Bolt 1

8 Operator Power Head 1

9 Drive Chain 1

10 Chain Connecting Link 1

11 Curved Door Arm 1

12 Straight Arm w/Disconnect 1

13 Door Bracket 1

14 Hardware Package 1

15 3 Button Station 1

UPPER HALF

TROLLEY ASSEMBLY

LOWER HALF

TROLLEY ASSEMBLY

IDLER ROLLER

ASSEMBLY

OPERATOR

POWER HEAD

SPREADER

BARS

TRACK RAILS

DOOR

CONNECTING

ARMS

FRONT TRACK

BRACKET

HARDWARE

PACKAGE

STRAIGHT

ARM WITH

DISCONNECT

THREE

BUTTON

STATION

CHAIN

CONNECTING

LINK

CHAIN

TAKE-UP BOLT

CHAIN

DOOR

BRACKET

FIGURE 1

COMPONENT IDENTIFICATION

COMPONENT IDENTIFICATION LISTING

Item# Description Quantity

1 Track Rails 2

2Front Track Bracket 1

3 Idler Roller Assembly 1

4 Track Spreader Bars 2

5 Upper Half of Trolley Assembly 1

6 Lower Half of Trolley Assembly 1

7Chain Take-Up Bolt 1

8 Operator Power Head 1

9 Drive Chain 1

10 Chain Connecting Link 1

11 Curved Door Arm 1

12 Straight Arm w/Disconnect 1

13 Door Bracket 1

14 Hardware Package 1

15 3 Button Station 1

• Install only on a properly balanced garage door. An improperly balanced door could

cause severe injury. Have a qualied service person make repairs to cables, spring

assemblies, and other hardware before installing the opener.

• Remove all ropes, and remove or make inoperative all locks that are connected

to the garage door before installing the opener (unless mechanically and/or

electrically interlocked to the power unit).

• Lightweight doors (berglass, aluminum etc.) must be reinforced to avoid door

damage. Check the door manufacturer’s instruction manual for a bracing procedure

or the availability of a Reinforcement Kit.

• PowerMaster Model T Drawbar operators are Commercial Vehicular Door Operators,

and as such, are NOT recommended for pedestrian trac. In installations where it

is known that the pedestrians will be nearby, ensure a pedestrian door is available

for entrance and exit to the building. In addition, YOU MUST install an auxiliary

entrapment protection device (reversing door edge or photoelectric beam device)

as part of the compete operator system.

• Connect an auxiliary entrapment protection device (reversing edge or photoelectric

device across the door opening). A device of this type is STRONGLY ADVISED FOR

ALL commercial operator installations. An auxiliary entrapment protection device

is REQUIRED when the three button control station is out of sight of the door or any

other automatic or manual control is used.

• Install the opener AT LEAST 8 feet or more above the oor.

• Do not connect the opener to the source of power until instructed to do so.

• Locate the control station:

a. Within sight of the door;

b. At a minimum height of 5 feet above the oor so small children cannot reach it;

and

c. Away from the door, so the user is prevented from coming in contact with the

door while operating the controls.

• Do not overtighten the clutch adjustment to compensate for a poorly working door.

• Securely attach any WARNING signs or placards to either the door or above the

control station as directed.

• After installing the opener, all safety features must be tested for proper operation.

(See TESTING section)

IMPORTANT INSTALLATION NOTES

TO REDUCE THE RISK OF SEVERE INJURY OR DEATH, READ

& FOLLOW ALL INSTALLATION INSTRUCTIONS!

WARNING

TRACK ASSEMBLY

Before starting assembly of the operator track, check for proper length. The tracks supplied

may be longer than required for the door height. The tracks should be 3-1/2 feet longer than

the door height. If tracks supplied are longer than the door height plus 3-1/2 feet, it will be

necessary to trim the rails in 2-foot increments from the power head mounting end.

CAUTION: WHEN NECESSARY TO CUT TRACK, ENSURE THE ENDS ARE LINED UP AS

SHOWN IN FIGURE 2.

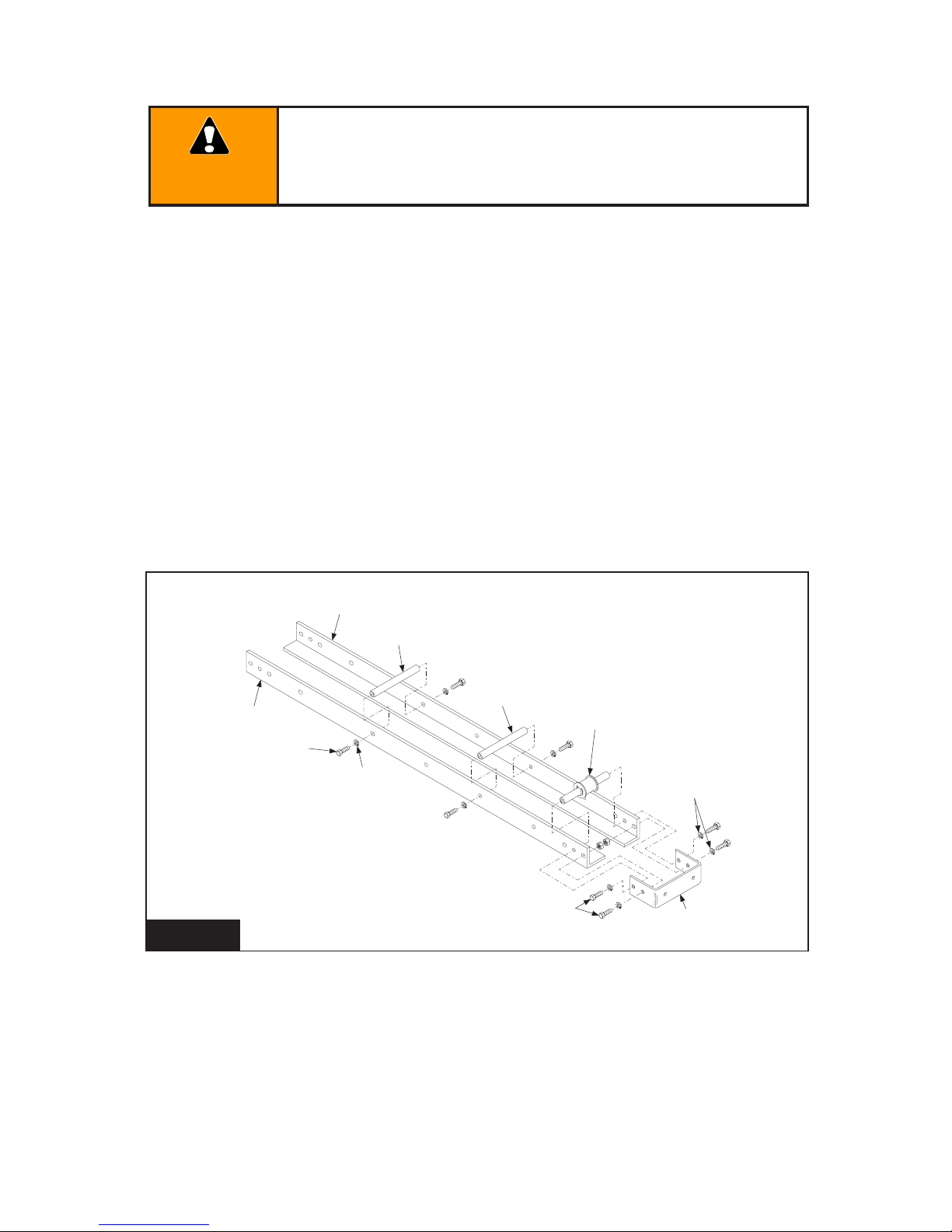

1. Lay Track Angles [#1] on work surface as shown in Figure 2.

2. Install Front Track Bracket [#2] and Front Idler Roller Assembly [#3] to one end of track

using 3/8 x 3/4 long hex head bolts and 3/8 lock washers, as shown in Figure 2.

3. Install two track spreader bars [#4], evenly spaced over length of track using 3/8 x 3/4

long hex head bolts and 3/8 lock washers, as shown in Figure 2.

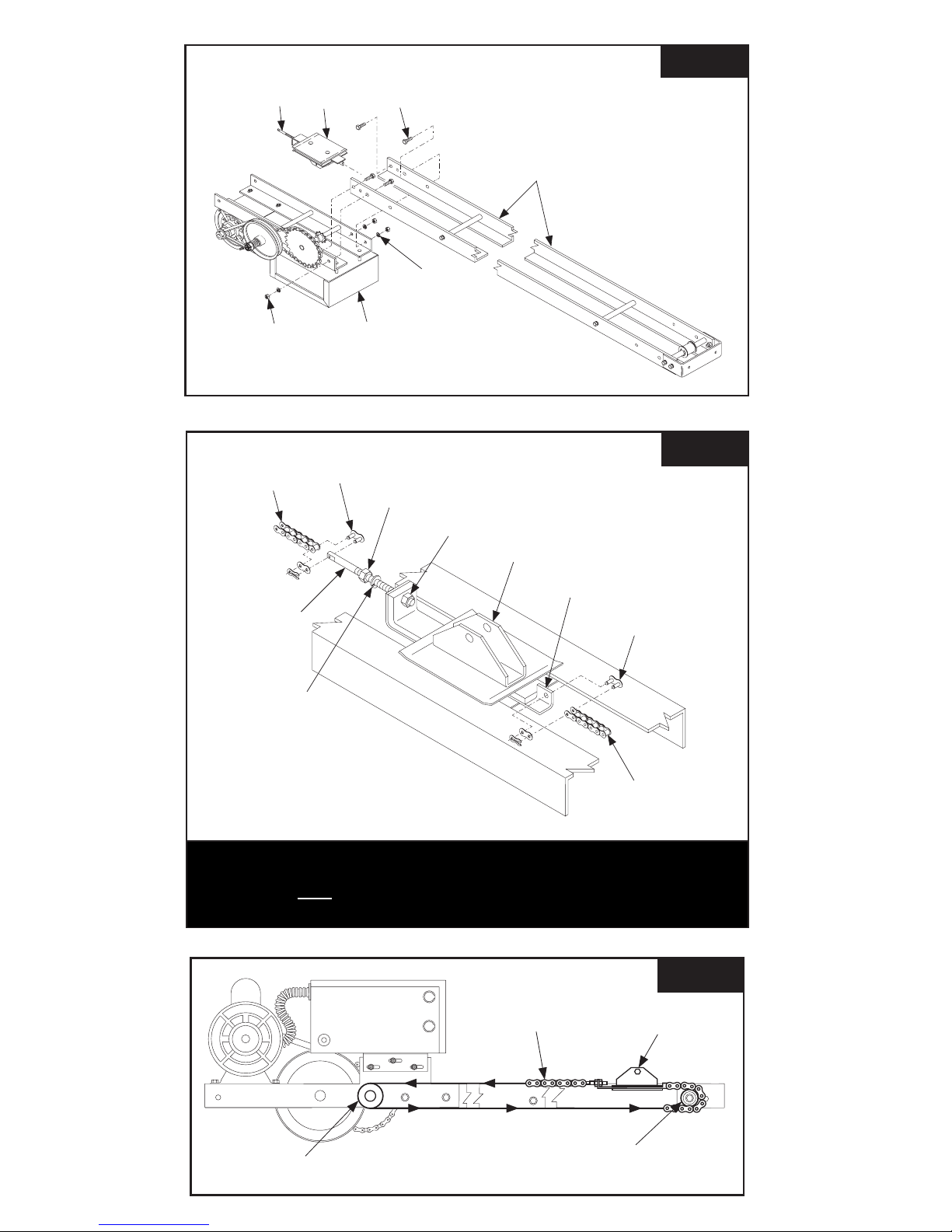

TROLLEY ASSEMBLY

1. Assemble Upper Half of Trolley [#5] to Lower Half of Trolley [#6] using two 5/16 x 1-1/4

carriage bolts, two 5/16 Lock Washers and two 5/16 Hex Nuts as shown in Figure 3.

2. Install 3/8 Chain Take-up Bolt [#7] into Trolley Assembly using one 3/8 Lock Washer and

two 3/8 Hex Nuts as shown in Figure 3. DO NOT TIGHTEN NUTS!

3. Install 3/8 x 2” Long Hex Head Bolt through ears on Lower Half of Trolley [#6] and secure in

position with 3/8 Lock Washer and 3/8 Hex Nut.

TRACK ANGLE

[#1]

3/8” X 3/4”

LG. HEX HEAD

BOLT

3/8” X 3/4”

LG. HEX HEAD

BOLT

3/8”

LOCK WASHER 3/8”

LOCK WASHER

TRACK ANGLE

[#1]

TRACK

SPREADER BAR

[#4]

TRACK

SPREADER BAR

[#4] IDLER ROLLER

ASSEMBLY

[#3]

FRONT TRACK

BRACKET

[#2]

FIGURE 2

WARNING

SPRINGS, PULLEYS, CABLES AND MOUNTING HARDWARE

USED TO BALANCE YOUR GARAGE DOOR ARE UNDER EXTREME

TENSION AT ALL TIMES AND CAN CAUSE SEVERE INJURY OR

DEATH IF DISTURBED. DO NOT ATTEMPT ADJUSTMENT.

INSTALLATION INSTRUCTIONS

FIGURE 3

5/16 X 1-1/4” LG.

CARRIAGE BOLTS

#5 UPPER HALF

OF TROLLEY

3/8 X 2” LG.

HEX HEAD BOLT

5/16”

LOCK WASHER

3/8”

LOCK WASHER

3/8”

LOCK WASHER

3/8”

HEX NUT

3/8”

HEX NUT

3/8”

HEX NUT

LOWER HALF

OF TROLLEY

5/16”

HEX NUT

OPERATOR ASSEMBLY

1. Install Trolley Slide Assembly on Track Assembly with Chain Take-up Bolt [#7] pointing

towards end of track where Power Head [#8] will be mounted as shown in Figure 4.

2. Mount Power Head to Track Assembly using four 3/8 x 3/4 Long Hex Head Bolts, four 3/8 Lock

Washers and four 3/8 Hex Nuts, as shown in Figure 4.

3. Turn operator assembly over and back o Chain Adjustment Nut to the end of the threads

on Chain Take-up Bolt [#7]. See Figure 5.

4. Lay out Drive Chain [#9] next to operator assembly work surface.

5. Thread one end of the Operator Drive Chain around Operator Drive Sprocket and connect to

the Chain Take-up Bolt [#7] on Trolley Assembly with a Chain Connecting Link. See Figure 5

and Figure 6.

6. Thread the other end of the Drive Chain [#9] around the Idler Roller Assembly [#3]. See

Figure 6.

7. Pull Drive Chain [#9] tight up to Trolley Traveler Assembly. Mark the link that lines up with

Drive Tab on Traveler Assembly and cut Drive Chain to length.

8. Attach cut end of Drive Chain [#9] to Drive Tab on Trolley Traveler Assembly with a Chain

Connecting Link. See Figure 5.

9. Adjust chain tension using Chain Adjusting Nut to remove excess slack. See Figure 5.

10. Lock in adjustment using Lock Washer and Lock Nut on Chain Take-up Bolt. See Figure 5.

Unit is shown in the inverted position to facilitate assembly of trolley track and

traveler. When properly installed, the power head and trolley assembly should

face the oor. Note: Install drive chain so trolley assembly is located near front

idler as shown.

TRACK ASSEMBLY

TROLLY SLIDE

ASSEMBLY

(4) 3/8 X 3/4” LG.

HEX HEAD BOLTS

(4) 3/8” LOCK

WASHERS

(4) 3/8”

HEX NUTS

POWER HEAD

DRIVE CHAIN

CHAIN

CONNECTING LINK

#10

CHAIN

CONNECTING LINK

DRIVE TAB

TROLLEY

ASSEMBLY

CHAIN

ADJUSTING

NUT

LOCK NUT

LOCK WASHER

DRIVE SPROCKET

DRIVE CHAIN

IDLER ROLLER ASSEMBLY

TROLLEY ASSEMBLY

FIGURE 4

FIGURE 5

FIGURE 6

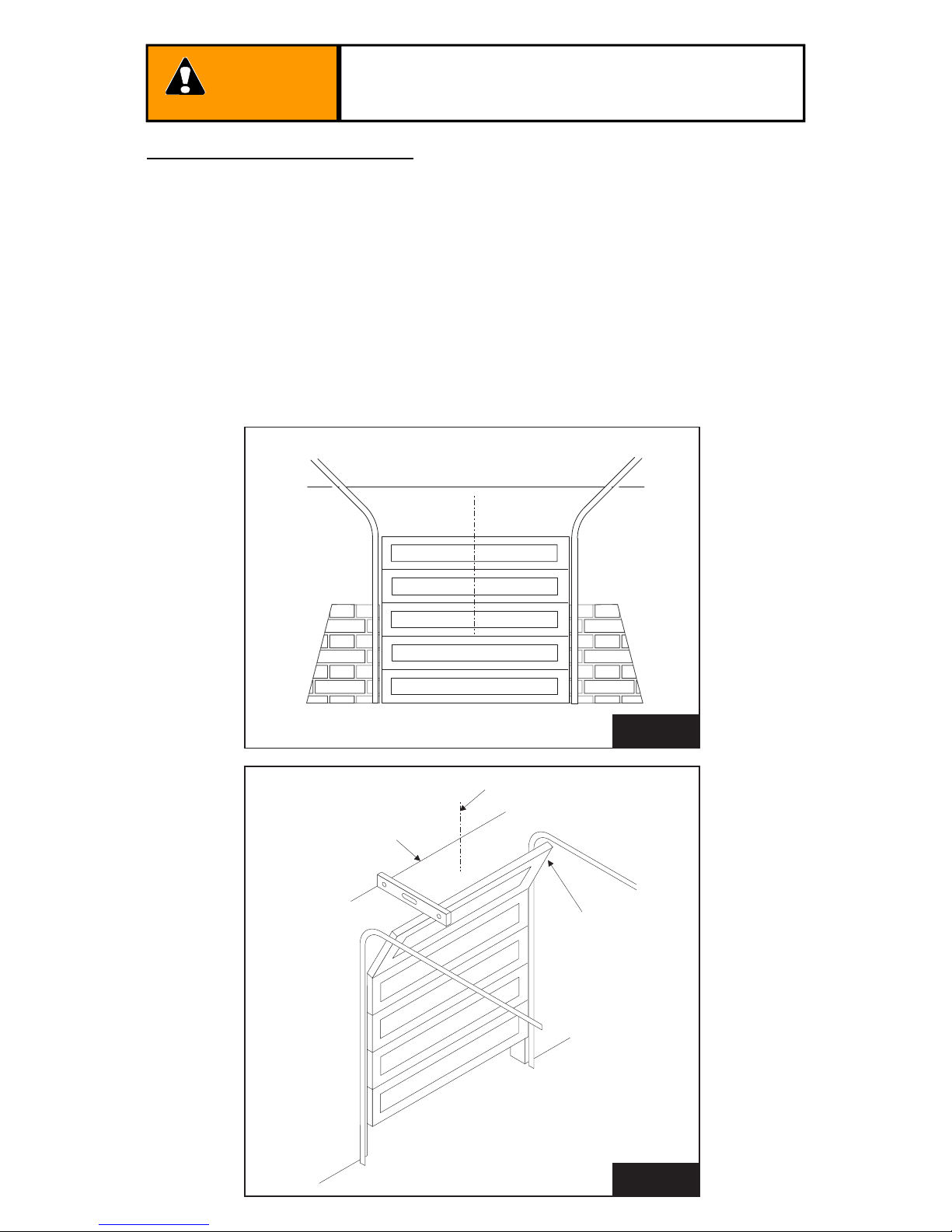

1. Locate the center of the door and mark a line on the wall directly above the door. Extend

this line approximately 20” up the wall (See Figure 7).

2. Slowly raise the garage door and observe the action of the top section. When the top

section reaches the highest point (high arc), use a level and project a line from this point

to the center of the door (See Figure 8).

3. Using the projected lines for location, mount a suitable wood block or angle iron –

depending on the structure of the building – to the wall above the door opening as shown

in Figure 7. Ensure the block or angle iron used will provide a sound and secure mounting

pad for the operator track front mounting bracket (See Warning below). Drill the required

holes for mounting the operator track front mounting bracket as shown in Figure 9.

TO AVOID DAMAGE TO THE DOOR AND OPERATOR, ENSURE

ALL LOCKS ARE DISABLED. USE AN INTERLOCK SWITCH IF A

LOCK IS REQUIRED TO RETAIN FUNCTIONALITY.

WARNING

CENTER OF DOOR

PROJECTED LINE

LEVEL

DOOR RAISED

TO HIGH ARC

CENTER OF DOOR OPENING

FIGURE 8

FIGURE 7

MOUNTING THE OPERATOR

Table des matières

Autres manuels Power Master Système d'ouverture de porte

Power Master

Power Master SL Series Instructions d'installation

Manuels Système d'ouverture de porte populaires d'autres marques

Pamex

Pamex KT-INP35 Manuel utilisateur

Label

Label NEPTIS/LE Manuel utilisateur

Cal-Royal

Cal-Royal N-F77CVR Manuel utilisateur

Scrigno

Scrigno OPEN1000 Manuel utilisateur

TriMark

TriMark UM 34 Manuel utilisateur

BFT

BFT WIND RMB 130B 200 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Besam

Besam Swingmaster MP Mode d’emploi

CRL

CRL SENIOR PRIMA Manuel utilisateur

Assa Abloy

Assa Abloy SARGENT 1431 Series Manuel utilisateur

GAL

GAL MOVFR Fiche technique

Olide

Olide 120B Manuel utilisateur

Normstahl

Normstahl IDO7 Manuel utilisateur

Häfele

Häfele Finetta T 70 VF Manuel utilisateur

AGS

AGS D-PL Manuel

Stanley

Stanley MA900ñ Instructions d'installation

WITTUR

WITTUR Hydra Plus UD300 Manuel

Alutech

Alutech TR-3019-230E-ICU Instructions d'installation et d'utilisation
