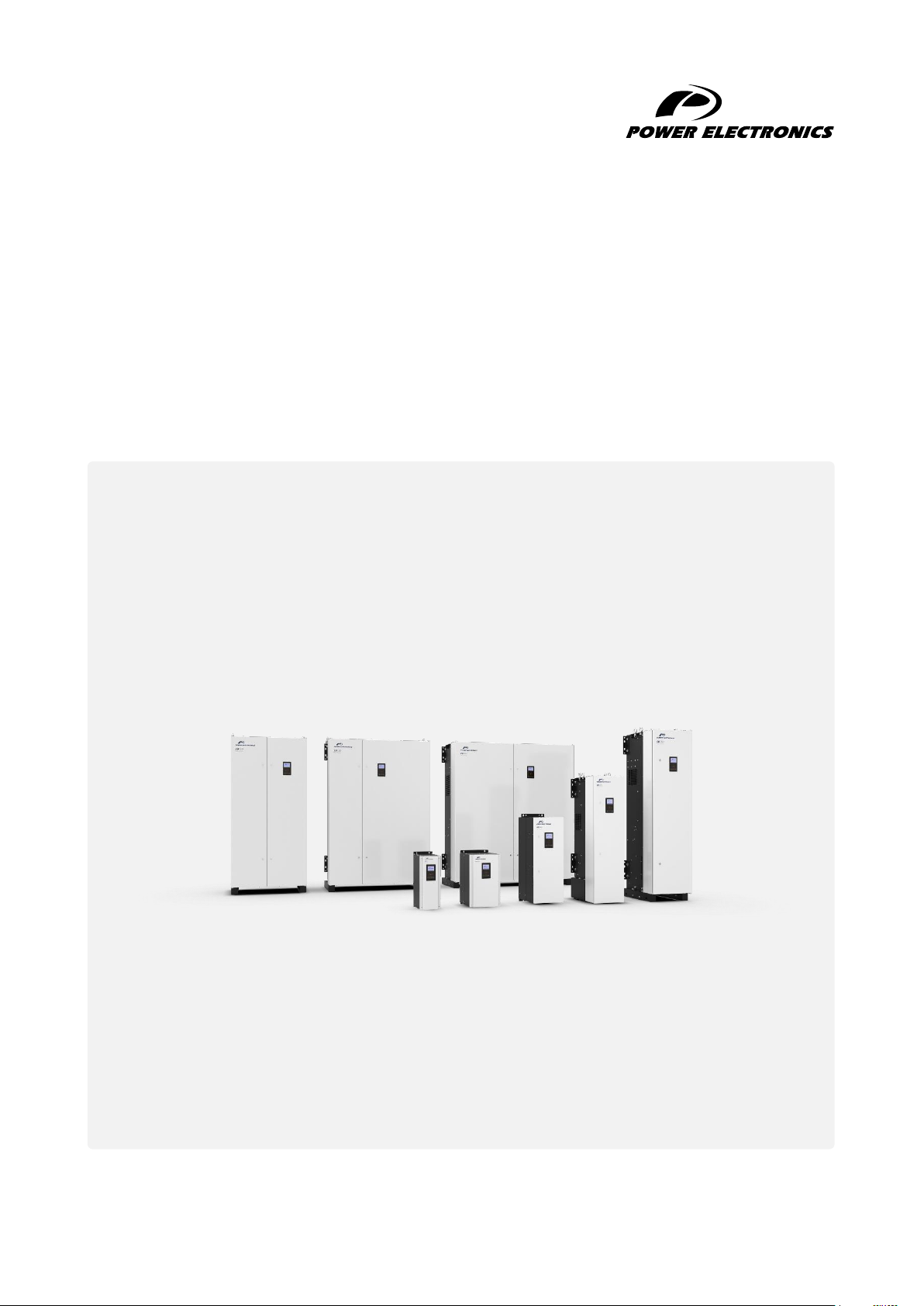

Power Electronics SD750 Series Manuel utilisateur

SD750

ACCESSORIES MANUAL

PROFIBUS BOARD

LOW VOLTAGE VARIABLE SPEED DRIVE

Accessories Manual

Profibus board

Edition: July 2021

SD75MA06BI Rev. B

SD750

POWER ELECTRONICS

ABOUT THIS MANUAL

PURPOSE

This manual contains important instructions for the installation, configuration and use of the Profibus

optional board for Power Electronics’ SD750 variable speed drives.

TARGET AUDIENCE

This manual is intended for qualified customers who will install, operate and maintain Power Electronics

SD750 variable speed drives.

Only trained electricians may install and commission the drives.

REFERENCE MANUALS

The following reference documents are available for SD750 variable speed drives:

•Hardware and Installation Manual.

•Programming and Software Manual.

•Maintenance Manual.

•Pumps Application Manual.

POWER ELECTRONICS CONTACT INFORMATION

Power Electronics USA Inc.

1510 N. Hobson Street, Gilbert,

Phoenix

AZ 85233

UNITED STATES OF AMERICA

US Sales: 602-354-4890 / (480) 519-5977

Power Electronics España, S.L.

Polígono Industrial Carrases

Ronda del Camp d’Aviació nº 4

46160, Llíria (Valencia)

SPAIN

Fax: (+34) 96 131 82 01

Website: www.power-electronics.com

POWER ELECTRONICS

SD750

REVISIONS

REVISIONS CONTROL

DATE (DD/MM/YYYY)

REVISION

DESCRIPTION

06/03/2020

First Edition.

01/07/2021

Commissioning. Faults and warnings mapping. Misprints corrections.

The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the

contents of this manual without previous notice. To consult the most updated information of this product, you may access our website

www.power-electronics.com, where the latest version of this manual can be downloaded. The reproduction or distribution of the present

manual is strictly forbidden, unless express authorization from Power Electronics.

SD750

POWER ELECTRONICS

TABLE OF CONTENTS

ABOUT THIS MANUAL ...............................................................................................................................2

SAFETY SYMBOLS.....................................................................................................................................5

SAFETY INSTRUCTIONS............................................................................................................................6

INTRODUCTION.....................................................................................................................................7

Profibus board specifications................................................................................................................8

LED Indicator........................................................................................................................................9

CONNECTION TO THE DRIVE............................................................................................................10

Connectors Description......................................................................................................................11

Connection Scheme...........................................................................................................................11

COMMISSIONING ................................................................................................................................12

Parameters setting .............................................................................................................................15

Modbus Addresses.............................................................................................................................18

FAULTS AND WARNINGS MAPPING.................................................................................................20

Description of Fault List......................................................................................................................20

Troubleshooting..................................................................................................................................20

List of Warning Messages..................................................................................................................20

POWER ELECTRONICS

SD750

SAFETY SYMBOLS

Always follow safety instructions to prevent accidents and potential hazards from occurring.

In this manual, safety messages are classified as follows:

Other symbols used in this manual for safety messages are the following:

WARNING

Identifies potentially hazardous situations where dangerous voltage may be

present, which if not avoided, could result in minor personal injury, serious

injury or death.

Be extremely careful and follow the instructions to avoid the risk of electrical

shocks.

CAUTION

Identifies potentially hazardous situations, which if not avoided, could result

in product damage, or minor or moderate personal injury.

Read the message and follow the instructions carefully.

NOTICE

Identifies important measures to take in order to prevent damage equipment

and warranty lost, as well as encouraging good use and environmental

practices.

Hot surface. Be careful and follow the instructions to avoid burns and personal injuries.

Risk of fire. Be careful and follow the instructions to prevent causing an unintentional fire.

Caution, risk of electric shock. Energy storage timed discharge. Wait for the indicated

time to avoid electrical hazards.

Caution, risk of hearing damage. Wear hearing protection.

SD750

POWER ELECTRONICS

SAFETY INSTRUCTIONS

IMPORTANT!

Read carefully this manual to maximize the performance of the product and to ensure its safe installation

and use.

In order to appropriately use the drive, please, follow all instructions described in the Hardware and

Installation Manual which refer to transportation, installation, electrical connection and commissioning of

the equipment.

For maintenance operations, follow the instructions from the Maintenance Manual.

Power Electronics accepts no responsibility for any damages resulting from incorrect use of equipment.

CAUTION

Read carefully the Hardware and Installation Manual, the Maintenance Manual and all documentation

related to the drive to guarantee its safe use and avoid the risk of personal injuries and damages to the

equipment.

Ensure compliance with local and national regulations of the installation site.

POWER ELECTRONICS

SD750

INTRODUCTION

SD750 drives are compatible with several optional boards:

•Communication boards (Ethernet/IP, Profinet, CANopen, Profibus…).

•Encoder board.

•Digital and analog I/O expansion boards.

•Optical fiber board

…among others. Up to three optional boards can be connected, maximum two of the same type.

This manual focuses on the optional Profibus expansion board. This board allows the equipment to

be integrated into Profibus communication network in a comfortable and simple way.

It has been designed to provide information about its operational status at any time.

Below is the front of the Profibus expansion board:

SD750

POWER ELECTRONICS

INTRODUCTION

Profibus board specifications

The Profibus expansion board specifications are detailed below:

Interface

•Profibus connector - DP D-SUB 9 pins.

Interface Profibus-DP

• Profibus - DP interface.

• Transmission speed auto-detected up to 12Mb.

• Diagnostic data length of 13 Bytes (maximum).

• Data length for 176 Byte Configuration (maximum).

• Configuration data length of 8 Bytes (maximum).

• Polling length of 120 Bytes (maximum).

• GSD file PE_SD750.GSD.

GSD File

The GSD file contains information about the Profibus communication module installed in the

equipment. When the Profibus network is configured, its software configuration requires a GSD file.

** To download the file, please contact Power Electronics.
