DC1 (1 channel)

LED

PORTOS drive controlling system

The remotes operate

at 433 MHz

frequency

USER MANUAL

DC1, DC15

Technical data :

Power: 3V battery ( CR 2430 )

Operating frequency: 433 MHz

Transmission power: 10 mW

Operating temperature: from -10 ˚C to +50 ˚C

Operating range: Determined by architectural

and regulatory factors

Device characteristics:

UP

STOP

DOWN

BATTERY

SLOT

2

DC15 (15 channels)

NUMER

KANAŁU

CHANNEL -

CHANNEL +

UP

STOP

DOWN

BATTERY

SLOT

P2

3

1. Programming the radio drive on a specific channel of any

transmitter.

IMPORTANT!!!

While programming, only the drive being programmed should be

connected to a power supply.

A. Method one

In order to program the drive, open the inspection hatch of the roller shutter and:

1. Press the microswitch located on the lead emerging from the head of the drive for 1

second – the motor will confirm with a single beep sound and the shutter will move

briefly UP and DOWN.

2. Using the CHANNEL + / - buttons, select the channel you want to program and press

P2 – the motor will make a single beep sound.

3. Press P2 again, the motor will make a single beep sound again.

4. To finish the programming process, press UP. You will hear 6 beeps and the roller

shutter will move briefly up and down.

B. Method two

After connecting the motor to a power supply, you will hear a long single beep sound

and the motor will move briefly up and down (if you do not press any button within

12 seconds, the motor will quit the programming mode).

1. Using the CHANNEL + / - buttons, select the channel you wish to program:

2.Press the P2 button, the motor will make a single beep sound.

3.Press P2 again, the motor will make a single beep sound again.

4.Press the UP button, the motor will make 6 beeps and move briefly up and down,

which means that the channel has been programmed.

4

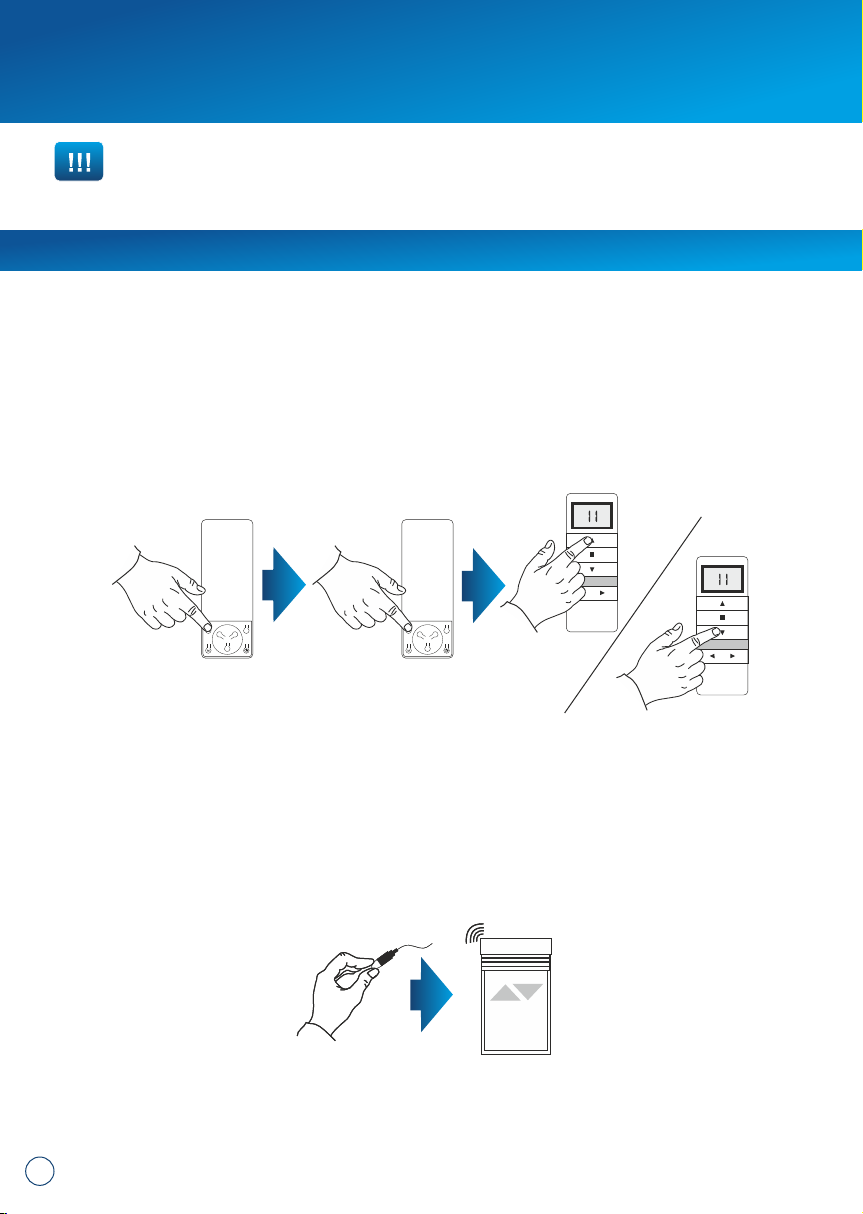

2. Programming an external radio receiver on a specific channel of

any transmitter.

3. Changing the direction of rotation of the drive.

METHOD 1:

After assigning the device to a motor, check if the running direction is correct by

switching the motor on with the device. To change the running direction of the motor,

you need to reprogram the channel (point 1 of this manual) by changing the

programming method – if the motor was programmed following the P2 + P2 + UP

method and the direction of rotation needs reversing, reprogram the motor by finishing

the programming process with direction reversal, i.e. P2 + P2 + DOWN. The drive will

register the direction change.

METHOD 2:

Using the microswitch located on the lead emerging from the head of the drive, you

can change the drive's running direction. To do so, you should:

1. Press the microswitch down for 6 seconds.

2. After 1 second, the motor will confirm with a short beep sound and move up and

down, whereas after the next 5 seconds the motor will confirm the direction change

with 3 beeps and the roller shutter will move UP and DOWN twice.

min. 6 seconds

IMPORTANT!!!

If you have an external radio receiver, follow the user manual for the device

(i.e. XT-R, PPKR-313 or PPKR-400).

5

METHOD 1:

1. Select a previously programmed channel on the display:

2. Press P2, the motor will make a single beep sound and move briefly up and

down.

3. Press STOP, the motor will make a single beep sound.

4. Press P2 again, you will hear 4 beeps and the roller shutter will move briefly up

and down.

METHOD 2:

Using the microswitch located on the lead emerging from the head of the drive, you

can delete a previously programmed transmitter channel. To do so, you should:

1. Press the microswitch down for at least 15 seconds.

2. After 1 second, the motor will make a short beep sound and move up and down,

whereas after the next 5 seconds, the motor will confirm with 3 beeps and the

roller shutter will move UP and DOWN twice, and finally after 15 seconds the

motor will make 3 beeps and the roller shutter will move UP and DOWN once.

METHOD 3:

Reprogramming the radio drive on a given channel (point 1 of this manual)

automatically deletes previous settings.

IMPORTANT!!!

If you delete the settings of a particular channel, drives assigned to that channel

will be completely deleted from other channels as well.

min. 15 seconds

4. Channel deletion (deleting all channel settings).

6

5. Adding another channel (transmitter) to the motor.

To add another channel or another device, start with the transmitter which was

programmed first. While adding an additional transmitter (channel), do not

disconnect the motor from power supply! Transmitters must be located within the

receivers' range.

1. Select a previously programmed channel on the display of the active

transmitter.

2. Press P2, the motor will make a single beep sound and move briefly up and

down.

3. Press P2 again, the motor will make a single beep sound again.

4. Press P2 on the device you wish to program. You will hear 5 beeps and the

motor will move briefly UP and DOWN.

6. Device operating mode.

The PORTOS-RM radio drive can operate in two modes:

Support mode

Pressing and releasing the UP or DOWN button activates a programmed motor

function (opening or closing the roller shutter). The motor will operate until the roller

shutter is fully opened or closed.

Non-support mode

The motor will only operate when the button is pressed down. Releasing the button

stops the motor. If the button is pressed down for more than 2 seconds, the motor

will start operating in the support mode, i.e. until the roller shutter is fully opened or

closed.

7

8. Deactivation of unused channels (applies to DC15 only)

To deactivate unused channels we do as follows:

1. Press CHANNEL – and CHANNEL + buttons simultaneously.

2. The C will appear on the display.

3. Press and hold CHANNEL – and CHANNEL + buttons again.

4. The number of currently activated channels will appear on the display.

5. Use CHANNEL – and CHANNEL + buttons to select the number of channel to

be used.

6. Press the STOP button to confirm.

You can switch between the operating modes by following the instructions below:

1. Select a previously programmed channel.

2. Press P2, the motor will make a single beep sound and move briefly UP and

DOWN.

3. Press UP, the motor will make a single beep sound.

4. Press P2, you will hear 3 beeps and the motor will move briefly UP and

DOWN.

The remote operating mode change is complete. It affects all channels and remotes

assigned later.

7. Changing the operating mode.

NOTES

.......................................................................................................................................................................
