Polycom®

KIRK®

5020/5040

Charge your handset 14-16 hours

prior to first use for best performance.

Headset connector

Volume

Control

Display

Left Softkey

Call

transfer

Right Softkey

On/Off

Hook

Microphone

Four Way

Navigation

Key

Quick Guide

For more information about the

handset, refer to user guide available

for download at

www.polycom.com

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 1 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

all-guides.com

Basic Handset Option

Removing the Battery Protection

Strip

1 To remove the battery, press down the

back cover and slide it towards the

bottom of the handset.

2 Lift off back cover.

3 Remove the battery, and then remove

the green slip from the bottom of the

battery.

Installing Battery

1 To install battery press down back

cover and slide it towards the bottom

of the handset.

2 Lift off back cover.

3 Insert battery with the label readable.

Align the contacts of the battery with

the corresponding connectors on the

battery compartment and insert the

battery towards the connectors.

Warning: Make sure that the contacts

of the battery and the connectors of

the battery compartment are aligned

before sliding the battery in the

battery compartment.

4 Press back cover back in locked

position (when you hear a click the

back cover is in position).

Note: The product label, including the CE

logo, can be found in the battery

compartment.

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 2 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

Turning Handset On/Off

• To turn on the handset, press left

softkey.

• To turn off the handset, press left softkey

until the question Turn off? appears in

the display. Confirm with Yes.

Adjusting Speaker Volume

Use the key placed at the upper right side

of the handset for volume control.

Locking Keypad

• Press Menu followed by  to lock

keypad.

• Press Unlock followed by  to unlock

keypad.

Shortcuts

Predefined Shortcuts

Predefined shortcuts are unchangeable

and assigned to different keys on the

handset.

Silent mode On/Off: Press the Menubut-

ton, followed by the #button to turn the

handset silent mode on/off. In silent

mode the ringer will be muted and the

vibrator activated.

Call transfer: While off hook, press R.

Call list: Press left side of the navigation

key to enter Call list.

Missed Calls: Press right side of

navigation key.

Find Name: Press top or bottom of

navigation key.

Exit Menu: While navigating menus,

press the Rbutton to exit the menu and

return to the main screen.

Save contact: Dial number and press

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 3 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

Save.

Personal Shortcuts

Personal shortcuts consist of functions,

you have chosen to add from a list of

shortcuts. The list is assigned to the right

softkey.

To add a shortcut:

1 PressShortcut.

2 Scroll to Edit shortcut and press

Select.

3 Press Select to add the function to

the list of personal shortcuts.

To use a shortcut:

1 PressShortcut.

2 Scroll to the desired shortcut and

press Select.

Making Calls

Off Hook Dialling (Dial Directly)

1 Press to make a call.

2 Dial number.

3 Press to terminate the call.

On Hook Dialling (Pre-Dial)

1 Dial number.

2 Press to make a call.

3 Press to terminate the call.

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 4 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

Speed Dial

• Press a key (0-9) continuously for three

seconds until a call is started. (You must

assign a key to a number in Phone Book).

Assigning Speed Dials

1 Press Menu to enter main menu

2 Scroll to Phone Book and press

Select.

3 Scroll to Find Name and press Select.

4 Locate the desired name, and press

Details.

5 Scroll to the desired number and press

Select.

6 Scroll to Add to speed dial and press

Select.

7 Scroll to the desired position and

press Add name.

From Call List

1 Press left side of navigation key to

enter Call list.

2 Scroll to desired name or number and

press .

From Phone Book

1 Press Menu to enter main menu.

2 Scroll to Phone Book and press

Select.

3 Scroll to Find name and press Select.

4 Find the desired name and press

to make a call.

Answering Calls

• Press to answer a call when your

handset rings.

Mute a Call

• Press Silence and the ring signal is

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 5 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

muted.

Reject a Call

• Press Reject to refuse the call.

Call Transfer

• Press Rand dial number.

To withdraw the call, press Ragain.

Note: The feature is system dependent.

Turning Speakerphone On/Off

• While on a call, pressLoud on to turn

speakerphone on.

• Press Loud off to turn speakerphone off.

Turning Microphone Mute On/Off

• While on a call, press Mic Mute to turn

microphone mute on.

• Press Mic on to turn microphone mute

off.

Changing Settings

Adjusting Ringing Volume

1 Press Menu to enter main menu.

2 Scroll to Settings and press Select.

3 Scroll to Ringing volume and press

Select.

4 Press left or right side of navigation

key to adjust the volume.

5 Press Set and then Back.

Changing Ringing Tone

1 Press Menu to enter main menu.

2 Scroll to Settings and press Select.

3 Scroll to Ringing tone and press

Select.

4 Scroll to desired ringing tone and

press Change to listen to chosen

ringer tone.

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 6 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

all-guides.com

5 Press Back.

Turning Vibrator On/Off

1 Press Menu to enter main menu.

2 Scroll to Settings and press Select.

3 Scroll to Vibrator and press Select.

4 Scroll to On or Off and press Change.

5 Press Back.

Adding Contact to Phone Book

1 Press Menu to enter main menu.

2 Scroll to Phone Book and press

Select.

3 Scroll to Add name/number and press

Select.

4 Type the name of the contact using

the keys 2-9.

5 Scroll to number and enter the number

of the contact (max. 24 digits).

6 Press Save to store name and number.

Handset Options Status

1 To display the status of the handset

options (battery, ringer volume,

firmware, etc.):

2 Press Menu to enter main menu.

3 Scroll to Status and press Menu.

4 Press the top or bottom of the

navigation key to highlight the

appropriate menu item, and then

press Selectto enter the menu of the

selected item.

Activate Bluetooth Function

(5040 only)

1 Press Menu to enter main menu.

2 Scroll to Settings and press Select.

3 Scroll to Bluetooth and press Select.

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 7 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

4 Scroll to Active and press Select.

5 Scroll to On and press Select.

Pair Wireless Headset with the Handset

1 Press Menu to enter main menu.

2 Scroll to Settings and press Select.

3 Scroll to Bluetooth and press Select.

4 Scroll to Search for compatible

Bluetooth headset and press Select.

5 Select the headset code number listed

in the display of the handset and

press Stop, then press Add.

6 Enter pin code and press OK (Consult

the user guide of the Bluetooth

headset for the pin code information).

7 Press OK, and press Options in order

to connect to the headset.

8 Scroll to Connect and press Select.

9 Press OK.

Auto Connect

1 Press Menu to enter main menu.

2 Scroll to Settings and press Menu.

3 Scroll to Bluetooth and press Select.

4 Scroll to Active and press Select.

5 Scroll to Settings and press Select.

6 Activate Auto connect by pressing

Select, then press Back. The wireless

headset will connect automatically to

the handset when headset is turned on.

Headset Volume

1 Press Menu to enter main menu.

2 Scroll to Settings and press Select.

3 Scroll to Bluetooth and press Select.

4 Scroll to Active and press Select.

5 Scroll to Settings and press Select.

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 8 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

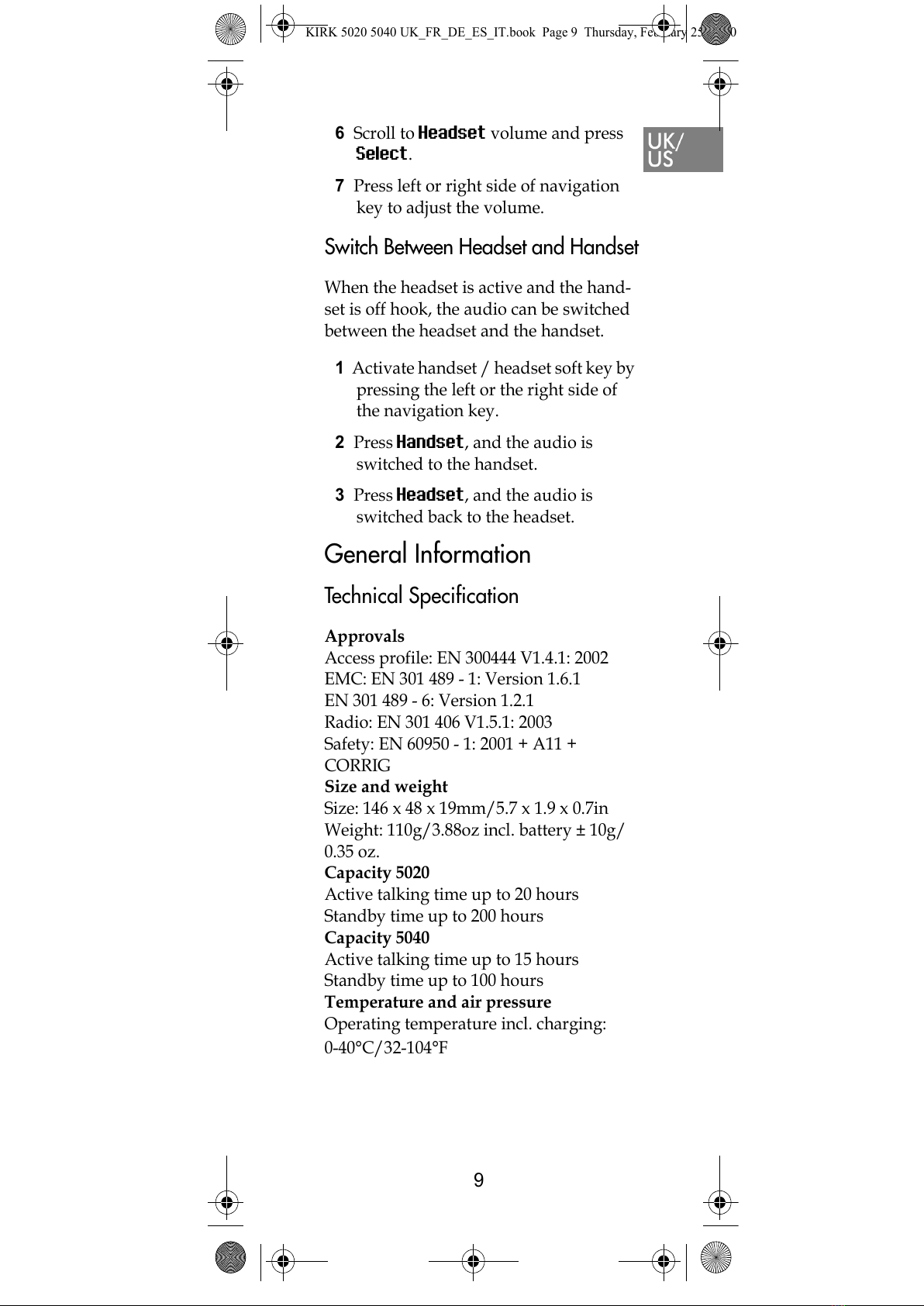

6 Scroll to Headset volume and press

Select.

7 Press left or right side of navigation

key to adjust the volume.

Switch Between Headset and Handset

When the headset is active and the hand-

set is off hook, the audio can be switched

between the headset and the handset.

1 Activate handset / headset soft key by

pressing the left or the right side of

the navigation key.

2 Press Handset, and the audio is

switched to the handset.

3 Press Headset, and the audio is

switched back to the headset.

General Information

Technical Specification

Approvals

Access profile: EN 300444 V1.4.1: 2002

EMC: EN 301 489 - 1: Version 1.6.1

EN 301 489 - 6: Version 1.2.1

Radio: EN 301 406 V1.5.1: 2003

Safety: EN 60950 - 1: 2001 + A11 +

CORRIG

Size and weight

Size: 146 x 48 x 19mm/5.7 x 1.9 x 0.7in

Weight: 110g/3.88oz incl. battery ± 10g/

0.35 oz.

Capacity 5020

Active talking time up to 20 hours

Standby time up to 200 hours

Capacity 5040

Active talking time up to 15 hours

Standby time up to 100 hours

Temperature and air pressure

Operating temperature incl. charging:

0-40°C/32-104°F

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 9 Thursday, February 25, 2010

All manuals and user guides at all-guides.com

International Regulatory and Pro-

duct Information

This KIRK 5020 / 5040

Handset has been marked

with the CE mark. This

mark indicates compliance

with EEC Directives 89/

336/EEC, 73/23/EEC

1999/5/EC. A full copy of

the Declaration of

conformity can be obtained

from Polycom Ltd, 270

Bath Road, Slough,

Berkshire, SL1 4DX, UK.

The WEEE Marking on this

equipment indicates that

the product must not be

disposed of with unsorted

waste, but must be

collected separately.

Visit www.polycom.com/

batteries for further

guidance on battery

recycling.

Important Safety Instructions

Before using your telephone equipment,

you should always follow basic safety

instruction to reduce the risk of fire, elec-

trical shock and injury to persons, and

damage to property.

1. Read and understand all instructions.

2. Follow all warnings and instructions

including those marked on the prod-

uct.

3. Unplug this product before cleaning.

Do not use liquid cleaners or aerosol

cleaners. Use damp cloth for cleaning.

4. Do not install the telephone equip-

ment in the bathroom or near a wash

bowl, kitchen sink, or laundry tub, in a

wet basement, or near a swimming

pool.

5. Slots or openings in the equipment are

provided for ventilation to protect it

KIRK 5020 5040 UK_FR_DE_ES_IT.book Page 10 Thursday, February 25, 201

All manuals and user guides at all-guides.com

Autres manuels pour KIRK 5020

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Polycom Combiné

Polycom

Polycom VVX-150 Series Guide de l'utilisateur

Polycom

Polycom VVX 300 Manuel utilisateur

Polycom

Polycom KIRK 5020 Manuel utilisateur

Polycom

Polycom KIRK 5020 Manuel utilisateur

Polycom

Polycom STRATA CIX 8002 Manuel utilisateur

Polycom

Polycom KIRK 4020 Fiche technique

Polycom

Polycom VVX 300 Manuel utilisateur

Polycom

Polycom KIRK Manuel d'installation et d'exploitation

Polycom

Polycom KIRK 4020 Mode d’emploi

Polycom

Polycom Polycom Butterfly Manuel utilisateur

Polycom

Polycom PENNNET 650 Manuel utilisateur

Polycom

Polycom KIRK KIRK 4040 Manuel utilisateur

Polycom

Polycom Diagnostic Handset 1610 Manuel utilisateur

Polycom

Polycom VVX D60 Manuel utilisateur

Polycom

Polycom KIRK 5020 Manuel utilisateur

Polycom

Polycom SoundPoint IP 32 Series Manuel utilisateur

Polycom

Polycom VVX410 Manuel utilisateur

Polycom

Polycom KIRK 7020 Manuel utilisateur

Polycom

Polycom KIRK KIRK 4040 Manuel utilisateur

Polycom

Polycom VVX-250 Series Guide de l'utilisateur

Polycom

Polycom SpectraLink 6020 Instructions de montage

Polycom

Polycom KIRK 6020 Manuel utilisateur

Polycom

Polycom SoundPoint IP 320 Manuel utilisateur

Polycom

Polycom KIRK 4020 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
