READ THIS FIRST

Thank you for purchasing this Polimaster®product. Before operating

the instrument, please read this manual thoroughly and retain it for

future reference.

The Electronic Personal Dosimeter PM1904A POLISMART®II is

designed to continuously measuring of the personal Dose Equivalent

(DE) and personal Dose Equivalent Rate (DER) of gamma radiation

and compares those measurements to the preset thresholds. In the

event that thresholds are exceeded, PM1904A alerts the user with

flashing light signals and audible alarms indicating that a radiation

source is nearby or a critical dose has been accumulated.

Users do not need to be experts in health physics to operate this

instrument; however, an understanding of basic principles of ionizing

radiation is desirable for proper operation.

PM1904A exchanges data with your mobile device in real time via

Bluetooth 4.0 LE wireless connection.

A mobile app for POLISMART®is available for iPhone®, iPad®,iPod®

touch (iOS) and for AndroidTM mobile devices and can be

downloaded from the App StoreSM or from Google playTM.

iPhone, iPad, iPod touch and the App Store logo are registered

trademarks of Apple Inc.

Android and the Google play logos are trademarks of Google Inc.

POLISMART is a registered trademark of Polimaster Ltd.

Contains Transmitter Module FCC ID: QOQBLE112,

IC: 5123A-BGTBLE112, MIC: ID R 209- J00046,

BLE112-A: KCC-CRM-BGT-BLE112-A.

IMPORTANT!

To activate the PM1904A for the first time (to exit from the storage mode) please

connect it to any USB port of a personal computer or use a wall charger with a

USB slot. Before first use, please allow the battery to fully charge for at least 4

hours.

PRECAUTIONS

•Keep your PM1904A charged at all times for proper exposure

measurement.

•Please observe all local regulations and safety procedures when

working with sources of ionizing radiation.

•Avoid severe mechanical shocks and submerging the instrument

into water.

WARNING

The Manufacturer is not responsible for any damage or costs

caused by improper understanding of the personal dosimeter

operation(s) or reading(s). The user bears all risk in interpreting the

output of the dosimeter and/or making decisions based on the

dosimeter operation(s) or reading(s). Please consult local laws,

regulations and standards before making decisions based on

dosimeter reading(s).

GENERAL DESCRIPTION

The Electronic Personal Dosimeter PM1904A POLISMART II

belongs to Polimaster’s new family of small and efficient electronic

personal radiation dosimeters and radiation detectors for

measuring gamma ionizing radiation from gamma emitting

radiation sources. And also for transmitting data to the PC, to the

mobile devices and to the appropriate radiation protection

networks.

When on, the dosimeter continuously measures the personal Dose

Equivalent (DE) and personal Dose Equivalent Rate (DER) of

gamma radiation and compares those measurements to the preset

thresholds. In the event that thresholds are exceeded, PM1904A

alerts the user with flashing light signals and audible alarms

indicating that a radiation source is nearby or a critical dose has

been accumulated.

PM1904A can also exchange data with your mobile device in real

time via Bluetooth 4.0 LE wireless connection, thus transferring

actual DER (dose equivalent rate) and DE (dose equivalent)

readings to you smartphone. The User Software allows the user to

record tracks marked with DER and DE values using the ability of

GPS-positioning of a mobile device.

The instrument may be used both indoors and outdoors by various

users who need to track environmental gamma radiation and

personal exposure.

Delivery kit

•Electronic Personal Dosimeter PM1904A POLISMART II

•Cable USB- µUSB

•Strap

•PVC badge with clip

•Quick start operation guide

•DVD with Operation Manual and User Software for PC

•Warranty Certificate

•Calibration Certificate

•Package

Specifications

Detector type Geiger-Muller tube

DER Indication range 0.01 µSv/h – 120.0 mSv/h

DER Measurement range 1 µSv/h – 100.0 mSv/h

DER limit of variation

± (15+K

/H)%, where H – dose rate

in mSv/h; K1– 0.005 mSv/h

DE Measurement range 1.0 µSv - 10.0 Sv

DE limit of variation

± 15 %

Energy range 0.059 – 1.5 MeV

energy response relative to 0.662

MeV (

137

Cs), no more than

-29 / +30 %

Alarm type Visual, audio

Power Rechargeable battery (LiPo)

Charge time Up to 4 hours

Battery lifetime

•at average background

< 0.3 µSv/h: 2,000 hours

•with Bluetooth connection: 300

hours

Connectivity

Mobile Device

USB

Bluetooth 4.0 LE

Environmental

temperature range from -20 to +50 °C

humidity up to 95 % at +30 °C

Ingress protection IP30

Drop test

1.5 m onto concrete surface (in PVC

badge)

Dimensions, no more than 60 x 38 x 18 mm

Weight, no more than 33 g

NOTE

For more detailed information please contact the manufacturer or visit

http://www.polimaster.com

Instrument design and control

The instrument is equipped with a single control button (located

on top) that turns ON the Bluetooth 4.0 LE module and

temporarily disable the audible alarm for 5 minutes. PM1904A

operates fully autonomously when the battery is charged. It

automatically records all measurements in the non-volatile

memory at preset intervals. There is one LED that can display the

following alerts:

•Green light flashing every second: PM1904A is connected to the

PC’s USB port to charge the rechargeable battery.

•Green light flashing every 10 seconds:the instrument is

operating normally and background radiation is below preset

thresholds.

•White-green light flashing every 5 seconds: partially

rechargeable battery discharge.

•Single red flash and audible alarm every second: DER threshold is

exceeded.

•• Double red flash and sound alarm every second: DE threshold

is exceeded.

•Single blue light flashing every 10 second: PM1904A is paired to

mobile device via Bluetooth 4.0 LE - the instrument is operating

normally and background radiation is below preset thresholds.

•• Double blue light flashing: the button is pressed - the Bluetooth

4.0 LE module activated.

OPERATION

The normal operation mode of PM1904A is always on. This

provides continuous monitoring and accurate measurement of

both personal Dose Equivalent and personal Dose Equivalent Rate

of gamma radiation. When the instrument is charged and operating

normally, the green LED light flashes every 10 seconds.

If the light does not flash green, but instead flashes white-green,

the battery is partially discharged. If there is no light indication on

the LED the battery is critically discharged. Please charge the

battery of PM1904A following the procedure described below.

NOTE

Before the first use, please allow the battery to fully charge from a USB port for

at least 4 hours.

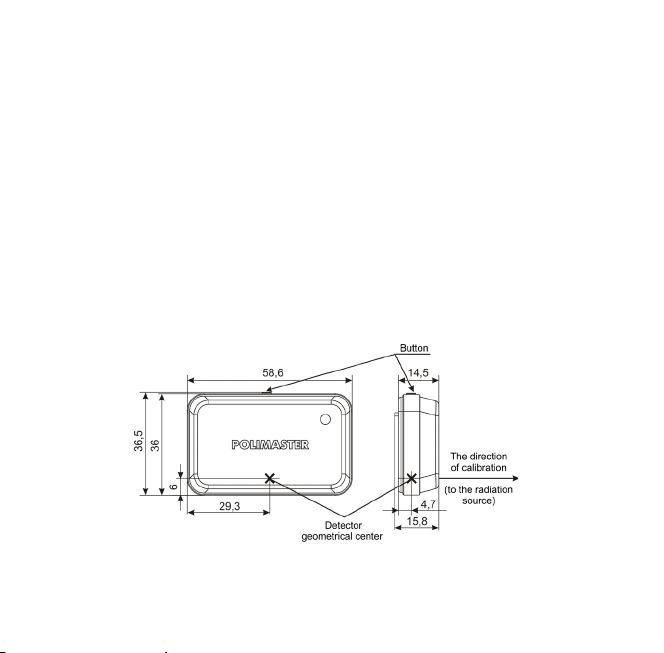

Figure 1. Electronic personal dosimeter PM1904A: geometrical center and

direction to radiation source

Charging PM1904A

To charge PM1904A please connect it to any USB port of a

personal computer or use a wall charger with a USB slot. When the

rechargeable battery is charged, the green light will be on

continuously.

A full charging cycle requires 4 hours. This will provide 2,000 hours

of instrument operation under normal background conditions. The

manufacturer recommends charging PM1904A for 4 hours every

month, to ensure reliable operation of the instrument for at least

1000 hours and to extend the lifetime of the rechargeable battery.

NOTE

If the battery is partially discharged a white-green LED light flashes every 5

seconds.

IMPORTANT!

Once the partial battery discharge begins appearing the instrument will

continue working for 16 hours. When using PM1904A an environment with

background radiation levels higher than 0.1 µSv/h, it is recommended to fully

charge PM1904A before operation.
