Point Mobile PM86 Manuel utilisateur

V1.0, Aug 2023

Point Mobile Co., Ltd. is the designer and manufacturer of mobile handheld devices.

The Point Mobile logo is a registered trademark and symbol of Point Mobile Co., Ltd.

Features and specifications are subject to change without prior notice.

PM86

Quick Start Guide

Device Parts

1. Receiver

2. LED indicator

3. Audio jack

4. Power button

5. Scan button (Left)

6. Microphone

7. I/O connector for cradle

8. Speaker

9. Touch screen

10. Front camera

Device Parts

11. Rear I/O connector

12. Hand strap hole

13. Battery release button

14. Scanner

15. Rear camera & Flashlight

16. Volume buttons

17. Scan button (Right)

18. Battery

19. USB connector

Product Standard Accessories Battery Replacement

1. Insert the battery from the bottom side (opposite side of the

battery release buttons).

2. Push the battery down until it clicks.

Confirm that the battery release buttons are completely outward.

Battery pack

Insert Battery

Remove Battery

LCD protection filmHand strap

USB type C cable

AC Plug

5V 2A power adapter

1. Hold the battery release buttons and press in.

2. While pressing the battery release buttons in, pull the battery up.

open

Supported Cards & Card Slot Cover

PM86 provides

•1 microSD card slot

•2 Nano SIM card slots –LTE SKU only

•2 SAM card slots –LTE + SAM SKU only

Remove the battery, and open the card slot cover to find card slots.

You can use the handle on the right side of the cover to open.

Handle

Card slot layout

< Notice >

Do not throw away the cover. It affects device sealing performance against

water, dust, etc.

1. Gently slide the card holder left, and swing upwards to open the

holder.

2. Put the SD card with the contacts facing down, close the holder,

and gently slide it right to lock.

Install SD Card

1 2

3 4

1. Gently slide the card holder up (top slot) or down (bottom slot),

and swing upwards to open the holder.

2. Put the SAM card with the contacts facing down, close the

holder, and gently slide it opposite direction to open.

Install SAM Card

1 2

3 4

< Note >

PM86 LTE + SAM SKU includes two SAM slots, on the top and bottom.

All direction to open/close the cardholders are opposite each other. The

figures indicate the top SAM slot.

Install SIM Card

1 2

3 4

1. Gently slide the card holder left, and swing upwards to open the

holder.

2. Put the SIM card with the contacts facing down, close the

holder, and gently slide it right to lock.

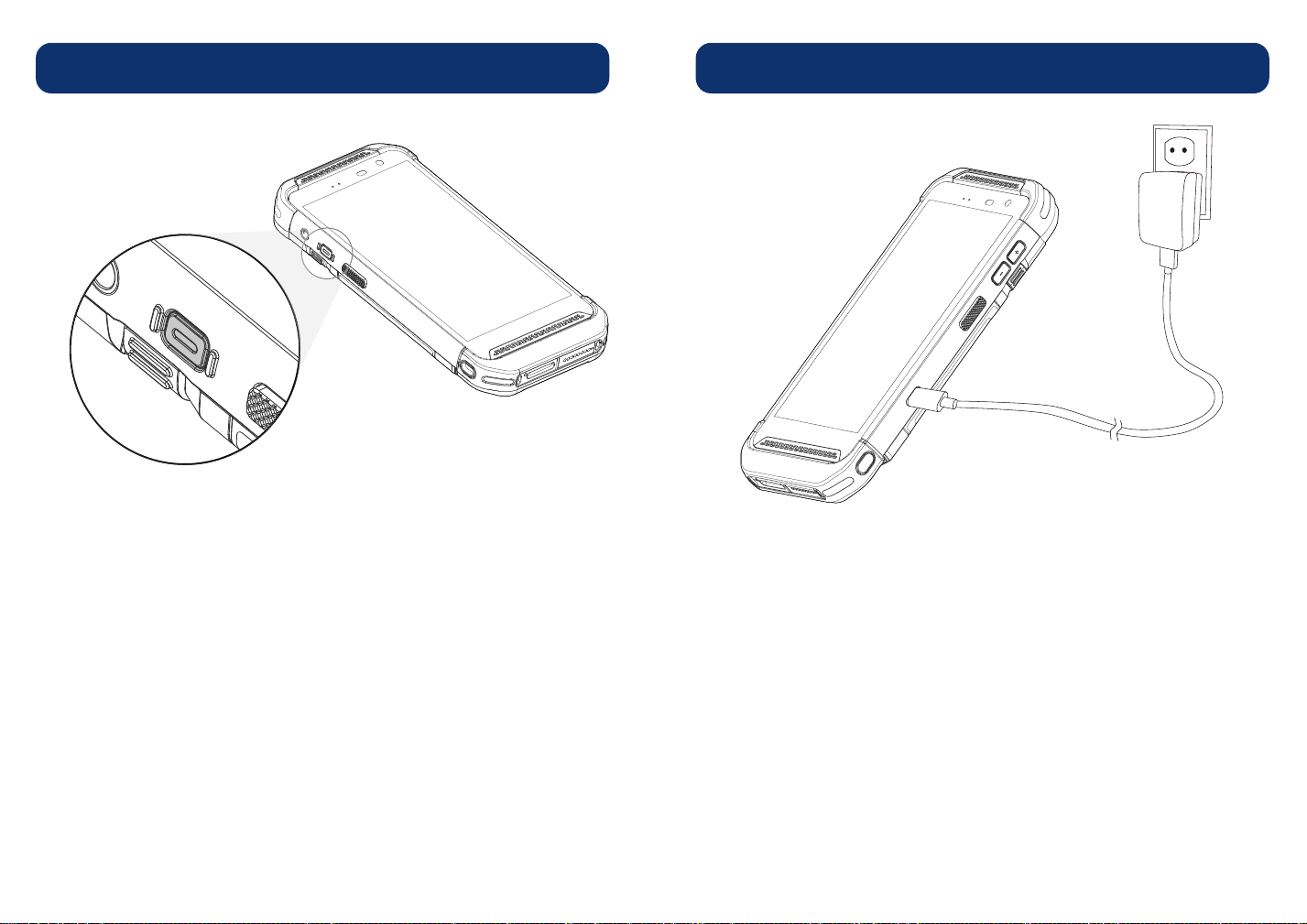

Turning on /off

Press and hold the power button on the left side of the PM86 until

SMART BEYOND RUGGED logo displays on the screen.

Turn on

When the display is on, press and hold the power button until the

power menu is shown.

Then, tap Power > Power off.

Turn off

Charging the Device

1. Assemble the AC plug, power adapter and USB cable.

2. Connect the cable to the USB connector of PM86.

3. Provide power by plugging the power adapter to the wall socket.

PM86 can also be charged with charging cradle (sold separately).

< Caution >

1. Always use an original power supply from Point Mobile. Other

chargers and cables may damage the PM86.

The device warranty does not cover any damage caused by the usage

of non-original power supplies.

2. Make sure the charger and cable is not wet.

3. Charge in temperatures from 0

℃ to 45℃.

LED Indicator

Indicator

Status

Indication

Power

LED

Solid

green

Device

is fully charged

Solid

red

Charging

the device / Battery is low

Blinking

red

Charging temperature is out of

normal range

/ Battery is very low

Alternately blinking

red

&green

Cannot

recognize the battery

Notification

LED

Blinking

blue

Notification

existing

Red

flash

Barcode

reading failed

Blue

flash

Barcode

reading success

Scan a Barcode

Center the cross-hair aimer or red dot aimer over the barcode. You

can tilt the aimer slightly for a comfortable angle to scan.

Scanner is disabled by default, so enable the scanner from

ScanSettings first.

Check if the scanner icon is placed on the Status bar. Then,

press a scan button on the device to scan a barcode.
