PoeWit WAP-2 Manuel utilisateur
poewit.com
MOUNTING INSTRUCTIONS
WAP-2
1
Attach slide latch to AP with I3*9 self-tapping screw. T-bar width will
determine which insertion point to use, as shown in the images on page 2.
DROP CEILING MOUNT
Using Recessed T-Bar Bracket
Widt h
Slide Latch Insertion Points
T-Bar Hooks
poewit.com
MOUNTING INSTRUCTIONS
WAP-2
2
T-Bar Width:
15mm
(approx. 9/16”)
T-Bar Width:
24mm
(approx. 15/16”)
T-Bar Width:
38mm
(approx. 1-1/2”)
Slide Latch
I3*9 Self-Tapping Screw
Slide Latch
I3*9 Self-Tapping Screw
Slide Latch
I3*9 Self-Tapping Screw
poewit.com
MOUNTING INSTRUCTIONS
WAP-2
3
Step 1: Drill two holes with 32mm pitch (approx. 1-1/4”) into hard ceiling/wall.
Step 2: Insert plastic anchors into drill holes, align security bracket with
anchors, and attach bracket to ceiling/wall with two I3*20 self-tapping
screws.
Step 3: Attach AP housing bracket to AP with two I3*9 self-tapping screws.
Step 4: Insert AP housing bracket into security bracket and rotate AP
clockwise to secure.
• NOTE: To release, push in release clips on both sides of security bracket
simultaneously and rotate AP counterclockwise.
Housing
Bracket
I3*20 Self-Tapping
Screws: 2pcs
Security
Bracket
Plastic Anchors:
2pcs
Hard Wall/Ceiling
32mm
6.5mm
(Depth: 30mm)
I3*9 Self-
Tapping
Screws: 2pcs
HARD CEILING/WALL MOUNT
Using Security Bracket
poewit.com
MOUNTING INSTRUCTIONS
WAP-2
4
I3*9 Self-
Tapping
Screws: 2pcs
Wall
6.5mm (Depth: 30mm)
Plastic Anchors:
2pcs
I3*20 Self-Tapping
Screws: 2pcs
Key Holes
90mm
90mm

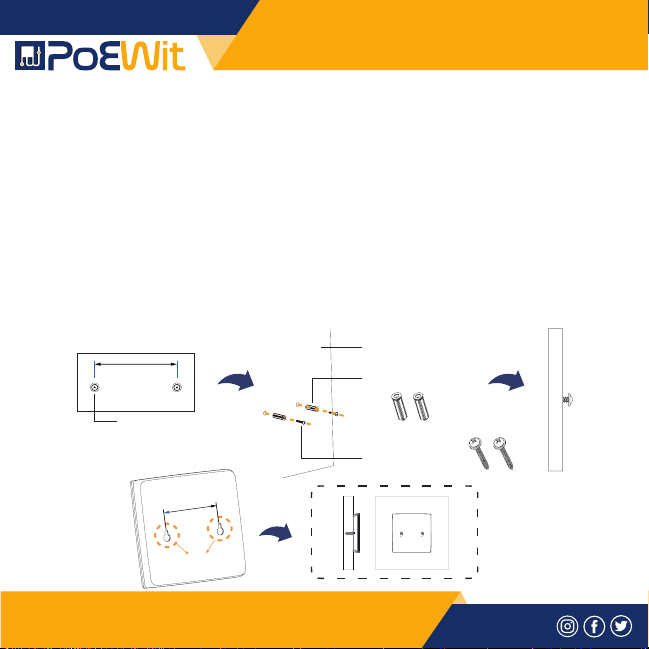

Step 1: Drill two holes with 90mm pitch (approx. 3.54”) into wall.
Step 2: Insert plastic anchors into drill holes, then insert two I3*20 self-
tapping screws into anchors, leaving a small gap between screw head and
wall. Note: To maintain a low operating temperature, leave an air gap
between wall and AP.
Step 3: Orient AP such that smaller ends of key holes are above larger ends
and insert larger ends onto screws.
Step 4: Pull AP down gently to secure screws into smaller ends of key holes.
FLUSH WALL MOUNT
Using Key Holes
