PMT CF20 Manuel utilisateur

PANASONIC TOUGHBOOK CF20

VEHICLE DOCK

USER GUIDE

AS7.P020.100 – CF20 NPT DOCK

AS7.P020.102 – CF20 DPT DOCK

AS7.P020.200 – CF20 NPT DOCK WITH SCREEN LOCK

AS7.P020.202 – CF20 DPT DOCK WITH SCREEN LOCK

AS7.P020.001 – CF20 SCREEN LOCK ARM

CF-20 VEHICLE DOCK

FRONT HOOKS

REAR HOOK

PROTECTIVE CONNECTOR COVER

LOCATING PINS

LATCH RELEASE

VGA

SERIAL

HDMI

USB

LAN

POWER

ANTENNA SWITCH - INTERNAL / EXTERNAL GPS

EXTERNAL WIRELESS WAN ANTENNA PORT (EX ANT 1)

EXTERNAL WIRELESS LAN/GPS ANTENNA PORT (EX ANT 2)

SCREEN LOCK MOUNTING POSITION

LOCK

2.25”

11.2”

9.75”

CF-20 VEHICLE DOCK

DOCKING TABLET

LINE UP THE ARROWS ON THE

DOCK TO THE POCKETS ON THE

LAPTOP. THIS MARKS THE

POSITION OF THE FRONT

HOOKS.

ANGLE THE LAPTOP TOWARDS

THE FRONT HOOKS FIRST.

THEN PUSH DOWN FIRMLY ON

THE REAR OF THE LAPTOP

THE DOCK WILL “CLICK” TO

CONFIRM SUCCESSFUL

DOCKING OF THE LAPTOP

THE INDICATOR ON THE FRONT OF THE

DOCK, SHOWS THE USER IF THE LAPTOP

IS CORRECTLY UNDOCKED OR DOCKED.

IN THIS IMAGE THE INDICATOR IS SHOWN

TO BE UNDOCKED.

CF-20 VEHICLE DOCK

THE INDICATOR ON THE FRONT OF THE

DOCK, SHOWS THE USER IF THE LAPTOP

IS CORRECTLY UNDOCKED OR DOCKED.

IN THIS IMAGE THE INDICATOR IS SHOWN

TO BE DOCKED

THE CF-20 LAPTOP IS SECURELY HELD

EVEN WITHOUT USING THE KEY.

IF YOU REQUIRE ADDITIONAL SECURITY

PLEASE USE KEY PROVIDED TO LOCK THE

CF-20 LAPTOP TO THE DOCK.

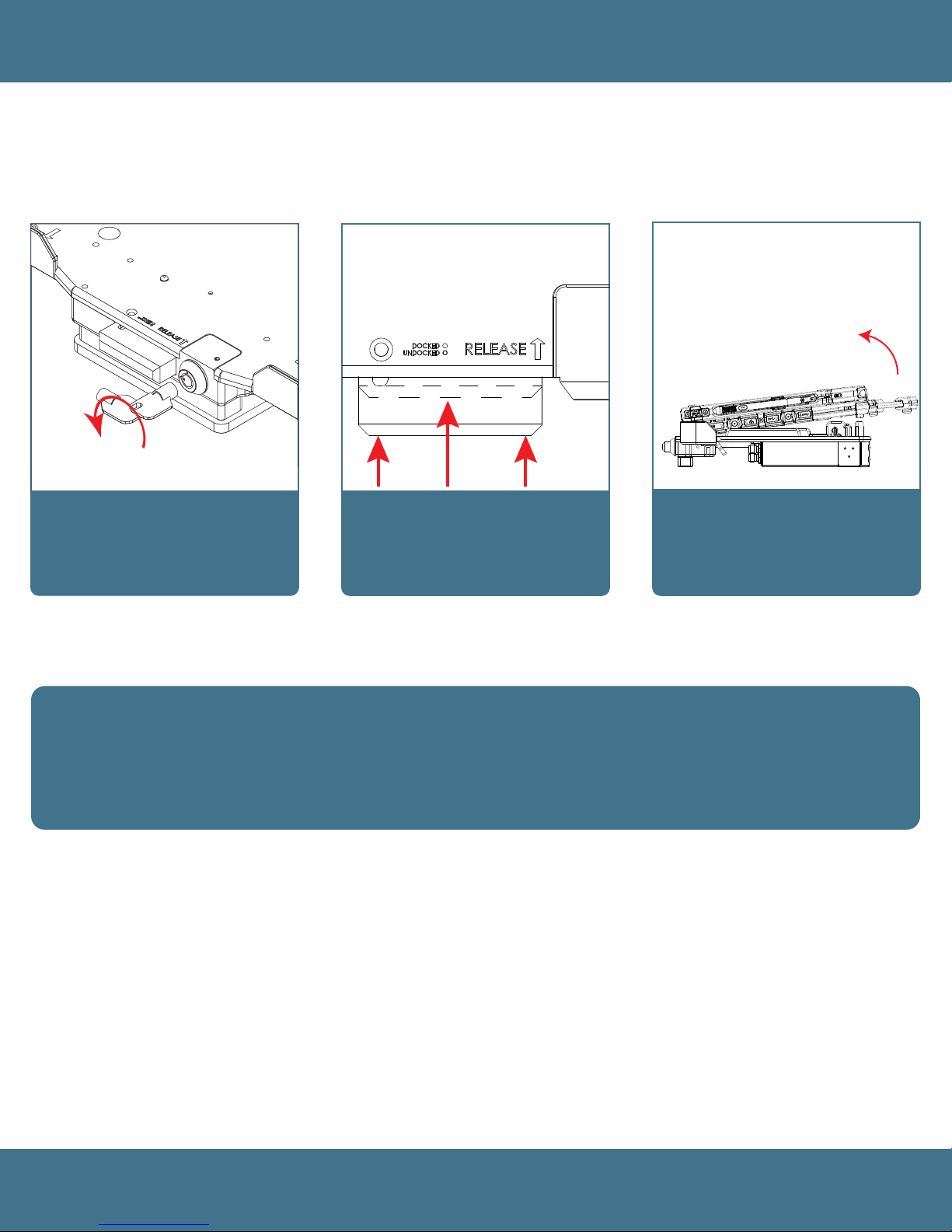

UNDOCKING LAPTOP

TO REMOVE LAPTOP. ENSURE

KEY IS IN UNLOCK POSITION.

FIRMLY PUSH SLIDER FORWARD

UNTIL THE SLIDER IS FULLY

DEPRESSED. THE LAPTOP WILL

“POP UP” AND WILL BE

RELEASED.

USING THE LAPTOP HANDLE

PULL THE LAPTOP UP FROM THE

REAR TO REMOVE LAPTOP

FROM DOCK.

NOTE – SOME MINOR COSMETIC WEAR MAY BECOME VISIBLE ON THE OUTER CASE OF THE CF20 LAPTOP WITH

REPEATED USE OF THE CF20 DOCKING STATION. PLEASE NOTE THAT THIS IS ONLY COSMETIC AND IN NO WAY

DETIORATES THE PERFORMANCE OF EITHER THE LAPTOP OR DOCKING STATION.

CF-20 VEHICLE DOCK

CABLE MANAGEMENT

WIRING TIP:

PMT DOES NOT RECOMMEND RELYING ON A

CIGARETTE SOCKET ADAPTOR FOR POWERING

VEHICLE DOCKS. WE RECOMMEND HARD WIRING

USING A GOOD CLEAN GROUND DIRECT FROM

THE VEHICLE BATTERY (-) POST, AND (+) SUPPLY

FROM A FUSED 12V LOCATION ALSO DIRECTLY

FROM THE VEHICLE BATTERY. ALL PERIPHERALS

CONNECTING TO THE DOCKING STATION SHOULD

GET POWER AND GROUND FROM THE SAME

LOCATION AS THE DOCK.

VISIT WWW.PRECISIONMOUNTS.COM FOR A COPY

OF OUR GENERAL WIRING AND TROUBLESHOOT-

ING GUIDE.

For more info visit: www.precisionmounts.com

Or call us at 1-888-869-7652

[email protected]

CONNECT ALL CABLES SECURELY TO DOCK

USE CABLE TIES TO SECURE CABLES TO THE CABLE

TIE RAIL.

NEATLY ORGANIZE CABLES TO PREVENT WIRING

FROM BEING ACCIDENTALLY DISCONNECTED.

ATTACH MOUNTING PLATE TO DOCK AFTER

SECURING ALL CABLES.

CF-20 VEHICLE DOCK

DOCK MOUNTING

THE CF-20 VEHICLE DOCK FEATURES A UNIVERSAL MOUNTING PLATE. IT USES HOLE

PATTERNS FROM PMT, GAMBER JOHNSON AND THE STANDARD VESA 75MM X 75MM HOLE

PATTERN.

THIS ALLOWS FOR EASY MOUNTING TO MANY PRE-EXISTING MOUNTS, AS WELL AS

DEDICATED MOUNTS FROM PMT.

WE RECOMMEND USING THE VESA PATTERN WITH THE 1/4-20 FLATHEAD SCREWS & NYLOK

NUTS PROVIDED WITH YOUR DOCK, TO SECURE TO MOUNTING INFRASTRUCTURE.

ATTACH MOUNTING PLATE TO MOUNTING INFRASTRUCTURE FIRST, THEN ATTACH DOCK TO

MOUNTING PLATE AFTER ATTACHING CABLES.

CF-20 VEHICLE DOCK

PANASONIC CF20

SCREEN LOCK

USER GUIDE

US Patent No. 10,067,533S

AS7.P020.002

KEY LOCK

FRONT SCREEN SUPPORT

LOCKING PIN

PIVOTING FASTENER

LOCKING SET SCREW

4.75”

1.75” 1.8”

CF-20 SCREEN LOCK

MOUNTING FASTENERS

MAKE SURE SCREEN LOCK IS

ROTATED OUT OF THE WAY.

THEN INSERT LAPTOP IN DOCK.

ROTATE SCREEN LOCK UP UNTIL IT

CONTACTS THE REAR OF THE

LAPTOP SCREEN.

THEN SLIDE FRONT SCREEN

SUPPORT OVER BEZEL

INSERT KEY AND ROTATE.

THE LOCKING PIN WIL ENGAGE INTO

KENSINGTON LOCK SLOT OF THE

CF20 LAPTOP SCREEN. THIS WILL

NOW STOP THE REMOVAL OF THE

TABLET SCREEN SECTION.

THE SCREEN SECTION OF THE CF20

LAPTOP IS NOW LOCKED TO THE

DOCK.

THE SCREEN CAN BE USED IN ANY

POSITION WITH THE SCREEN LOCK

ATTACHED.

THE FRONT SCREEN SUPPORT WILL

RETRACT WHEN THE SCREEN IS

CLOSED. YOU WILL MANUALLY NEED

TO SLIDE THE SUPPORT INFRONT OF

THE SCREEN WHEN USING THE

LAPTOP. THIS PROVIDES SUPPORT

FOR LAPTOP HINGE.

CF-20 SCREEN LOCK

THE CF-20 SCREEN LOCK IS AN ACCESSORY THAT

MOUNTS TO THE SIDE OF THE DOCK. WITH

FASTENERS PROVIDED.

FROM TIME TO TIME THE SCREEN LOCK MAY BECOME

LOOSE WHICH MEANS IT WILL NO LONGER PROVIDE

SUPPORT TO THE LAPTOP HINGE.

TO RE-TIGHTEN THE HINGE YOU NEED TO:

1) LOOSEN OFF THE LOCKING SET SCREW WITH A 5/64”

ALLEN KEY

2) TIGHTEN THE PIVOTING FASTENER TO 20 IN/LBS

USING A 5/32” TORQUE SETTING ALLEN DRIVER

3) APPLY RED LOCTITE TO THREADS OF LOCKING SET

SCREW

4) TIGHTEN LOCKING SET SCREW WITH A 5/64” ALLEN

KEY

CF-20 SCREEN LOCK
