Pleasant hearth GALACTICA Manuel utilisateur

ATTACH YOUR RECEIPT HERE

Serial Number ________________________________ Purchase Date _________________________________

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday.

30-10-162

GALACTICA FIREPLACE SCREEN

MODEL #FA330S

Español p. 7

Français p.13

2018-03-23

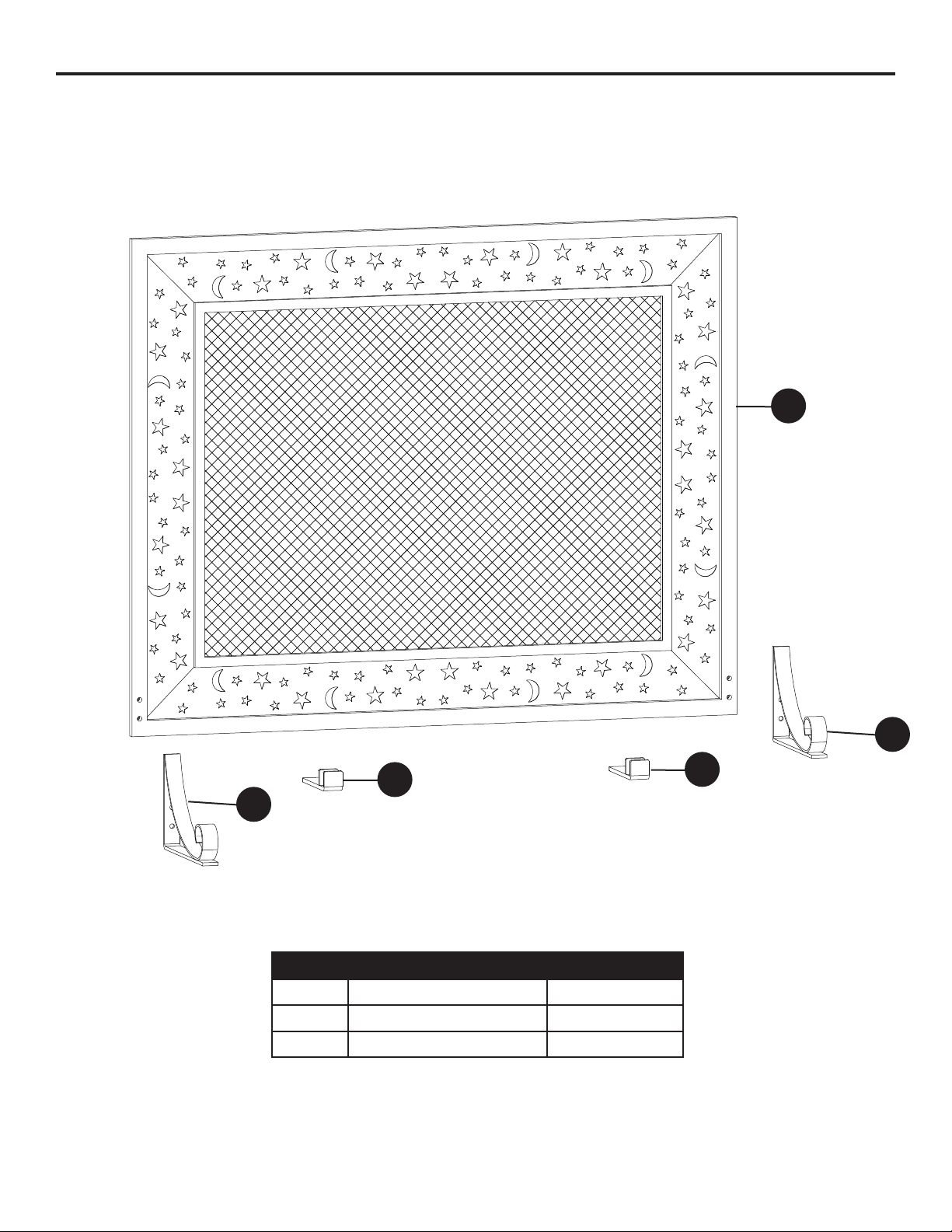

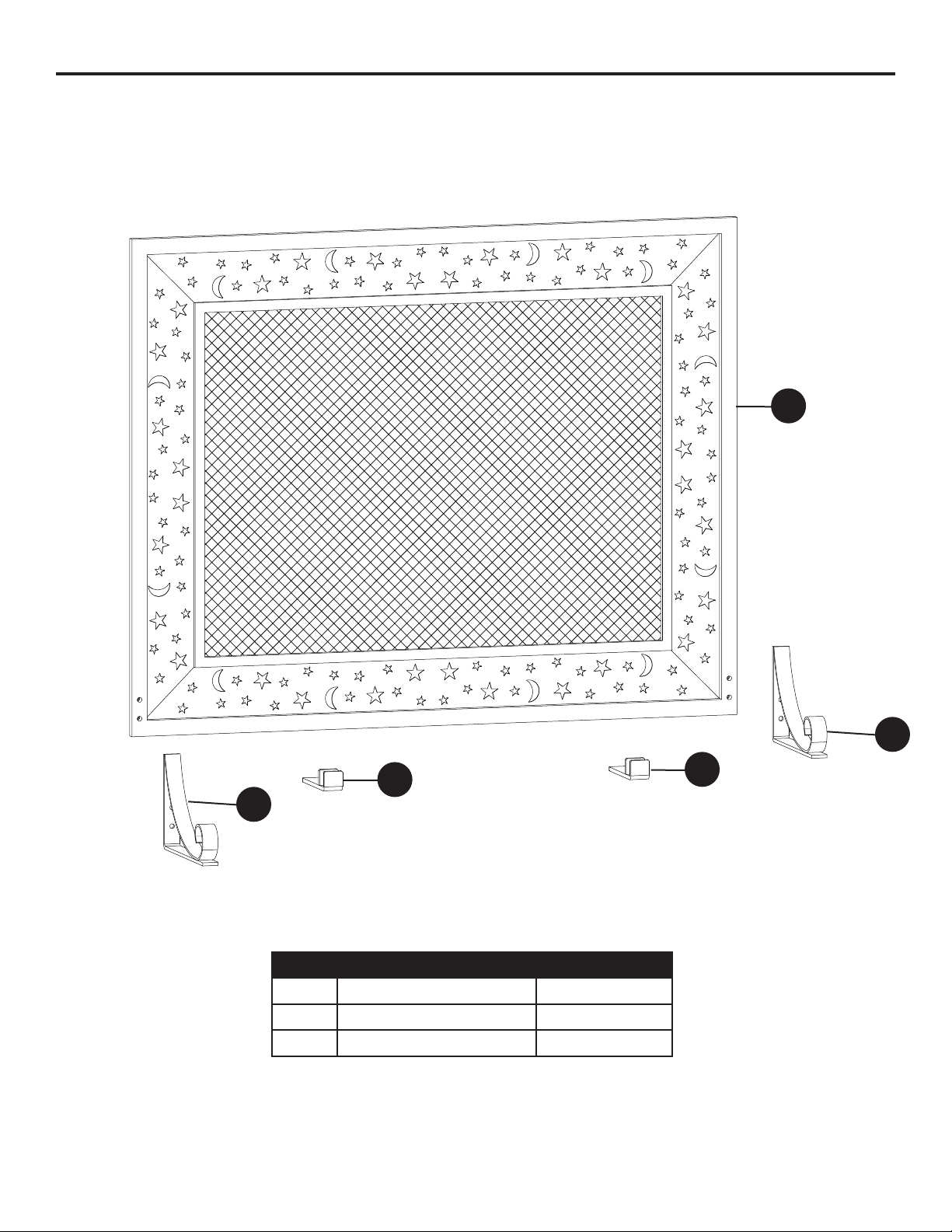

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

A Screen 1

B Front Foot 2

C Back Foot 2

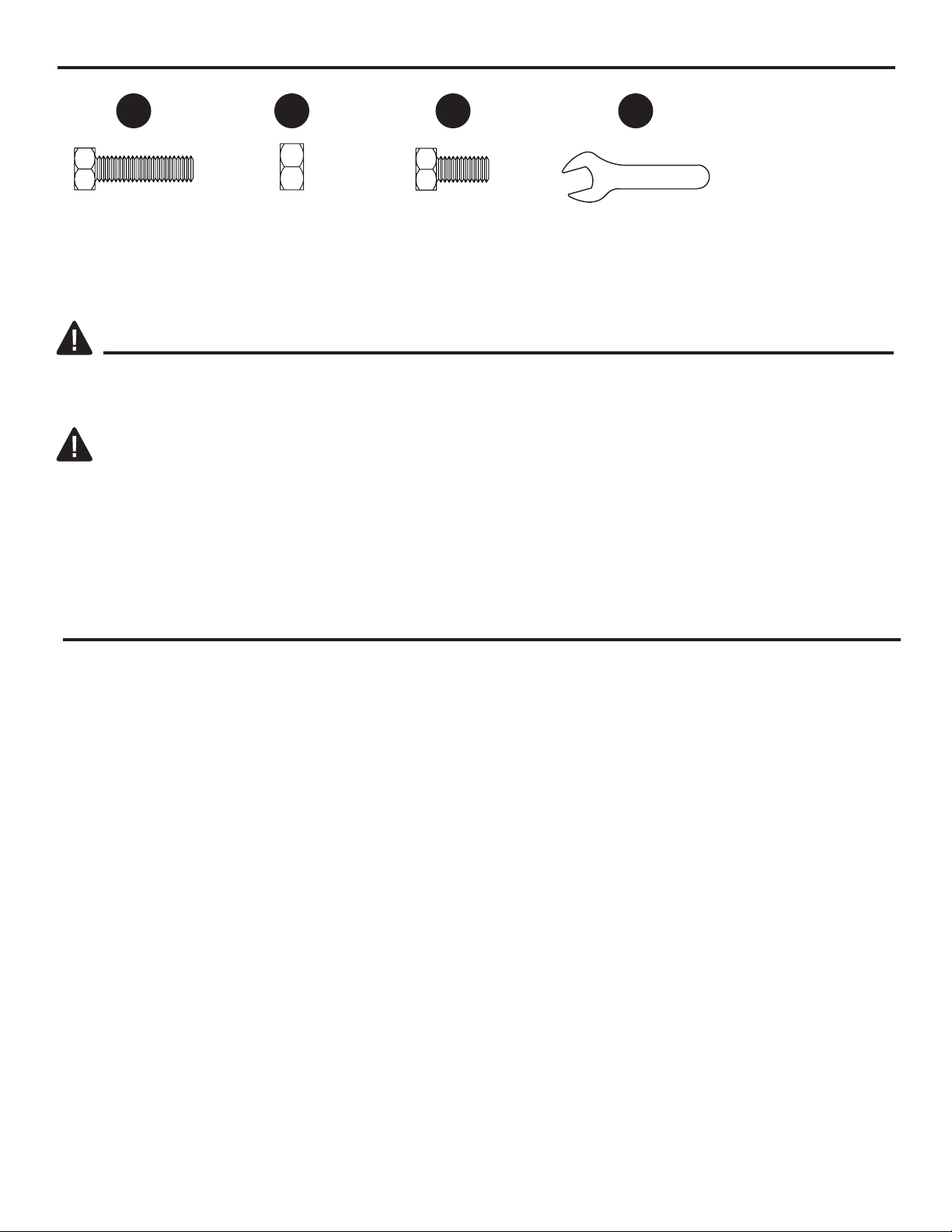

SAFETY INFORMATION

WARNING

Please read and understand this entire manual before attempting to assemble, operate or install

the product.

• Do not allow children to play with or around screen.

• Do not attempt to clean the screen while it is hot.

• When screen is in use, do not touch with bare hands as hot particles may stick to surface of screen.

• Make sure screen is large enough to completely cover replace opening.

• Use heat-resistant replace gloves when moving or adjusting screen.

HARDWARE CONTENTS

M6x25mm Bolt

Qty. 4

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents above. If any part is missing or damaged, do not attempt to

assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 5 minutes

M6 Nut

Qty. 4

M6x15mm Bolt

Qty. 2

Wrench

Qty. 2

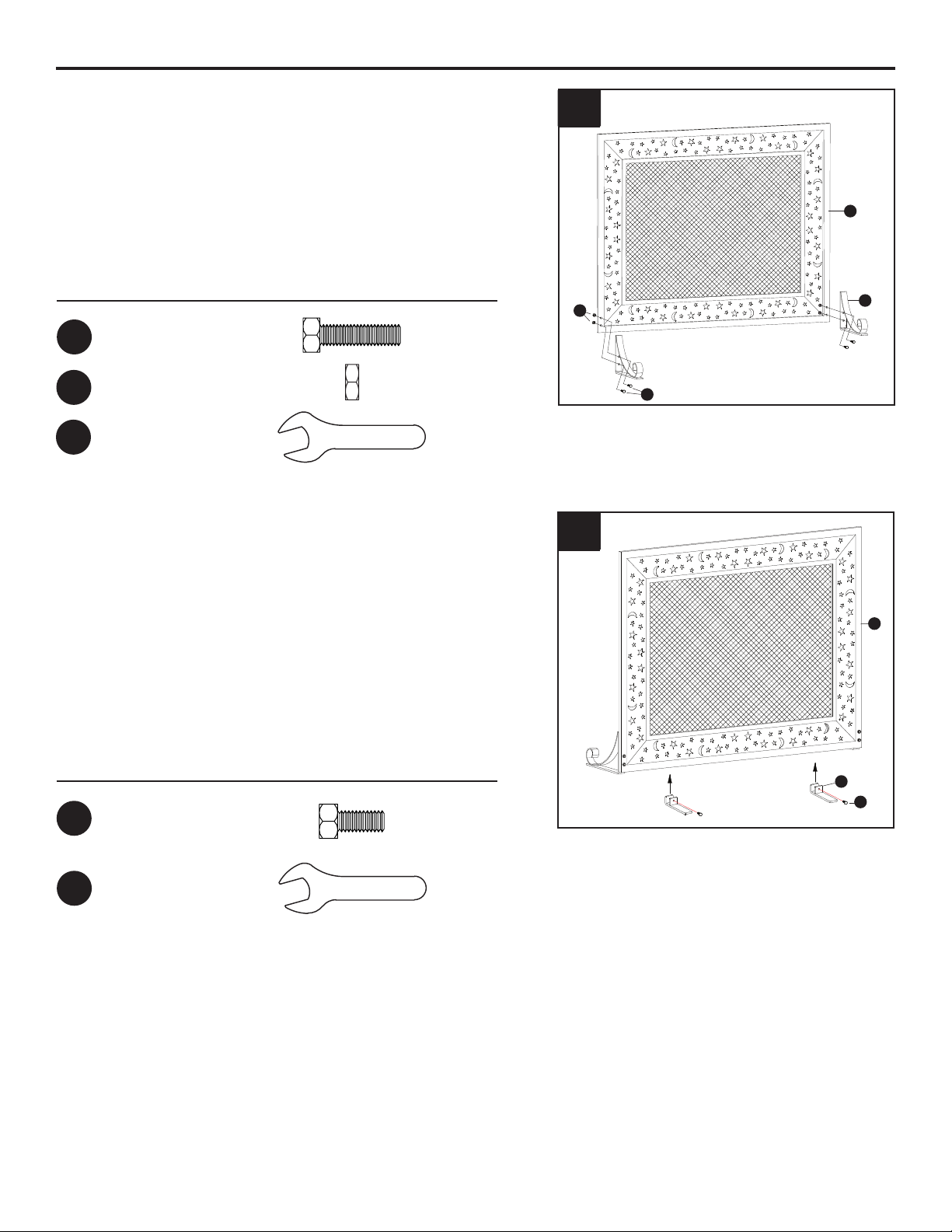

ASSEMBLY INSTRUCTIONS

Hardware Used

1. Attach the two front feet (B) to the front of the

screen (A) by inserting four M6x25mm bolts (AA)

through the pre-drilled holes in the feet (B) and

through the screen frame (A). Secure with four

M6 nuts (BB). Use a wrench (DD) to hold the bolt

(AA) in place while using the other wrench (DD) to

tighten the nut (BB). Repeat for all 4 bolts (AA)/

nuts (BB).

M6x25mm Bolt x 4

M6 Nut x 4

Hardware Used

2. Attach the back feet (C) to the back side of the

screen (A) by inserting one M6x15mm Bolt (CC)

into the hole in each foot (C) as illustrated in

gure 2. Adjust feet (C) to desired width. Tighten

against the screen (A) using the wrench (DD).

NOTE: The back feet are designed to adjust

to the inside width of your replace opening so

that, if desired, the screen can be placed ush

against the replace.

M6x15mm Bolt x 2

Wrench

CARE AND MAINTENANCE

• Do not attempt to clean screen while it is hot.

• Use a soft cloth to wipe screen and stand.

• Store in a cool, clean, dry place.

1-YEAR LIMITED FRAME WARRANTY

If within one year from the date of original purchase, this item fails due to a defect in material or

workmanship, we will replace or repair at our option, free of charge. To order parts or to obtain

warranty service, call 1-877-447-4768, Monday - Friday, 8:30 a.m. - 4:30 p.m. CST. This warranty

does not cover defects resulting from improper or abnormal use, misuse, accident, or alteration.

Failure to follow all instructions in the owner’s manual will also void this warrranty. The

manufacturer will not be liable for incidental or consequential damages, or common erosion of

outdoor products. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitation may not apply to you. This warranty gives you

specic legal rights, and you may also have other rights which vary from state to state.

GHP Group Inc.

6440 W. Howard St.

Niles, IL 60714-3302

877-447-4768

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m.-4:30 p.m.,

CST, Monday - Friday.

Printed in China

PART DESCRIPTION PART #

A Screen 30-01-236

B Front Foot 30-01-237

C Back Foot 30-01-238

AA-DD Hardware Pack 30-09-539

N/A Instruction Manual 30-10-162

AA BB

CC DD

30-10-162

PANTALLA DE HOGAR GALACTICA

MODELO #FA330S

ADJUNTE SU RECIBO AQUÍ

¿Preguntas, problemas, piezas faltantes?

Antes de volver a la tienda, llame a nuestro departamento de servicio al cliente al 1-877-447

4768, de lunes a viernes de 8:30 a.m. a 4:30 p.m., hora central estándar o envíenos un correo

electrónicoa [email protected]

Número de serie _____________________________ Fecha de compra ___________________________

English p.1

Français p.13

2018-03-23

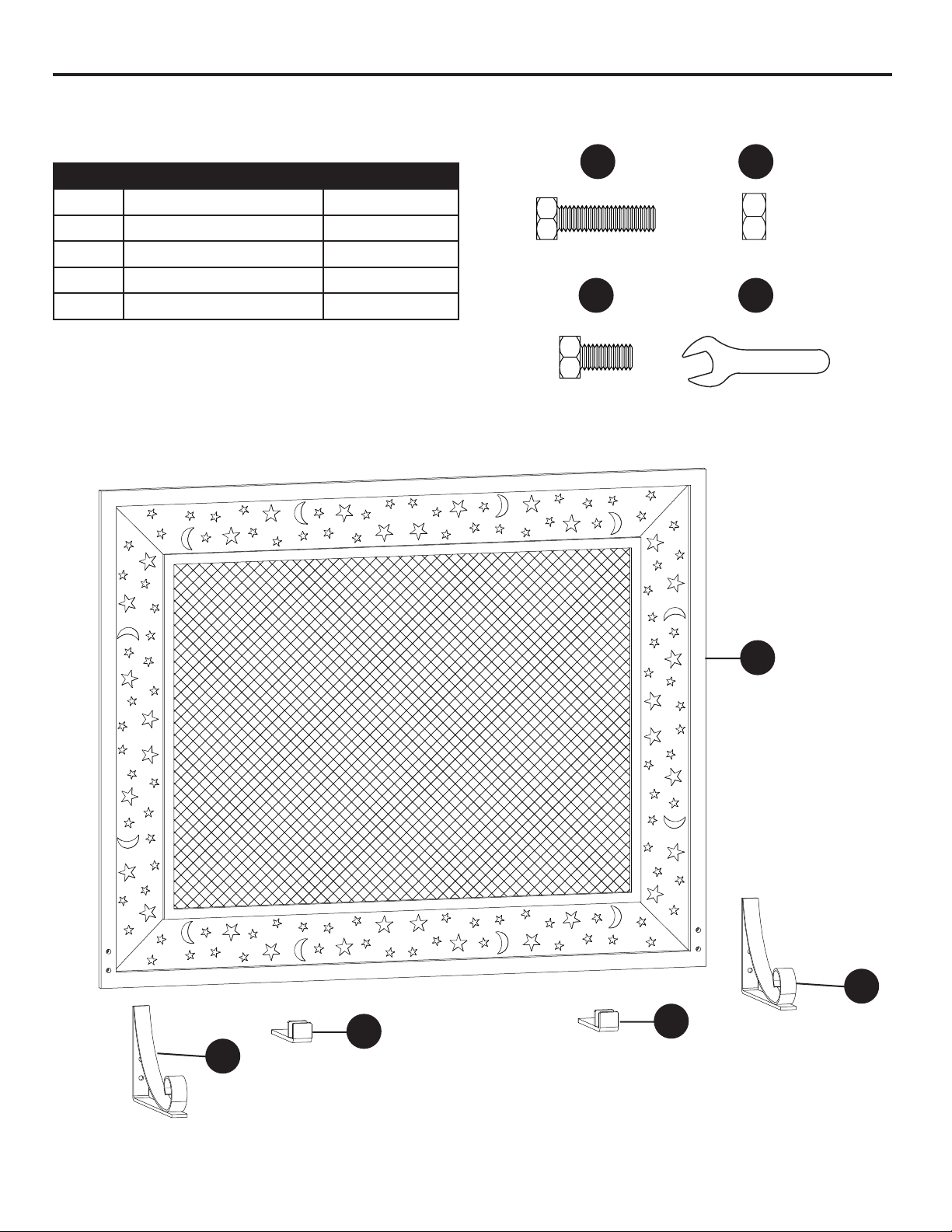

CONTENIDO DEL PAQUETE

PIEZA DESCRIPCIÓN CANTIDAD

A Pantalla 1

B Pie frontal 2

C Pie trasero 2

ADITAMENTOS

PREPARACIÓN

Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las

piezas con la lista del contenido del paquete y la lista de aditamentos. No intente ensamblar el pro-

ducto si falta alguna pieza o si estas están dañadas.

Tiempo estimado de ensamblaje: 5 minutos

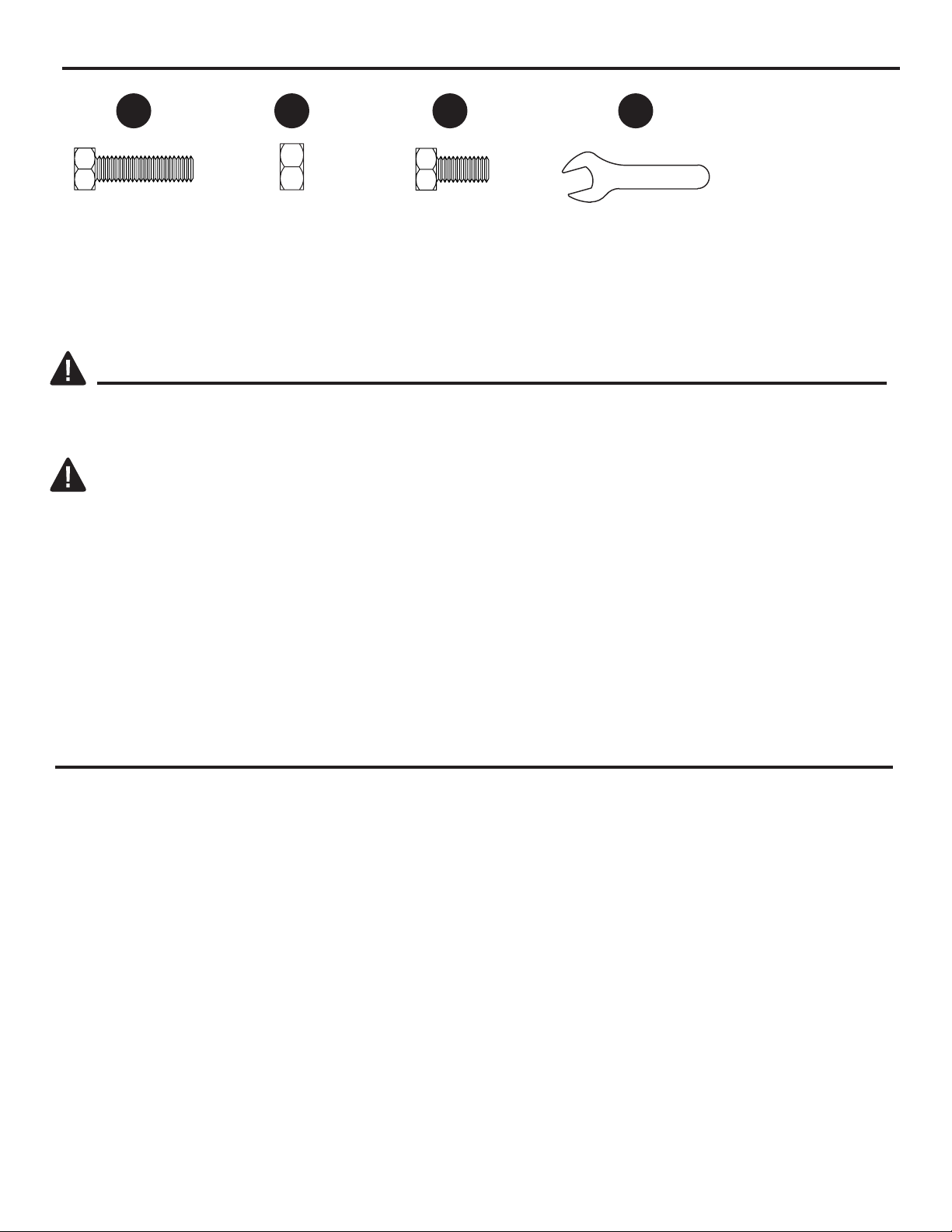

INFORMACIÓN DE SEGURIDAD

ADVERTENCIA

Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el

producto.

• No permita que los niños jueguen con la pantalla o cerca de ella.

• No intente limpiar la pantalla mientras esté caliente.

• No toque la pantalla con las manos descubiertas cuando esté en uso, ya que podrían adherirse

partículas calientes a la supercie de la pantalla.

• Asegúrese de que la pantalla sea lo sucientemente grande para cubrir por completo la abertura de

la chimenea.

• Use guantes resistentes al calor cuando mueva o ajuste la pantalla.

Perno

M6x25mm

Cant. 4

Tuerca M6

Cant. 4

Perno

M6x15mm

Cant. 2

Llave

Cant. 1

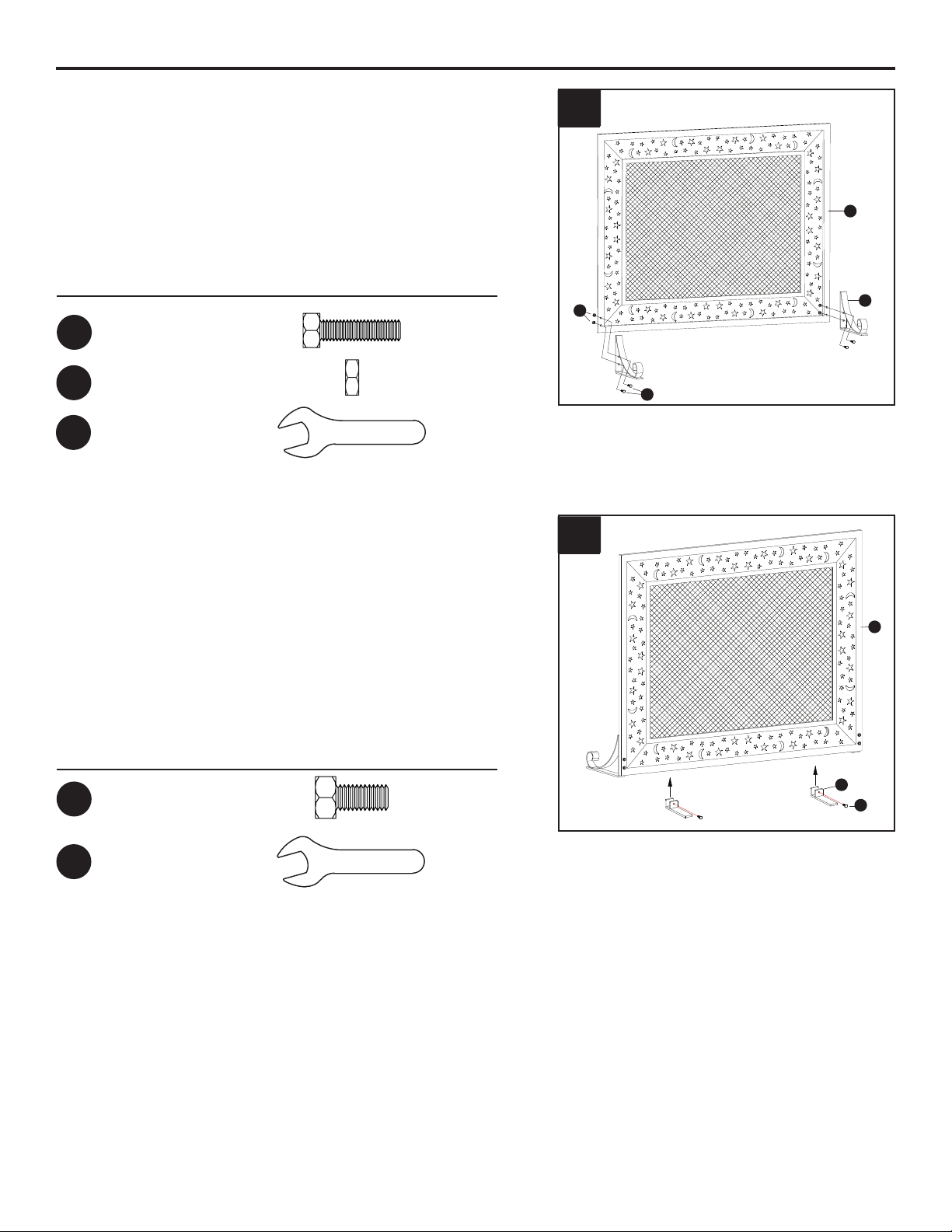

INSTRUCCIONES DE ENSAMBLAJE

Ferreteria utilizado

Perno M6x25mm x 4

Tuerca M6 x 4

Ferreteria utilizado

2. Fije las patas posteriores (C) a la parte trasera

de la pantalla (A) insertando un perno M6 x 15

mm (CC) en el oricio de cada pata (C) como

se muestra en la gura 2. Ajuste las patas (C)

al ancho deseado. Ajústelas a la pantalla (A)

usando la llave (DD).

NOTA: Las patas posteriores están diseñadas

para ajustarse al ancho interior de la abertura de

su hogar, de modo que, si lo desea, la pantalla

se puede colocar al ras de la chimenea.

Perno M6x15mm x 2

Llave

1. Fije las dos patas (B) a la parte frontal de la

pantalla (A) insertando cuatro pernos M6 x 25 mm

(AA) por los oricios perforados en las patas (B) y

por el marco de la pantalla (A). Fíjelas con cuatro

tuercas M6 (BB). Utilice una llave (DD) para

sostener el perno (AA) en su lugar mientras utiliza la

otra llave (DD) para ajustar la tuerca (BB). Repita el

procedimiento con los 4 pernos (AA)/ tuercas (BB).
