Playvision 4Kx2K 3D Manuel utilisateur

HDMI1.4Switch

Usermanual

Thankyouforpurchasing thisproduct.Foroptimumperformance andsafety,pleasereadthese

instructionscarefullybeforeconnecting,operatingoradjustingthisproduct.Pleasekeepthis

manualforfuturereference.

I. Introduction

Thisisahighperformance 3or4HDMIinputand 1HDMIoutput

switch.ItsupportsHDCP

repeaterfunctionsandfastswitchingbetweenanyoftheHDMIinputports. Thesystemsupports

all3DTVformatsinadditionto all HDTVformatsupto4Kx2K

.Furthermore,theremote

controlgivesusescompletecontrolovertheselectionofsourcesandmakesthedevice

incrediblyuserfriendly.

II. Features

CompliantwithHDMI1.4a, CTS1.4a, DVI1.0 standards.

HDMI1.4support:3D TVsupport.

Support3D Video&4Kx2K, 8, 10, 12 &16 bits percolordepth.

Audio support:

DolbyTrueHD

DTS-HDMasterAudio 7.1CH

Low powerconsumption, does notrequireanexternalpowersupply

III.Package

HDMI1.44by1Switcher

5VUSBto DCPowerSupplycable

Remotecontrol

IRReceiveExtend cable

OperationManual

IV. Specifications

FrequencyBandwidth2.97Gbps

InputPorts3or4HDMIFemaleports, IRReceiveport

Outputport1HDMIFemaleport

HDMIAudio OutputPCM2,5.1, 7.1CH, Dolby5.1, DTS5.1, D-TrueHD, DTS-HD

ESDProtection HumanBodyModel: 8kV(air-gapdischarge)

4kV(contactdischarge)

Dimensions (mm)87(D)x59.5(W)x19(H)

Weight (g)60

PowerConsumption0.2W

OperatingTemperature0˚C~40˚C/32˚F~104˚F

StorageTemperature-20˚C~60˚C/-4˚F~140˚F

V.3 1SwitchOperationcontrols andFunctions

Face Panel ①Switchbutton，press thebuttonwillswitchtheinput source;

②③④Ledindicate ，Indicates theHDMIinput

portselectedcorrespondingto the

light.

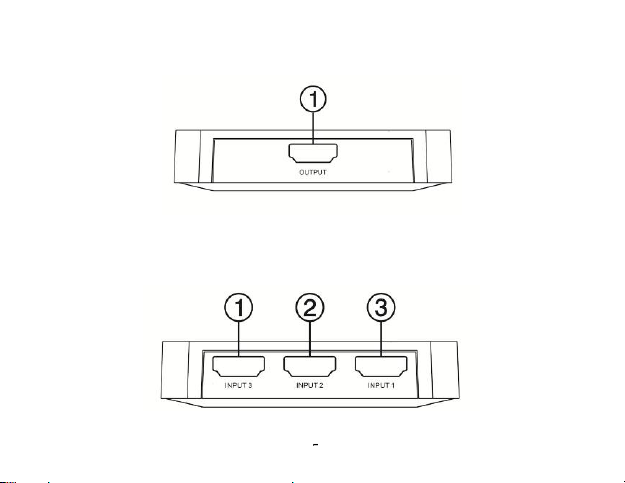

FrontPanel HDMIoutputport, connectwithHDTVormonitorwithHDMIcable

RearPanel HDMIinput port,connectwithDVD,PS3,Set-top BoxandNoteBook withHDMI

cable

Right Panel: ①DC5Vinputport;

②IRreceiverport:connectaIRextendcableandreceivertheRemotesignal.

VI. 5 1SwitchOperationcontrols and Functions

Face Panel ①Switchbutton，press thebuttonwillswitchtheinput source;

②③④⑤⑥Ledindicate ，IndicatestheHDMIinput

portselectedcorresponding

to thelight.

FrontPanel ①③HDMIinputport,connectwithDVD,PS3,Set-top BoxandNoteBook with

HDMIcable

②HDMIoutput port, connectwithHDTVormonitorwithHDMIcable

RearPanel HDMIinput port,connectwithDVD,PS3,Set-top BoxandNoteBook withHDMI

cable

Right Panel:①DC5Vinput port;

②IRreceiverport:connectaIRextendcableandreceivertheRemotesignal.
