Plantronics CS70 Series Manuel utilisateur

5 Easy Steps

The fastest way to setup your

CS70 Headset System

CS70 Series Setup Guide

Base Power

Adaptor

CS70

Headset Base

CS70 Headset

with Ear Tip

HL10

Automatic

Handset Lifter*

*Not included in all congurations

2Plantronics CS70 Setup Guide

Headset

Headset Base with Pre-

installed Phone Cable

Ear Tips

Base Power Adapter

Setup Guide

HL10 Automatic

Handset Lifter

HL10

User Guide

CS70 PaCkage ContentS

CS70 With Handset Lifter* Adds:

HL10 Additional Parts Kit (if needed)

Extender

Arm

Ringer

Microphone

Adapter for

Nortel i2004

Phones

Please refer to the separate Safety Instructions sheet for important product safety

information prior to installation or use of the product.

*Automatic Handset Lifter is bundled with certain CS70 congurations and also available separately.

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

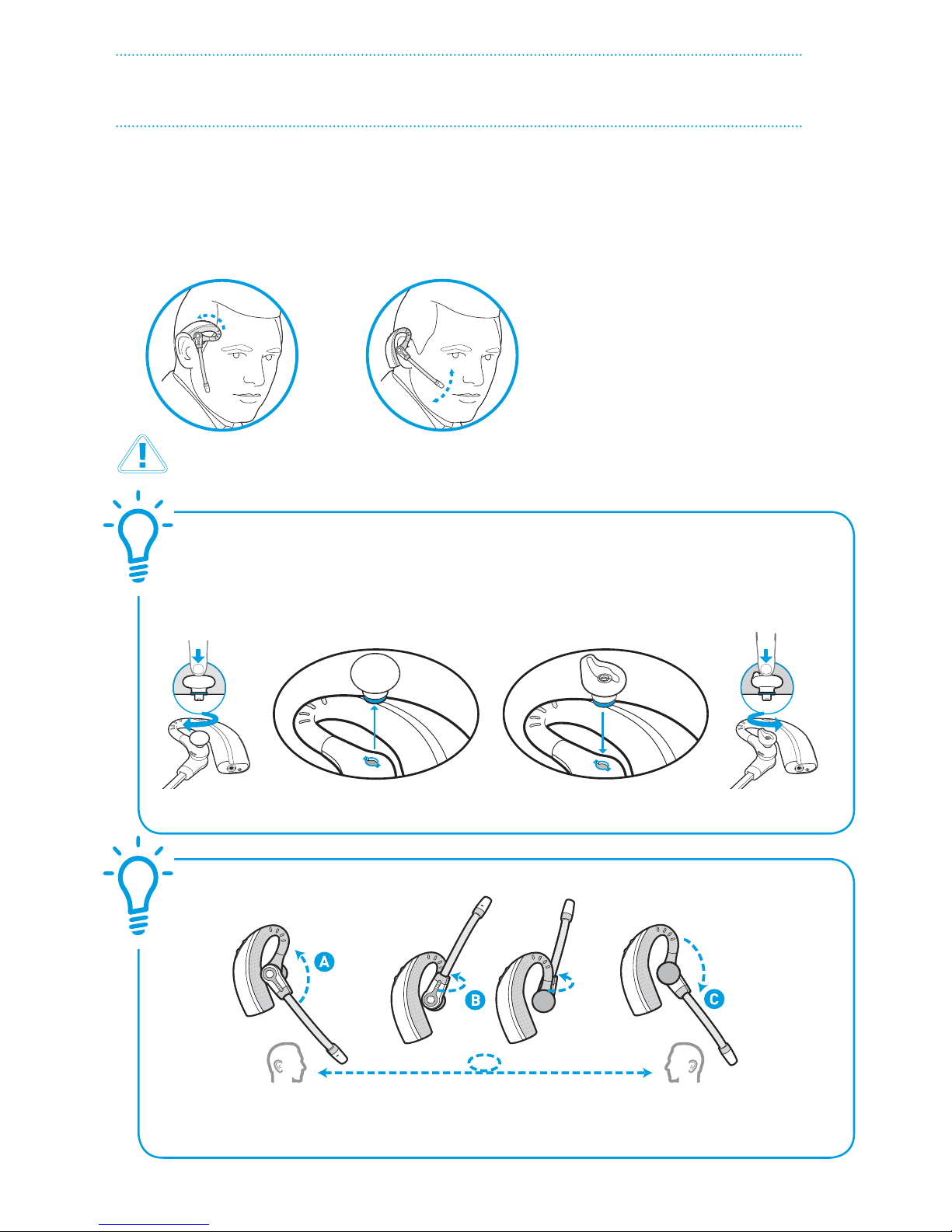

InStall ear tIP & adjuSt fIt

S T E P

Fit the Headset

Slide the headset over and behind your ear, then press gently toward your ear. Rotate the

microphone boom until it is pointed toward your mouth. If the ear tip is uncomfortable,

install a dierent ear tip. See below.

To Convert for Wearing on Left Ear

A. Rotate microphone

boom up

B. Turn microphone

boom around

C. Rotate microphone

boom down

For your safety and comfort, the ear tip should never be inserted into the ear canal.

Choose the style and size of Ear

Tip that ts most comfortably.

Align Ear Tip tabs with notches

in headset.

Push in rmly and

twist counter

clockwise.

To Install a Dierent Ear Tip

Remove the pre-installed ear tip by

pushing in and turning the ear tip

clockwise, then pull rmly.

To view an interactive set-up guide online, visit www.plantronics.com/cs70setup and click on Adjusting Fit.

4Plantronics CS70 Setup Guide

S T E P

2ConneCt BaSe to deSk Phone

Use Conguration A if:

You will use the Automatic Handset Lifter

or…

Your phone has NO built-in headset functionality (no Headset button).

Conguration A

2. Plug the short black Phone Cable that

is pre-installed on the Headset Base into

the now-open handset port [A] on the

desk phone.

1. Unplug the handset coil

cord from the desk phone

handset port [A], then plug it

into the green labeled handset

port [B] on the Headset Base.

Handset

Coil Cord Handset

Headset Base

(bottom view)

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

Use Conguration B if:

You will NOT use the Automatic Handset Lifter

and…

Your phone has built-in headset functionality (a Headset button).

1. Plug the short BLACK Phone

Cable that is pre-installed on

the Headset Base into the Heaset

port [C] on the desk phone.

Conrm there is

a “HEADSET” button

on your phone

Conguration B

HANDSET port or HEADSET port?

You should only use the headset port if you will not be using the Automatic Handset

Lifter and you have a pre-programmed Headset button on your phone.

In this conguration you must press both the Headset button on your phone

and the Call Control Button on the headset to answer/end calls.

Headset Base

(bottom view)

6Plantronics CS70 Setup Guide

ConneCt Power and Charge headSet

S T E P

1. Plug the Base Power Adapter into a wall outlet, then plug the power cord into the yellow

labeled connector on the bottom of the Headset Base. The red Power light on the left

front of the Headset Base will turn on. (See illustration at bottom of page.)

Power

(red)

Charge

Status

(amber)

IMPORTANT! Make sure the headset

is facing correctly (as shown at left)

when inserted into the charging cradle.

Insert into yellow labeled power

connection on Headset Base as

shown to charge.

Headset Base

(bottom view)

Base

Power

Adapter

A. Connect Headset Base to power outlet

1. Gently push the headset into the charging cradle as shown below. The amber Charge

Status light on the base will ash to indicate the headset battery is charging. A solid

light indicates full charge. A full charge will take approximately 3 hours.

B. Charge the Headset for at least 20 Minutes before using

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

InStall automatIC handSet lIfter

Why use a handset lifter? The lifter greatly simplies using

a headset with your desk phone. It lets you answer and

end calls without being near your phone.

S T E P

firmly press Lifter power

cord into red labeled port

on Headset Base.

Automatic Handset Lifter

Headset Base

(bottom view)

The HL10 Automatic Handset lifter is included with certain CS70 congurations and is

also available separately.

If you do not have the Lifter, skip to step 5.

1. Verify that the base-to-desk Phone Cable is connected to the handset port of the desk

phone, and not the headset port (Refer to Step 2, Conguration A).

2. firmly press the Handset Lifter power cord into the red labeled port to ensure a

complete connection.

A. Connect Handset Lifter power cord to Headset Base

8Plantronics CS70 Setup Guide

Press Call

Control Button

4. Press the Call Control Button on the headset.

This will activate the Handset Lifter and lift the

handset from the phone.

If you hear a dial tone, the lifter height is set

correctly and needs no adjustment.

Please continue with the next section “Mount the

Lifter in Permanent Position”.

5. If you do not hear a dial tone, the Lifter may not

be raising the handset high enough OR the

Conguration Dial may need adjusting. Continue to

step 6.

Handset Lifter Arm

Lifter viewed

from back

2. While wearing your headset, slide the Handset Lifter Arm under the handset until the

lifter base touches the side of the phone.

3. Slide the Lifter up to where it nearly touches the handset earpiece.

Start with Lifter

Height Switch in

lowest position

Slide Lifter under

handset, then up

toward the ear piece

1. Set the Lifter Height Switch to the lowest setting.

B. Determine Lifter position and height setting

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

Peel back

mounting tape

protective strips

(3 places)

6. Check the Lifter height adjustment by moving the Lifter Height Switch to a higher position.

Repeat steps 2. through 4. as necessary.

If you hear a dial tone, the lifter height is now set correctly. Please continue with the next

section “Mount the Lifter in Permanent Position”.

7. If you still cannot hear a dial tone,

you will need to change the setting

on the Conguration Dial.

Using a coin or paperclip,

turn the Conguration Dial to

a dierent setting until you hear a

dial tone. Multiple settings might work

with your phone; however, only one is the

optimal position. If you still cannot hear a dial

tone, please call Technical Support

at 800-544-4660 Extension 5538.

To view an interactive set-up guide online, visit www.plantronics.com/cs70setup

and click on Compatibility.

1. Remove the protective strips from the three mounting tapes on the underside of the Lifter.

2. gently place the Lifter on the desk phone in the optimum position as determined above.

Test the Lifter to verify positioning by pressing the Call Control Button on your headset to

activate the Lifter and listen for a dial tone.

3. Press firmly to adhere the Lifter to the desk phone.

C. Mount the Lifter in permanent position

Conguration

Dial

Position Indicator

If your handset falls o the phone base or

does not return to its cradle when lowered,

you will need to attach the Extender Arm to

the Lifter as described in the HL10 Additional

Parts Kit.

Use the Extender Arm to Stabilize

Handset (if needed)

10 Plantronics CS70 Setup Guide

make ateSt Call to ConfIgure

and oPtImIze your SyStem.

S T E P

To get the best sound quality for both you and your

listeners You MUST congure and optimize your

system!

Automated Sound Test

866-210-2157

For your safety, do not use headset at high volumes for extended periods of time. Doing so can cause

hearing loss. Always listen at moderate levels. For more information on headsets and hearing

visit: www.plantronics.com/healthandsafety

1. If your desk phone has a volume control, set it to mid-range.

2. If you have installed the Automatic Handset Lifter, press the Call Control Button on

your headset.

If you have not installed the Automatic Handset Lifter, press the Call Control Button

then lift the handset from its cradle (or press the HEADSET button on your telephone,

if it has one).

3. Verify that you hear a dial tone. If so, continue with step 4.

if you do not Hear a dial tone: Use a coin or paperclip to turn the Conguration Dial

to a dierent setting until you hear a dial tone.

If you still do not hear a dial tone at any of the four positions, review Setup Guide

Steps 1–4 to verify completion.

4. Make the test call (TOLL FREE). It’s the quickest way to test and optimize

your system.

A. Make the test call

Press Call

Control Button
