Thank you for selecting the

CS60 DECT™ Wireless Headset

System from Plantronics.

The CS60 offers wireless,

hands-free headset convenience

and long range workspace

mobility.

This user guide provides

instructions on the installation

and usage of your system.

WELCOME

CS60 DECT™Wireless

Headset System

User Guide

www.plantronics.com

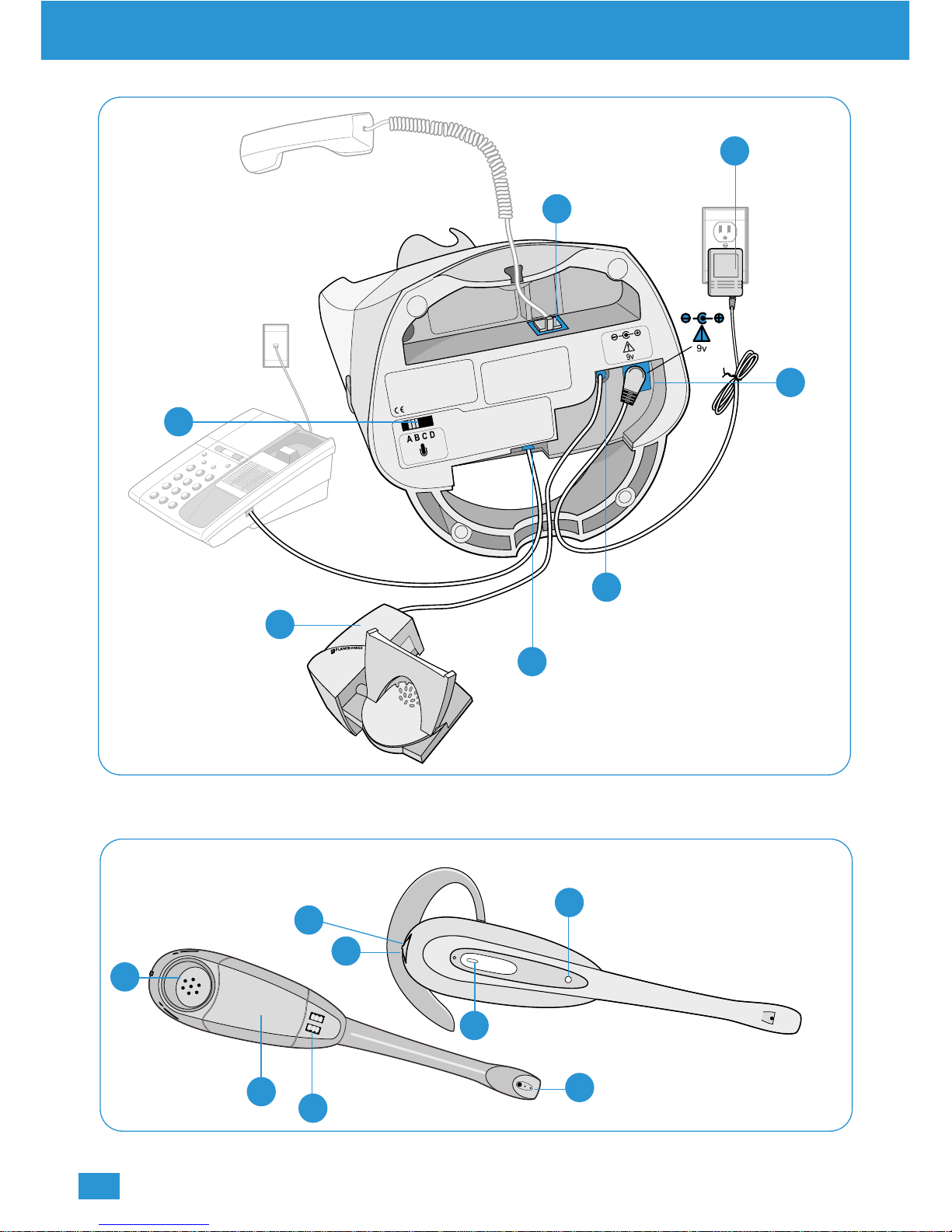

DIAGRAM KEY

HEADSET

25 24 18

DIAGRAMS

BASE UNIT

INSTALLING A REPLACEMENT BATTERY

USAGE INSTRUCTIONS

DIAGRAM KEY

1TxSlideSwitch(A-D)

2RxSlideSwitch(1-4)

3SpeakVolumeAdjustUP

4SpeakVolumeAdjustDOWN

5IntelliStandTM SwitchON/OFF

6ConfigurationDial

7ACPowerAdapter

8ACPowerAdapterPort

9HandsetCablePort

10 TelephoneCablePort

11 AccessoryPort

12 HeadsetDockingCradle

13 Chargecontacts

14 ChargeIndicator

15 TalkIndicator

16 PowerIndicator

17 HandsetLifter(Optional)

18 Microphone

19 Speaker

20 TalkButton

21 ListenVolumeAdjustUP/DOWN

22 HeadsetMuteSwitch

23 On-lineIndicator

24 Chargecontacts

25 BatteryDoor

BASE UNIT HEADSET

IMPORTANT SAFETY INFORMATION

Please read the following instructions before use:

General:

•Operating temperature +4C to +49C

•Storage temperature +4C to +49C

•The product is suitable for indoor use only

•To reduce the risk of electric shock, explosion or fire:

•Use only the AC power adapter supplied –part number 61634-02 (Euro) or 61635-02 (UK)

•Ensure that the voltage rating (e.g. 230V 50Hz) corresponds to the local mains supply you intend

to use

•Use only the correct battery type –part number –62346-01

•Do not disassemble the product

•Keep all products, cords and cables away from operating machinery

•Avoid contact with liquids

•Connect the base unit only to a host terminal port explicitly designated for use with handsets or

headsets. Connection through other ports, such as data ports or line ports, may damage the

product and could constitute a fire hazard. If in doubt, please contact your supplier or the supplier

of the host equipment

•If mains power fails, the base unit will switch to handset mode

Battery Safety:

•Please observe these precautions to ensure continued safety. Misuse or mistreatment may result in

fire, explosion or the release of corrosive chemicals

•Battery storage temperature +4C to +49C

•Battery operating temperature +4C to +49C

• Charge the headset battery as described in the Quickstart Guide and User Guide.

Do not charge with any other AC power adapter or charger

• Do not incinerate, disassemble, bend, crush or short-circuit the battery

• Dispose of spent battery promptly and safely in accordance with local regulations. Keep battery

away from children

• Exercise care when handling the battery, AC power adapter, the base and the headset. Do not

short the metal contacts (on the plastic casing) with electrically conducting materials such as rings,

bracelets, keys etc

• If liquid from the battery comes in contact with the eyes, skin or any other part of the body,

immediately flush with fresh water and seek medical advice

• For battery replacement please refer to the diagrams on page 3 or the Quickstart Guide supplied

with the product

INSTALLATION

Please install the CS60 DECT™Wireless Headset System in accordance with the instructions

detailed in the Quick Start Guide.

HEADSET/HANDSET SELECTION

Pressing the Talk Button (20) on the Headset selects Headset mode. The Talk Indicator (15) on the

base unit will illuminate and the On-Line Indicator (23) on the headset will flash when in Headset

mode. Both of the indicators are extinguished when in Handset mode.

PLACING A CALL USING YOUR HEADSET

To place a call using the headset, the system must be in Headset mode. Take the handset off the

hook and dial in the normal way. You will then be able to talk through your headset. When the

call is complete, return the telephone handset to the cradle.

Tip: By selecting Handset mode after completing your call, you will conserve the headset

battery power and extend the remaining available talktime. You can achieve this by

pressing the Talk Button (20) immediately on conclusion of the call.

Note: If you have installed a Plantronics Handset Lifter (17) please refer to the section

“Making a call using the Lifter” on page 7.

RECEIVING A CALL USING YOUR HEADSET

When your telephone rings take the handset off the hook. Ensure that your CS60 DECT™Wireless

Headset System is already in Headset mode. You will then be able to talk through your headset.

When the call is complete, return the telephone handset to the cradle.

Note: If you have installed a Plantronics Handset Lifter (17) please refer to the section

“Receiving a call using the lifter”on page 7.

ADJUSTMENTS

PLACING AND RECEIVING A CALL USING THE HANDSET

In Handset mode the telephone can be used to make and receive calls in the normal way.

OUT OF RANGE WARNING

As you walk away from the base unit you will eventually reach the system operating range limit.

When in Headset mode a warning alert of two beeps will sound in the headset shortly before you

meet the range limit.

On hearing this alert you should walk closer to the base unit to ensure call quality is maintained.

If you ignore this alert and walk out of range, a triple beep will sound in the headset and any

active call will be suspended. On returning within range, a single beep will sound and the call will

be re-established.

If you remain out of range for more than 15 minutes the system will drop the call permanently. If

using a Plantronics Handset Lifter the handset will be replaced and the call terminated.

LOW BATTERY WARNING

When the headset battery is running low (approximately 5 minutes talk time remaining), an

audible warning will be heard through the headset as a single beep repeating every 10 seconds.

Soon after hearing this warning, you should recharge the headset.

RECHARGING THE HEADSET

To recharge the headset, place it into the Headset Docking Cradle (12) in the base unit. During

charging, the Charge Indicator (14) on the base unit will flash.

When the headset is fully charged, the Charge Indicator (14) on the base unit will stop flashing and

remain illuminated.

A completely depleted headset requires a minimum charge time of 1hr before it should be used and

3 hours to fully charge.

REPLACING THE HEADSET BATTERY

Should it be necessary to replace the headset battery at anytime please refer to the diagrams on

page 3.

OPERATION WITH THE HANDSET LIFTER ACCESSORY

The Plantronics Handset Lifter (17) is an accessory that can be purchased for use with the

CS60 DECT™Wireless Headset System. It has two functions:

1. To automatically notify you when an incoming call is detected even when you are away from

your desk.

2. To lift the telephone handset from its cradle at your command even when you are away from

your desk.

The installation of the Handset Lifter (17) is described in the user guide that is supplied with it.

MAKING A CALL USING THE LIFTER

Press the Talk Button (20) on the headset. The lifter will raise the telephone handset off the hook.

You will then hear a dial tone in your headset and can proceed to make a call as normal.

When you have finished your call press the Talk Button (20) on your headset. The handset lifter

then lowers the handset to end the call.

RECEIVING A CALL USING THE LIFTER

When a new call is received the telephone rings as normal, but in addition, a ring alert comprising

a repeating sequence of three short beeps will be heard in your headset.

Note: This additional call alert is only active when the Lifter (17) is connected.

To answer the call press the Talk Button (20) on the headset. The lifter will then raise the

telephone handset off the hook and you will then be able to talk to the caller.

When you have finished your call press the Talk Button (20) on your headset. The handset lifter

then lowers the handset to end the call.

IntelliStandTM FUNCTION

When the CS60 DECT™Wireless Headset System is used in conjunction with a Plantronics Handset

Lifter (17), you can enable the IntelliStand feature.

The IntelliStand senses when the headset has been removed or replaced in the CS60 Base Unit,

automatically activating the lifter to answer or end a call.

The IntelliStand feature is disabled when the IntelliStand switch (5) is in position I or enabled when

the switch is in position II.

SWITCHING FROM HEADSET TO HANDSET WHEN USING THE LIFTER

If during a call you are using your headset and want to switch to the telephone handset, remove

the handset from the Lifter, then press the Talk Button (20) on your headset. The Lifter will lower

and you will then be able to continue the call using the handset.

SWITCHING FROM HANDSET TO HEADSET WHEN USING THE LIFTER

If during a call you are using the telephone handset and want to switch to your headset, press the

Talk Button (20) on the headset. The Lifter will raise and you will be able to continue the call using

your headset.

Replace the telephone handset on the Lifter. When the call is finished press the Talk Button (20)

on your headset. The Lifter will lower the handset and end the call.

TROUBLESHOOTING

PROBLEM

I plugged everything in but the lights won’t come on.

Possible Cause Solution

No power Check that the AC Power Adapter is connected to the

base unit.

Check that the AC Power Adapter is connected to the

mains supply.

Check that the AC Power Adapter is the model

supplied by Plantronics.

PROBLEM

I cannot hear caller / dial tone.

Possible Cause Solution

CS60 DECT™Wireless Check that the telephone is connected to the base

Headset System is not unit’s Telephone Cable Port.

connected correctly Check that the handset is connected to the base

unit’s Handset Cable Port.

Ensure you are in Press the Talk Button to select correct mode.

headset mode

Out of Range Walk back into range.

Headset battery is flat Recharge the battery by placing the headset

in the Headset Docking Cradle.

Listen volume too low Adjust the Listen Volume Control on the headset.

If the volume is still too low, select another Rx Slide

Switch setting (refer to the Quickstart Guide).

Incorrect Configuration Dial Try other Configuration Dial settings on the base unit.

setting for your telephone

PROBLEM

Callers cannot hear me.

Possible Cause Solution

Mute is selected Press the mute button once. The audible mute

indicator should then stop beeping.

Headset microphone boom Align the headset boom with your mouth

is incorrectly positioned

Speak volume is too low Increase the Speak Volume by adjusting the Speak

Volume Controls on the base unit.

If the volume is still too low, select another Tx Slide

Switch setting (refer to the Quickstart Guide).

Incorrect Configuration Dial Try other Configuration Dial settings on the base unit.

setting for your telephone

PROBLEM

I can hear a dial tone in more than one configuration position

Possible Cause Solution

Telephone will work Use the position that sounds best to you and the

in more than one person you call.

Configuration Dial position

PROBLEM

I tried all four positions on the Configuration Dial and cannot hear a dial tone in any position.

Possible Cause Solution

CS60 DECT™Wireless Check that the telephone is connected to the base

Headset System is not unit’s Telephone Cable Port.

connected correctly Check that the handset is connected to the base

unit’s Handset Cable Port.

You may have an Call your supplier or local Plantronics office for help.

incompatible phone

The telephone line is dead Reconnect the handset to the telephone and test.

TROUBLESHOOTING

PROBLEM

Receive sounds distorted.

Possible Cause Solution

Listen volume too high If your telephone has a receive volume control, lower

on your telephone this until the distortion disappears.

If the distortion is still present, lower the listen

volume control on the headset. If the distortion

persists, select another Rx Slide Switch setting.

(Refer to the Quickstart Guide).

PROBLEM

I can hear too much background conversation, noise or sidetone.

Possible Cause Solution

Speak volume is too high Lower the Speak Volume by adjusting the Speak

Volume control on the base unit.

If the volume is still too high, select another Tx Slide

Switch Setting (refer to the Quickstart Guide)

PROBLEM

Sudden loss of audio, continuous noise or distorted audio on receive.

Possible Cause Solution

Software reset required Press the Talk button (20) twice.

If the problem persists perform a System Reset

refer to instructions on page 11.

PROBLEM

My handset Lifter operates every time I remove or replace my headset in the base unit.

Possible Cause Solution

IntelliStand™function To disable the IntelliStand function move the

is enabled. IntelliStand Switch to position I (Off).

PROBLEM

Battery talktime performance is significantly degraded even after a full recharge.

Possible Cause Solution

Battery approaching Replace with a new battery pack.

end of life Refer to the diagrams on page 3.

Autres manuels pour CS60 DECT

Table des matières

Autres manuels Plantronics casque

Plantronics

Plantronics Blackwire 3200 Series Manuel utilisateur

Plantronics

Plantronics Blackwire C320 Manuel utilisateur

Plantronics

Plantronics Discovery 975 Manuel utilisateur

Plantronics

Plantronics Voyage Legend UC Manuel utilisateur

Plantronics

Plantronics Voyager 855 Manuel utilisateur

Plantronics

Plantronics 84100-01 Manuel utilisateur

Plantronics

Plantronics DISCOVERY 925 Manuel utilisateur

Plantronics

Plantronics SB2010 Guide de référence

Plantronics

Plantronics Savi W740A Manuel utilisateur

Plantronics

Plantronics Savi W740 Manuel utilisateur

Plantronics

Plantronics Blackwire 5200 Series Manuel utilisateur

Plantronics

Plantronics Savi 8240 Office Manuel utilisateur

Plantronics

Plantronics CS530A Manuel utilisateur

Plantronics

Plantronics EXPLORER 300 Manuel utilisateur

Plantronics

Plantronics RIG 600 Manuel utilisateur

Plantronics

Plantronics Savi W445 Manuel utilisateur

Plantronics

Plantronics Blackwire C720 Manuel utilisateur

Plantronics

Plantronics Savi W745A-M Manuel utilisateur

Plantronics

Plantronics Voyager Legend Manuel utilisateur

Plantronics

Plantronics Voyager 3200 Series Manuel utilisateur

Plantronics

Plantronics Pulsar 590 series Manuel utilisateur

Plantronics

Plantronics BLACKWIRE C420 MOC START GUIDE Manuel utilisateur

Plantronics

Plantronics MX150 Manuel utilisateur

Plantronics

Plantronics Discovery 645 Manuel utilisateur

Manuels casque populaires d'autres marques

Sena

Sena SMH10 Manuel utilisateur

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuel utilisateur

Sennheiser

Sennheiser EPOS ADAPT 230 Manuel utilisateur

Doro

Doro Flexus HS2005 Manuel utilisateur

GE 98971 Manuel utilisateur

Hama

Hama 00184070 Manuel utilisateur

Blue Tiger

Blue Tiger Advantage PLUS Manuel utilisateur

Jawbone

Jawbone Icon Manuel utilisateur

Jabra

Jabra FR 20 Manuel utilisateur

Roxcore

Roxcore Flow A+ Manuel utilisateur

Turtle Beach

Turtle Beach XP 510 Manuel utilisateur

Philips

Philips SHB6101 Manuel utilisateur

Jabra

Jabra PRO 9460 Duo Manuel utilisateur

HyperX

HyperX HyperX Cloud Flight Manuel utilisateur

Bose

Bose MIE2 Mobile Manuel utilisateur

Jabra

Jabra Steel Manuel utilisateur

HyperX

HyperX cloud ii Manuel utilisateur

Southwing

Southwing SA505 Manuel utilisateur
