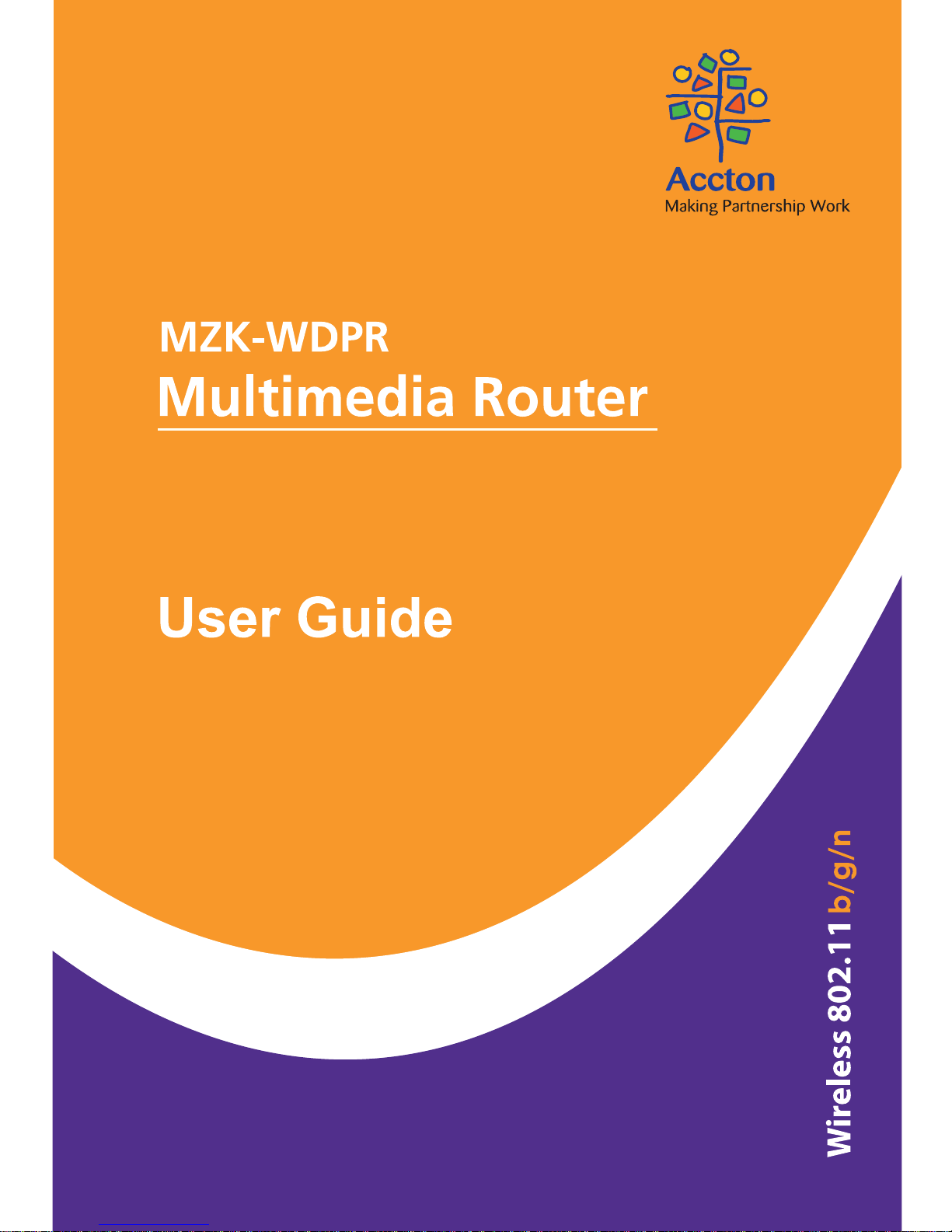

Planex MZK-WDPR Manuel utilisateur

User Guide

Guide

MZK-WDPR Multimedia Router

IEEE 802.11b/g/n Wireless Router

Compliances

EC Conformance Declaration

Marking by the above symbol indicates compliance with the Essential Requirements of

the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the

following conformance standards:

• EN 60950-1 (IEC 60950-1) - Product Safety

• EN 300 328 - Technical requirements for 2.4 GHz radio equipment

• EN 301 489-1, EN 301 489-17 - EMC requirements for radio equipment

This device is intended for use in the following European Community and EFTA countries:

Requirements for indoor vs. outdoor operation, license requirements and allowed

channels of operation apply in some countries as described below:

• In Italy the end-user must apply for a license from the national spectrum authority to

operate this device outdoors.

• In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz band:

Channel 13.

• In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band: Channels

1 - 7.

FCC statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 Subpart B of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy, and if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Austria • Belgium • Cyprus • Czech Republic • Denmark

• Estonia • Finland • France • Germany • Greece

• Hungary • Iceland • Ireland • Italy • Latvia

• Liechtenstein • Lithuania • Luxembourg • Malta • Netherlands

• Norway • Poland • Portugal • Slovakia • Slovenia

• Spain • Sweden • Switzerland • United Kingdom •

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For product available in the USA/Canada market, only channel 1~11 can be operated.

Selection of other channels is not possible.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

iii

About This Guide

Purpose

This guide details the hardware features of the Multimedia Router, including its physical

and performance-related characteristics, and how to install the device and use its

configuration software.

Audience

This guide is for PC users with a working knowledge of computers. You should be familiar

with Windows operating system concepts.

Conventions

The following conventions are used throughout this guide to show information:

Note: Emphasizes important information or calls your attention to related features or

instructions.

Caution: Alerts you to a potential hazard that could cause loss of data, or damage the

system or equipment.

Warning: Alerts you to a potential hazard that could cause personal injury.

Related Publications

The following publication gives basic information on how to install and use the Multimedia

Router.

Quick Installation Guide

Also, as part of the Multimedia Router’s software, there is online help that describes all

configuration related features.

Revision History

This section summarizes the changes in each revision of this guide.

December 2009 Revision

This is the first revision of this guide.

Table of Contents

Chapter 1: Introduction 1-1

Package Checklist 1-1

Hardware Description 1-2

Power Socket 1-3

USB Port 1-3

PC Port 1-3

Chapter 2: Installation 2-1

Gateway Mode 2-1

Bridge Mode 2-2

Chapter 3: Network Planning 3-1

Internet Gateway Router 3-1

LAN Access Point 3-2

Wireless Bridge 3-3

Chapter 4: Initial Configuration 4-1

Using the Setup Wizard 4-2

DHCP 4-2

Static IP 4-4

PPPoE 4-5

L2TP 4-7

PPTP 4-8

3G 4-10

Chapter 5: System Configuration 5-1

Operation Mode configuration 5-4

Network Settings 5-4

WAN Setting 5-4

DHCP 5-5

PPPoE 5-8

L2TP 5-10

PPTP 5-12

3G 5-14

LAN Setting 5-16

Contents

Advanced Routing 5-18

Wireless Settings 5-20

Basic Settings 5-20

Advanced Wireless Settings 5-25

WLAN Security 5-30

Wi-Fi Protected Setup (WPS) 5-33

Station List 5-35

Firewall 5-35

MAC/IP/Port Filtering 5-36

Virtual Server Settings (Port Forwarding) 5-37

System Security 5-39

Content Filtering 5-40

Administration Settings 5-42

System Management 5-42

Upgrade Firmware 5-44

Configuration Settings 5-45

System Status 5-46

Statistics 5-48

DHCP Clients 5-49

System Log 5-49

Reboot 5-50

Chapter 6: Using the On-Screen Display menus 6-1

Using the menus 6-1

Updating the Firmware 6-2

Using the Keypad 6-2

The Internet menu 6-3

The Media Center menu 6-5

The Calendar menu 6-8

The Tools menu 6-10

Appendix A: Troubleshooting A-1

Appendix B: Specifications B-1

Glossary

Index
