Planet FRT-401 Manuel utilisateur

Wired / Wireless Internet Fiber Router

FRT-401 / FRT-401S15 / FRT-405

FRT-401N / FRT-401NS15 / FRT-405N

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................... 3

2. Overview ................................................................................... 4

3. Hardware Installation .................................................................. 8

4. Access Your Fiber Router ............................................................11

5. Further Information ...................................................................12

1. Package Contents

FRT-40x / FRT-40xN Series Unit x 1

Power Adapter x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Antennas x 2 (For wireless models)

If any of above items are damaged or missing, please contact your

dealer immediately.

2. Overview

FRT-401 / FRT-401S15 / FRT-405

Front Panel

FRT-401 / FRT-401S15

FRT-405

Front Panel LED denition

LED State Description

PWR ON When the router is powered on, and in ready

state.

OFF When the router is powered off.

WAN

Flashing Data is being transmitted or received via the

ber connection.

ON The optical ber connection connected

successfully.

LAN1-4 Flashing Data is being transmitted or received via the

corresponding LAN port.

ON The port is up.

Rear Panel

FRT-401 / FRT-401S15

FRT-405

Rear Panel Port and Button Denition

Connector Description

12V DC Power connector with 12V DC, 1.0A

RESET Press more than 3 seconds for reset to factory default

setting.

LAN (1-4)

Router is successfully connected to a device through

the corresponding port (1, 2, 3, or 4). If the LED light

of LNK/ACT is ashing, the Router is actively sending

or receiving data over that port.

WAN One Fiber-optic Interface, SC or SFP connector-type

FRT-401N / FRT-401NS15 / FRT-405N

Front Panel

FRT-401N / FRT-401NS15

FRT-405N

Front Panel LED denition

LED State Description

PWR ON When the router is powered on, and in ready

state

OFF When the router is powered off

WPS

ON WPS client registration is successful

Flashing WPS client registration window is currently open

OFF WPS is not available, or WPS is not enabled or

initialized

WLAN

ON WLAN radio is on

Flashing Data is being transmitted through WLAN

OFF WLAN radio is off

Security ON Enable WLAN encryption

OFF Disable WLAN encryption

WAN

Flashing Data is being transmitted or received via the

ber connection

ON The optical ber connection connected

successfully

LAN1-4 Flashing Data is being transmitted or received via the

corresponding LAN port

ON The port is up

Rear Panel

FRT-401N / FRT-401NS15

FRT-405N

Rear Panel Port and Button Denition

Connector Description

12V DC Power connector with 12V DC, 1.0A.

RESET Press more than 3 seconds for reset to factory

default setting.

LAN (1-4)

Router is successfully connected to a device through

the corresponding port (1, 2, 3, or 4). If the LED

light of LNK/ACT is ashing, the Router is actively

sending or receiving data over that port.

WPS WPS on or off switch.

WAN One Fiber-optic Interface, SC or SFP connector-type.

3. Hardware Installation

This section describes how to install your Internet Fiber Router and

make connections to the Fiber Network. Please read the following

topics and perform the procedures in the order being presented. The

hardware installation of PLANET Fiber Router do not need software

conguration. To install your Fiber Router on a desktop or shelf, simply

complete the following steps.

In the following steps, terms of Fiber Router will mean the two series

- FRT-40x / FRT-40xN unless model number is specied; and photo of

FRT-401N will be used as the photo example.

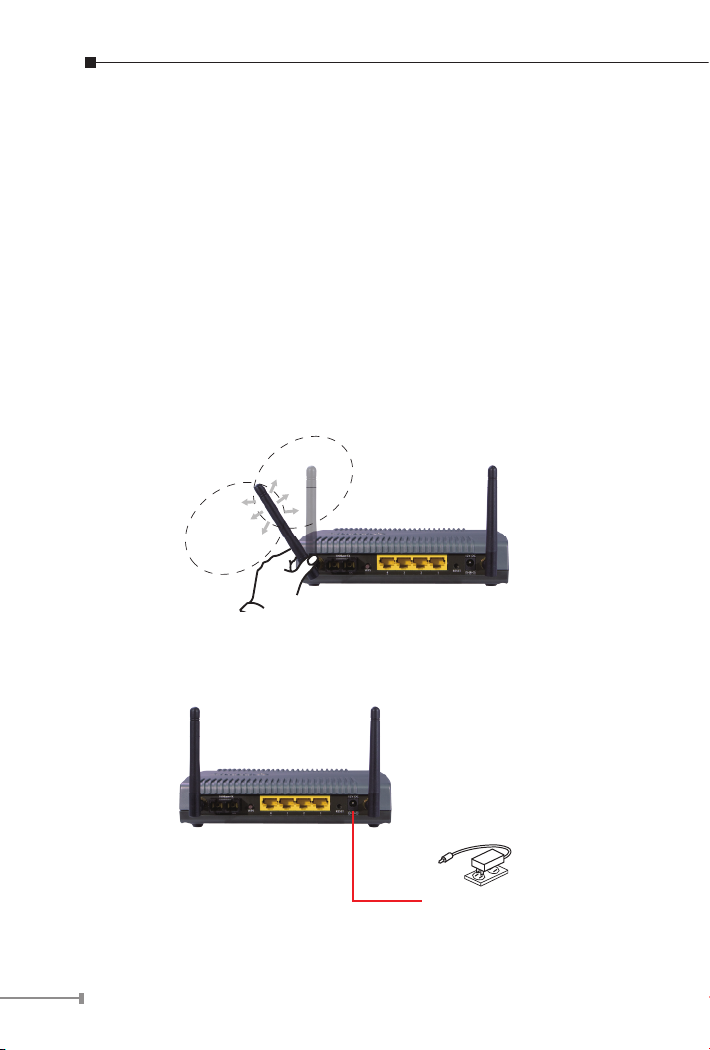

STEP 1: Locat the FRT-401N on an optimum place, install and adjust

the antenna for the best coverage.

STEP 3: Connect the PC to LAN port. Check the LAN LED on the front panel is on accordingly

STEP 1: Locat the VC-230N on an

optimum place, install and

adjust the antenna for the best

coverage

STEP 2: Connect the Power Adapter to VDSL2 Router. Check

the PWR LED on the front panel is on accordingly

Power Adapter

(DHCP Client or 192.168.1.2)

Power Adapter

In the following steps, terms of VDSL2 Router will mean the two models – VC-230/VC-230N

unless model number is specified; and photo of VC-230N will be used as the photo example.

Internet

Data VoIP

Entertainment

STEP 2: Connect the Power Adapter to Fiber Router. Check the PWR

LED on the front panel is on accordingly.

STEP 3: Connect the PC to LAN port. Check the LAN LED on the front panel is on accordingly

STEP 1: Locat the VC-230N on an

optimum place, install and

adjust the antenna for the best

coverage

STEP 2: Connect the Power Adapter to VDSL2 Router. Check

the PWR LED on the front panel is on accordingly

Power Adapter

(DHCP Client or 192.168.1.2)

Power Adapter

In the following steps, terms of VDSL2 Router will mean the two models – VC-230/VC-230N

unless model number is specified; and photo of VC-230N will be used as the photo example.

Internet

Data VoIP

Entertainment

STEP 3: Connect the PC to LAN port. Check the LAN LED on the front

panel is on accordingly.

STEP 3: Connect the PC to LAN port. Check the LAN LED on the front panel is on accordingly

STEP 1: Locat the VC-230N on an

optimum place, install and

adjust the antenna for the best

coverage

STEP 2: Connect the Power Adapter to VDSL2 Router. Check

the PWR LED on the front panel is on accordingly

Power Adapter

(DHCP Client or 192.168.1.2)

Power Adapter

In the following steps, terms of VDSL2 Router will mean the two models – VC-230/VC-230N

unless model number is specified; and photo of VC-230N will be used as the photo example.

Internet

Data VoIP

Entertainment

Connect the Fiber-optic cable to WAN port. Check the WAN LED on the

front panel is on accordingly.

The Fiber types of PLANET Wired / Wireless Fiber Router as the

following:

FRT-401 / FRT-401N: 100Base-FX (SC, MM, 2Km)

FRT-401S15 / FRT-401NS15: 100Base-FX (SC, SM, 15Km)

FRT-405 / FRT-405N: 100Base-FX SFP (LC, MM/SM)

100Base-FX

SC Fiber

FRT-401 / FRT-401N / FRT-401S15 / FRT-401NS15

100Base-FX

SFP transceiver

100Base-FX

LC Fiber

FRT-405 / FRT-405N
