Planet FT-722 Manuel utilisateur

Fast Ethernet Media Converter

100Base-FX

Multi-mode to Single-mode

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology

Corp. The information in this manual is subject to change

without notice. All other trademarks belong to their respective

owners.

Disclaimer

PLANET Technology does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

fitness for a particular purpose.

PLANET has made every effort to ensure that this User s

Manual is accurate; PLANET disclaims liability for any

inaccuracies or omissions that may have occurred.

Information in this User sManual is subject to change without

notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any

inaccuracies that may be contained in this User s Manual.

PLANET makes no commitment to update or keep current the

information in this User s Manual, and reserves the right to

make improvements to this User s Manual and/or to the

products described in this User s Manual, at any time without

notice.

If you find information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your

comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the

regulations for aClass Adigital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with this

user s guide, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference, in which case the

user will be required to correct the interference at his own

expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Revision

User's manual for PLANET Fast Ethernet Converter

Model:FT-722

Rev 1.0 (March.2004)

Part No. 2010-000030-000

1. Overview

Thank you for purchasing PLANET FT-722 Fast Ethernet

Fiber-optic Media Converter. This converter is used to convert

one type media signal to other type equivalent that allowstwo

type segments connect easily, efficiently and inexpensively.

This converter can be used as astandalone unit or as a

slide-in module to the 10”/19”media chassis (up to 15 units)

for aTP and Fiber combined networks at acentral wiring

closet. Please contact with your sales representative for more

about the 19”media chassis.

2. Model List

Your Fast Ethernet Converter comes with one of the following

models.

ð FT-722Sxx: two on board SC fiber connectors

Sxx represents Single-model optic interface in xx kilometers.

In the following sections, the term “FT-722”indicates the

product above, the term “MM”and “SM”represents

Multi-mode and Single Mode fiber-optic mode.

3. Checklist

Your FT-722 carton should contain the following items:

ð The Fast Ethernet Media Converter

ð AC-DC Power Adapter (Output: 5VDC, 2 A max.)

ð This user s manual

If any item is missing or damaged, please consult the dealer

from whom you purchased your Fast Ethernet Converter.

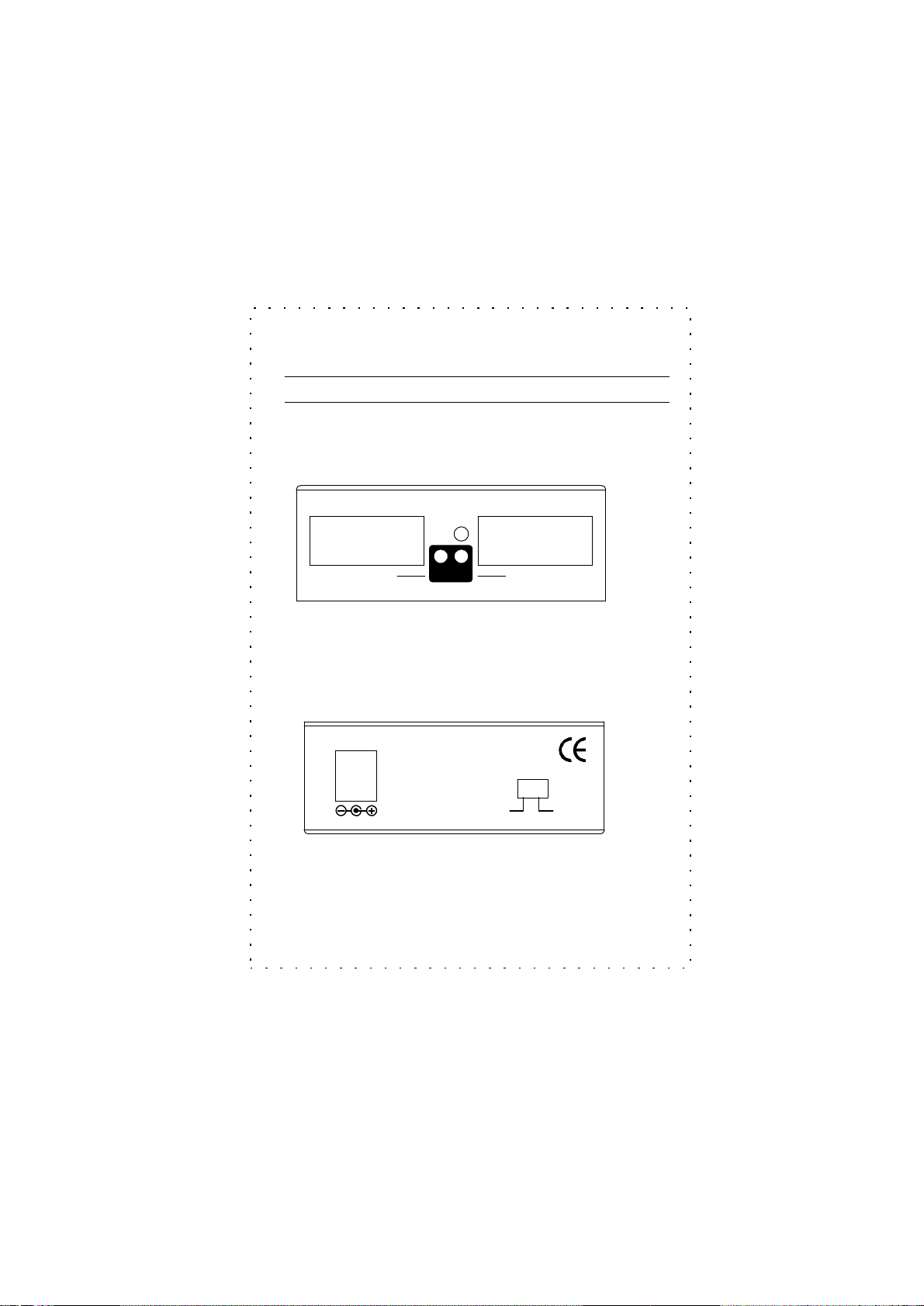

4. Product Outlook

Left View

There are two fiber-optic connectors, multi-mode on the left,

single-mode on the right and three LED indicators.

PWR

Multi-ModeSingle-Mode

TXRXTX

Fast Ethernet Converter

LNK/ACT

Right View

One DIP switch for Link Fault Pass Through (LFP) feature,

“ON”to turn-on the LLCF and LLR detection (default). And

“OFF”to turn –off this feature.

5V DC

+OFF

LFP

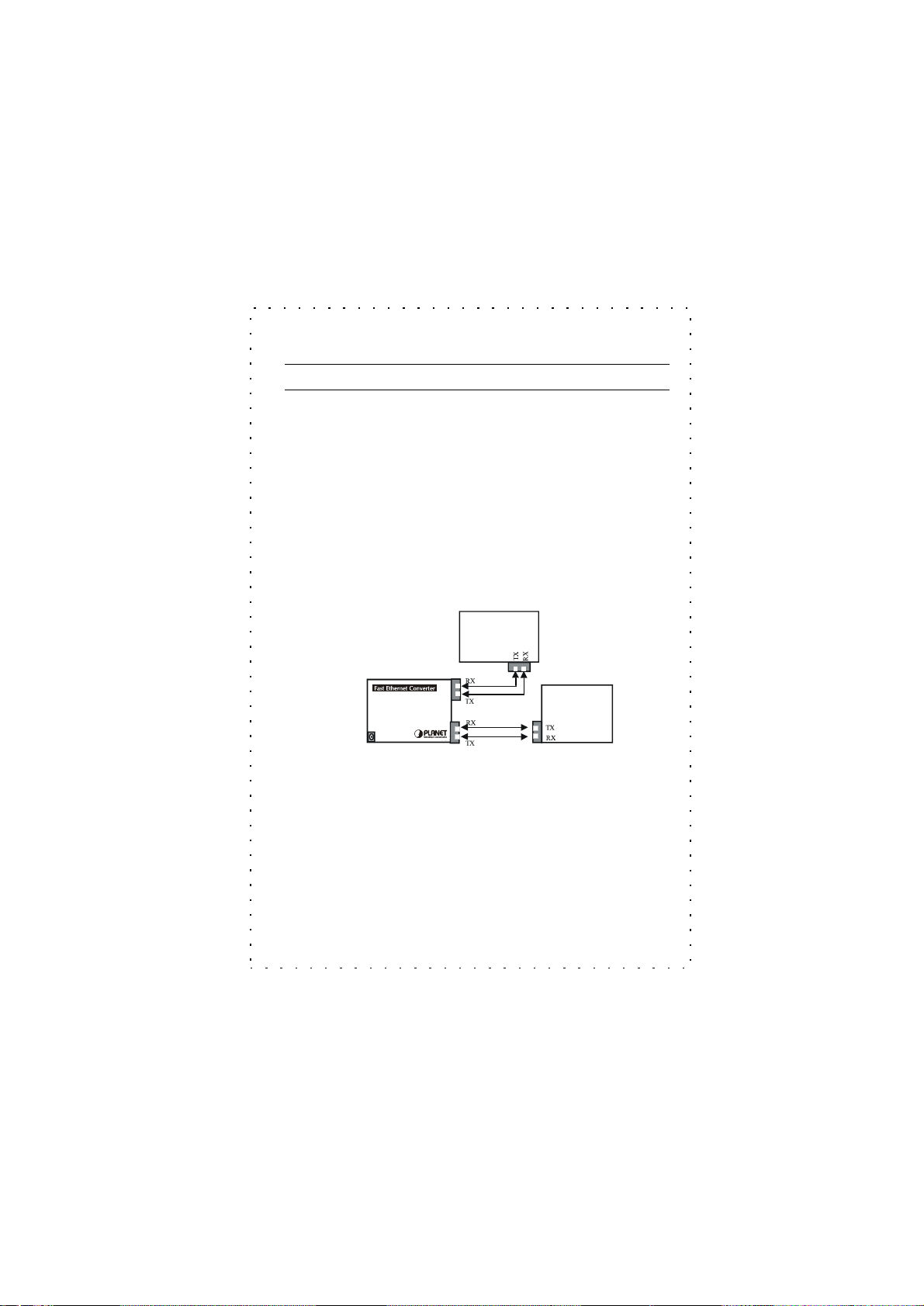

5. Installing the Converter

Please followthese steps to install the converter:

• Turn off the power of the device/station in anetwork to

which the FT-722 will be attached

• Ensure that there is no activity in the network

• Attach MM fiber cable from the FT-722 to the MM fiber

network. TX, RXmust be paired at both ends

• Attach SMfiber cable from the FT-722 to the SMfiber

network. TX, RXmust be paired at both ends.

• Connect the 5VDC power adapter to the FT-722 and

verify that the Power LED lights up.

• Turn on the power of the device/station, the LNK /ACT

LEDs should light when all cables are attached.

100Base-FX

Multi-mode

Fiber Network

FT-722

100Base-FX

Single-mode

Fiber Network

100Base-FX

Multi-mode to Single-mode

Note:

n To prevent from optic acceptor malfunction, check the

both end including, connectors, cable type (MM/SM), and

wiring distance before power on the Media Converter.

n DIP-switch LFP is turn on by default, any broken link will

cause the other end link down as well. To diagnose which

end is broken, please turn off the LFP and power off/on the

converter again. Please remains it on in normal operation.

6.LED indication

LED

COLOR

DESCRIPTION

Blinks: when any FXpackets transmitting

and receiving

LNK /

ACT Green

Lit: when Fiber connection is good

PWR

Green

Lit when +5VDC power detected

7. Cable Connection Parameter

Fast Ethernet 100Base-FXnetworks allow512bit time delay

between any two-node stations in a collision domain.

The overall bit time of Fiber wires and devices must be within

512bit time in segment. To extend the distance, you may use

switch to break up acollision domain and extend the distance.

The limitations are as below:

Duplex Connection Limitation (max.)

Multi-Mode

MM Half Node to Node

Node to Switch 412 meters*

MM Full Node to Node

Node to Switch 2 kilometers

Single-Mode

SMHalf Node to Node

Node to Switch 412 meters*

SMFull Node to Node

Node to Switch Varies on model

Note:

n In half-duplex mode, 412 meters is the maximum distance

between two devices. To force both devices to full-duplex

for optimal distance is strongly recommended.

8. FT-722 Technical Specifications

The FT-722 comes with the following standard features:

• Standard: IEEE802.3u, 100Base-FX, IEEE802.3xFlow

control

• Connectors

ð One Fiber-optic, 1310nm wavelength, MM

ð One Fiber-optic, 1310nm wavelength, SM

• Data Transfer Rate: 100Mbps, 200Mbps (full-duplex)

• LED indicators: PWR, LNK/ACT

• Power Requirement: 5V DC, 2A

• Ambient Temperature: 0°to 50°C (operating)

• Humidity: 5% to 90% (non-condensing)

• Dimension: 26 x70 x97mm (HxWxD)

• Cable:

ð Fiber: MM: 50/125 µm or 62.5/125 µm optic fiber

ð Fiber: SM: 8.3/125, 8.7/125, 9/125 µm optic fiber

Connecting to Router, Bridge, or Switch, Hub, please refer to

the device s Technical Manual.

9. Power information

The power jack of FT-722 is with 2.5mm in the central post

and required +5VDC power input. It will conform to the

bundled AC-DC adapter and Planet sMedia Chassis. Should

you have the problem to make the power connection, please

contact your local sales representatives.

Please keep the AC-DC adapter as spare parts when your

FT-722 is installed to a Media Chassis.

Part No. 2010-000030-000
