Q&A- How to register VIP-255PT to IPX-300 via VPN
tunnel?
Step 1:

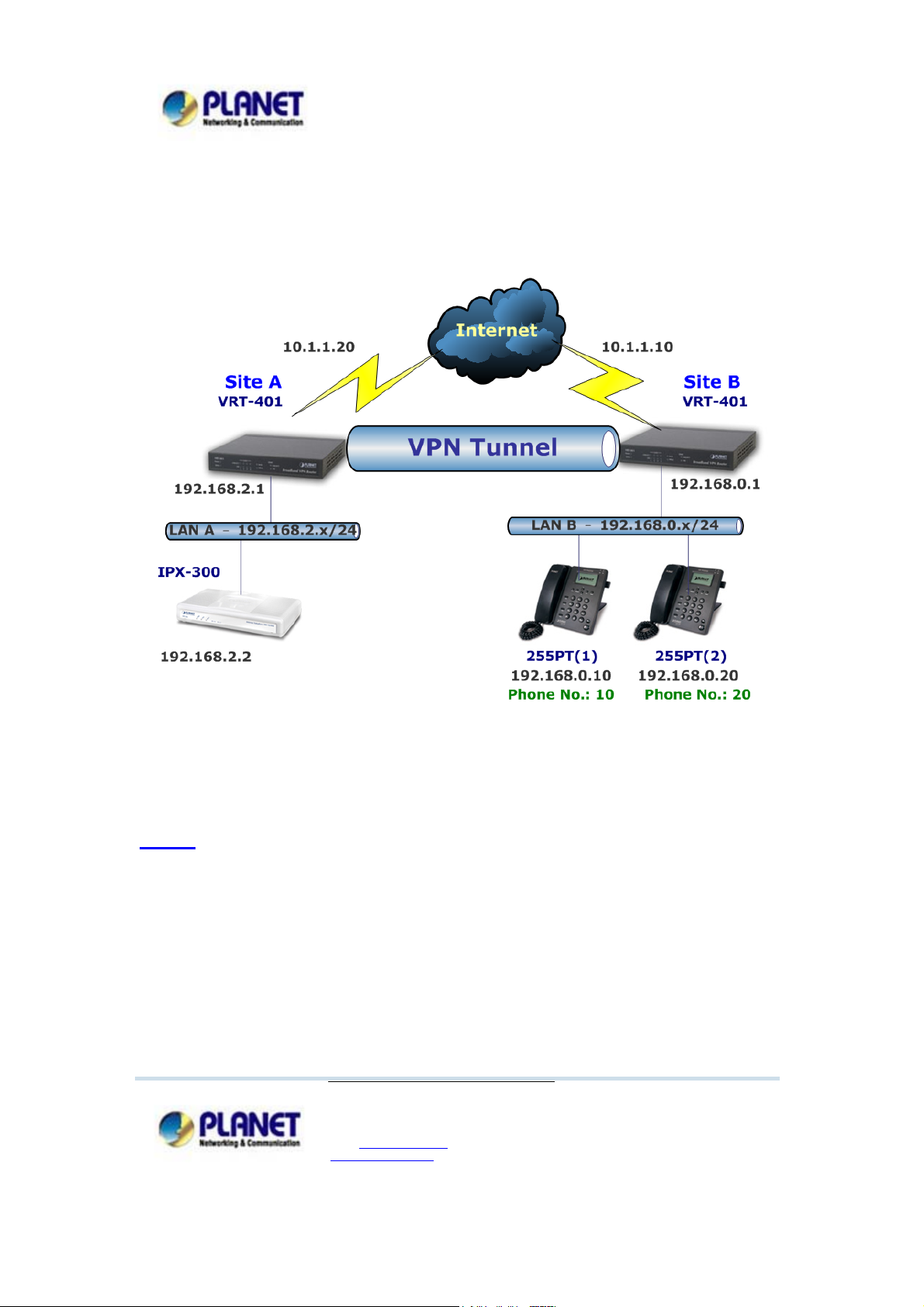

Setup the network topology as above, and fill in the relative parameters into
machines.
Site A

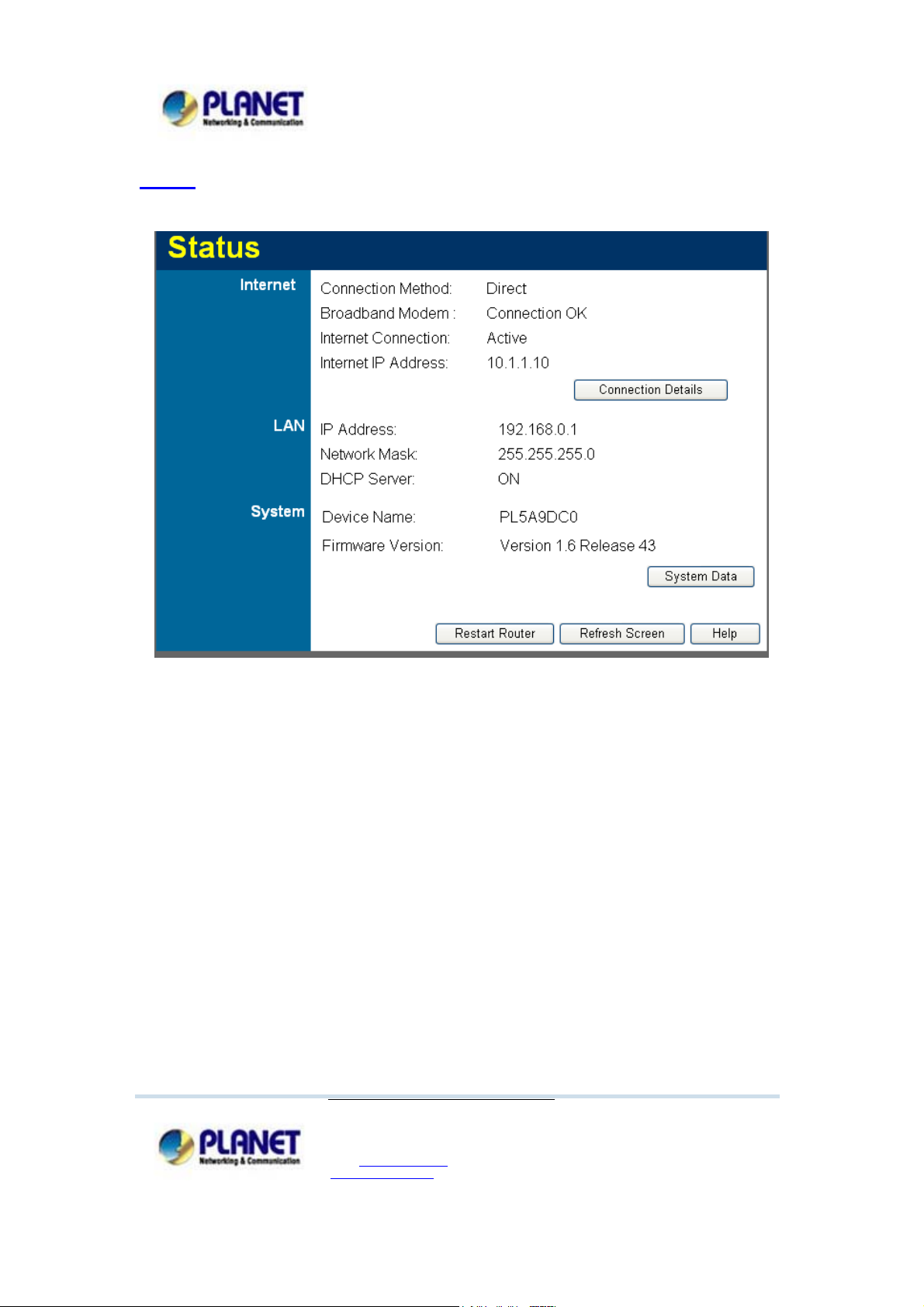

The status of VRT-401
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved

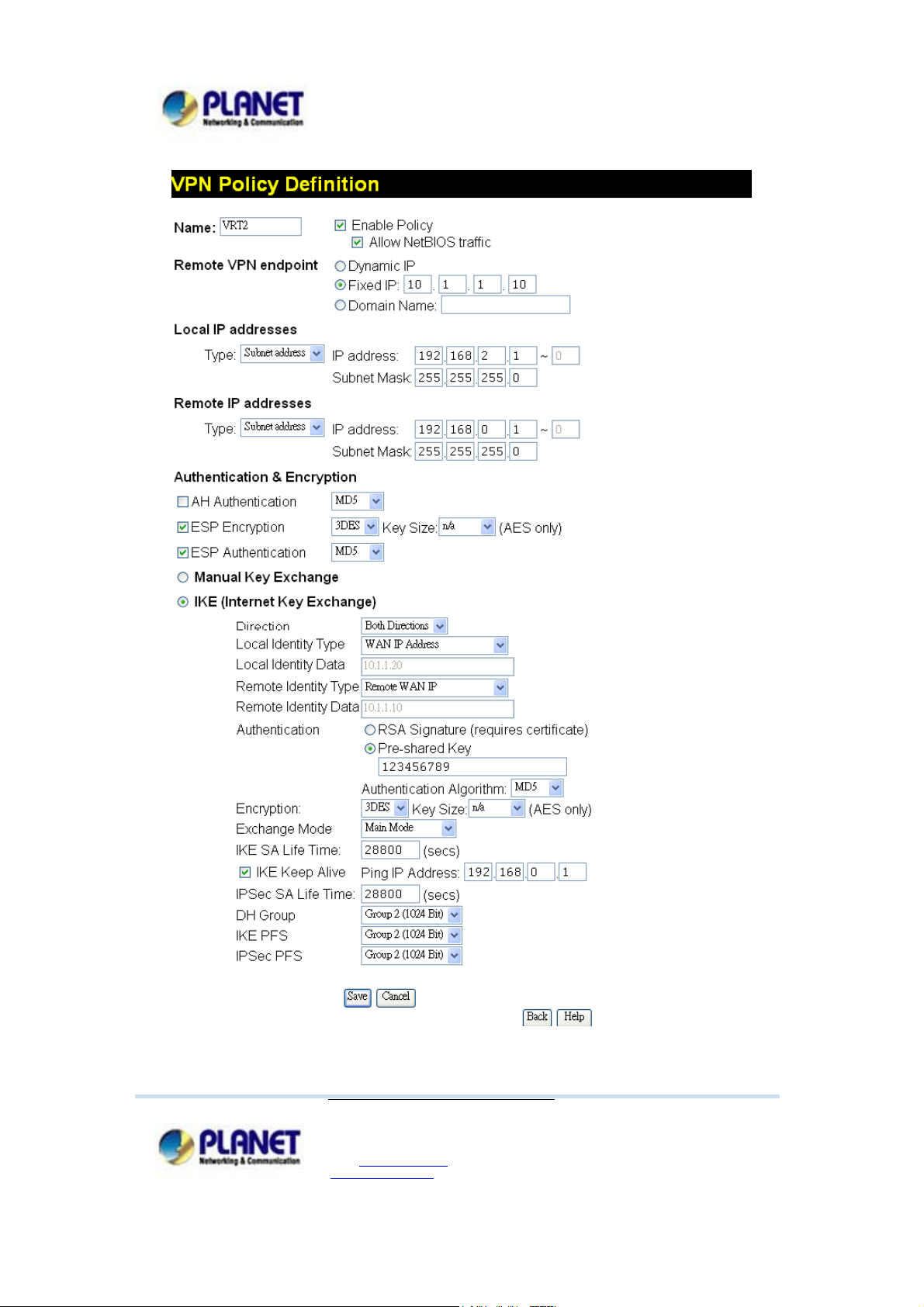

The VPN Configuration of VRT-401(A)
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
2
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
3
Site B

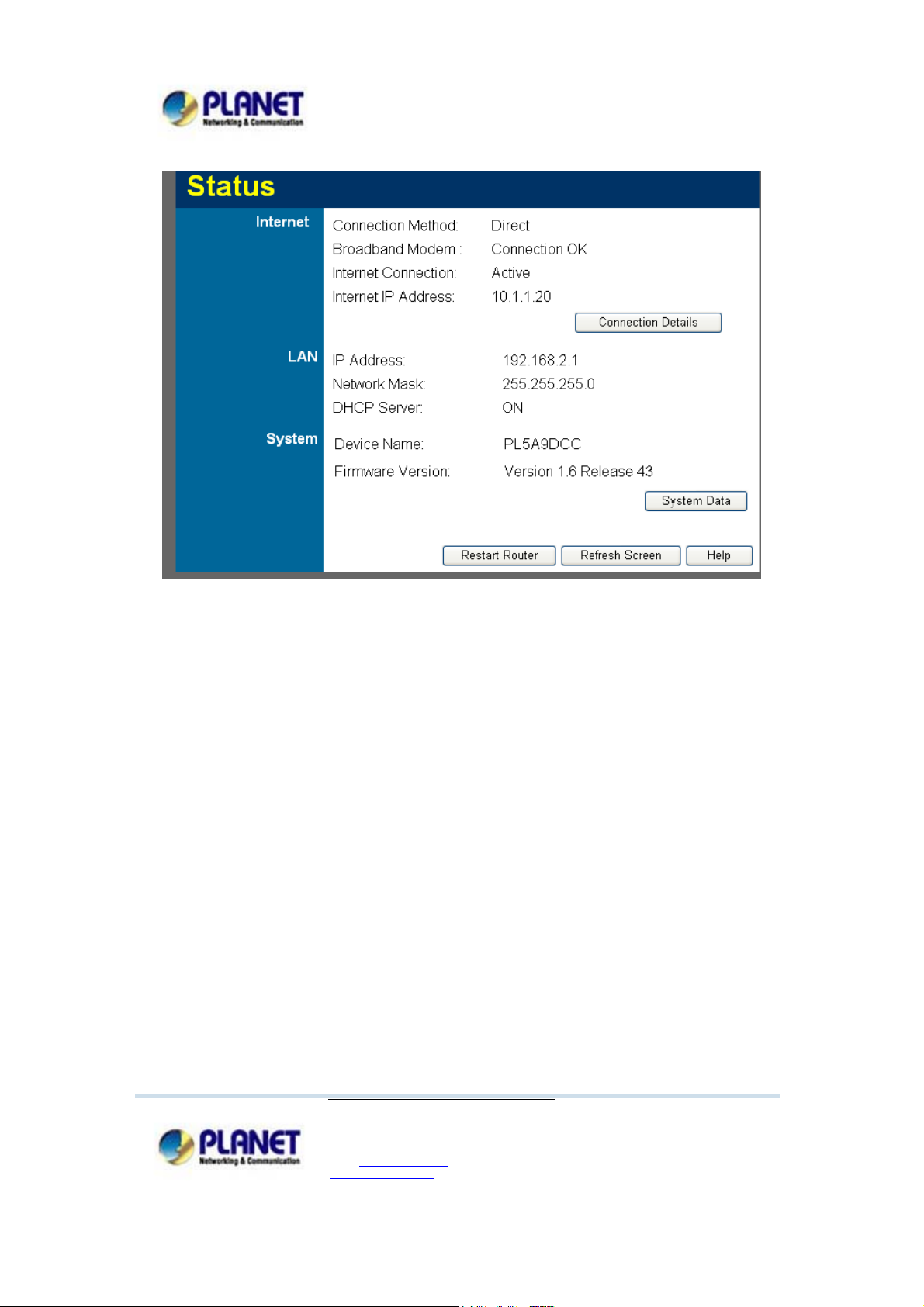

The status of VRT-401(B)
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
4
The VPN configuration of VRT-401(B)
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
5
Step 2:

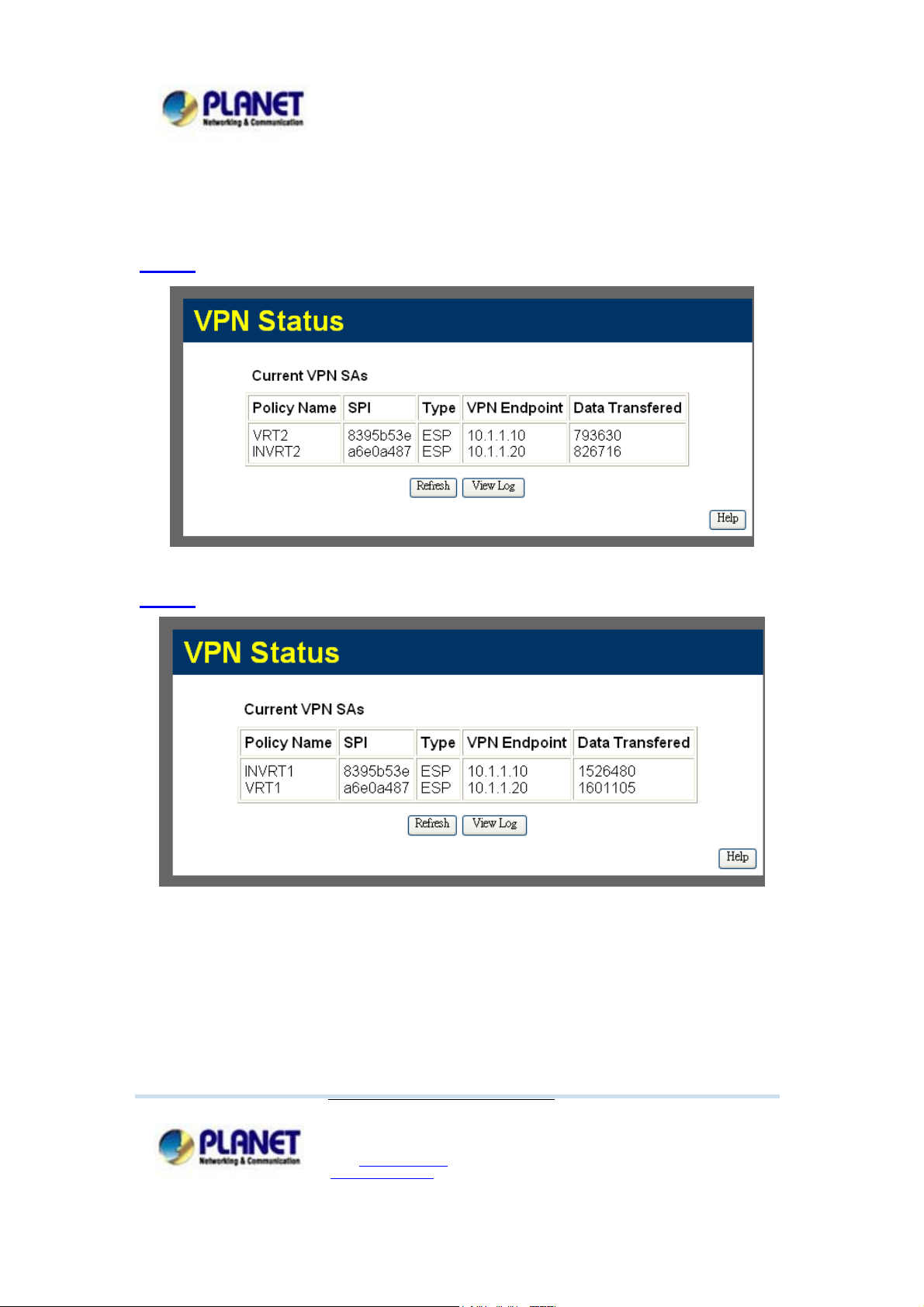

After setup finished, the VPN tunnel is established success.
Site A
Site B
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
6
Step 3:

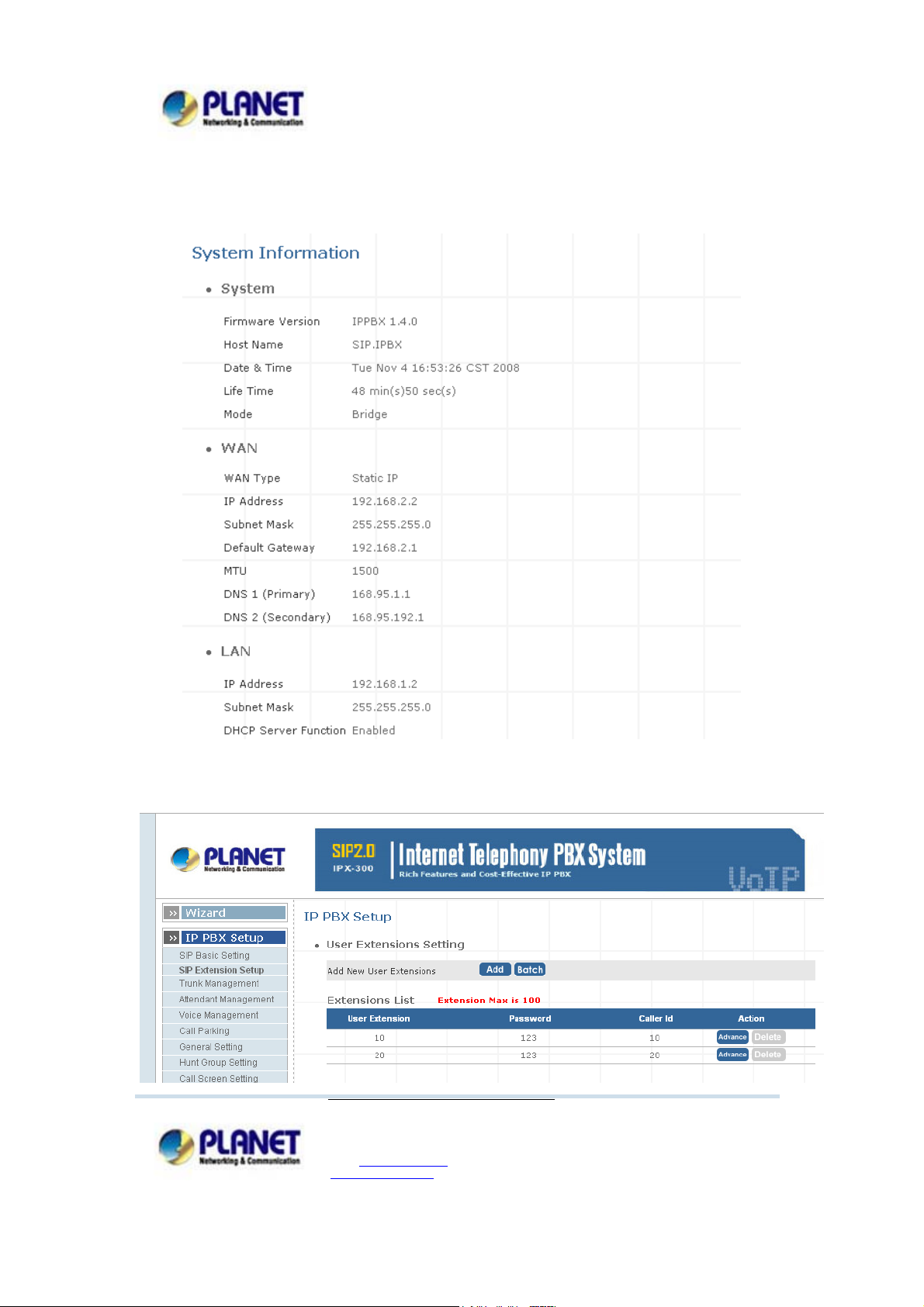

The status of IPX-300
Create two extension numbers: 10 and 20.
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
7
Step 4:

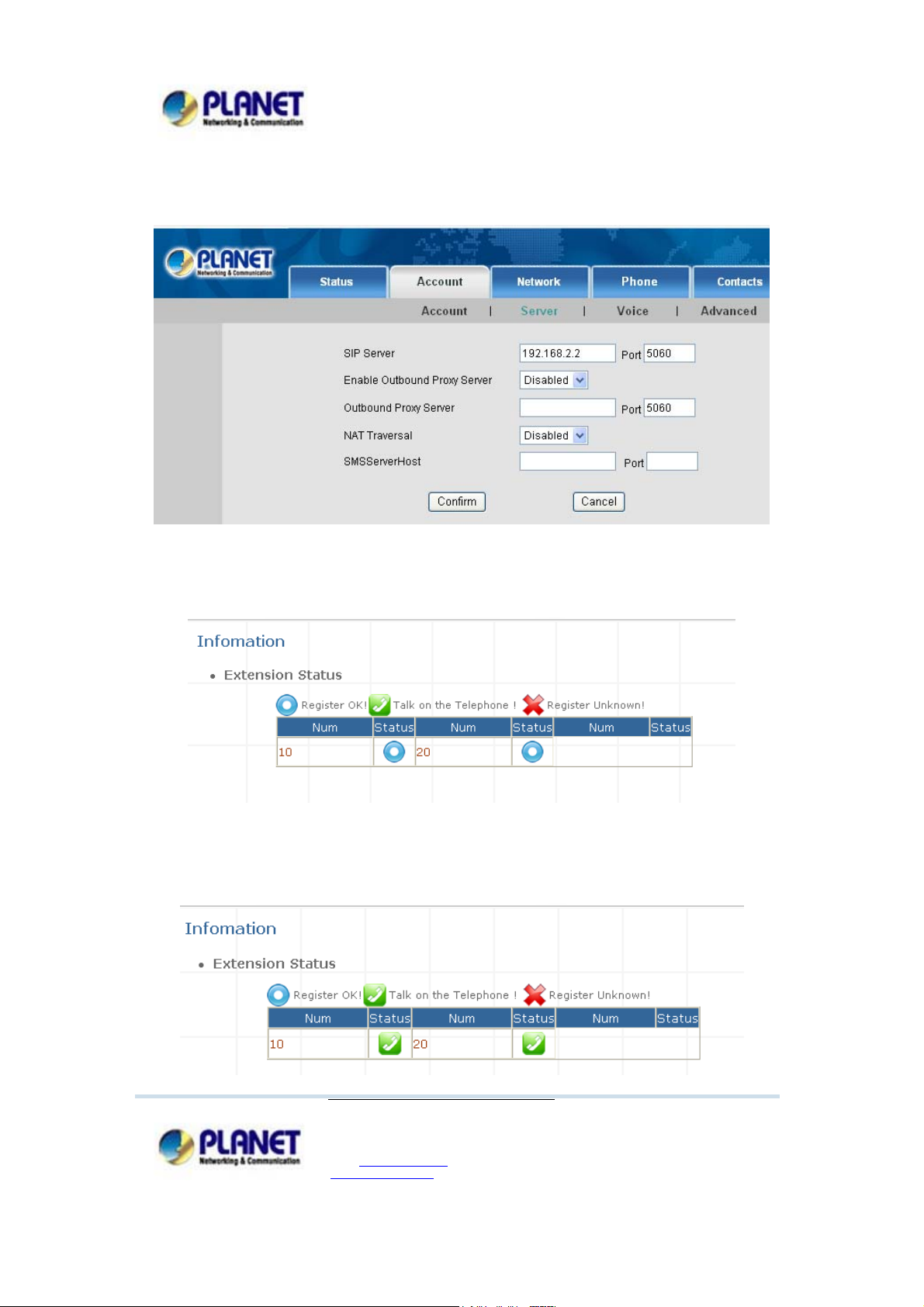

Fill the SIP accounts, password and server address into VIP-255PT (1) and
VIP-255PT (2)
VIP-255PT (1)
VIP-255PT (2)
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
8
SIP Server IP address
Test the Scenario:
VIP-255PT (1) and VIP-255PT (2) register IPX-300 success.
The status shows “Talk on the Telephone” when
VIP-255PT (1) and
VIP-255PT (2) are talking to each other.
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei,
Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected].tw Web site:
http://www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Planet reserves the right to change specifications without
prior notice.
All brand names and trademarks are property of their
respective owners.
Copyright (c) 2006 PLANET Technology Corp. All rights
reserved
9
