Planar PT1545R Manuel utilisateur

TABLE OF CONTENTS

ADJUSTING YOUR LCD MONITOR --------------

• General safety precautions ………………….…………… 2

• Unpacking your monitor ………………………………… 5

• Viewing angle ……………………………………………… 6

• How to open the back cover ……………………………… 6

• Connecting your monitor ………………………………… 7

• User controls……………………………………………… 8

• OSD (On-screen display settings) …………….…..……… 9

• Menu adjustments …………………………….…..……… 10

• Refining the picture ………………………….…..……… 12

APPENDIX -----------------------------------

-13

•Power management function …………….…..……..…… 13

•Video input terminal ……………………………..……..…13

•Display modes ………………………………….………… 14

• Trouble shooting …………………………………………… 15

Adjusting your lcd monitor

General safety precautions

This Monitor has been engineered and manufactured to assure your safety.Please

read this manual and comply with the warnings and the procedures to avoid any

serious electrical shock and other serious damage.

Do not place anything heavy, wet or

magnetic on the monitor or power cord.

Do not cover the ventilation openings

nor touch them with metallic or

flammable material.

High temperature can cause troubles.

Avoid operating the monitor in extreme

heat, humidity or dusty areas. Extreme

temperature may cause discoloration or

damages.

Ambient Temperature : 0°C ~ 40°C

Do not use a solvent, such as benzene, to

clean the monitor to prevent any

damages to the LCD surface.

Do not use fine tools such as a pin or a

pencil near the monitor to prevent any

scratch to the LCD surface.

Adjusting your lcd monitor

Place the monitor on a flat surface to

prevent it from falling.

Do not apply any mechanical shocks to

the machine.

Install it in a well-ventilated area or

secure enough space for ventilation.

Turn the monitor off

before connecting it

to the power outlet.

Adjusting your lcd monitor

CAUTION : RISK OF ELECTRIC SHOCK, DO NOT OPEN

11.

Make sure that the power cord and the

other cords are properly connected.

Overloaded AC outlets and extension

cords are dangerous. Also, the frayed

power cords and the broken plugs may

cause electric shock or fire.

Do not open the monitor. There are no

user-serviceable components inside.

There is a risk of exposure to high-

voltage electricity inside, even when

power is turned off. If the display

monitor does not operate properly,

unplug the power cord and contact your

dealer. Handling the electrical

equipment carelessly will cause a

serious electricalshock and other

hazards.

For use only with power supply

Manufactured by “Li ShinInternet. Enterprise Corp.”, Model “LSE9901B1260”

Adjusting your lcd monitor

Unpacking your monitor

Please make sure the following items are included with your monitor.

If you find that any of these items are missing or appear damaged, contact your

dealer immediately.

The power cord can be different depending upon different voltage areas.

Adjusting your lcd monitor

Viewing angle

Your monitor was designed to allow you to adjust it to a comfortable viewing angle.

The viewing angle can be adjustedforward and backward respectively as

indicated by the arrow marks below.

How to open the back cover

Power, VGA, Audio-in,Audio-Out

Adjusting your lcd monitor

Connecting your monitor

Be sure to turn the computer off before connecting the monitor

Cable connections

gConnect the video signal cable (15Pin connector) to the system’s VGA

connectorwhich is located on the back panel of the computer.

gConnect the power adaptor cord to the monitor and then to the power supply.

gInsert the audio out jack to the ear phone jack and insert the audio in jack to the

sound card port at the back of the computer.

Adjusting your lcd monitor

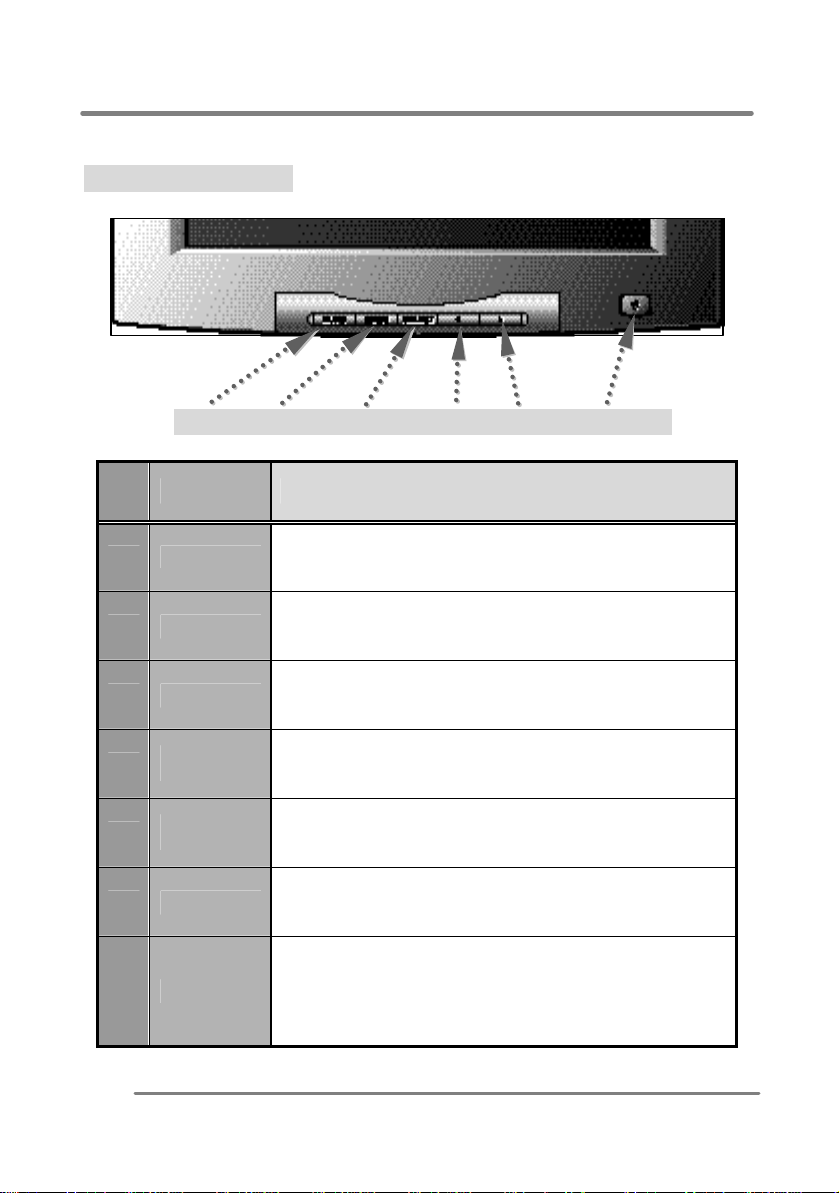

Usercontrols

Front control buttons

AUTO MENU SELECT DOWN UP POWER/ LED

No.

Key name

Description

1AUTO Activates the auto adjustment function.

2MENU Opens the OSD menu.

3SELECT Selects the main menu items and sub-menu items.

4?Moves to the lower menu item or sub-menu item.

Decreases the value of the parameter.

5?Moves to the upper menu item or sub-menu item.

Increases the value of the parameter.

6POWER Turns on/off the monitor.

7LED

Indicates the status of the monitor.

•Green : Normal operation.

•Amber : Power saving mode or disconnected signal

cable.

Adjusting your lcd monitor

OSD (On-screen display settings)

OSD Operation

1. Press the menu button to open the menu system and display the main

function menu.

2. Push the “?”and “?”buttons to move between the function icons. As

you move from one icon to the other, the function name changes to

reflect the function or group of functions represented by that icon. See the

menu adjustments table to view a complete list of all the functions

available for the monitor.

3. Push the select button once to activate the highlighted function. Use the

“?”and “?”buttons according to the indicators on the menu to make

your changes.

4. To exit from the OSD menu at any time during the operation, press the

auto button. If no keys are pressed for a short period of time, the OSD

menu will automatically disappear.

Adjusting your lcd monitor

Menu adjustments

Icon Setting

menu Sub-menus Description

Auto Adjust •Adjusts to control the Automatically

Image sharpness and noiseelimination.

Brightness •Adjusts the screen intensity.

Contrast •Adjusts the contrast of the screen image.

H-Position •Adjusts the horizontal position of

the screen image.

Position

V-Position •Adjusts the vertical position of the

screen image.

Phase •Adjusts the noise of the screen

image.


Clock •Adjusts the width of the screen

image.

Volume •Adjusts the volume.

Preset Color 1

•One of factory set of white balance

Preset Color 2

•One of factory set of white balance

Color

User Color • User can change the white level
