Planar PDP42HD Manuel utilisateur

Planar Plasma 1

Important Information

Warning: To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

Caution: To reduce the risk of electric shock, do not remove cover (or back).

No user-serviceable parts inside. Refer servicing to qualified service

Personnel.

Note to CATV system installer: This reminder is provided to call CATV system Installer’s

attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical

Code, Part 1), that provides guidelines for proper grounding and, In particular, specifies that

the cable ground shall be connected to the grounding system of the building as close as to

the point of cable entry as practical.

Caution: FCC/ CSA regulations state that any unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

Important: One Federal Court has held that unauthorized recording of copyrighted TV

programs is an infringement of U.S. copyright laws. Certain Canadian programs may also be

copyrighted and any unauthorized recording in whole or in part may be in violation of these

rights.

FCC Information

The FCC Radio Interface Statement includes the following warning:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. When such interference to radio or television reception occurs, the user

will be required to correct the interference at own expense. The interference may be

correctly using one or more of the following measures:

-Increase the separation between the equipment and receiver.

-Reorient or relocate the receiving antenna.

-Connect the equipment into an different outlet from the receiver.

FCC Warning

To maintain FCC compliance for the product the user must use shielded signal interface

cables and UL approved

CAUTION

Risk of electric

shock. Do not open.

2 Planar Plasma

Safety Precautions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an eletrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table sprecified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have gallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15. Apparatus shall not be exposed to dripping or splashing and no objects fill with liquids,

such as vases, shall be placed on the apparatus.

Planar Plasma 3

Table of Contents

Product Features………………………………………………………..……………………5

Package Content……………………………………………………………………………..6

Standard Accessories……………………………………………………………….6

Optional Accessories………………………………………………………………..7

Plasma Display………………………………………………………………………………..8

Front Panel…………………………………………………………………………….8

Rear Panel……………………………….…………………………………………….9

Setting Up the Plasma…………………………………………………………………….10

Getting Started………………………………………………………………………10

Video/Audio Connection………………………………………………………….11

External Speaker…………………………………………………………………….12

Other Connections………………………………………………………………….13

Front Panel Controls……………………………………………………………….14

Remote Control………………………………………………………………………………15

Overview……………………………………………………………………………….15

Inserting Batteries………………………………………………………………….16

Precaution……………………………………………………………………………..16

Using the Remote Control……………………………………………………….17

OSD Functions……………………………………………………………………………….19

OSD Menu Overview………………………………………………………………19

OSD Menu Operation……………………………………………………………..20

Parental Control…………………………………………………………………………….25

V-Chip Setup…………………………………………………………………………25

Change Password………………………………………………………………….28

Close Caption………………………………………………………………………………..29

Using Close Caption……………………………………………………………….29

Specification………………………………………………………………………………….30

Factory Setting………………………………………………………………………………31

Troubleshooting…………………………………………………………………………….32

Care and Maintenance……………………………………………………………………35

4 Planar Plasma

Product Features

42 inch Plasma Display: With 720p native resolution (1024 x 768).

D-Sub 15 VGA Input: Allow user to connect computer to the plasma and use the

plasma as computer monitor.

Input Signals

Component Video (YCbCr/ YPbPr)

Composite Video

S-Video

RGB (D-Sub 15pin)

Digital DVI

RS232 Communication Port (D-Sub 9pin)

TV Tuner Built-in

16:9 Enhancement: Widescreen technology that maximizes picture quality when

playing widescreen enhanced video.

Channel Memory: Allow user to add and remove channel according to the personal

preference.

Picture in Picture: User may simultaneously watch two images from different video

sources

Parental Control: V-Chip technology allows parents to block unsuitable programming

for under age viewers.

Digital Visual Interface (DVI): To accommodate a DVI-D interfaces.

3-D Digital Comb Filter: Enhances color purity of Composite Video and S-video input

sources, reducing cross-color artifacts like dot crawl and moiré.

Color Temperature: With 3 options of user selectable color temperature allowing user

to optimize the image.

TV Tuner Built-in: Built-in NTSC tuner to receive conventional analog broadcasts;

de-interlacing circuit with 3:2 pull down converts interlaced analog sources to

progressive-scan display, significantly improving picture quality

Wide Viewing Angle: Over 160 degrees (horizontal and vertical) viewing angle.

Built-in TV and TV Audio Out: Outputs TV video/audio signal to other device.

Built-in Speakers: Stereo speakers built-in with 2 watts per channel.

Built-in Screen Move: Screen move feature to decease chances of screen burn.

(1) an optional set-top HDTV receiver box is required to receive digital signals

Package Content

Planar Plasma 5

Standard Accessories

Plasma Stand Video/Audio Cables

Remote Control /AAA Battery S-Video cable

User Manual D-Sub 15 Video Cable

Power Cable

Optional Accessories

6 Planar Plasma

Speakers Speaker Stand

Wallmount

Planar Plasma 7

Plasma Display

Front Panel

Indicator Light Remote Control

Sensor

Infrared Receiver: Receives infrared signals from the remote control. Aim the remote

control within 30 degree left and right.

Indicator Light: This LED light is to indicate the main power status.

Indicator (Amber): Standby mode

Indicator (Blue): Power ON mode

Desktop Stand: Desktop stand comes as standard accessory. Allowing user to set the

plasma on the table.

8 Planar Plasma

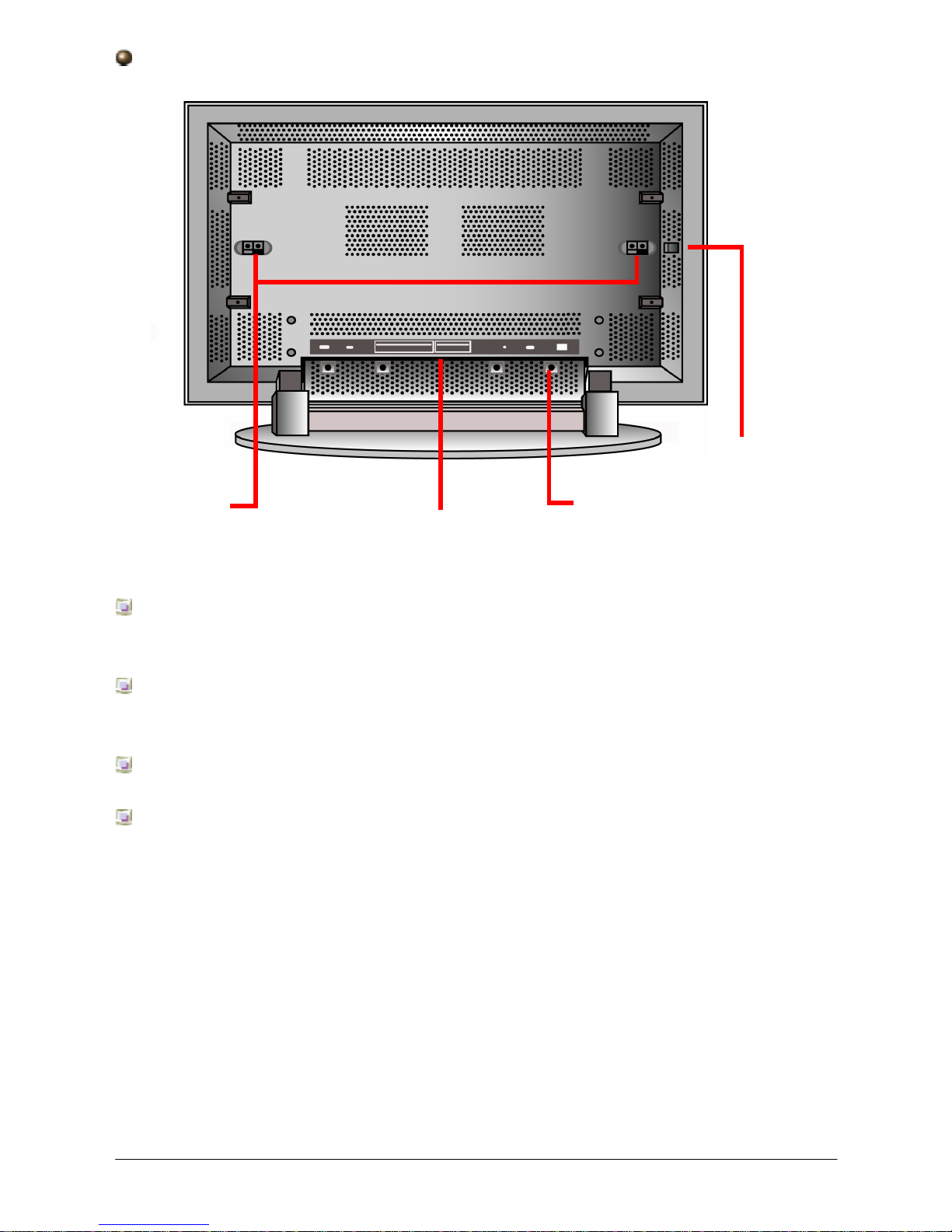

Rear Panel

Video Connection Interface: Video connection includes Component Video,

Composite Video, S-video, DVI, D-Sub 15, TV Tuner, and Video/Audio Out.

Main Power Switch: Master power switch to switch the plasma between Power Off

mode and Standby mode.

Power Input Jack: Power source for the plasma.

External Speaker Line Out: Allow user to connect external speakers to the plasma.

Video/Audio Connection

Interface

Power Input Jack

External Speaker

Line Out

Main Power Switch

Planar Plasma 9

Setting Up the Plasma

Getting Started

Power Input Jack: Auto switch power supply accepts input of 110 V~240 V. Use only

UL approved power cord with proper grounding.

Main Power Switch: Turn the switch to on position before initial use of the plasma

unit. “-” Indicate on and “Ο” indicate off. When the switch is on the LED will turn to

amber color.
