Pixsys 1300.21.001 Manuel utilisateur
1300.21.001
1300.21.002
Covers IP65 sealing
Installation
PIXSYS s.r.l.
www.pixsys.net
online assistance: http://forum.pixsys.net
via Po, 16 I-30030
Mellaredo di Pianiga, VENEZIA (IT)
Tel +39 041 5190518
2300.10.303-RevA
051119
Read carefully the safety guidelines
and programming instructions
contained in this manual before
using/connecting the device.
1 Model identification
The Covers IP65 sealing series includes 4 items:
1300.21.001 Adapter 72x72 to 48x48 - BLACK plastic with transparent cover
1300.21.001R Adapter 72x72 to 48x48 - RED plastic with transparent cover
1300.21.002 Adapter 48x96 to 32x74 - BLACK plastic with transparent cover
1300.21.002R Adapter 48x96 to 32x74 - RED plastic with transparent cover
2 General features
Operating temperature Temperature: -10..55° C
Sealing Adapter: IP65 (with gasket) - Trasparent cover: protection for dust (IP20) and shocks
Material for frontal adapter
and fixing clamp Nylon PA 6,6 30% GFR
Material for cover PC UL94V2 self-extinguishing
Material for gasket Silicone rubber
3 Frontal panel cut-out
1300.21.001 (model “R” for red version) 1300.21.002 (model “R” for red version)
67,5 x 67,5 mm
Frontal panel
cut-out
43,5 x 91,5 mm
Frontal panel
cut-out

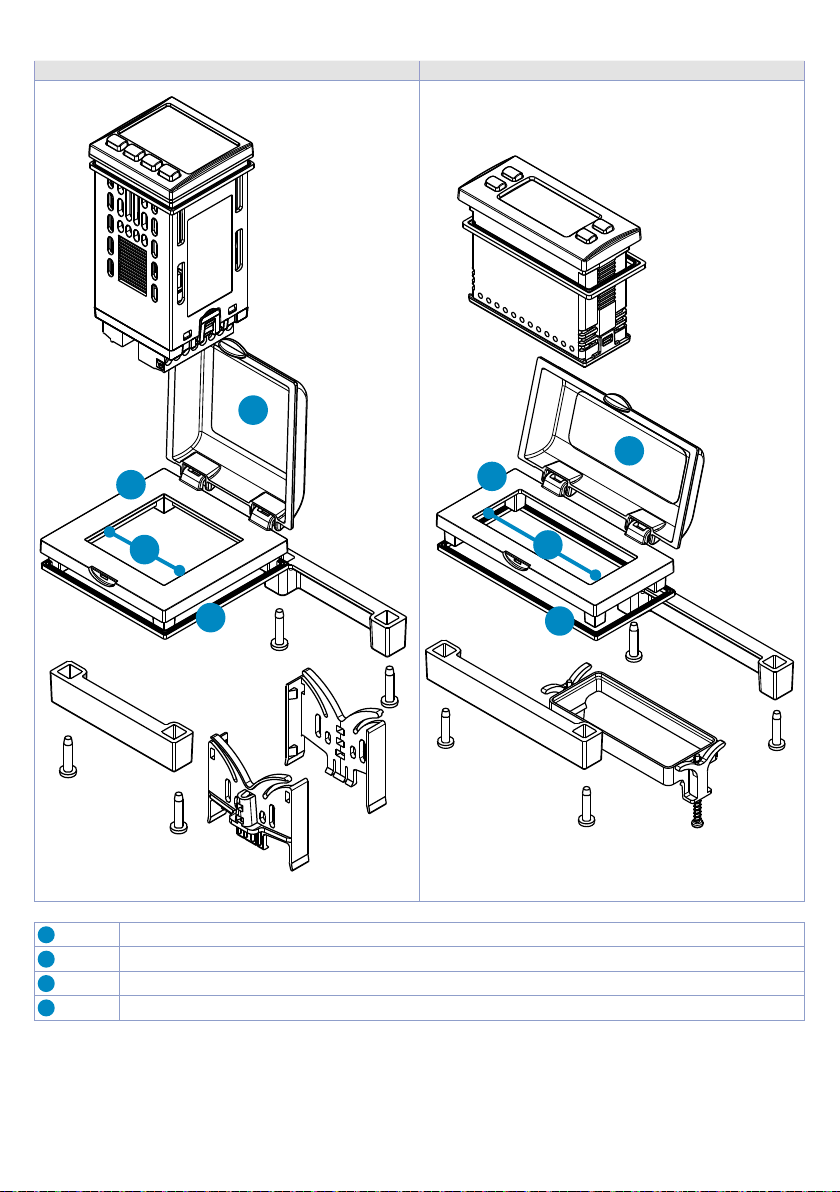

4 Installation
1300.21.001 (model “R” for red version) 1300.21.002 (model “R” for red version)
A
B
C
D
C
B
A
D
ATransparent cover in Polycarbonate
BAdapter 72x72 and 48x96 in Nylon PA
CGasket in Silicone rubber for IP65 sealing
DCut-Out area for Pixsys 48x48 and 32x74 series
