Pit Boss PTG2SS Mode d’emploi

Portable gas grill

instructions and use

CAUTION! Carefully read instructions before

using to reduce the risk of fire, explosion

or burn hazard. Failure to follow these

intructions could cause property damage,

personal injury or death.

barbecue À GAZ

PORTATIF

instructions et UTILISATION

ATTENTION! Lire attentivement les

instructions afin de réduire le risque

d'incendie.

Model / Modèle : PTG2SS

Important: Read Carefully. Retain For Future Reference

Important : Prenez connaissance de ce document et conservez-le pour

référence ultérieure

5006053

ENGLISH



If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open Lid.

4. If odor continues, keep away from the appliance and immediately call

your gas supplier or your fire department.

Failure to follow these instructions could result in fire or explosion which

could cause property damage, personal injury or death.



• This instruction manual contains important information necessary for

the proper assembly and safe use of this appliance. Failure to follow

these instructions could result in death or serious injury from explosion

or fire.

• Readandfollowallwarningsandinstructionscarefullybeforeassembling

or using this appliance.

• Follow all warnings and instructions when using this appliance.

• Keep this manual for future reference. SAVE THESE INSTRUCTIONS.

Tools Required for Assembly:

Phillips Screwdriver

ENGLISH

    

This appliance can produce carbon monoxide, an odorless toxic gas. Using it in

an enclosed space can kill you. Never use this appliance in an enclosed space,

such as a camper, tent, car, boat or home. This appliance is not intended for

and should never be used as a heater.



To reduce the risk of serious injury or death from fire or explosion:

• Never leave grill unattended

• Never use alcohol, prescription or non-prescription drugs while assembling or

safely operating this appliance.

• Keep children and pets away at all times.

• Do not connect to the LP Gas supply until assembly is complete.

• Do not store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance.

• An LP cylinder not connected for use shall not be stored in the vicinity of this

or any other appliance.

• Always have a type BC or ABC fire extinguisher readily available.

•



To reduce the risk of a laceration hazard, wear protective gloves when handling

parts that have sharp edges.

ENGLISH

  

A COMPLETE GUIDE TO COOKING WITH YOUR PORTABLE GAS GRILL

Packing List ................................................................................................................... 4

Preparation for Assembly .......................................................................................... 5

Grill Assembly Instructions ....................................................................................... 5

Hood Handle Assembly ................................................................................................ 5

Regulator-Valve Housing Assembly .......................................................................... 6

Igniter Housing Assembly ............................................................................................ 6

Drip Tray Access .............................................................................................................. 7

Table Top Use .................................................................................................................. 7

Using Gas ...................................................................................................................... 8

LP Gas Cylinder ................................................................................................................ 8

LP Regulator .................................................................................................................... 9

Connecting LP Gas Cylinder ........................................................................................ 10

Disconnecting LP Gas Cylinder ................................................................................... 10

Before Using Your LP Gas Grill ............................................................................... 11

Installation Codes .......................................................................................................... 11

Selecting a Location ...................................................................................................... 11

Performing a Leak Test ................................................................................................. 12

How to Perform a Leak Test ........................................................................................ 12

Lighting the Grill ........................................................................................................ 13

Lighting Grill Using the Pulse-Spark Ignitor ........................................................... 13

Manually Lighting the Grill ......................................................................................... 15

Check the Flame ............................................................................................................ 15

Cooking on the Gas Grill ......................................................................................... 16

Grill Cooking (Direct Method) .................................................................................... 17

Warming Rack ................................................................................................................ 18

End of Cooking Session ................................................................................................ 18

ENGLISH

Storage and Transportation ........................................................................................ 19

Care and Maintenance ............................................................................................ 20

Cleaning the Grill .......................................................................................................... 20

How to Clean the Burners ........................................................................................... 20

Emergencies .............................................................................................................. 22

Trouble Shooting ....................................................................................................... 23

Replacement Parts ................................................................................................... 25

Parts Illustration ........................................................................................................... 25

Parts List ......................................................................................................................... 26

Limited Warranty .................................................................................................... 27

Retain your receipt

If you need a replacement part under warranty, a proof of purchase will be

necessary.

 

Grill Body

Regulator Housing Assembly

Igniter Housing Assembly

Handle and Bezels

Warming Rack (inside)

Cooking Grid (inside)

Flavor Activator (inside)

Owner's Manual and Warranty Card

Detailed Parts List and Illustrations may be found on pages 24 and 25

When ordering parts, it is VERY important to have the complete Model

Number to receive the correct replacement parts for your grill. The grill model

number and serial number are printed on the label located on the inside

surface of the rear leg.

ENGLISH

  

Remove grill and all packaging materials from the carton and place on a clean level

surface. Some parts are packed inside the grill body. Remove, unpack and inspect

these parts as well.

NOTE: Before using your grill, read the instructions and your manual.

For easier set-up and assembly, follow instructions of each step in the order they are

written as you look at the diagrams. If accessories mentioned in certain assembly

steps do not come with your model, skip that step and proceed to the next step that

applies to your model.

If you have any questions or need help, contact Customer Service at 1-877-303-

3134. Be sure to have the grill model number and serial number printed on the label

located on the inside surface of the rear leg. If you need replacement parts, look in

the Parts List section to find the exact parts you need. If you need a replacement

part under warranty, a proof of purchase will be necessary. You will be asked to

forward your proof of purchase. It is important to retain your receipt.

  

1 HOOD HANDLE ASSEMBLY

Place a Handle Bezel between each end of the handle and the grill hood then insert a

¼-20 x .50" bolt through the inside of the hood into each end of the handle. Tighten

the bolts.

ENGLISH

2 REGULATOR-VALVE HOUSING ASSEMBLY

Insert the end of the regulator valve nozzle into the open end of the burner tube

(venturi). Align the holes in the Regulator Housing with the threaded holes in the

grill firebowl and insert two 5/32 x .31" bolts through the holes in the housing into

the threaded holes in the firebox. Tighten the bolts securely.

3 IGNITER HOUSING ASSEMBLY

• A - Thread the Electrode Wire through the hole in the Igniter Housing and

attach the end onto the pin at the bottom end of the Piezo Igniter.

• B - Align the holes in the Igniter Housing with the threaded holes in the firebowl

end. Insert Four 5/32 x .31" bolts through the housing into the threaded holes.

When installing the fourth bolt, first insert it through the ring at the end of the

Match holder chain and then through the Housing and into the firebowl end.

Tighten the bolts securely.

ENGLISH

WARNING - To reduce the risk of serious injury or death from fire or explosion:

• Be sure the grill has cooled completely before removing the drip tray.

• Be sure to empty and re-install the drip tray after each use.

CAUTION - To reduce the risk of laceration hazard, wear protective gloves when

handling parts that have sharp edges.

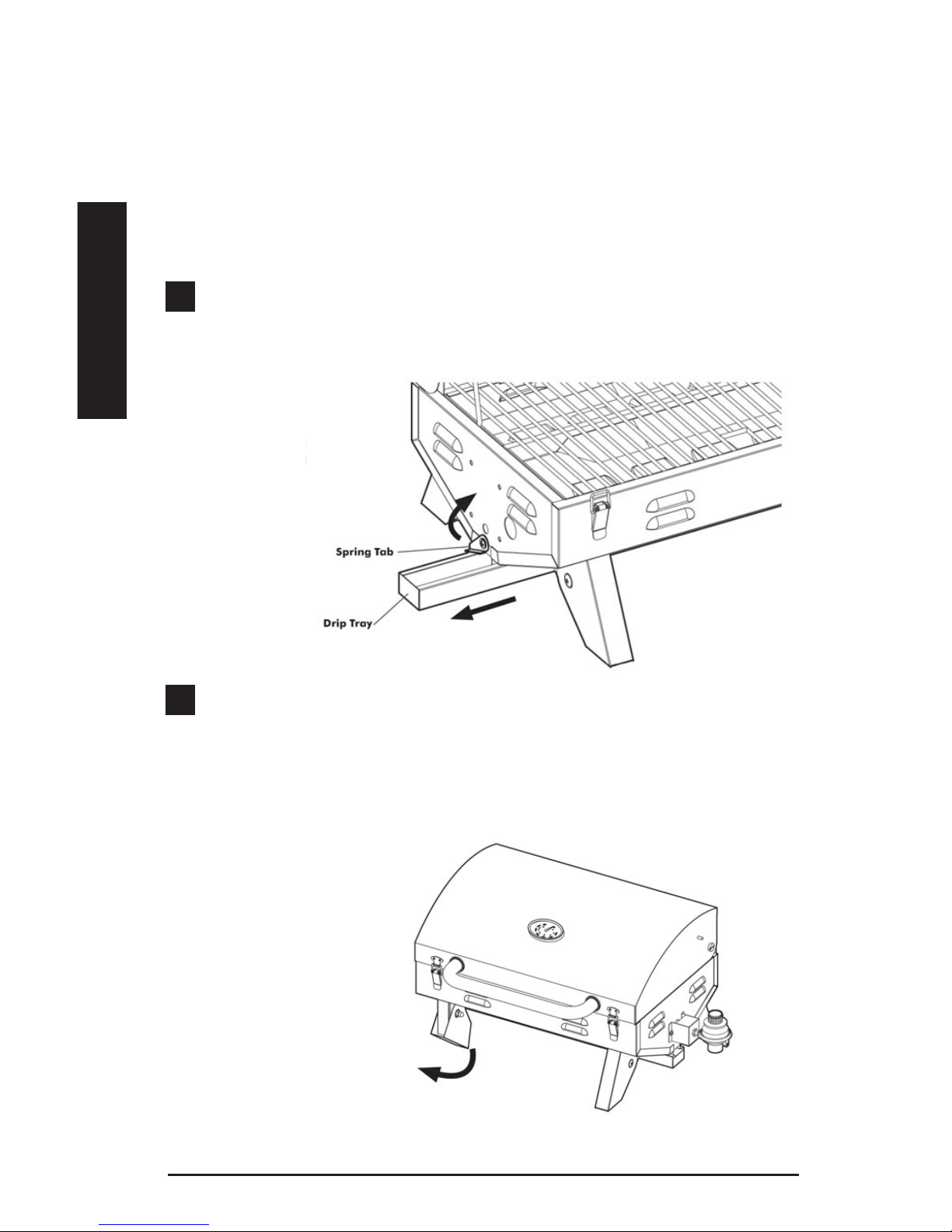

4 DRIP TRAY ACCESS

The Drip Tray is accessed for cleaning by rotating the spring tab and sliding the tray

out from under the grill.

Note: Shown without igniter

Housing for clarity

5 TABLE TOP USE

Unfold the legs, as shown and place grill on a level surface.

When legs are unfolded completely they will snap into the open position. Dimples

in the legs help them remain in position. To close, simply apply enough pressure to

overcome the friction fit.

ENGLISH

 

LP GAS CYLINDER

DANGER - If you see, smell, or hear the hiss of LP gas escaping from the cylinder:

1. Do not attempt to light appliance.

2. Extinguish any open flame.

3. Disconnect from fuel supply.

Carbon Monoxide Hazard

• This appliance can produce carbon monoxide which has no odor. Using it in an

enclosed space can kill you.

• Never use this appliance indoors, on recreational vehicles, or boats.

WARNING - To reduce the risk of serious injury or death from fire or explosion:

• Use only propane gas with this LP gas grill.

• Do not attempt to convert this LP unit to natural gas.

• Always use a gas appliance outdoors in an open area with good ventilation

to avoid breathing toxic fumes from combustion or leaking gas. As with all

conventional fuels, the burning process consumes oxygen and produces toxic

gases, including carbon monoxide. In addition, the combustion products of

such fuels, including liquefied petroleum (LP), contain chemicals known to the

state of California and other authorities to cause cancer, birth defects, and

other reproductive harm.

• Read and follow all warnings on LP Gas Cynlinder.

• Do not operate the LP gas grill without the LP gas cylinder oriented as instructed

in "Connecting LP Gas Cylinder" on page 7.

• Never connect or disconnect LP Gas Cylinder or fittings while grill is in use or

is hot.

• Do not use an LP Gas Cylinder if it has a damaged valve or shows signs of

dents, gouges, bulges, fire damage, corrosion, leakage, excessive rust, or other

forms of visual external damage; it may be hazardous and should be checked

immediately by a liquid propane supplier.

• Do not store a spare LP Gas Cylinder under or near the LP gas grill.

• When grill is not in use, turn off all grill Control Knobs and disconnect LP Gas

Cylinder.

ENGLISH

• Never fold or transport grill while LP Cylinder is attached.

• Never refill a 1 lb. cylinder.

The LP Gas Cylinder, for use with this LP gas grill, must meet the following

requirements:

1. 1 lb. capacity.

2. Contructed and marked in accordance with Specifications for LP Gas Cylinders

of the U.S. Department of Transportation (DOT) or the National Standard of

Canada, CAN\CSA-B339, Cylinders, Spheres and Tubes for Transportation of

Dangerous Goods; and Commission, as applicable (See collar for marking).

3. Marked "PROPANE."

4. Provided with a cylinder connection device that is compatible with the grill's

connection.

LP REGULATOR

WARNING - To reduce the risk of serious injury or death from fire or explosion:

• Clean and inspect the gas regulator before each use of the outdoor cooking gas

appliance. Replace the gas regulator prior to being used if there is evidence of

excessive abrasion or wear.

• Use only the gas regulator assembly that has been supplied with this gas grill.

Do not use a regulator from another manufacturer. A replacement gas regulator

must be specified by this grill's manufacturer before using.

• Always check for gas leaks when you connect and disconnect the regulator

to the LP Gas Cylinder, especially after a period of storage (for example, over

winter).

Any use or alteration of this unit inconsistant with these instructions could

be hazardous and will void your warranty.

NOTE: If the regulator assembly is not working properly and you need a replacement,

contact: Customer Service at 1-877-303-3135. Be sure to have the grill model

number and serial number printed on the label located on the inside surface of the

rear leg.

If you need a replacement part under warranty, a proof of purchase will be

necessary. You will be asked to forward your proof of purchase. It is important to

retain your receipt.

Table des matières

Langues :

Autres manuels Pit Boss Gril

Pit Boss

Pit Boss 10613, 10614 Manuel utilisateur

Pit Boss

Pit Boss Navigator 150 Manuel utilisateur

Pit Boss

Pit Boss PB700FBW2 Manuel de la liste des pièces

Pit Boss

Pit Boss PB0820D3 Instructions d'installation

Pit Boss

Pit Boss PB820S Manuel utilisateur

Pit Boss

Pit Boss 1150 PRO Series Manuel utilisateur

Pit Boss

Pit Boss PB340TGW1 Manuel de la liste des pièces

Pit Boss

Pit Boss PB2BPGG Manuel utilisateur

Pit Boss

Pit Boss PLATINUM KC COMBO PB1285KC Guide rapide

Pit Boss

Pit Boss PB150PPG Guide rapide

Pit Boss

Pit Boss PB440FB1 Instructions d'installation

Pit Boss

Pit Boss CHARLESTON PB1230CC Guide rapide

Pit Boss

Pit Boss Sportsman 2 Manuel utilisateur

Pit Boss

Pit Boss PB0820SPW Manuel utilisateur

Pit Boss

Pit Boss PB700S Guide rapide

Pit Boss

Pit Boss PB1600PS1 Manuel utilisateur

Pit Boss

Pit Boss MEMPHIS ULTIMATE 2.0 Manuel utilisateur

Pit Boss

Pit Boss LEXINGTON PB500LXW1 Manuel utilisateur

Pit Boss

Pit Boss Mile Hybrid Instructions d'installation

Pit Boss

Pit Boss PBCSL200 Manuel utilisateur

Pit Boss

Pit Boss PB700FB Instructions d'installation

Pit Boss

Pit Boss PB1000XL/SC3 Instructions d'installation

Pit Boss

Pit Boss PRO Series Instructions d'installation

Pit Boss

Pit Boss Navigator PB700G Manuel utilisateur

Manuels Gril populaires d'autres marques

Orbegozo

Orbegozo GR 2300 Manuel utilisateur

bora

bora PT11 Manuel utilisateur

Klarstein

Klarstein 10031664 Manuel utilisateur

Garland

Garland MWE3W Manuel utilisateur

Char-Broil

Char-Broil 463722714 Manuel utilisateur

Nexgrill

Nexgrill 720-0830HK Manuel utilisateur

Kenmore

Kenmore 415.16123800 Manuel utilisateur

Camp Chef

Camp Chef PG24CLAU Manuel utilisateur

Tucker Barbecues

Tucker Barbecues GTR Series Instructions de montage

Monogram

Monogram ZGG540NCP1SS Manuel utilisateur

Equipex

Equipex Sodir Savoy Manuel utilisateur

Gaggenau

Gaggenau VR 414 610 Manuel utilisateur

Miele

Miele KM 408-1 Manuel utilisateur

George Foreman

George Foreman GGR50B Manuel utilisateur

AOG

AOG T series Manuel utilisateur

Gorenje

Gorenje TG2000CB Mode d’emploi

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuel utilisateur

Glen

Glen SA 3037 Manuel utilisateur
