Pioneer PD-S507 Manuel utilisateur

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880

PIONEER ELECTRONIC CORPORATION 1998

MYXK ‡AC220–230V

MVXK ‡AC220–230V

COMPACT DISC PLAYER

RRV2034

T–ZZR OCT. 1998 Printed in Japan

PD-S507

CONTENTS

1. SAFETY INFORMATION....................................2

2. EXPLODED VIEWS AND PARTS LIST .............3

3. SCHEMATIC DIAGRAM...................................10

4. PCB CONNECTION DIAGRAM ....................... 17

5. PCB PARTS LIST.............................................24

6. ADJUSTMENT..................................................27

7. GENERAL INFORMATION ..............................35

7.1 IC................................................................35

7.2 DISPLAY ....................................................36

7.3 BLOCK DIAGRAM .....................................37

8. PANEL FACILITIES AND SPECIFICATIONS

...................................................................38

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S)AND TYPE(S).

Remarks

Type Model

PD-S507 Power Requirement

PD-S507

1. Laser Interlock Mechanism

The position of the switch (S601) for detecting loading

state is detected by the system microprocessor, and the

design prevents laser diode oscillation when the switch

(S601) is not on CLMP terminal side (CLMP signal is OFF

or high level.). Thus, the interlock will no longer function if

the switch (S601) is deliberately set to CLMP terminal

side (low level).

The interlock also does not function in the test mode

∗

Laser diode oscillation will continue, if pin 33 of

CXA1782CQ (IC151) on the MAIN BOARD ASSY is

connected to GND, or pin 22 of IC301(LDON) is

connected to low level (ON), or else the terminals of Q151

are shorted to each other (fault condition).

2. When the cover is opened with the servo mechanism

block removed and turned over, close viewing of the

objective lens with the naked eye will cause exposure to a

Class 1 laser beam.

IMPORTANT

THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY

INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER: 5 mw

WAVELENGTH: 780 – 785 nm

∗Refer to page 28.

LABEL CHECK

Additional Laser Caution

MYXK type

MVXK type

MYXK type

REAR

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual

do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been

trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

PD-S507

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

(1) PACKING PARTS LIST

NOTES : Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screw adjacent to mark on the product are used for disassembly.

Mark No. Description Part No.

1 Protector F PHA1329

2 Protector R

See Contrast table (2)

3 Packing Case

See Contrast table (2)

4 Packing Sheet Z23–007

(750 ×600 ×0.5)

5 Output Cable (L=1.2m) PDE1248

6 Operating Instructions

See Contrast table (2)

NSP 7 Batteris (R03, AAA) VEM–022

8 Remote Control Unit(CU-PD096) XWW1001

9 Battery Cover XZN1001

10 Spacer

See Contrast table (2)

11 Polyethylene Bag

See Contrast table (2)

(115 ×270 ×0.05)

NSP 12 Warranty Card ARY7022

(2) CONTRAST TABLE

PD-S507/MYXK and MVXK are constructed the same except for the following:

Mark Part No. RemarksSymbol and DescriptionNo.

2 Protector R PHA1331 PHA1332

3 Packing Case PHG2314 PHG2330

6 Operating Instructions PRE1270 Not used

(English/ French/ German/Italian/

Dutch/ Swedish/Spanish/Portuguese)

6 Operating Instructions (English) Not used PRB1274

10 Spacer Not used PHC1078

11 Polyethylene Bag (115 ×270 ×0.05) Not used Z21–013

MYXK type MVXK type

MVXK Only

For MVXK

PD-S507

2.2 EXTERIOR

724

15 9

720

28 6

Refer to "2.4 LOADING

MECHANISM ASSY T 96".

Refer to "2.3 FRONT PANEL

SECTION".

Removal of the Tray Panel

Fuse Holder

For MVXK type

: MVXK type Only

PD-S507

1 MAIN BOARD ASSY PWZ3762 PWZ3763

3 COAXIAL OUTPUT BOARD ASSY Not used PWZ3775

5 AC Power Cord PDG1043 PDG1055

14 Rear Base PNA2419 PNA2442

20 Caution Label HE PRW1233 Not used

22 Caution Label VRW1094 PRW1018

29 Fuse (5A) Not used PEK1003

(1) EXTERIOR PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 MAIN BOARD ASSY

See Contrast table (2)

2 POWER BOARD ASSY PWZ3770

3 COAXIAL OUTPUT BOARD ASSY

See Contrast table (2)

4 Strain Relief CM–22B

5 AC Power Cord

See Contrast table (2)

6 Power Transformer PTT1236

7 Screw ABA1011

8 Screw (3 ×6) ABA1207

9 Insulator AMR7198

10 Rubber Spacer B PEB1281

NSP 11 PCB Spacer PEB1304

12 Bonnet PYY1162

NSP 13 Under Base 56 PNA2214

14 Rear Base

See Contrast table (2)

15 Cushion 55 PNM1316

NSP 16 PCB Holder PNW2100

17 Insulator PNW2766

18 Disc Guard REC1305

NSP 19 Loading Mechanism Assy T96 PXA1604

20 Caution Label HE

See Contrast table (2)

21 Caution Label PRW1244

22 Caution Label

See Contrast table (2)

23 .............................

24 Screw BBZ30P080FCC

25 Screw BSZ30P070FMC

26 Screw FBT40P080FZK

27 .............................

28 Binder (SKB–90BK) ZCA–SKB90BK

29 Fuse (5A)

See Contrast table (2)

(2) CONTRAST TABLE

PD-S507/MYXK and MVXK are constructed the same except for the following:

Mark Part No. RemarksSymbol and Description

No. MYXK type MVXK type

PD-S507

FRONT PANEL SECTION PARTS LIST

Mark No. Description Part No.

1 SWITCH BOARD ASSY PWZ3766

2 MODE BOARD ASSY PWZ3768

3 HEADPHONE BOARD ASSY PWZ3773

4 Screw (FE) ABA7009

5 HEADPHONE Knob PAC1707

6 MODE Button PAC1887

7 MANUAL Button PAC1889

8 POWER Knob PAC1891

9 Display Window PAM1759

10 Name Plate PAM1776

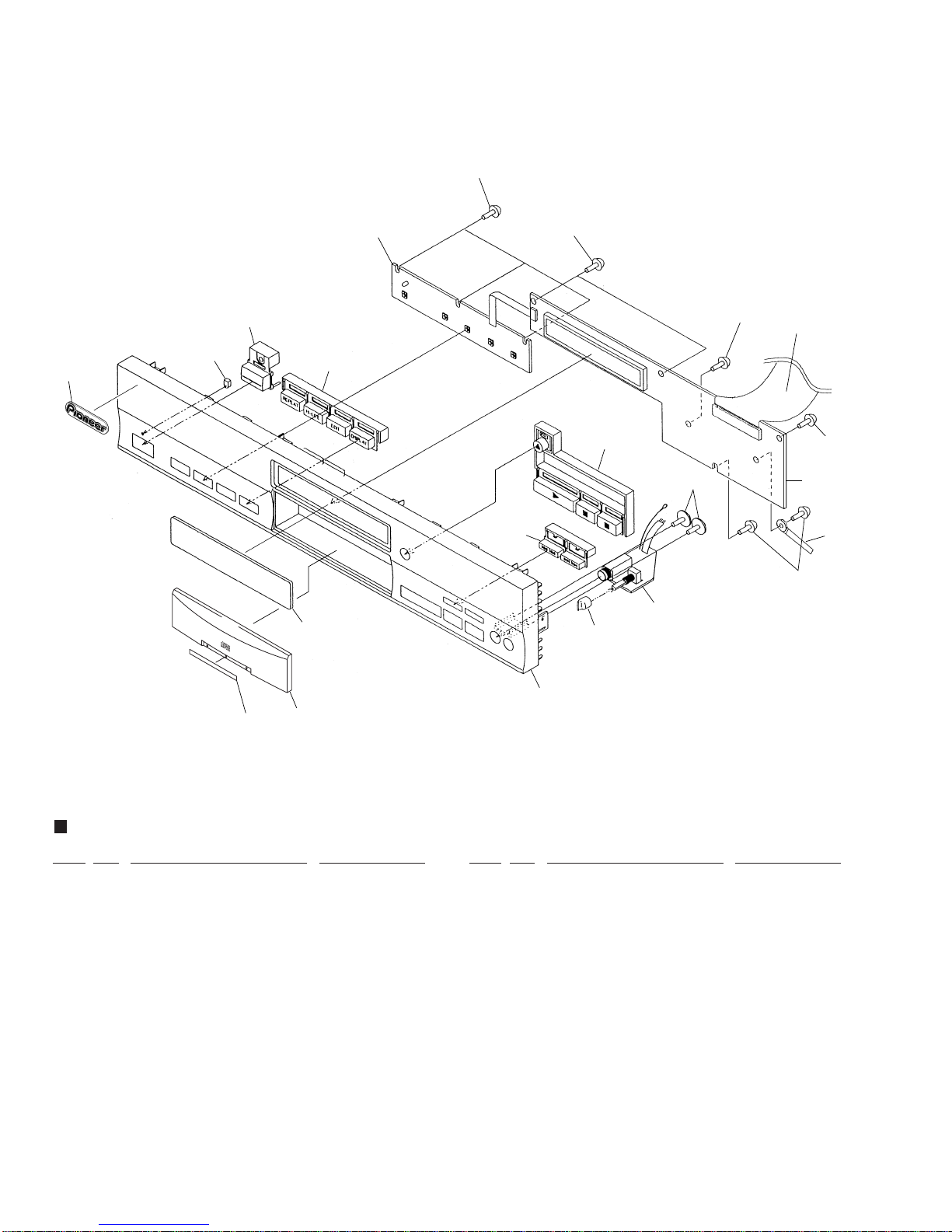

2.3 FRONT PANEL SECTION

814 15

Mark No. Description Part No.

11 LED Lens PNW2019

12 Function Panel PNW2807

13 PLAY Button B RAC2204

14 Screw PPZ30P080FMC

15 26P FFC/30V PDD1142

NSP 16 Tray Badge PAN1358

17 Tray Name Plate PNW2806

18 Cord Clamper RNH–184

PD-S507

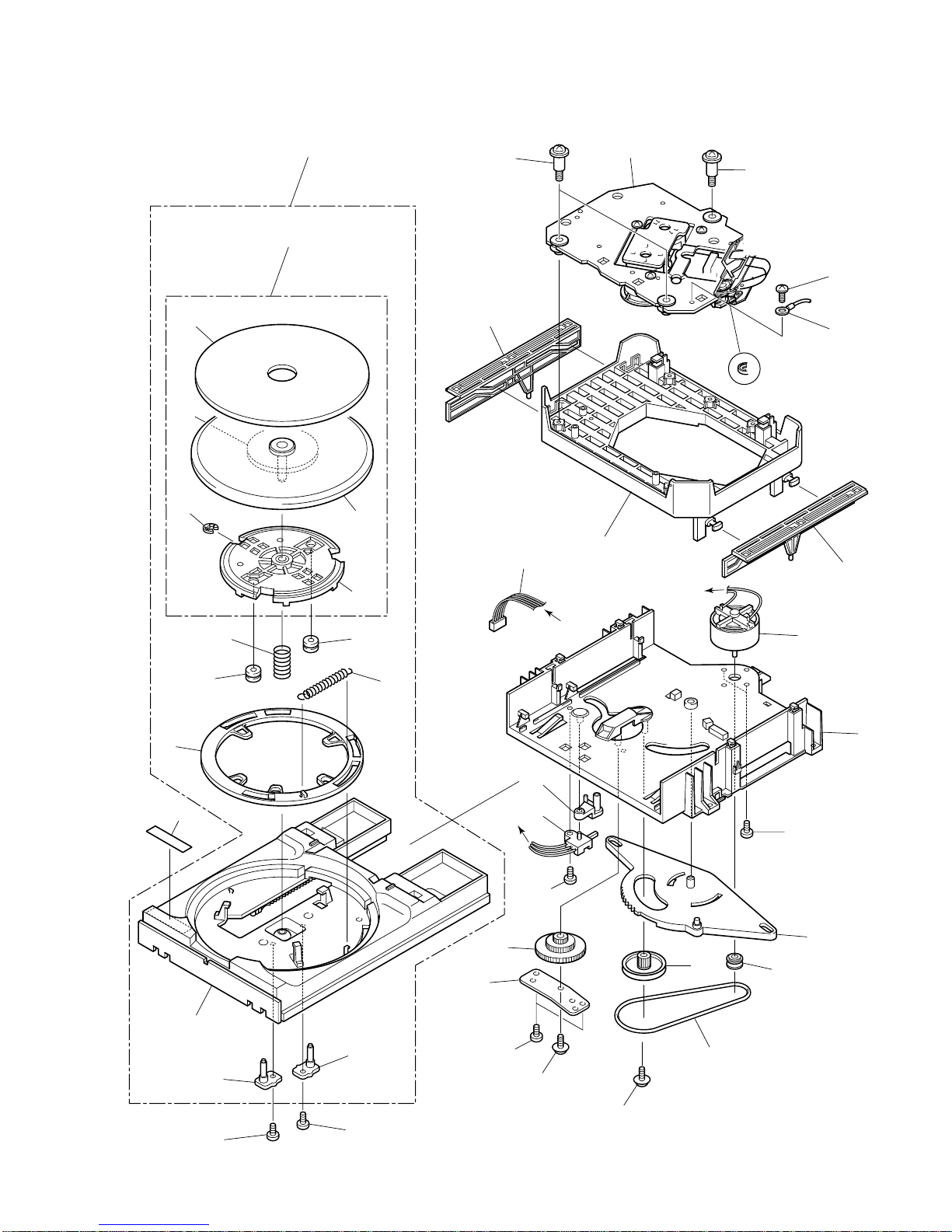

2.4 LOADING MECHANISM ASSY T96

Spacer

227

Refer to " 2.5 SERVO

MECHANISM ASSY T96".

PD-S507

LOADING MECHANISM ASSY T96 PARTS LIST

1 Lever Switch (S601) DSK1003

2 Float Screw PBA1027

3 Rubber Belt PEB1186

4 Motor Pulley PNW1634

5 Drive Gear PNW1996

6 Synchronized Lever PNW2168

7 Gear Pulley PNW1998

8 SW Head PNW1999

9 Float Base PNW2767

10 Left Cam PNW2001

11 Right Cam PNW2002

12 Float Spring PBH1120

13 Lock Spring PBH1121

14 Float Rubber PEB1014

15 Table Rubber Sheet PEB1181

16 Tray PNW2760

17 Table Guide PNW2004

18 Lock Plate PNW2005

19 D.C. Motor (0.75W, LOADING) PXM1010

20 Screw BMZ26P040FMC

21 Screw IPZ26P060FCU

22 Screw IPZ20P080FMC

23 Turn Table Assy PEA1199

24 Loading Base PNW2761

25 Table Shaft Holder Assy PXA1383

26 Turn Table PNR1044

NSP 27 Servo Mechanism Assy T96 PXA1606

28 E Ring YE20FUC

29 Shaft Holder PNB1382

30 Screw BPZ26P060FMC

31 Screw BBZ26P060FMC

NSP 32 Earth Lead DE010VF0

33 Caution Label PRW1244

34 Connector Assy 5P PDE1243

NSP 35 Table Base PXA1382

NSP 36 Tray Assy TT PXA1449

Mark No. Description Parts No. Mark No. Description Parts No.

Spacer

FFC Holder

Use nipper or other tool to cut the three sections marked

in figure 1. Then remove the spacer

While supporting the spindle motor shaft with the

stopper, put spacer on top of the carriage base, and stick

the disc table on top (takes about 9kg pressure). Take

off the spacer.

How to Install the Disc Table

2.1mm

Disc table

(Pressure of about 9kg)

Carriage

Base

PCB

Stopper

Spindle motor

Spacer setting

Position

Spacer

PD-S507

SERVO MECHANISM ASSY T96

PARTS LIST

2.5 SERVO MECHANISM ASSY T96

1 Carriage D.C. Motor (0.3W) PXM1027

2 Pinion Gear PNW2055

3 Spindle Motor Assy PEA1236

(SPINDLE, with Oil)

4 Carriage Base PNW2699

5 Disc Table PNW1067

6 Screw JFZ20P030FNI

7 Screw JFZ17P025FZK

8 Gear 3 PNW2054

9 Gear 2 PNW2053

10 Washer WT12D032D025

11 Pickup Assy PEA1335

12 Guide Bar PLA1094

13 Gear 1 PNW2052

14 Gear Stopper PNB1303

15 Screw BPZ20P060FMC

16 Earth Spring PBH1132

NSP 17 Mechanism Base T.T.96 PNB1592

18 Screw BPZ26P100FMC

19 Mechanism Board Assy PWX1192

20 Binder PEC–107

21 Float Rubber PEB1031

22 Float Rubber PEB1170

23 FFC Holder PNW2734

24 Connector Assy 4P PDE1238

25 Carriage Motor Assy PEA1246

(CARRIAGE)

26 Rack Spring PBH1128

27 Rack Holder PNW2056

28 F.F.C.(16P) PDD1185

Mark No. Description Parts No.

21 18

18 23

PD-S507

1234

3. SCHEMATIC DIAGRAM

Note: When ordering service parts, be sure to refer to "EXPLODED VIEWS AND PARTS LIST" or "PCB PARTS

LIST".

3.1 OVERALL SCHEMATIC DIAGRAM

SERVO MECHANISM

ASSY T96 (PXA1606)

MECHANISM BOARD

ASSY (PWX1192)

LOADING MECHANISM

ASSY T 96 (PXA1604)

MAIN BOARD ASSY

(PWZ3762: MYXK)

(PWZ3763: MVXK)

CN201 CN11

CN351

CN 501

CN205

CN202

CN131

PICK UP ASSY

PEA1335

SPINDLE

MOTOR

ASSY

PEA1236

CARRIAGE

MOTOR

ASSY

PEA1246

PXM1010

LOADING MOTOR

S601:DSK1003

CLAMP SW

LOAD

OPEN

CLMP

DSG1016

SLW16S-IC7

KPD7

52147-0410

CN 331

52147-0310

CN610

HLEM26S-1

Autres manuels pour PD-S507

Table des matières

Autres manuels Pioneer Lecteur CD

Pioneer

Pioneer CLD-2090 Manuel utilisateur

Pioneer

Pioneer CDJ-800 Manuel utilisateur

Pioneer

Pioneer CT-M66R Manuel utilisateur

Pioneer

Pioneer PD-M423 Manuel utilisateur

Pioneer

Pioneer DEH-X8750BT Manuel utilisateur

Pioneer

Pioneer CLD-J910 Manuel utilisateur

Pioneer

Pioneer PDF904 Manuel utilisateur

Pioneer

Pioneer MJ-HX5000 Manuel utilisateur

Pioneer

Pioneer DRM-1004 Manuel utilisateur

Pioneer

Pioneer CLD-D503 Manuel utilisateur

Pioneer

Pioneer LaserDisc CLD-2950 Manuel utilisateur

Pioneer

Pioneer CDX-P670UC Manuel utilisateur

Pioneer

Pioneer PD-DM902 Manuel utilisateur

Pioneer

Pioneer SUPER TUNER III DEH-323 Manuel utilisateur

Pioneer

Pioneer CLD-97 Manuel utilisateur

Pioneer

Pioneer PD-M601 Manuel utilisateur

Pioneer

Pioneer PD-R555RW Manuel utilisateur

Pioneer

Pioneer PDR-W839 Manuel utilisateur

Pioneer

Pioneer CLD-210KVT Manuel utilisateur

Pioneer

Pioneer CDJ-400 - Cd/Media Player Mode d’emploi

Pioneer

Pioneer DEX-P99RS/UC Manuel utilisateur

Pioneer

Pioneer DEH-P5100R Manuel utilisateur

Pioneer

Pioneer YPM-2296ZF Manuel utilisateur

Pioneer

Pioneer PD-T305 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur
