Pioneer DEH-2330R Manuel utilisateur

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2000 K-ZZA. NOV. 2000 Printed in Japan

ORDER NO.

CRT2620

HIGH POWER CD PLAYER WITH RDS TUNER

DEH-2330R X1P/EW

Service

Manual

DEH-2300RB X1P/EW

DEH-2300R X1P/EW

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

DEH-2330R/X1M/EW CRT2561

CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 3)

-PACKING SECTION PARTS LIST * : Non spare part

Part No.

Mark No. Symbol and Description DEH-2330R/X1M/EW DEH-2330R/X1P/EW

* 5 Polyethylene Bag E36-615 CEG-127

6 Polyethylene Bag CEG-162 UEG-012

7-1 Polyethylene Bag Not used UEG1116

7-2 Owner's Manual CRD3276 URD-163

7-3 Owner's Manual CRD3277 URD-164

7-4 Installation Manual CRD3278 URD-165

* 7-5 Passport CRY1013 CRY1014

* 7-6 Warranty Card CRY1157 URY1087

8 Carton CHG4153 UHG-136

9 Contain Box CHL4153 UHL-086

10 Protector CHP2346 UHP2102

11 Protector CHP2347 UHP2101

12 Case Assy CXB3520 UXB3520

13 Accessory Assy * CEA2397 UEA2397

All manuals and user guides at all-guides.com

all-guides.com

DEH-2330R,2300RB,2300R

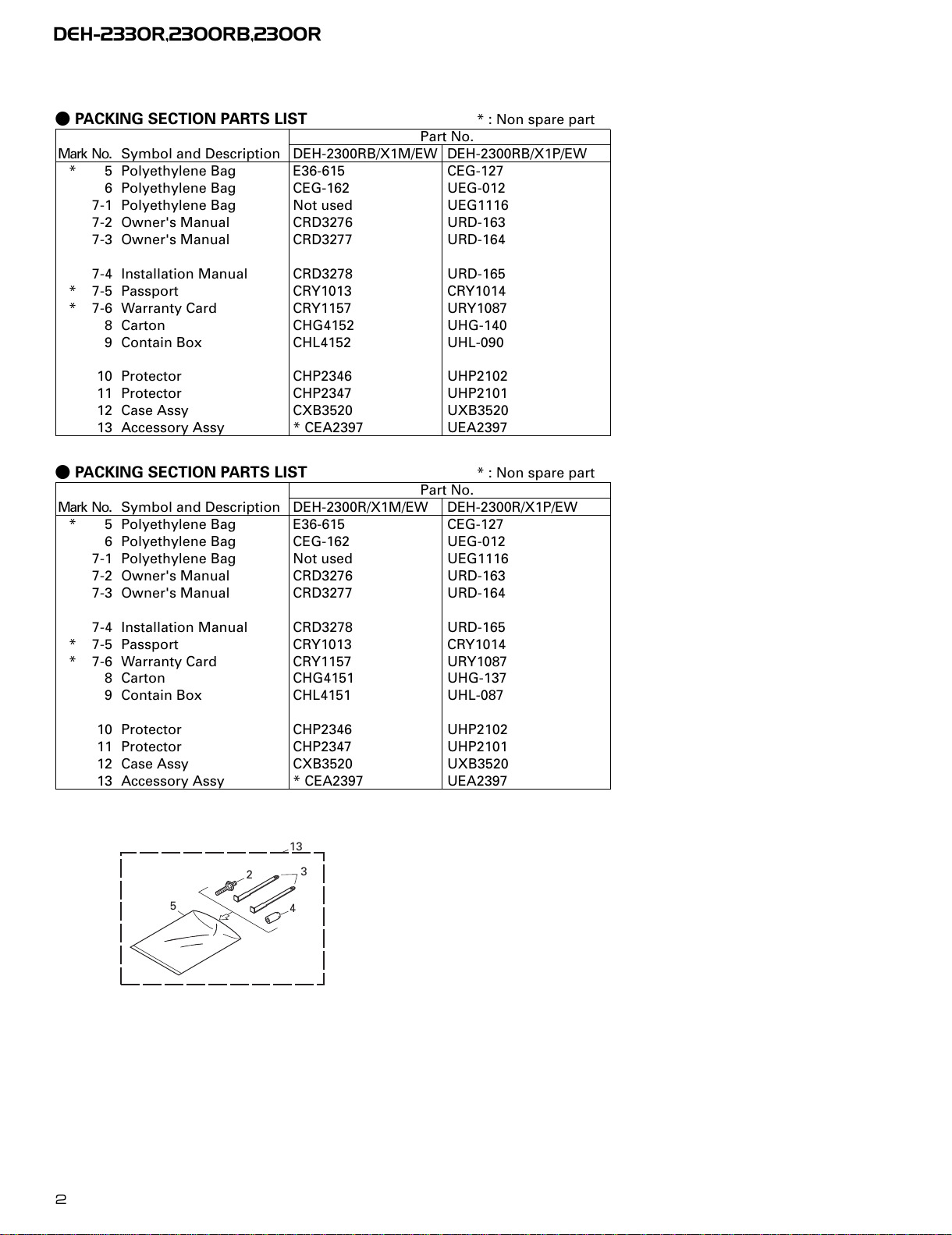

-PACKING SECTION PARTS LIST * : Non spare part

Part No.

Mark No. Symbol and Description DEH-2300RB/X1M/EW DEH-2300RB/X1P/EW

* 5 Polyethylene Bag E36-615 CEG-127

6 Polyethylene Bag CEG-162 UEG-012

7-1 Polyethylene Bag Not used UEG1116

7-2 Owner's Manual CRD3276 URD-163

7-3 Owner's Manual CRD3277 URD-164

7-4 Installation Manual CRD3278 URD-165

* 7-5 Passport CRY1013 CRY1014

* 7-6 Warranty Card CRY1157 URY1087

8 Carton CHG4152 UHG-140

9 Contain Box CHL4152 UHL-090

10 Protector CHP2346 UHP2102

11 Protector CHP2347 UHP2101

12 Case Assy CXB3520 UXB3520

13 Accessory Assy * CEA2397 UEA2397

-PACKING SECTION PARTS LIST * : Non spare part

Part No.

Mark No. Symbol and Description DEH-2300R/X1M/EW DEH-2300R/X1P/EW

* 5 Polyethylene Bag E36-615 CEG-127

6 Polyethylene Bag CEG-162 UEG-012

7-1 Polyethylene Bag Not used UEG1116

7-2 Owner's Manual CRD3276 URD-163

7-3 Owner's Manual CRD3277 URD-164

7-4 Installation Manual CRD3278 URD-165

* 7-5 Passport CRY1013 CRY1014

* 7-6 Warranty Card CRY1157 URY1087

8 Carton CHG4151 UHG-137

9 Contain Box CHL4151 UHL-087

10 Protector CHP2346 UHP2102

11 Protector CHP2347 UHP2101

12 Case Assy CXB3520 UXB3520

13 Accessory Assy * CEA2397 UEA2397

All manuals and user guides at all-guides.com

DEH-2330R,2300RB,2300R

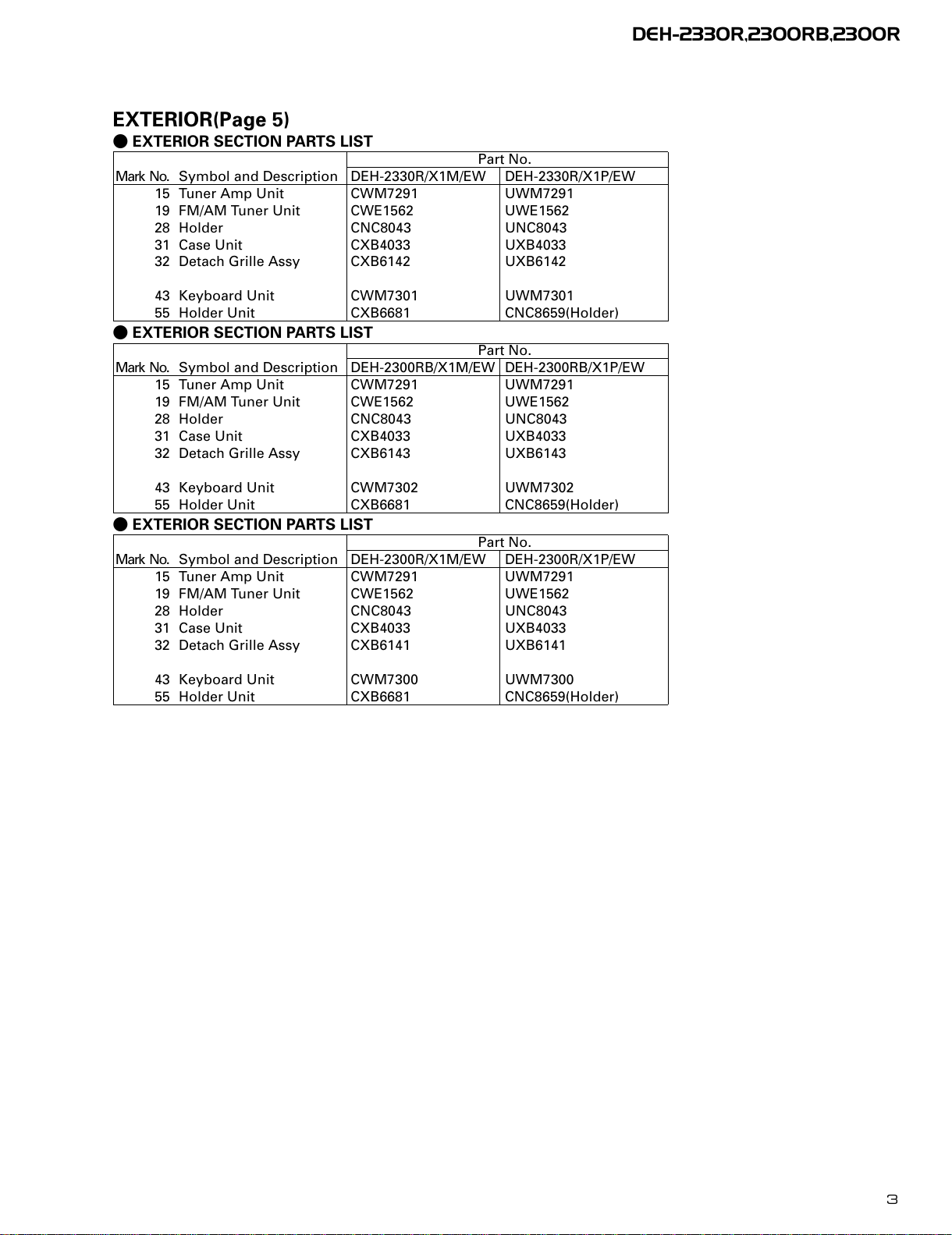

EXTERIOR(Page 5)

-EXTERIOR SECTION PARTS LIST

Part No.

Mark No. Symbol and Description DEH-2330R/X1M/EW DEH-2330R/X1P/EW

15 Tuner Amp Unit CWM7291 UWM7291

19 FM/AM Tuner Unit CWE1562 UWE1562

28 Holder CNC8043 UNC8043

31 Case Unit CXB4033 UXB4033

32 Detach Grille Assy CXB6142 UXB6142

43 Keyboard Unit CWM7301 UWM7301

55 Holder Unit CXB6681 CNC8659(Holder)

-EXTERIOR SECTION PARTS LIST

Part No.

Mark No. Symbol and Description DEH-2300RB/X1M/EW DEH-2300RB/X1P/EW

15 Tuner Amp Unit CWM7291 UWM7291

19 FM/AM Tuner Unit CWE1562 UWE1562

28 Holder CNC8043 UNC8043

31 Case Unit CXB4033 UXB4033

32 Detach Grille Assy CXB6143 UXB6143

43 Keyboard Unit CWM7302 UWM7302

55 Holder Unit CXB6681 CNC8659(Holder)

-EXTERIOR SECTION PARTS LIST

Part No.

Mark No. Symbol and Description DEH-2300R/X1M/EW DEH-2300R/X1P/EW

15 Tuner Amp Unit CWM7291 UWM7291

19 FM/AM Tuner Unit CWE1562 UWE1562

28 Holder CNC8043 UNC8043

31 Case Unit CXB4033 UXB4033

32 Detach Grille Assy CXB6141 UXB6141

43 Keyboard Unit CWM7300 UWM7300

55 Holder Unit CXB6681 CNC8659(Holder)
