PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 1999 K-ZZU. JULY 1999 Printed in Japan
ORDER NO.
CRT2276
7 INCH WIDE AV SYSTEM DISPLAY /CD PLAYER
AVX-P7000CD UC,EW,ES
Service
Manual
-This service manual should be used together with the following manual(s):
Model Order No. Mech. Module Remarks
AVX-P7000CD/UC,EW,ES CRT2379
AVX-7000/UC,EW,ES CRT2380
-This manual contains the information on the LCD module and the Drive mechanism unit used in the
AVX-P7000CD and AVX-7000. For the other information, refer to the main manuals listed above.
CONTENTS
1. EXPLODED VIEWS AND PARTS LIST ......................2
2. SCHEMATIC DIAGRAM.............................................4
3. PCB CONNECTION DIAGRAM..................................6
4. ELECTRICAL PARTS LIST........................................10
5. GENERAL INFORMATION.......................................12
5.1 DISASSEMBLY..................................................12
7 INCH WIDE AV SYSTEM DISPLAY
AVX-7000 UC,EW,ES
2
AVX-P7000CD,AVX-7000
1. EXPLODED VIEWS AND PARTS LIST
111 ScrewM2X3 FB1521
112 ScrewM2X9 FB1523
113 Spring FS1573
114 ScrewM2X5.5 FB1522
115 Gear FH1267
116 Cover Unit(UC,EW model) FK1850
Cover Unit(ES model) FK1887
117 Washer FX1055
118 Gear 374K
119 ScrewM2.6X3.5 FB1520
120 Collar FH1268
121 Gear 374M
122 Torque Limiter 376F
123 Gear 376J
124 Motor Assy CXX1398
125 Gear 376T
126 Gear 376U
127 Gear 376V
128 Gear FH1266
129 Spring FS1574
130 ScrewM2X3 FB1031
132 Collar FX2631
133 Pipe FX2619
134 Cushion FX2483
135 Guide 377A
136 Guide 376Y
137 ScrewM2.6X2.5 FB1519
138 Shaft FD1233
139 Worm Wheel 373V
140 Gear Shaft FD1232
141 Gear 373W
142 Gear 374F
143 Gear 374G
144 Gear 374H
145 Gear 374J
146 Toe Gear 376W
147 Guide 376Z
148 Guide 376X
149 ScrewM1.7X6 FB1524
150 Try Assy FK1847
151 Spacer HF1282
152 Sheet FX2482
153 Motor Assy CXX1399
154 Worm Wheel 373T
155 Nonwoven Fabric FX2618
156 Sheet FX2594

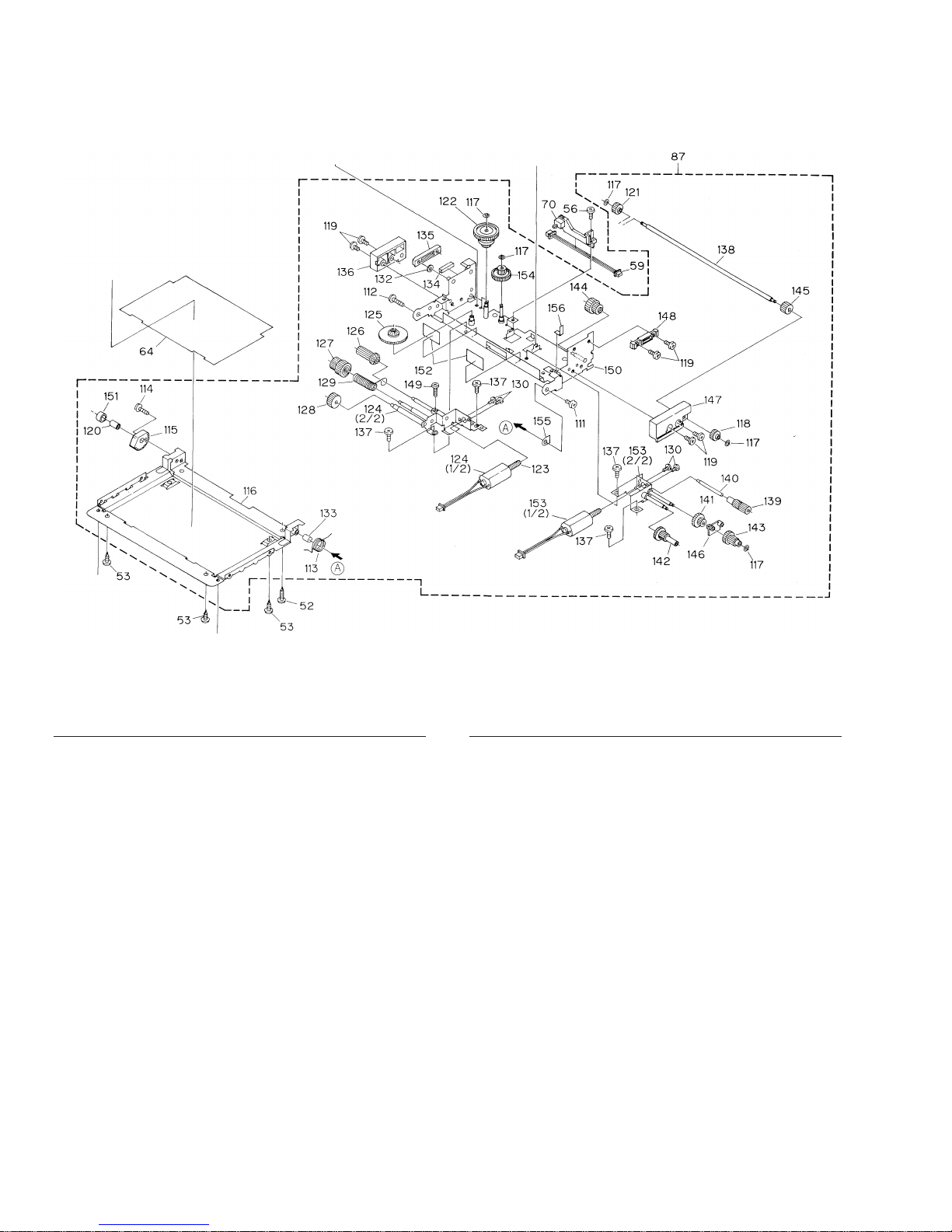

1.1 DRIVE MECHANISM UNIT
-DRIVE MECHANISM UNIT SECTION PARTS LIST
Mark No. Description Part No. MarkNo.Description Part No.
3
AVX-P7000CD,AVX-7000

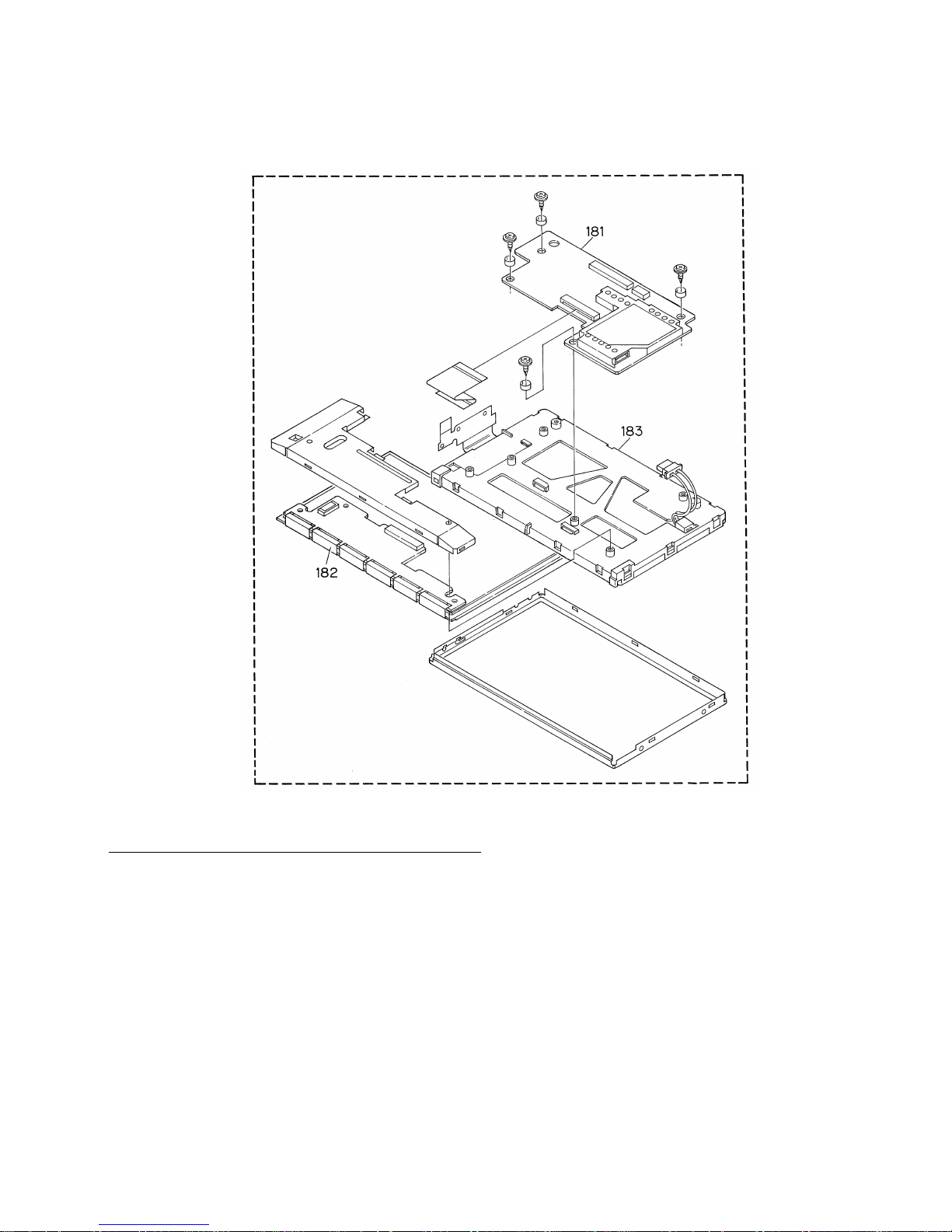

1.2 LCD MODULE
181 Video Unit NMP70-8398-112
182 TFT-LCD Module TFD70W14A
183 B/L Unit NMP75-8376-211
-LCD MODULE SECTION PARTS LIST
Mark No. Description Part No.
4
AVX-P7000CD,AVX-7000
1234
1234
D
C
B
A

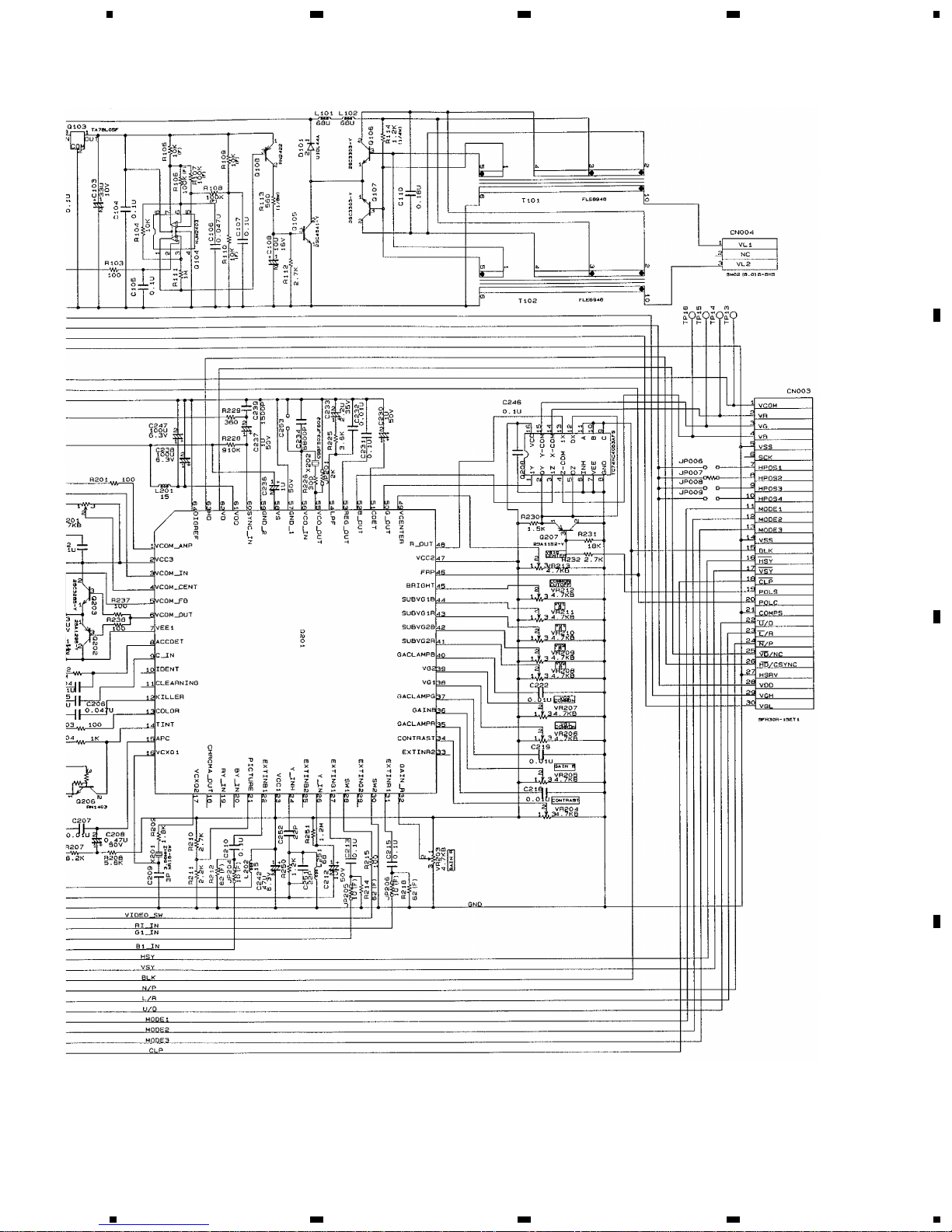

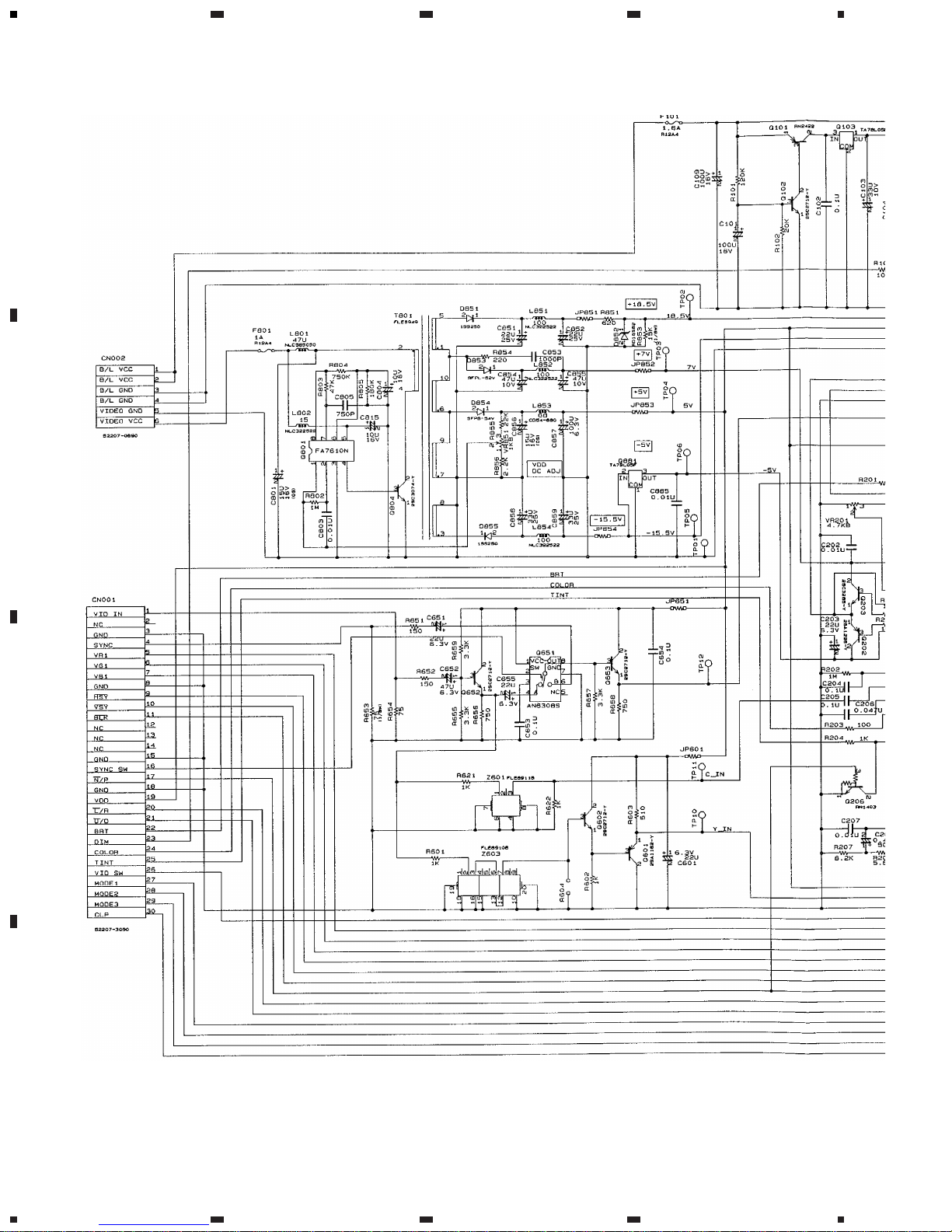

2. SCHEMATIC DIAGRAM
2.1 VIDEO UNIT
5
AVX-P7000CD,AVX-7000
5678
5678
D
C
B
A
6
AVX-P7000CD,AVX-7000
1234
1234
D
C
B
A

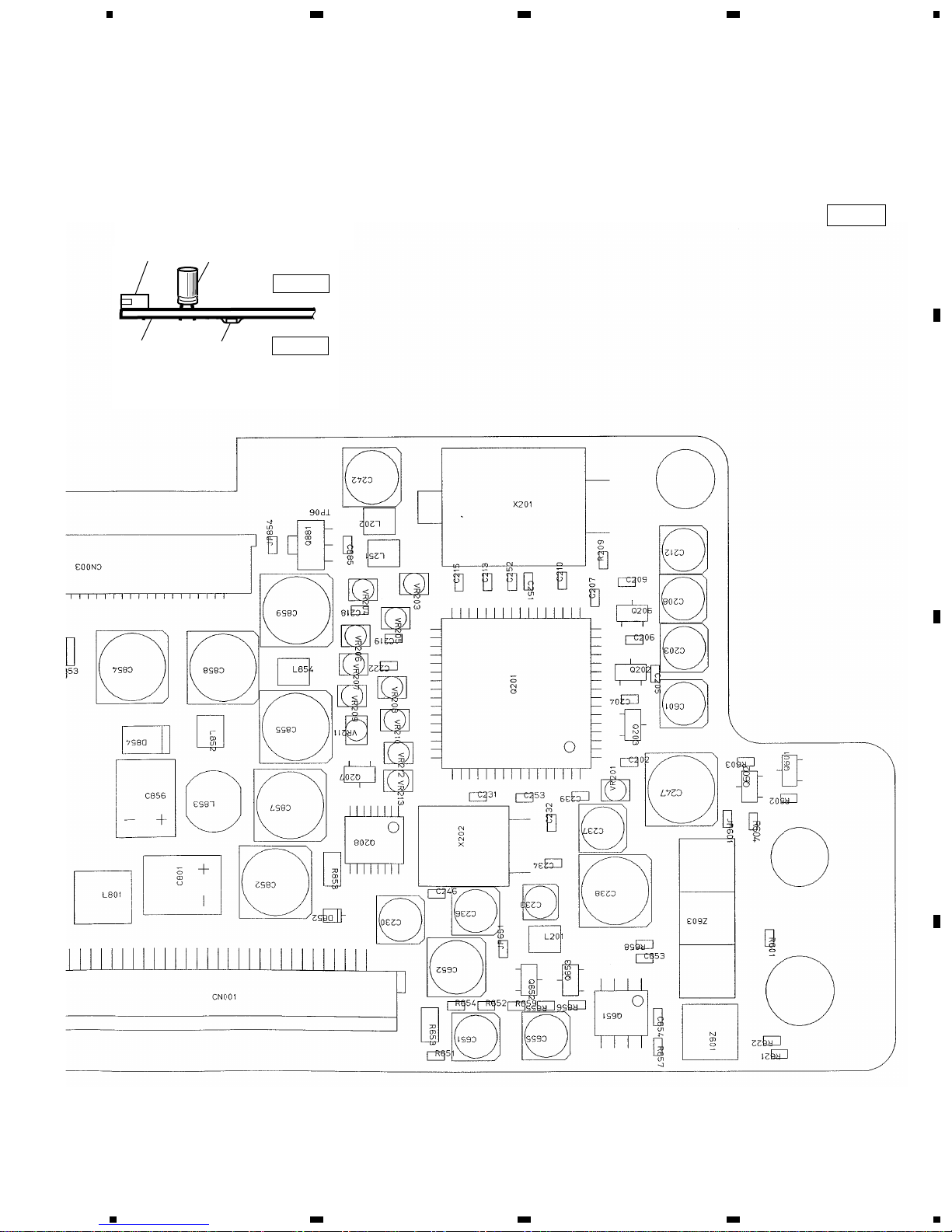

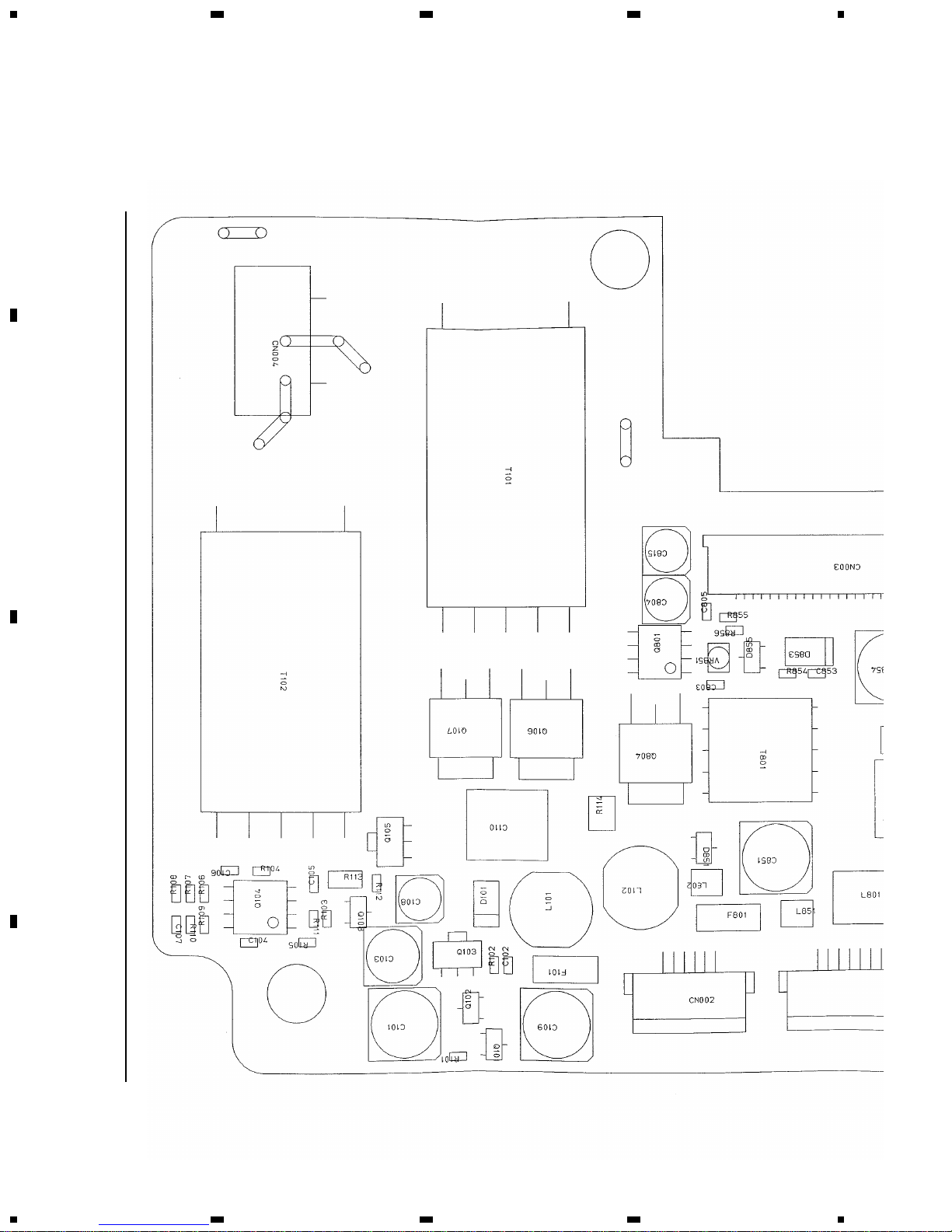

3. PCB CONNECTION DIAGRAM
3.1 VIDEO UNIT
IC,Q
Q881
Q801 Q206
Q201 Q202
Q203
Q601
Q107 Q106
Q602
Q804 Q201
Q105 Q208
Q104
Q108
Q103
Q653
Q652
Q102
Q651
Q101
7
AVX-P7000CD,AVX-7000
5678
5678
D
C
B
A
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic dia-
gram.
2. Viewpoint of PCB diagrams
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B
SIDE A
8
AVX-P7000CD,AVX-7000
1234
1234
D
C
B
A
9
AVX-P7000CD,AVX-7000
5678
5678
D
C
B
A
SIDE B
10
AVX-P7000CD,AVX-7000
Unit Number :
Unit Name : Video Unit
MISCELLANEOUS
Q 101 RN2422
Q 102 2SC2712-Y
Q 103 TA78L05F
Q 104 NJM2403M
Q 105 2SC4541-Y
Q 106 2SC3303-Y
Q 107 2SC3303-Y
Q 108 RN2422
Q 201 NJW1300A
Q 202 2SA1298-Y
Q 203 2SC3265-Y
Q 206 RN1403
Q 207 2SA1162-Y
Q 208 TC74HC4053AFS
Q 601 2SA1162-Y
Q 602 2SC2712-Y
Q 651 AN6308S
Q 652 2SC2712-Y
Q 653 2SC2712-Y
Q 801 FA7610N
Q 804 2SC3074-Y
Q 881 TA79L05F
D 101
D 851
D 852
D 853
D 854
D 855 1SS250
F 101
F 801 CEK1173
L 101
L 102
L 201 LCTA150J3225
L 202 LCTA150J3225
L 251
L 801
L 802 LCTA150J3225
L 851 LCTA101J3225
L 852 LCTA101J3225
L 853
L 854 LCTA101J3225
T 101 FLE6948
T 102 FLE6948
T 801 FLE6949
VR 201
VR 203
VR 204
VR 205
VR 206
VR 207
VR 208
VR 209
VR 210
VR 211
VR 212
VR 213
VR 851
X 201 NR18-GW3.58
X 202 CSBF503JF502
Z 601 FLE6911B
Z 603 FLE6910B
JP 006 RS1/16S0R0J
JP 007 RS1/16S0R0J
JP 008 RS1/16S0R0J
JP 009 RS1/16S0R0J
JP 201 RS1/16S202J
JP 204 RS1/16S10R0F
JP 205 RS1/16S10R0F
JP 206 RS1/16S10R0F
JP 601 RS1/16S0R0J
JP 602 RS1/16S0R0J
JP 651 RS1/16S0R0J
JP 851 RS1/16S0R0J
JP 852 RS1/16S0R0J
JP 853 RS1/16S0R0J
JP 854 RS1/16S0R0J
CN 001
CN 002
CN 003
CN 004
RESISTORS
R 101 RS1/16S124J
R 102 RS1/16S203J
R 103 RS1/16S101J
R 104 RS1/16S103J
R 105 RS1/16S1002F
R 106 RS1/16S1003F
R 107 RS1/16S1003F
R 108 RS1/16S1003F
R 109 RS1/16S1002F
R 110 RS1/16S1002F
5. ELECTRICAL PARTS LIST
NOTE:
-Parts whose parts numbers are omitted are subject to being not supplied.
-The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
