INSTALLATION MANUAL

MANUEL D’INSTALLATION

FLASH MEMORY NAVIGATION AUDIO RECEIVER

RECEPTEUR AUDIO ET SYSTEME DE NAVIGA-

TION A MEMOIRE FLASH INTEGREE

AVIC-U310BT

English Français

IMPORTANT INFORMATION

ABOUT YOUR NEW NAVIGATION SYSTEM

AND THIS MANUAL 3

IMPORTANT SAFEGUARDS

PLEASE READ ALL OF THESE

INSTRUCTIONS REGARDING YOUR

NAVIGATION SYSTEM AND RETAIN THEM

FOR FUTURE REFERENCE 4

Connecting the System

Precautions before connecting the

system 5

Before installing this product 6

To prevent damage 6

–Notice for the blue/white lead 6

Parts supplied 7

Connecting the system 8

Connecting the power cord (1) 10

Connecting the power cord (2) 12

When connecting to separately sold power

amp 13

Installation

Precautions before installation 14

To guard against electromagnetic

interference 14

Before installing 14

Installing this navigation system 15

–Installation notes 15

–Parts supplied 15

–Installation using the screw holes on

the side of the navigation unit 16

Installing the GPS antenna 17

–Installation notes 17

–Parts supplied 17

–When installing the aerial inside the

vehicle (on the dashboard or rear

shelf) 18

Installing the microphone 19

–Parts supplied 19

–Mounting on the sun visor 19

–Installation on the steering column 20

–Adjusting the microphone angle 21

After Installation

After Installing this navigation system 22

Contents

ABOUT YOUR NEW

NAVIGATION SYSTEM AND

THIS MANUAL

!The navigation features of this product are

intended solely to aid you in the operation

of your vehicle. It is not a substitute for

your attentiveness, judgment and care

when driving.

!Never use this navigation system to route

to hospitals, police stations, or similar facil-

ities in an emergency. Please call the ap-

propriate emergency number.

!Do not operate this navigation system if

doing so in any way will divert your atten-

tion from the safe operation of your vehicle.

Traffic restrictions and advisories currently

in force should always take precedence

over guidance given by this product. Al-

ways obey current traffic restrictions, even

if this product provides contrary advice.

!This manual explains how to install this na-

vigation system in your vehicle. Operation

of this navigation system is explained in

the separate manuals for the navigation

system.

!Do not install this product where it may (i)

obstruct the driver’s vision, (ii) impair the

performance of any of the vehicle’s operat-

ing systems of safety features, including

airbags, hazard lamp buttons or (iii) impair

the driver’s ability to safely operate the vehi-

cle. In some cases, it may not be possible

to install this product because of the vehi-

cle type or the shape of the vehicle inter-

ior.

IMPORTANT INFORMATION

En 3

English

Section

WARNING

Pioneer does not recommend that you install

your navigation system yourself. We recom-

mend that only authorized Pioneer service

personnel, who have special training and ex-

perience in mobile electronics, set up and in-

stall this product. NEVER SERVICE THIS

PRODUCT YOURSELF. Installing or servi-

cing this product and its connecting cables

may expose you to the risk of electric shock

or other hazards, and can cause damage to

the navigation system that is not covered by

warranty.

PLEASE READ ALL OF THESE

INSTRUCTIONS REGARDING

YOUR NAVIGATION SYSTEM

AND RETAIN THEM FOR

FUTURE REFERENCE

1 Read this manual fully and carefully before in-

stalling your navigation system.

2 Keep this manual handy for future reference.

3 Pay close attention to all warnings in this

manual and follow the instructions carefully.

4 The first time the system is started up, the

message “Preparing to start up system...

please wait”may be displayed since battery

power remaining may be quite low. If you see

this message, do not operate the unit until

after the message “Ready to start up sys-

tem.”is displayed.

5 This navigation system may in certain circum-

stances display erroneous information regard-

ing the position of your vehicle, the distance

of objects shown on the screen, and compass

directions. In addition, the system has certain

limitations, including the inability to identify

one-way streets, temporary traffic restrictions

and potentially unsafe driving areas. Please

exercise your own judgment in the light of ac-

tual driving conditions.

6 As with any accessory in your vehicle’s inter-

ior, the navigation system should not divert

your attention from the safe operation of your

vehicle. If you experience difficulty in operat-

ing the system or reading the display, please

make adjustments while safely parked.

7 Please remember to wear your seat belt at all

times while operating your vehicle. If you are

ever in an accident, your injuries can be con-

siderably more severe if your seat belt is not

properly buckled.

8 Certain government laws may prohibit or re-

strict the placement and use of this system in

your vehicle. Please comply with all applicable

laws and regulations regarding the use, instal-

lation and operation of your navigation sys-

tem.

IMPORTANT SAFEGUARDS

Section

Precautions before

connecting the system

CAUTION

!If you decide to perform the installation

yourself, and have special training and ex-

perience in the mobile electronics instal-

lations, please carefully follow all of the

steps in the installation manual.

!Secure all wiring with cable clamps or

electrical tape. Do not allow any bare wir-

ing to remain exposed.

!Do not directly connect the yellow lead of

this product to the vehicle battery. If the

lead is directly connected to the battery,

engine vibration may eventually cause

the insulation to fail at the point where

the wire passes from the passenger com-

partment into the engine compartment. If

the yellow lead’s insulation tears as a re-

sult of contact with metal parts, short-cir-

cuiting can occur, resulting in

considerable danger.

!It is extremely dangerous to allow the

cables to become wound around the steer-

ing column or shift lever. Be sure to install

this product, its cables, and wiring away

in such a way that they will not obstruct

or hinder driving.

!Make sure that the cables and wires are

routed and secured so they will not inter-

fere with or become caught in any of the

vehicle’s moving parts, especially the

steering wheel, shift lever, parking brake,

sliding seat tracks, doors, or any of the ve-

hicle’s controls.

!Do not route wires where they will be ex-

posed to high temperatures. If the insula-

tion heats up, wires may become

damaged, resulting in a short circuit or

malfunction and permanent damage to

the product.

!Do not cut the GPS antenna cable to

shorten it or use an extension to make it

longer. Altering the antenna cable could

result in a short circuit or malfunction.

!Do not shorten any leads. If you do, the

protection circuit (fuse holder, fuse resis-

tor or filter, etc.) may fail to work properly.

!Never feed power to other electronic pro-

ducts by cutting the insulation of the

power supply lead of the navigation sys-

tem and tapping into the lead. The current

capacity of the lead will be exceeded,

causing overheating.

!The black lead is ground. Please ground

this lead separately from the ground of

high-current products such as power

amps. Do not ground more than one pro-

duct together with the ground from an-

other product. For example, you must

separately ground any amp unit away

from the ground of this navigation sys-

tem. Connecting grounds together can

cause a fire and/or damage the products if

their grounds became detached.

Connecting the System

En 5

English

Section

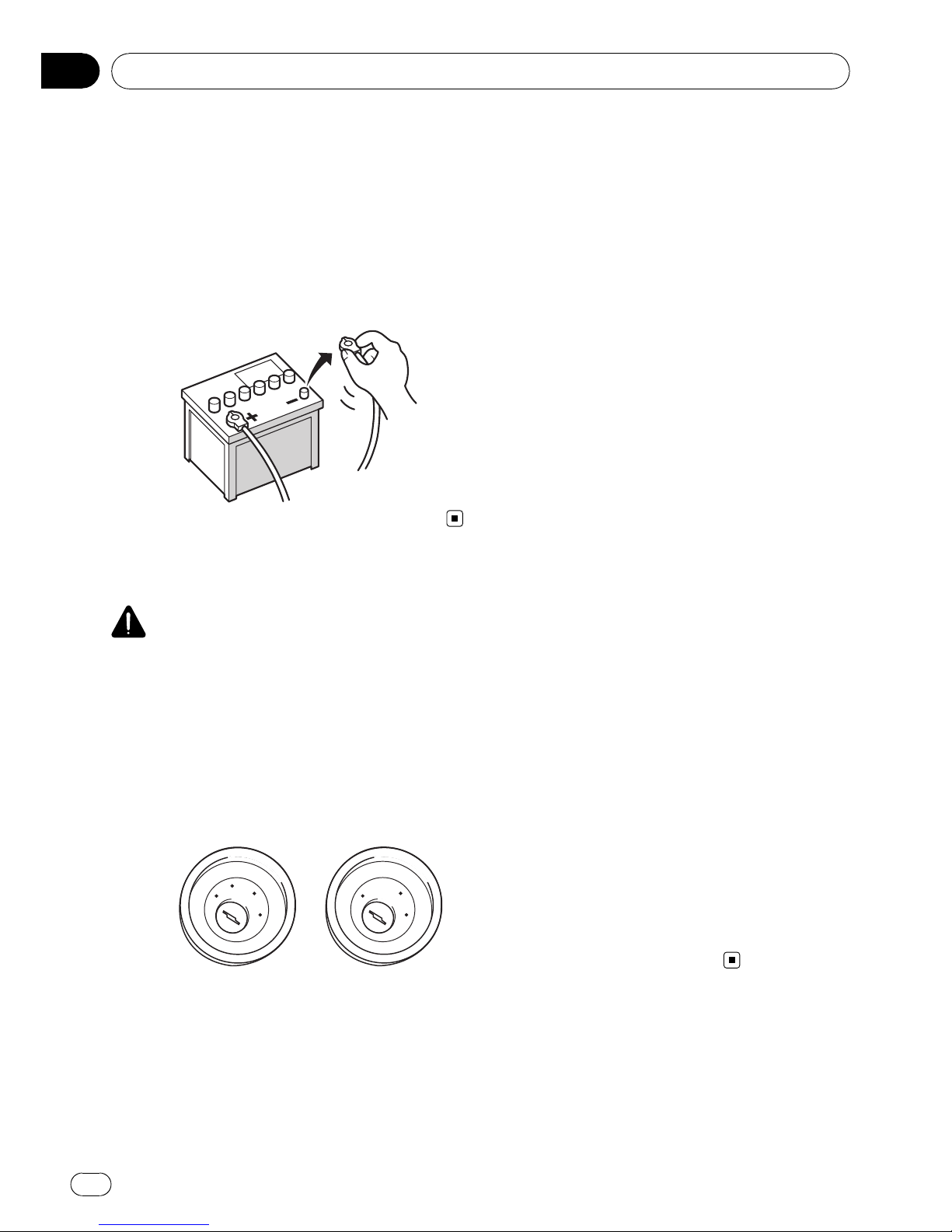

Before installing this product

!This product is for vehicles with a 12-volt

battery and negative grounding. Check the

battery voltage of your vehicle before instal-

lation.

!To avoid shorts in the electrical system, be

sure to disconnect the (–) battery cable be-

fore beginning installation.

To prevent damage

WARNING

!When replacing the fuse, be sure to only

use a fuse of the rating prescribed on this

product.

!When disconnecting a connector, pull the

connector itself. Do not pull the lead, as

you may pull it out of the connector.

!This product cannot be installed in a vehi-

cle without ACC (accessory) position on

the ignition switch.

ACC position No ACC position

!To avoid short-circuiting, cover the discon-

nected lead with insulating tape. It is espe-

cially important to insulate all unused

speaker leads, which if left uncovered may

cause a short circuit.

!Attach the connectors of the same color to

the corresponding colored port, i.e., blue

connector to the blue port, black to black,

etc.

!Refer to the owner’s manual for details on

connecting the power amp and other units,

then make connections accordingly.

!Since a unique BPTL circuit is employed,

do not directly ground the *side of the

speaker lead or connect the *sides of the

speaker leads together. Be sure to connect

the *side of the speaker lead to the *

side of the speaker lead on this navigation

system.

!Never connect speakers with an output rat-

ing of less than 50 W channel or impe-

dance outside of the 4 ohms to 8 ohms

specifications to your navigation system.

Connecting speakers with output and/or

impedance values other than those noted

here may result in the speakers catching

fire, emitting smoke, or becoming da-

maged.

Notice for the blue/white lead

!When this unit is turned on, a control sig-

nal is output through the blue/white cable.

Connect it to an external power amp’s sys-

tem remote control or the vehicle’s auto-an-

tenna relay control terminal (max. 300 mA,

12 V DC). If the vehicle is equipped with a

glass antenna, connect the cable to the an-

tenna booster power supply terminal.

!Never connect the blue/white cable to an

external power amp’s power terminal. Also,

never connect it to the power terminal of

the auto antenna. Otherwise, battery drain

or malfunction may result.

Connecting the System

Section

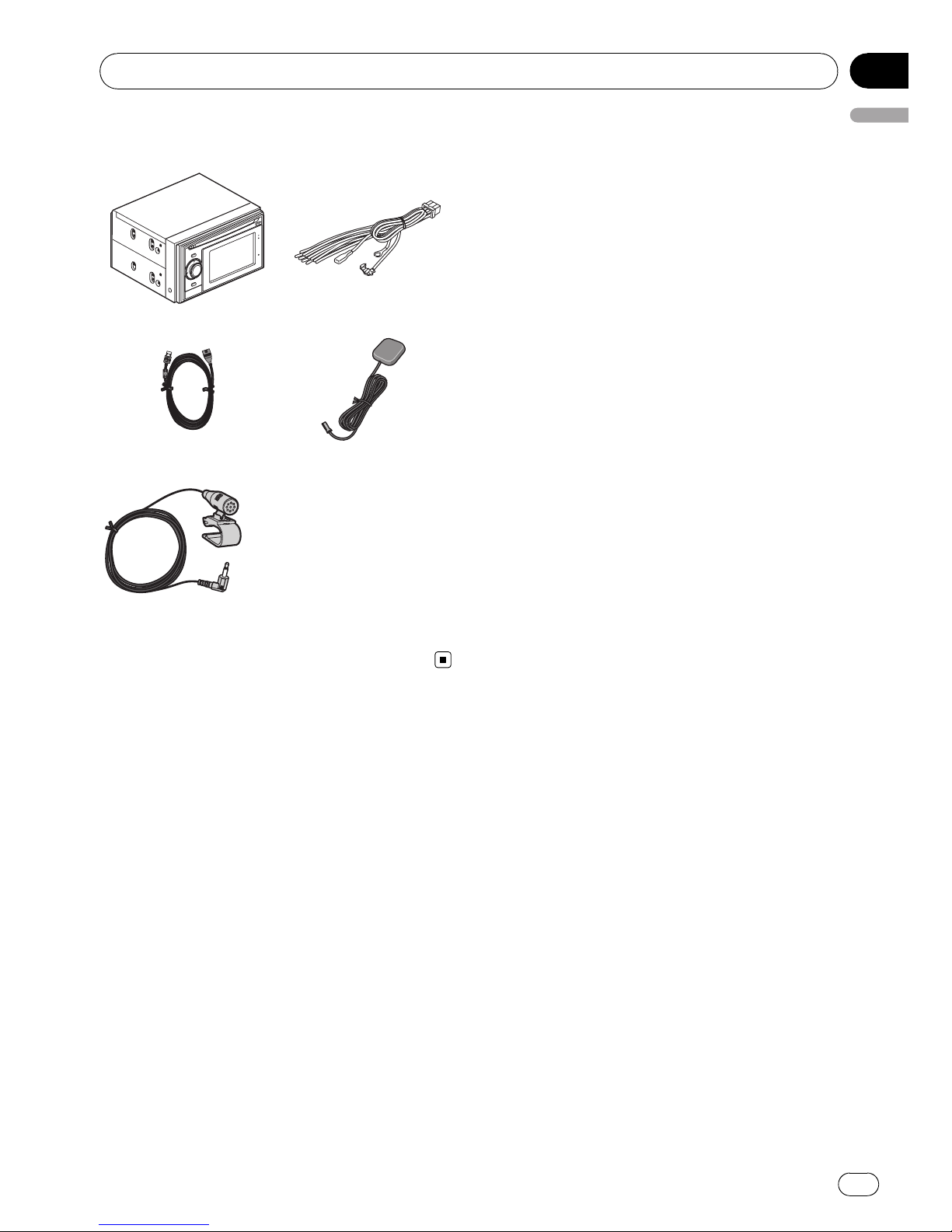

Parts supplied

The navigation unit Power cord

USB connector GPS antenna

Microphone

Connecting the System

En 7

English

Section

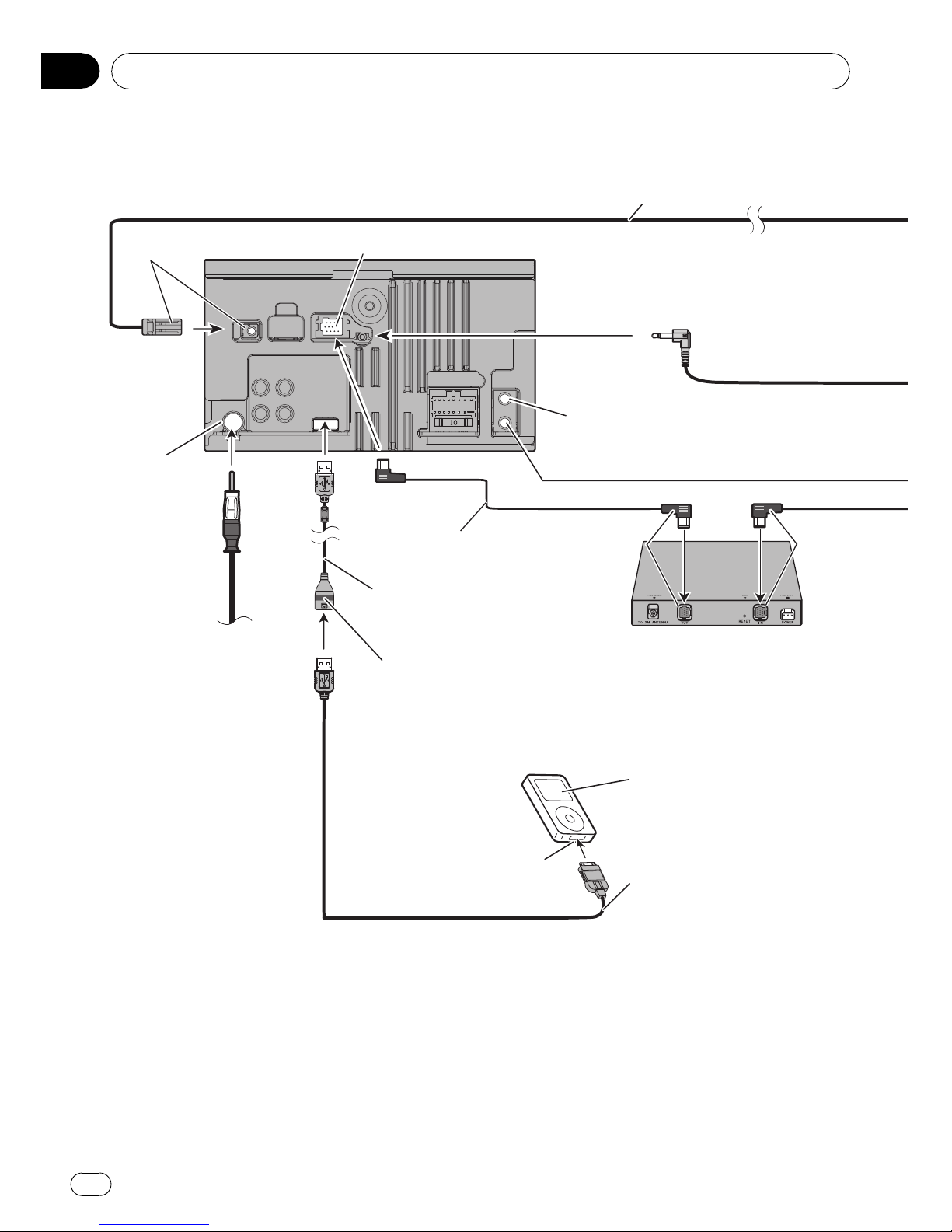

Connecting the system

5 m (16 ft. 5 in.)

The navigation unit

Green

USB connector

Connect either the interface cable for iPod

or an appropriate USB storage device.

Aerial

jack

Vehicle

aerial

Dock

connector

port USB Interface Cable for iPod

(CD-IU50) (sold separately)

For details concerning

operations and compatibility,

refer to the operation manual.

AUX jack

Use a stereo mini plug cable

to connect with auxiliary

device.

Blue

Black

XM tuner (e.g. GEX-P920XM)

(sold separately)

Blue

IP-BUS cable

(supplied with hide-away XM tuner)

iPod with

Dock Connector*1

1.5 m (4 ft. 11 in.)

Connecting the System

Section

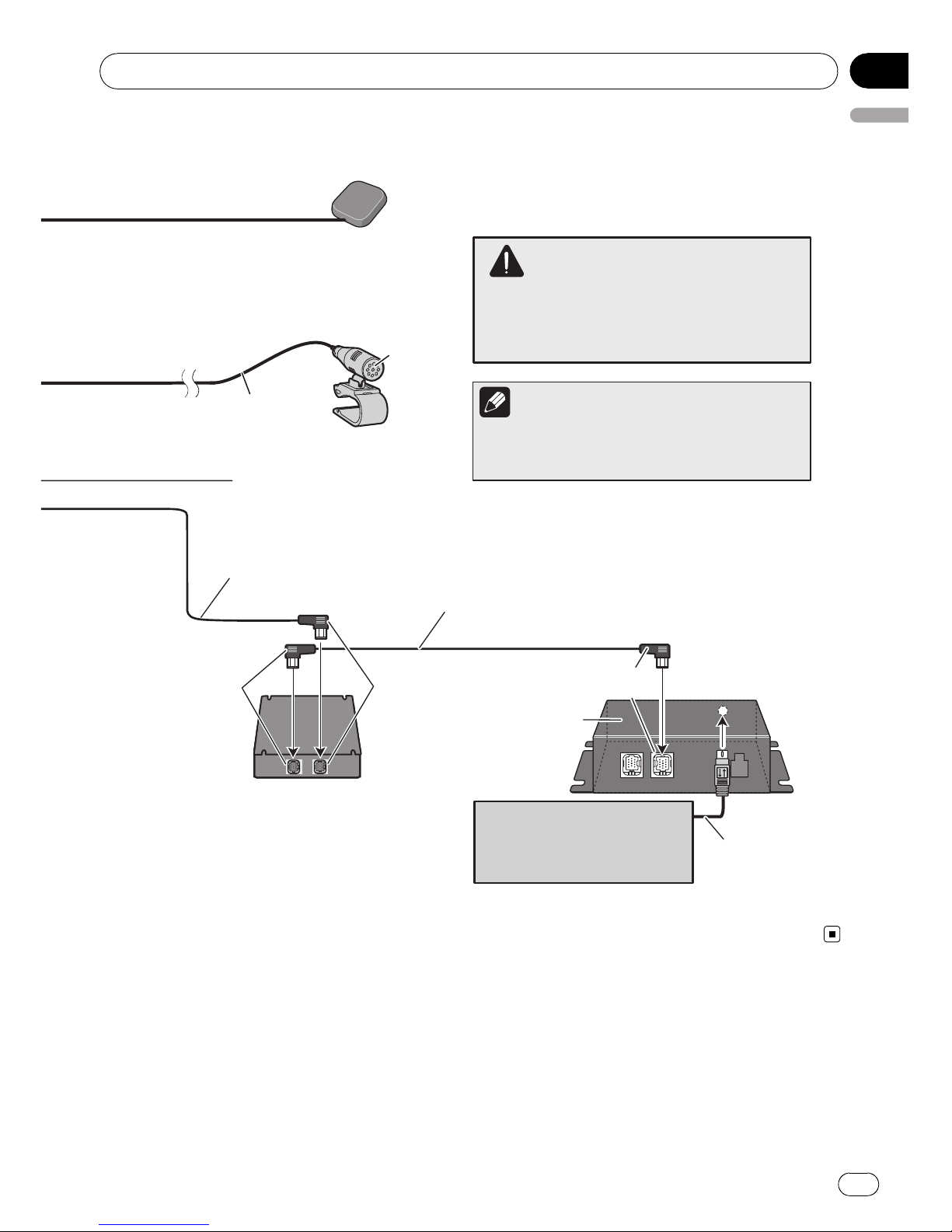

GPS aerial

WIRED REMOTE INPUT

Please see the Instruction

Manual for the Wired Remote

Control Adapters (sold separately).

4 m (13 ft. 1 in.)

Microphone

WARNING

To avoid the risk of accident and the potential

violation of applicable laws, this product should

never be used while the vehicle is being driven

except for navigation purposes.

The XM tuner, HD-Radio tuner and SIRIUS satellite

radio tuner will not receive their service when you

drive outside of their coverage area.

Note

Blue Black

HD-Radio tuner (e.g. GEX-P20HD)

(sold separately)

To IP-BUS output

Black

IP-BUS cable

(supplied with SIRIUS satellite radio tuner)

IP-BUS cable

(supplied with HD-Radio tuner)

SIRIUS BUS INTERFACE

(e.g. CD-SB10)

(sold separately)

“SiriusConnect universal tuner”

or “SIRIUS Dock and play radio

with SiriusConnect vehicle kit”

(sold separately)

SiriusConnect Cable

(sold separately)

Connecting the System

En 9

English

Section

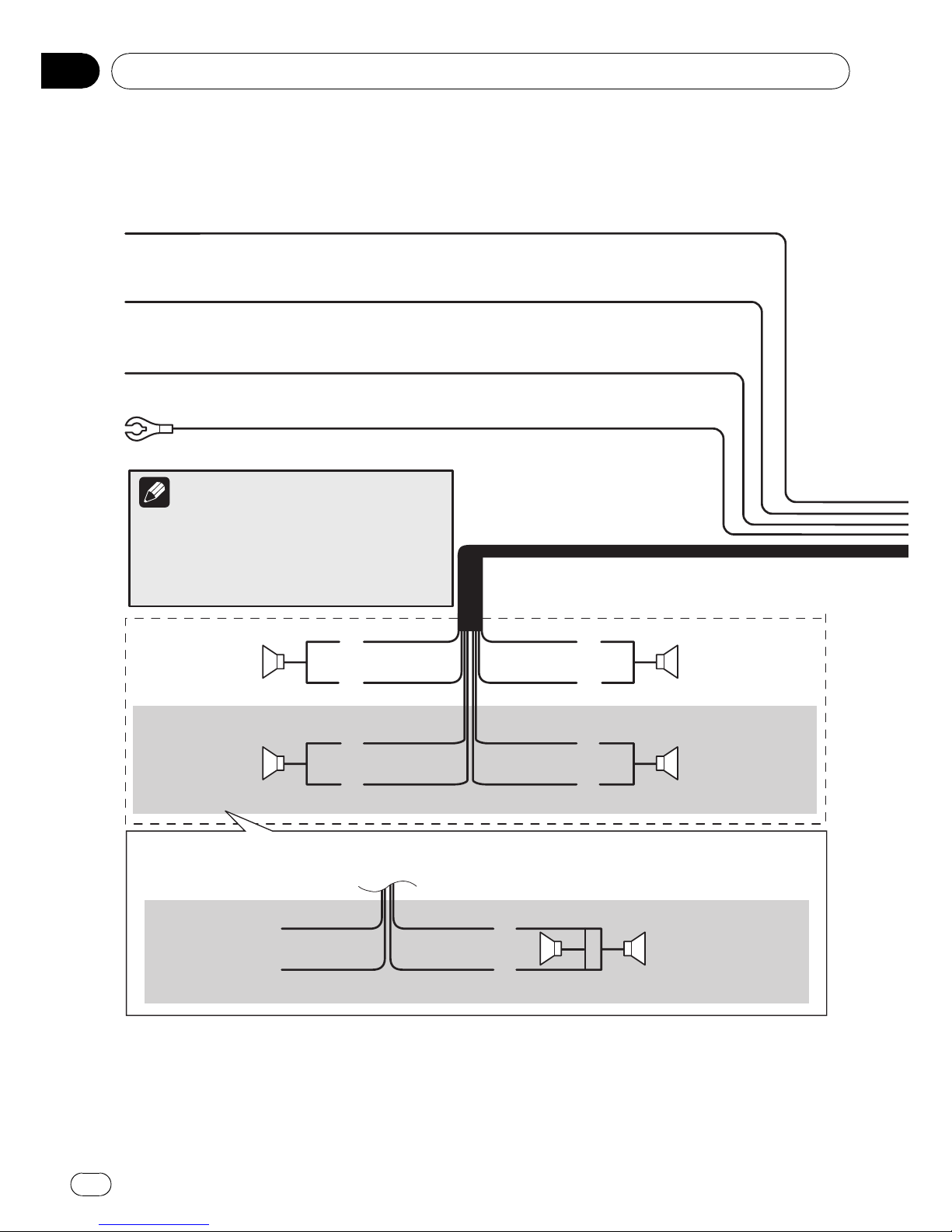

Connecting the power cord (1)

White

White/Black

Gray

Gray/Black

Green

Green/Black

Violet

Violet/Black

Front speakerFront speaker

Left Right





















Violet

Violet/Black

Green

Green/Black

Not used. Subwoofer (4

Ω

)



When using a subwoofer of 70 W (2

Ω

), be sure to connect with violet and violet/black leads of this

navigation system. Do not connect anything with green and green/black leads.

Yellow

To terminal always supplied with power

regardless of ignition switch position.

Red

To electric terminal controlled by ignition

switch (12 V DC) ON/OFF.

Orange/White

To lighting switch terminal.

Black (ground)

To vehicle (metal) body.

With a 2 speaker system, do not connect anything to

the speaker leads that are not connected to speakers.

When a subwoofer is connected to this navigation

system instead of a rear speaker, change the rear

output setting in the Initial Setting. (Refer to

“

Operation Manual

”

.) The subwoofer output of this

navigation system is monaural.

Note

Rear speaker or

Subwoofer (4

Ω

)

Rear speaker or

Subwoofer (4

Ω

)

Connecting the System

Section

Autres manuels pour AVIC U310BT - Navigation System With CD...

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Pioneer Système de navigation automobile

Pioneer

Pioneer AVIC-X850BT Manuel utilisateur

Pioneer

Pioneer AVIC-Z110BT Manuel utilisateur

Pioneer

Pioneer AVIC-HD3 Manuel utilisateur

Pioneer

Pioneer AVIC-Z1000DAB Manuel utilisateur

Pioneer

Pioneer CNDV-40MT Manuel utilisateur

Pioneer

Pioneer AVIC-Z150BH Manuel d'utilisation et d'entretien

Pioneer

Pioneer AVIC-F9310BT Manuel utilisateur

Pioneer

Pioneer AVIC-Z910DAB Manuel utilisateur

Pioneer

Pioneer Super Tuner IIID AVIC-F900BT Manuel utilisateur

Pioneer

Pioneer AVIC-EVO1 Manuel utilisateur

Pioneer

Pioneer CA-R-CG.001 Manuel utilisateur

Pioneer

Pioneer AVIC-HD1BT Manuel utilisateur

Pioneer

Pioneer AVIC-80DVD Manuel utilisateur

Pioneer

Pioneer CNDV-50MTP Manuel utilisateur

Pioneer

Pioneer AVIC-F80BT Manuel utilisateur

Pioneer

Pioneer AVIC-F60BT Manuel utilisateur

Pioneer

Pioneer AVIC-D1 Manuel utilisateur

Pioneer

Pioneer AVIC-Z810DAB-C Manuel d'utilisation et d'entretien

Pioneer

Pioneer Super Tuner IIID AVIC-F700BT Manuel utilisateur

Pioneer

Pioneer AVIC N1 - Navigation System With DVD player Manuel utilisateur

Pioneer

Pioneer CNDV-40R Manuel utilisateur

Pioneer

Pioneer AVIC-N3 Manuel utilisateur

Pioneer

Pioneer AVIC-880DVD Manuel utilisateur

Pioneer

Pioneer AVIC-9DVD Manuel utilisateur

Manuels Système de navigation automobile populaires d'autres marques

Clarion

Clarion Navigation In-Car Entertainment Manuel utilisateur

Rosen

Rosen DP-1001 Manuel utilisateur

Alpine

Alpine INE-W970HD Manuel utilisateur

Skoda

Skoda AMUNDSEN+ Manuel utilisateur

Blaupunkt

Blaupunkt TravelPilot DX-N Manuel utilisateur

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuel utilisateur

Kenwood

Kenwood DNN991HD Manuel utilisateur

AvMap

AvMap Geosat 2C Manuel utilisateur

Eonon

Eonon GE01B Manuel utilisateur

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuel utilisateur

Furrion

Furrion NV2200 Manuel utilisateur

Mio

Mio MOOV 200-Series Manuel utilisateur

Prestigio

Prestigio GeoVision 5150 Manuel utilisateur

Hummer

Hummer 2006 H3 Manuel utilisateur

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guide de configuration

Garmin

Garmin StreetPilot c510 Manuel utilisateur

Garmin

Garmin nüvi 2200 Manuel utilisateur

Garmin

Garmin 2610/2650 Manuel utilisateur
