Pioneer AVIC-80DVD Manuel utilisateur

ENG/MASTER COVER 98 INST

MANUEL D’INSTALLATION

AVIC-80DVD

INSTALLATION MANUAL

ENGLISH FRANÇAIS DEUTSCH ITALIANO NEDERLANDS

ENG/MASTER COVER 98

PIONEER CORPORATION

4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: (800) 421-1404

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium

TEL: (0) 3/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936

TEL: 65-6472-1111

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia

TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada

TEL: (905) 479-4411

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

Blvd.Manuel Avila Camacho 138 10 piso

Col.Lomas de Chapultepec, Mexico, D.F. 11000

TEL:55-9178-4270

Published by Pioneer Corporation.

Publication de Pioneer Corporation.

Tous droits de reproduction et de traduction

réservés.

Printed in Japan

Imprimé au Japon

<CRD3801-A> UC<KKYHF/03C00001>

This product conforms to CEMA cord colors.

Le code de couleur des câbles utilisé pour ce produit est

conforme à CEMA.

CRD3801A_inst_cover 4/1/03 2:15 PM Page 2

IMPORTANT INFORMATION

ABOUT YOUR NEW DVD NAVIGATION UNIT AND THIS MANUAL

• The Pioneer DVD Navigation Unit is intended solely as an aid to you in the oper-

ation of your car. It is not a substitute for your attentiveness, judgment and care

while driving.

• Do not use your navigation system to route you to emergency services such as

hospitals or police stations. Not all emergency service facilities are contained in

the map data.

•Do not operate the DVD Navigation Unit if doing so will divert your attention

from the safe operation of your car. Always observe safe driving rules and follow

all existing traffic regulations.

• Certain government laws may restrict the placement and use of navigation sys-

tems in your car. Please comply with all applicable laws and regulations in the

installation and operation of your navigation system.

• This manual explains how to install this DVD Navigation Unit in your car.

Operation of this DVD Navigation Unit is explained in the separate “Operation

Manual” or “Hardware Manual” that also came with this unit.

ENG/MASTER 96 2

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 2

IMPORTANT SAFEGUARDS .................... 3

PLEASE READ ALL OF THESE

INSTRUCTIONS REGARDING

YOUR DVD NAVIGATION

UNIT AND RETAIN THEM

FOR FUTURE REFERENCE .................... 3

Connecting the System ............................ 5

CAUTION ........................................................ 5

-Before installing the unit

-To prevent damage

-Parts supplied

Connecting the system ...................................... 7

-Connecting to the display with 26-pin

input (e. g. AVH-P7500DVD,

AVH-P6500DVD, etc.)

-Connecting to the display with 20-pin

RGB input (e. g. AVH-P7490,

AVH-P7480, etc.)

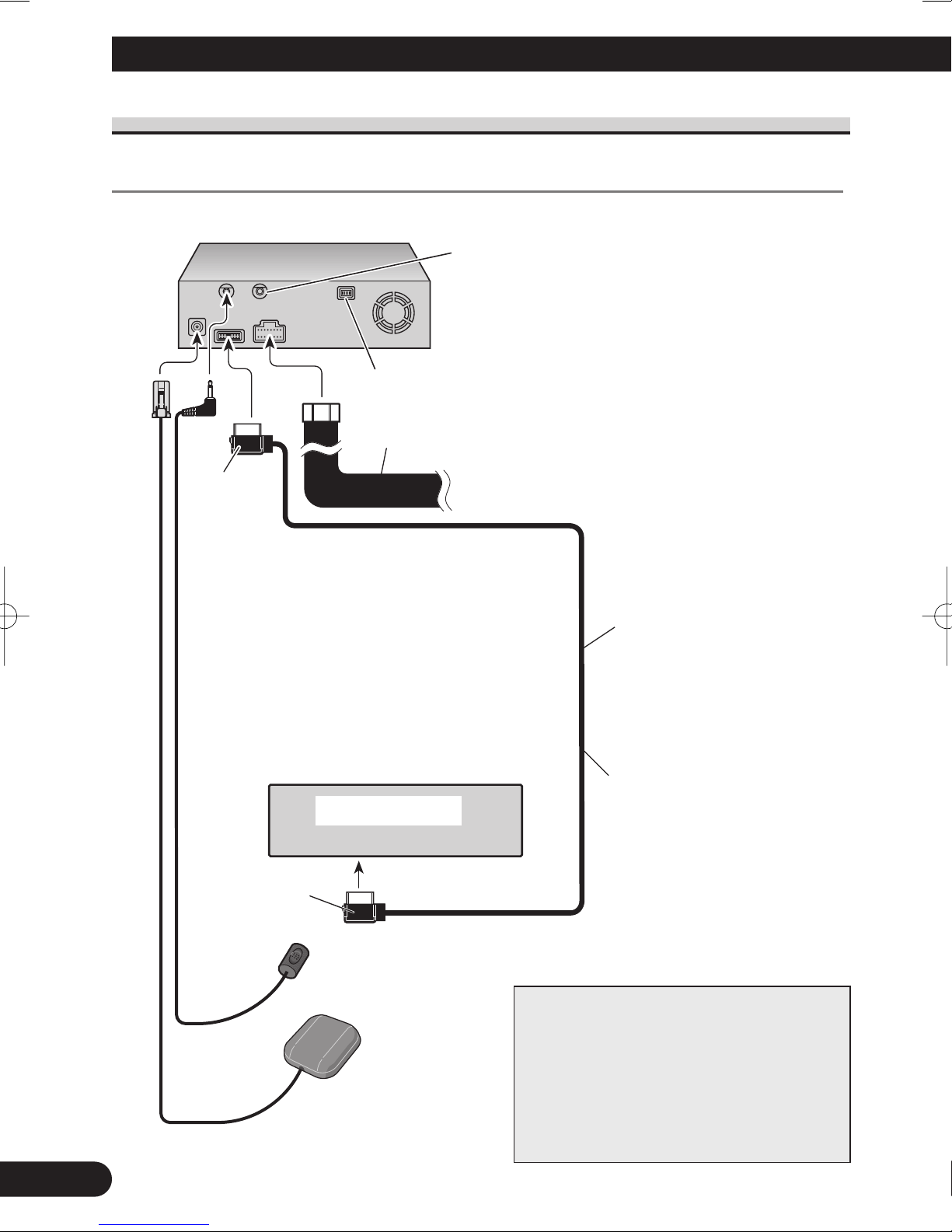

Connecting the System

(In case of a display sold in the market) .... 9

Connecting the power cord (1) ........................ 11

Connecting the power cord (2) ........................ 13

Installation ................................................ 14

CAUTION ...................................................... 14

To guard against electromagnetic

interference ................................................15

Before installing and fixing ............................ 15

Before using the adhesive tape ........................ 15

Installing the main unit .................................... 16

-Installation notes

-Parts supplied

-CAUTION

-If you install with the left and right sides

of the DVD Navigation Unit parallel to

your car’s forward / backward direction

-When installing the main unit inside the

trunk, on the floor under a seat, etc., using

tapping screws

-CAUTION

-DIN Rear-mount: Installation using the screw

holes on the side of the unit

Installing the GPS antenna .............................. 22

-CAUTION

-Installation notes

-Parts supplied

-When installing the antenna inside the

car (on the dashboard or rear shelf)

-When installing the antenna outside the

car (on the body)

Installing the Steering remote control ............ 25

-Parts supplied

-Loading the battery

-Remote controller handling notes

-Installing the holders and the steering remote

control

Installing the microphone ................................ 27

-Installation notes

-Parts supplied

-When installing the microphone on the

sun visor

-When installing the microphone on the

steering column

-CAUTION

After installing the unit .......................... 30

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

ENG/MASTER 96

Contents

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 3

ENG/MASTER 96

IMPORTANT SAFEGUARDS

PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR DVD

NAVIGATION UNIT AND RETAIN THEM FOR FUTURE REFERENCE

1. Read this manual fully and carefully before installing your DVD Navigation Unit.

2. Keep this manual handy for future reference.

3. Pay close attention to all warnings in this manual and follow the instructions care-

fully.

4. This unit is intended solely as an aid to you in the operation of your car. It is not a

substitute for your attentiveness, judgment and care while driving. Do not operate

your DVD Navigation Unit if doing so will divert your attention from the safe

operation of your car. Always observe safe driving rules and follow all existing

traffic regulations.

5. Certain government laws may restrict the placement and use of this system in

your car. Please comply with all applicable laws and regulations in the installa-

tion and operation of your navigation system.

6. This DVD Navigation Unit may in certain circumstances display erroneous infor-

mation regarding the position of your car, the distance of objects shown on the

screen, and compass directions. In addition, the system has certain limitations,

including the inability to identify one-way streets, temporary traffic restrictions

and potentially unsafe driving areas. Please exercise your own judgment in light

of actual driving conditions.

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 4

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

ENG/MASTER 96

7. As with any accessory in your car’s interior, the DVD Navigation Unit should not

divert your attention from the safe operation of your car. If you experience diffi-

culty in operating the system or reading the display, please make adjustments

while safely parked.

8. Do not attempt to install or service your DVD Navigation Unit by yourself.

Installation or servicing of the DVD Navigation Unit by persons without training

and experience in electronic equipment and automotive accessories may be dan-

gerous and could expose you to the risk of electric shock or other hazards.

9. Please remember to wear your seat belt at all times while operating your car. If

you are ever in an accident, your injuries can be considerably more severe if your

seat belt is not properly buckled.

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 5

Connecting the System

CAUTION

• Pioneer does not recommend that you install or service your DVD navigation

unit yourself. Installing or servicing of the product may expose you to risk of

electric shock or other hazards. Refer all installation and servicing of your

navigation unit to authorized Pioneer service personnel.

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare

wiring to remain exposed.

• Do not drill a hole into the engine compartment to connect the yellow lead of

the unit to the car battery. Engine vibration may eventually cause the insula-

tion to fail at the point where the wire passes from the passenger compart-

ment into the engine compartment. Take extra care in securing the wire at

this point.

• It is extremely dangerous to allow the GPS antenna lead or microphone lead

to become wound around the steering column or shift lever. Be sure to install

the unit in such a way that it will not obstruct driving.

• Make sure that wires will not interfere with moving parts of the car, such as

the shift lever, parking brake or seat sliding mechanism.

• Do not route wires where they will be exposed to high temperatures. If the

insulation heats up, wires may become damaged, resulting in a short circuit

or malfunction.

• Do not cut the GPS antenna lead to shorten it or use an extension to make it

longer. Altering the antenna cable could result in a short circuit or malfunc-

tion.

• Do not shorten any leads. If you do, the protection circuit may fail to work

properly.

• Never feed power to other electronic products by cutting the insulation of the

power supply lead of the DVD navigation unit and tapping into the lead. The

current capacity of the lead will be exceeded, causing overheating.

ENG/MASTER 96 6

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 6

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

ENG/MASTER 96

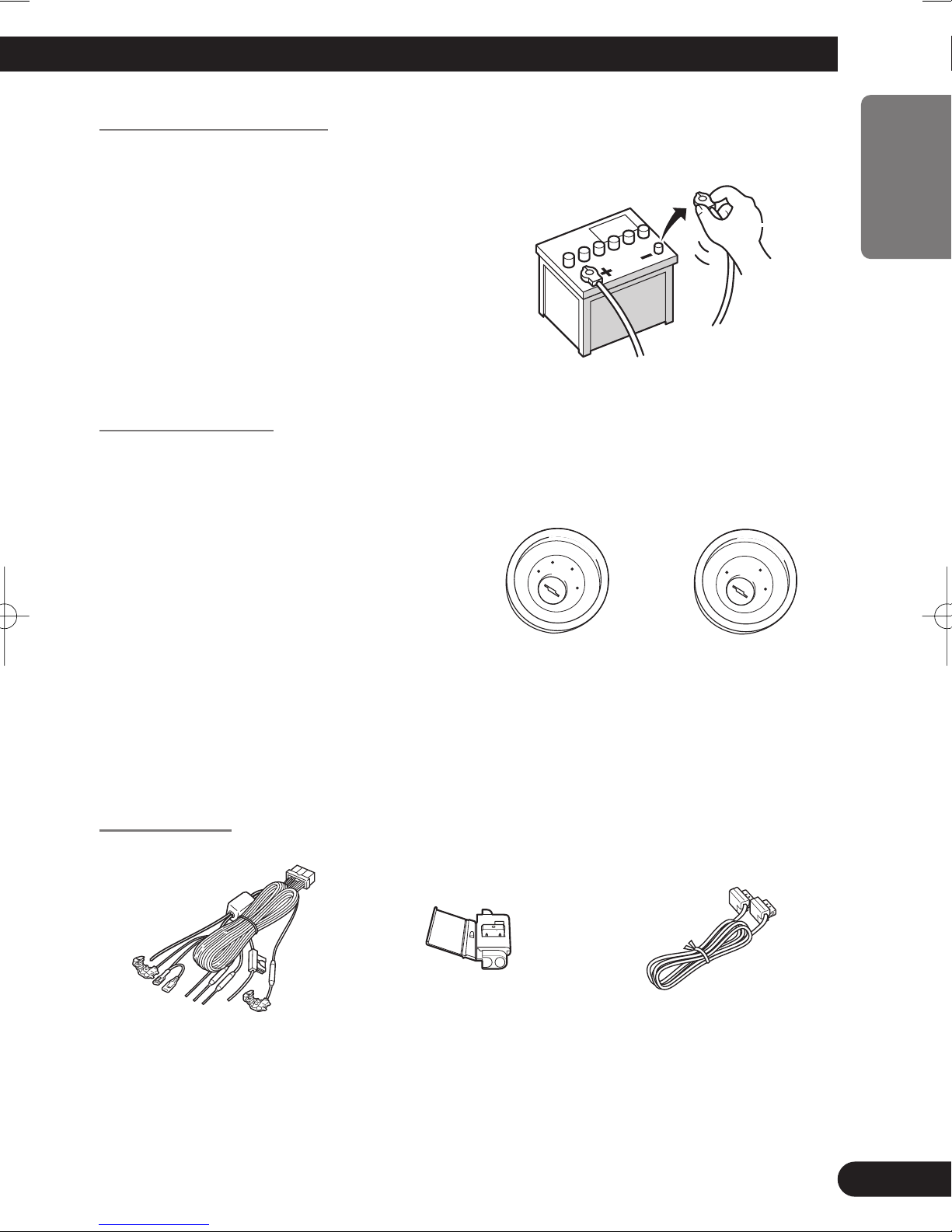

Before installing the unit

• This unit is for cars with a 12-volt battery and negative grounding. Before installing it in

a recreational car, truck, or bus, check the battery voltage.

To prevent damage

Parts supplied

26-pin cableConnectorPower cord

No ACC positionACC position

• When disconnecting a connector, pull

the connector itself. Do not pull the

lead, as you may pull it out of the con-

nector.

• If this unit is installed in a car that does

not have an ACC (accessory) position

on the ignition switch, the red lead of

the unit should be connected to a termi-

nal coupled with ignition switch

ON/OFF operations. If this is not done,

the car battery may be drained when

you are away from the car for several

hours.

• To avoid short-circuiting, cover the

disconnected lead with insulating tape.

• To avoid shorts in the electrical sys-

tem, be sure to disconnect the (-) bat-

tery cable before beginning installa-

tion.

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 7

Connecting the System

Connecting the system

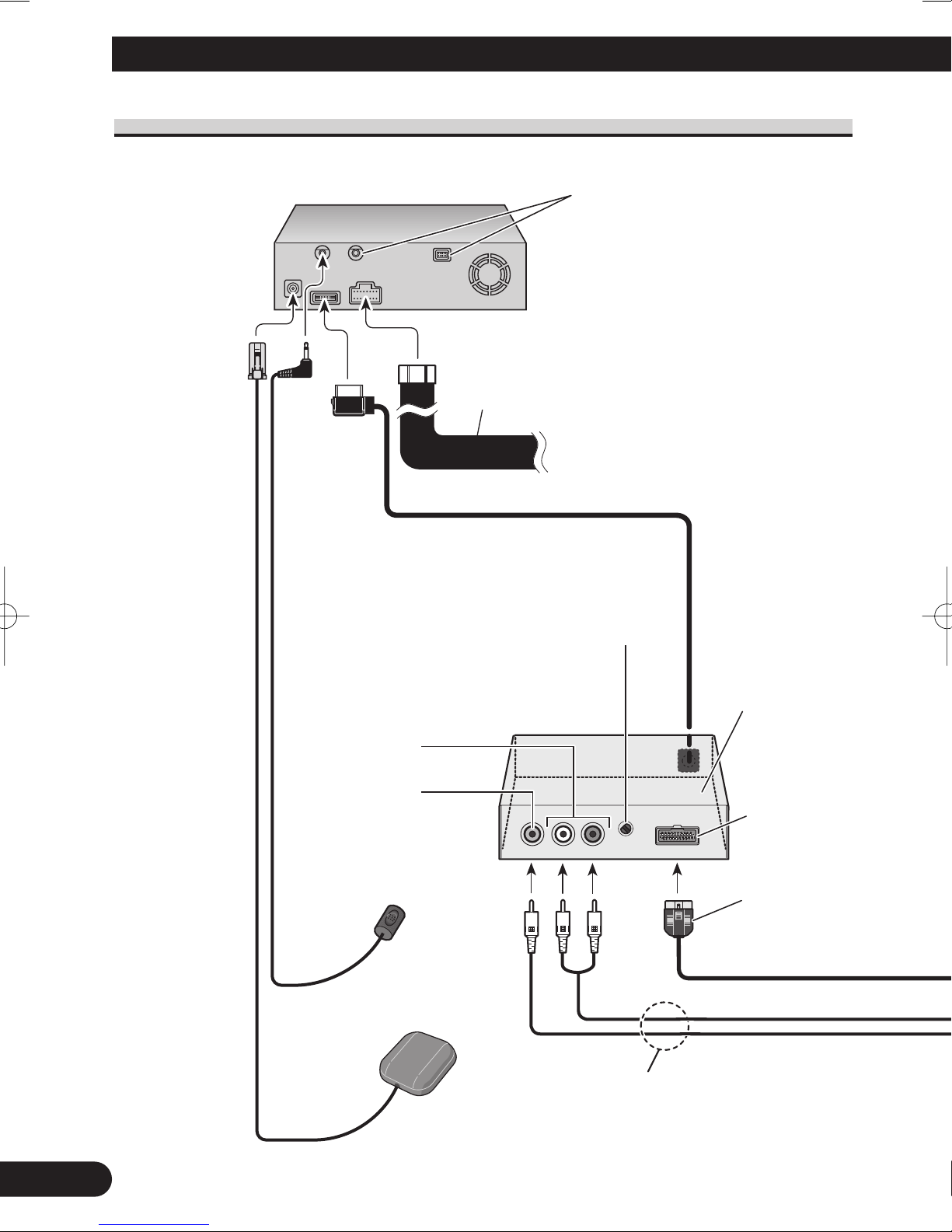

Connecting to the display with 26-pin input (e. g. AVH-P7500DVD, AVH-P6500DVD, etc.)

ENG/MASTER 96 8

Power cord

Black

This product

Microphone

Yellow

GPS antenna

☞ See page 22.

☞ See page 27.

(Ex. AVH-P7500DVD, AVH-P6500DVD

AVD-W6210, AVH-P6400CD, AVH-P6400)

Not used.

26-pin cable

(supplied)

6m (19ft 8in.)

☞ See pages 11-13.

When resetting AV Head Unit

When pressing the reset button of AV Head

Unit while Navigation System and AV Head

Unit (AVH-P7500DVD, AVH-P6500DVD,

AVH-P6400CD, AVH-P6400) are combined,

make sure that ACC is tuned OFF. If the reset

button is pressed while ACC is ON, it may

not work properly.

There may be no voice guidance depending on a com-

bined display unit. In that case, an external speaker (com-

mercially available) must be connected to the SP-OUT

jack (3.5 ø MINI JACK, 1 W max [8 Ω]) on this unit’s

back.

Display Unit

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 8

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

ENG/MASTER 96

Not used.

Not used. CD-RGB26P

(sold separately)

Green

This product

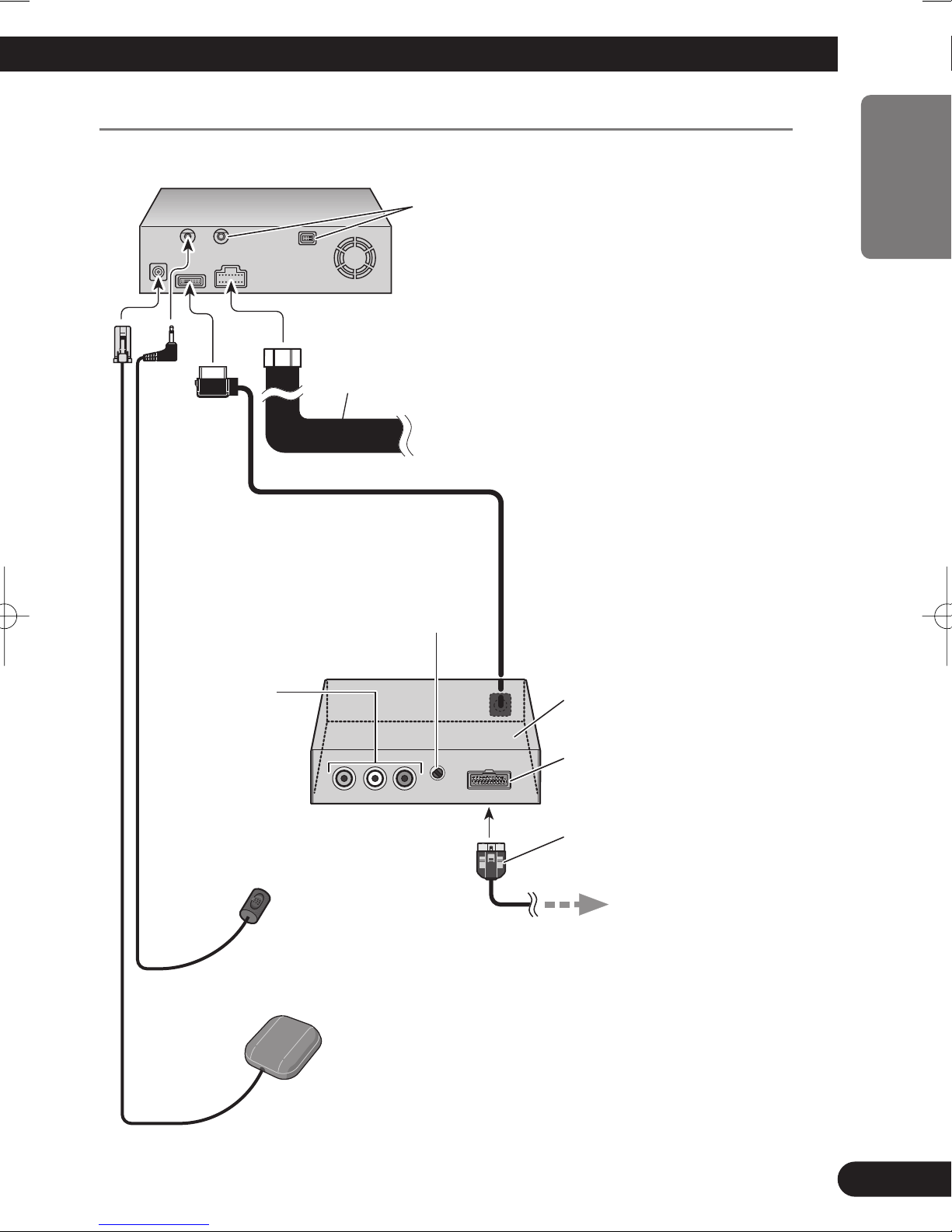

Connecting to the display with 20-pin input (e. g. AVH-P7490, AVH-P7480, etc.)

Level Control

This is used for adjusting output from Audio

Output. If you turn it to the right, the volume

increases, while turning it to the left reduces the

volume. (Normally, turn it fully to the right, and

instead use the external equipment outputting

sound, such as a display, for adjusting the volume.)

Green

To RGB input of the display.

Microphone

☞ See page 27.

GPS aerial

☞ See page 22.

☞ See page 11-13.

Power cord

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 9

Connecting the System

ENG/MASTER 96 10

Connecting the System (In case of a display sold in the market)

Not used.

Video output

Level Control

This is used for adjusting output from Audio Output. If

you turn it to the right, the volume increases, while turning

it to the left reduces the volume. (Normally, turn it fully to

the right, and instead use the external equipment out-

putting sound, such as a display, for adjusting the vol-

ume.)

Audio output

RCA cable (sold separately)

CD-RGB26P

(Sold Separately)

Microphone

☞ See page 27.

GPS aerial

☞ See page 22.

Green

Power cord

☞ See pages 11-13.

CRD3801A_inst_001_030_Eng 4/1/03 2:17 PM Page 10

Autres manuels pour AVIC-80DVD

Table des matières

Langues :

Autres manuels Pioneer Système de navigation automobile

Pioneer

Pioneer AVIC U310BT - Navigation System With CD... Manuel utilisateur

Pioneer

Pioneer AVIC-F20BT Manuel d'utilisation

Pioneer

Pioneer AVIC-F910BT Manuel d'utilisation

Pioneer

Pioneer AVIC-Z140BH Manuel utilisateur

Pioneer

Pioneer AVIC-Z1000DAB Manuel utilisateur

Pioneer

Pioneer AVIC-F900BT/XS/RE Manuel utilisateur

Pioneer

Pioneer AVIC-Z150BH Manuel utilisateur

Pioneer

Pioneer AVIC-HD3II Manuel utilisateur

Pioneer

Pioneer AVIC-HD3 Manuel utilisateur

Pioneer

Pioneer AVIC-880DVD Manuel utilisateur

Pioneer

Pioneer F500BT - AVIC - Navigation System Manuel utilisateur

Pioneer

Pioneer AVIC-Z610BT Manuel utilisateur

Pioneer

Pioneer AVIC-F30BT Manuel d'utilisation

Pioneer

Pioneer CNDV-21 Manuel utilisateur

Pioneer

Pioneer AVIC-Z920DAB Manuel utilisateur

Pioneer

Pioneer AVIC-N3 Manuel utilisateur

Pioneer

Pioneer AVIC N2 - Navigation System With DVD player Manuel utilisateur

Pioneer

Pioneer AVIC-X930BT Manuel d'utilisation et d'entretien

Pioneer

Pioneer AVICF500BT - CD-VM1 Optional Microphone Manuel utilisateur

Pioneer

Pioneer AVIC-X1BT Manuel utilisateur

Pioneer

Pioneer AVIC-HD1BT Manuel

Pioneer

Pioneer AVIC-EVO1 Manuel utilisateur

Pioneer

Pioneer AVIC-X8610BS Instructions de montage

Pioneer

Pioneer AVIC-Z910DAB Manuel utilisateur

Manuels Système de navigation automobile populaires d'autres marques

Clarion

Clarion Navigation In-Car Entertainment Manuel utilisateur

Rosen

Rosen DP-1001 Manuel utilisateur

Alpine

Alpine INE-W970HD Manuel utilisateur

Skoda

Skoda AMUNDSEN+ Manuel utilisateur

Blaupunkt

Blaupunkt TravelPilot DX-N Manuel utilisateur

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuel utilisateur

Kenwood

Kenwood DNN991HD Manuel utilisateur

AvMap

AvMap Geosat 2C Manuel utilisateur

Eonon

Eonon GE01B Manuel utilisateur

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuel utilisateur

Furrion

Furrion NV2200 Manuel utilisateur

Mio

Mio MOOV 200-Series Manuel utilisateur

Prestigio

Prestigio GeoVision 5150 Manuel utilisateur

Hummer

Hummer 2006 H3 Manuel utilisateur

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guide de configuration

Garmin

Garmin StreetPilot c510 Manuel utilisateur

Garmin

Garmin nüvi 2200 Manuel utilisateur

Garmin

Garmin 2610/2650 Manuel utilisateur
