Pinell Go radio Manuel utilisateur
Thank you
of Norway
Menu / Back
Previous
Power
on / off
Toggle DAB / FM
( press & hold )
Next
OK
As a user of our product, you are the most
important person at Pinell.
We strive to make high quality audio products for
the most demanding users. Imagined, designed
and developed at our headquarter in Norway.
It’s for people like you we work hard every day to
keep improving the quality and user friendliness
of our products.
We sincerely hope you will get much joy and
entertainment from your new radio.
Thank you for choosing a Pinell.
The Pinell Team
Oslo, Norway
4
The Pinell Go radio works in three modes:
DAB radio, FM radio and line input ( AUX ).
When you plug an audio cable into the audio
input, the Go automatically switches to AUX
mode. Unplug the cable to go back to radio.
When no audio cable is connected, hold the
PINELL button to switch between DAB and FM.
Each mode has a dedicated menu called a Mode
Menu. Press MENU to access this.
While navigating any menu, press MENU to
move one step back or exit.
General settings that apply to all modes can be
adjusted in the System Menu. You can reach the
System Menu from any Mode Menu.
General operation
Note: To reduce your power consumption, the Pinell Go will
automatically power off after 4 hours of uninterupted playback.
Press any button or the volume control to extend this period.
5
4 steps to get you started
Mount the appropriate plug for your
country to the power adapter.
Plug the power cord
into the Pinell Go.
Press PINELL
Follow the on-screen instructions to set up the
radio. See next page for details.
1
2
3
4
10 V DC (1.6A)
In the box you will find a power adapter and
3 international power plugs. Mount the plug
appropriate for your country and connect the
power cord to the Pinell Go.

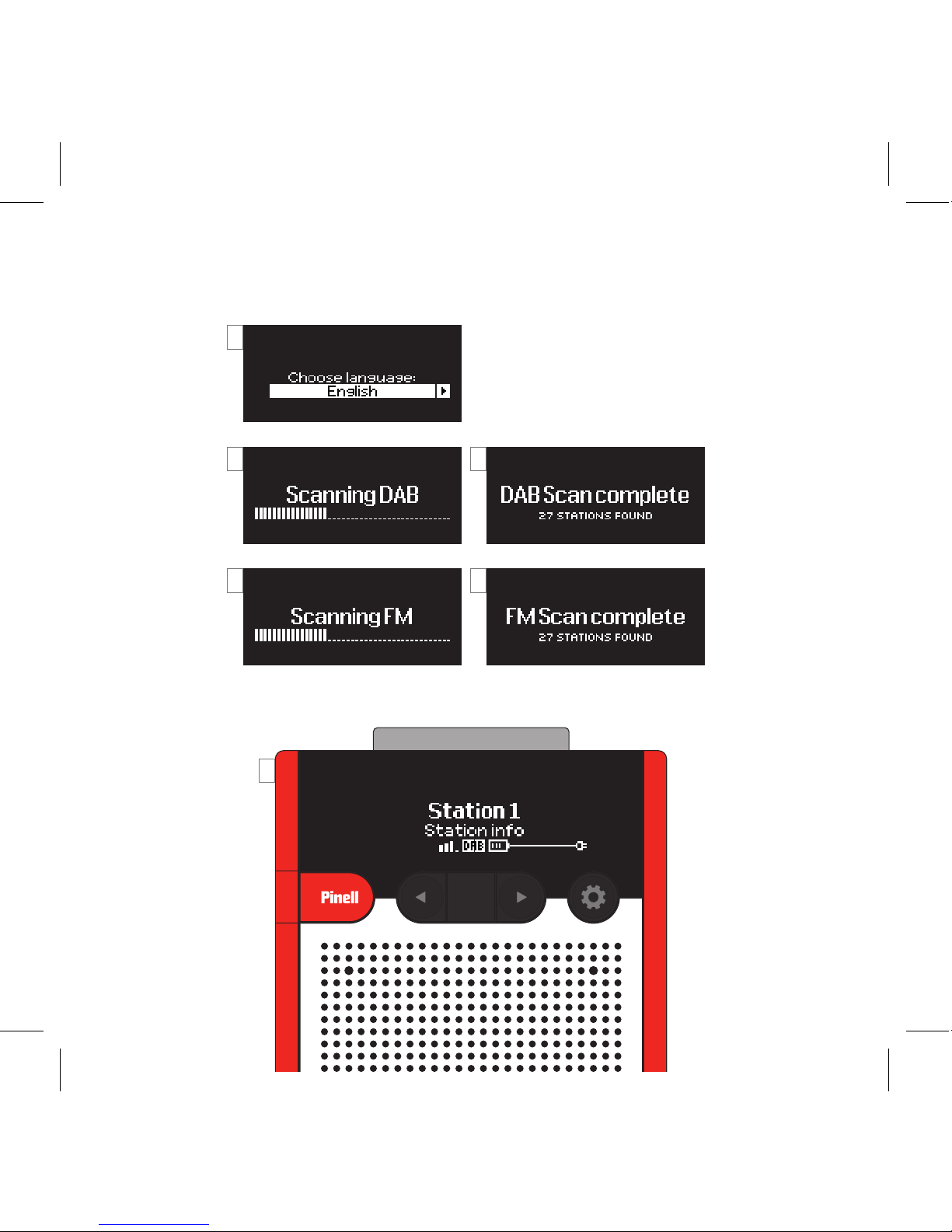

When you start the radio for the first time, you
will be asked to choose your preferred language.
Use the left and right buttons to find your
language and press OK (center) to continue.
The radio will now automatically scan for all
available DAB and FM stations. We recommend
to extend the aerial before this scan, to allow
optimal reception for the Pinell Go to find all
available stations in your area.
That’s it! Happy listening.
6First time startup
1
2 3
4 5
6
8A few words about the battery
The Pinell Go is equipped with a powerful
battery which should give you at least 24 hours
of real playback time. In some cases more.
Feel free to leave the radio plugged into
your power outlet at all times. We’ve built
in intelligent battery management that
automatically stops charging when the battery
is full. The radio will thereafter run directly from
wall power.
If your battery is completely exhausted, it’ll
take about 2-3 hours to reach a 75% charge. To
protect your battery and to optimize its total
lifespan, it’ll take longer to fill the remaining
quarter of your battery. A total of 12 hours is
usually needed to charge the battery from empty
to completely full.
If the internal battery has been removed, a
battery icon with an “X” will be displayed.
When the battery is emtpy, the icon
will blink for a few minutes before
the radio shuts off.
The power cord icon is always
displayed when the radio is
connected to a power outlet.
During playback, the
battery indicator shows
remaining power.
Each of the four bars
represent approx. 25%
of battery life.
0 % 50 % 75 % 100 %
25 %
A filled battery symbol
is displayed when a
complete charge has
been reached. This
means charging has
stopped.
10 External audio
Connect your music player to the Pinell Go to
listen to your favourite music through the radio.
When you connect a standard “mini-jack” audio
cable the radio automatically switches to AUX
for immediate playback from your device.
Remove the cable to listen to
DAB or FM radio again.
AUX
AUX mode is auto-
matically activated
when an audio cable
is connected.
Sleep timer
with countdown
Battery level indicator
AUX Mode indicator
Power cord is
connected
