VISION

Wireless Alarm System

Installation Guide

System Version: 1.x

VISION Installation Guide

Table of Contents

1. Introduction .......................................................................................... 5

1.1. Main features.............................................................................................. 5

1.2. Alarm systems comparison table.................................................................... 6

1.3. Technical specifications................................................................................. 6

1.4. Ordering information.................................................................................... 7

1.4.1. Kits......................................................................................................... 7

1.4.2. Alarm systems.......................................................................................... 7

1.4.3. Peripherals............................................................................................... 7

2. Quick guide ........................................................................................... 9

3. Installation.......................................................................................... 11

3.1. Location guidelines .....................................................................................11

3.2. Instructions ...............................................................................................11

3.3. Tamper switch ...........................................................................................13

3.4. Hardwired keypad.......................................................................................13

3.4.1. Keypad ID number and version ..................................................................13

3.5. Peripherals ................................................................................................14

3.5.1. PSTN module........................................................................................... 14

3.5.2. Cellular module........................................................................................14

3.5.3. Wi-fi module ...........................................................................................14

Table of Figures

Figure 1. The control panel (VCD model (left), VCA model (right)) ....................9

Figure 2. The lid screws............................................................................. 11

Figure 3. Mounting holes ........................................................................... 12

Figure 4. Line In/Out terminals................................................................... 14

Figure 5. Cellular module........................................................................... 14

Figure 6. Wi-fi module............................................................................... 14

Introduction

Use of high power lithium-ion battery cells requires appropriate

protection in accordance with how they are used. Inappropriate

use of the batteries may possibly result in heat generation,

ignition or explosion and may cause death, personal injury,

property damage or other serious loss.

The VISION communicates using wireless (RF) transmissions. Any

wireless transmission can be subject to RF interference and,

although unlikely, this interference may cause the KAS to not

operate as intended.

RF transmissions will be attenuated by tinted glass, in wall

isolation with metal foils, metal objects, etc.

Safety Instructions. Read Carefully

The VISION security system has been registered in accordance with EN60950 and

its rules.

Among other things, EN60950 requires us to advise you the following information:

Hazards of fire and electric shock exist in this alarm system. To reduce the risk

of fire or electric shock, do not expose this alarm system to rain or moisture.

Pay attention: Telephone cords could be a good conductor for lightings energy.

Warning: this equipment has no mains On/Off switch. The plug of the direct

plug-in power supply is intended to serve as the disconnecting device.

Dangerous high voltages are present inside the control panel’s enclosure. Refer

servicing to qualified personnel only.

This alarm system should be used with 230VAC/110VAC, 50/60Hz, protected

by anti-electric shock breaker. Use only the power supply provided with this

equipment. Use of unauthorized power supplies may cause damage.

Do not spill liquid of any kind onto the unit. If liquid is accidentally spilled onto

the unit, immediately consult a qualified service.

Disposal of used batteries must be made in accordance with local waste

recovery and recycling regulations.

VISION Installation Guide

Default Codes

Master User: 5555

Master Installer: 1234

Signs in this guide

Warning

Note

Introduction

1. INTRODUCTION

Dear customer,

This guide will introduce you with PIMA Electronic Systems’ wireless alarm - the VISION.

Designed to be used with our wireless detectors and peripherals, the VISION incorporates

advanced technology with high reliability.

The VISION offers advanced communication technology, including built-in Ethernet connection.

PSTN, cellular, and wi-fi communications are also optional.

The VISION is initially programmed using a hardwired technician keypad, and by the PIMA Total

Manager

software remotely, afterwards.

The PIMAlink 3.0 cloud service and smartphone application allow the end-user to receive

notifications and control the alarm system from anywhere.

This Installation guide refers to the VISION alarm system, version 1.x. All systems are supplied

with three guides:

This guide that includes the control panel’s installation, and wiring instructions.

The User guide that includes the initial programming, and the system maintenance

instructions.

The FORCE and VISION system programming guide

1.1. Main features

Zones: up to 64

Users: up to 64, with a unique code for each + optional key fob.

Contacts: up to 16, for receiving notifications (by SMS/mobile call).

Partitions: up to 8, with a separate keypad for each.

Multi-channel communications: Ethernet, and optional cellular (3G/4G)

, wi-fi1and PSTN1.

Programming options:

Locally, using an LCD keypad.

Remotely, using the PIMA Total Manager software, via PC or mobile.

Remote firmware update via the PIMA Total Manager software

Remote operations and receiving notifications via the PIMAlink 3.0

cloud and smartphone

application.

Up to two CMSs (Central Monitoring Station) with password for each

Remote upload/download via the PIMA Total Manager software, via all media.

Requires a module. Ethernet and wi-fi modules cannot be installed together.

VISION Installation Guide

1.2. Alarm systems comparison table

Feature

VISION

(wireless)

FORCE

(hardwired)

Wireless zones (max.)

Hardwired zones



144

Wireless keypads

Hardwired keypads

Wireless expanders

Communications: network, PSTN,

wi-fi, and cellular.



Radio





Users

144

Contacts

Partitions

Open collector outputs



Relay output



Siren outputs



1.3. Technical specifications

Frequencies (MHz): 433.92, 868.95

Power input:

VCD: 12VDC

VCA: 120/230VAC

Battery: 2X 18650, 3.7A, Lithium-ion

Power supply: 1A, +12VDC

Power consumption (max):

Control panel: 100mA

PSTN module: 10mA

Cellular Module: 85mA

Wi-fi module: 120mA

Operating temperature: -10 to +50 °C

Humidity (max.): up to 90% R.H., non-condensing

Future version. For system configuration only.

Version 1.4 and higher

Introduction

1.4. Ordering information

1.4.1. Kits

All kits includes the VISION alarms system, DPS187 PIR detector, DCM187 door contact, and

RMC187 key fob.

Product

P/N

VCA187 Kit (868.95MHz)

8360101

VCD143 Kit (433.92MHz)

8360102

VCA143 Kit (433.92MHz)

8360103

1.4.2. Alarm systems

Product

Description

P/N

VCA143 (433.92 MHz)

AC model

8360003

VCA187 (868.95 MHz)

8360004

VCD143 (433.92 MHz)

DC model

8360008

VCD187 (868.95 MHz)

8360007

1.4.3. Peripherals

Product

Description

P/N

Cellular

CLM302

Cellular add-on (2G/3G)

8300045

GSM512

Cellular add-on (3G)

8300043

CLM412

Cellular add-on (4G)

8300049

Detectors4

DPS

PIR motion detector

143: 8831010

187: 8831024

DPP

PIR motion detector with

pet immunity

143: 8831012

187: 8831025

DPC

PIR motion curtain detector

143: 8831014

187: 8831026

DGS

Gas detector

143: 8832004

187: 8832009

DSC

Smoke/CO detector

143: 8832006

DFL

Flood detector

143: 8831006

187: 8831029

Frequencies: 143: 433.92Mhz, 187:868.95Mhz

VISION Installation Guide

Product

Description

P/N

Others

DCM

Door contact

143: 8831002

187: 8831028

RMC

Key fob (black)

143: 8833008

187: 8833013

RPB

Panic button (white)

143: 8833006

187: 8833011

KAS

Arming Station

143: 8833002

187: 8833014

SRO

Siren

143: 8831016

187: 8831023

WRP

Repeater

143: 8831020

187: 8831030

Quick guide

2. QUICK GUIDE

Figure 1. The control panel (VCD model (left), VCA model (right))

Following is a table of the control panel’s optional modules and sockets.

No.

Module/socket

Description

Wireless transceiver (onboard)

Supplied in two frequencies: 433.92MHz, and

868.95MHz.

Wi-fi module

2.4GHz, optional

LEDs

BUS indicators

Ethernet socket

Serves the Ethernet card or the wi-fi module.

Reset button

Resets the control panel

Power supply plug

External power supply connector for VCD

model

Hardwired keypad sockets

Including for technician keypad

PSTN module

The module is supplied with terminal block, or

with RJ11 sockets.

Cellular module

2G/3G/4G

Cellular antenna

SMA

SIM card tray

Optional double SIM

Li-Ion batteries

Backup

Armed/Disarmed LEDs

Red: system armed; Green: system disarmed

Wireless antennas

Wi-fi module socket

6 7 8

1213 23

15 21

VISION Installation Guide

No.

Module/socket

Description

Mounting hole

PSTN module socket

AC plug

Power cord for VCA model

Internal power supply

VCA model

Mounting hole + tamper knockout

Tamper switch

Cellular module socket

Mounting hole

Autres manuels pour VISION

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pima Système de sécurité

Pima

Pima Hunter-Pro 32 Manuel utilisateur

Pima

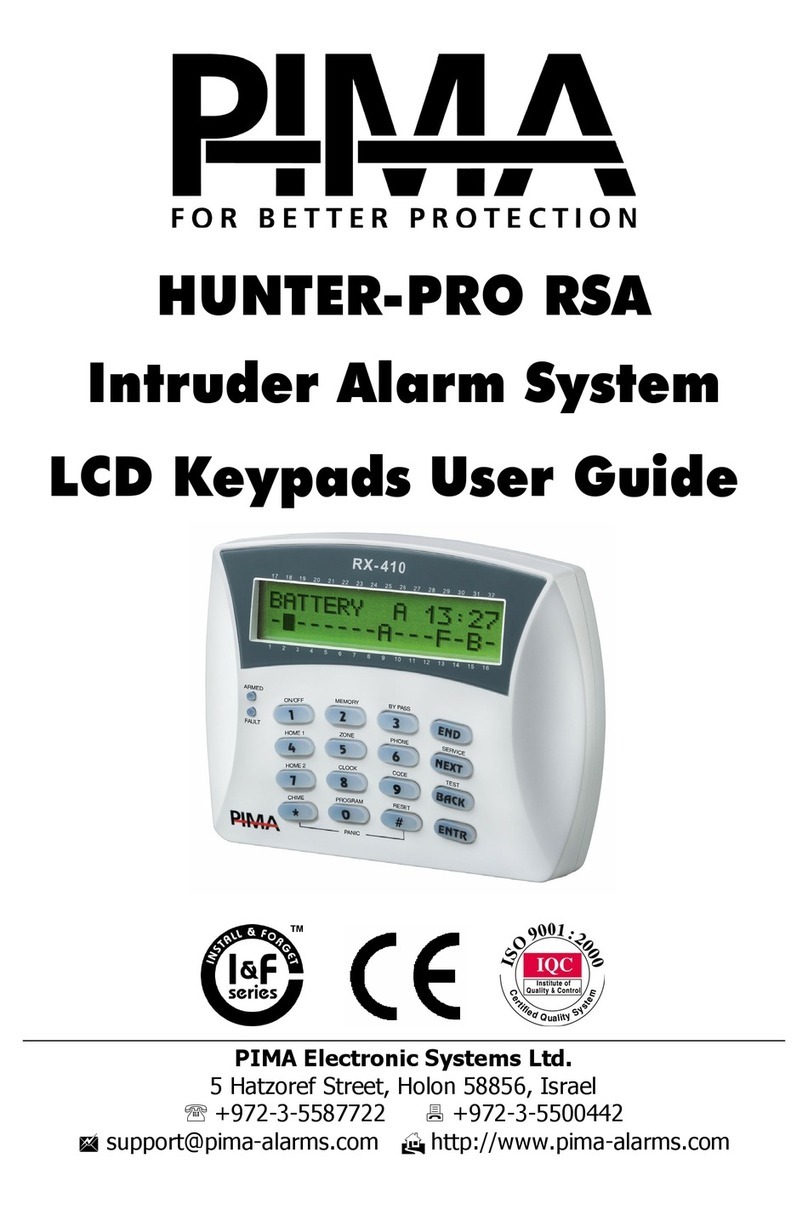

Pima HUNTER-PRO RSA Manuel utilisateur

Pima

Pima RPB Manuel utilisateur

Pima

Pima Hunter-Pro 832 Manuel utilisateur

Pima

Pima hunter-pro Manuel utilisateur

Pima

Pima hunter-pro Manuel utilisateur

Pima

Pima HUNTER-PRO 32 RXN-9/416 Manuel utilisateur

Pima

Pima N-406 Manuel utilisateur

Pima

Pima FORCE Manuel utilisateur

Pima

Pima Hunter-Pro Series Manuel utilisateur

Pima

Pima hunter-pro Manuel utilisateur

Pima

Pima CAPTAIN-i 4410061 Manuel utilisateur

Pima

Pima FORCE Series Manuel utilisateur

Pima

Pima Hunter-Pro Series Manuel utilisateur

Pima

Pima Hunter-Pro 832 Manuel utilisateur

Pima

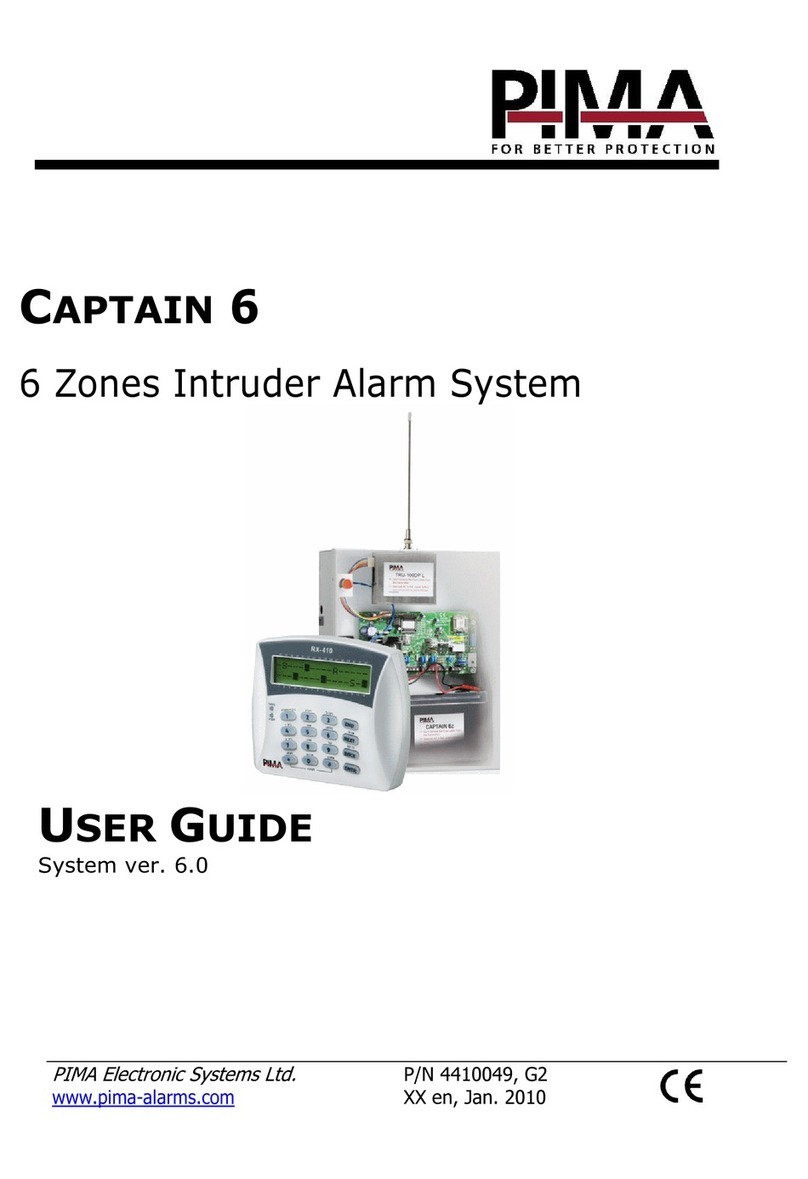

Pima Captain 6 Manuel utilisateur

Pima

Pima AlarmView Manuel utilisateur

Pima

Pima FORCE Series Manuel utilisateur

Pima

Pima Hunter-Pro 832 Manuel utilisateur

Pima

Pima FORCE Series Manuel utilisateur

Pima

Pima FORCE Manuel utilisateur

Pima

Pima hunter-pro Guide de configuration

Pima

Pima Captain 6 Manuel utilisateur

Pima

Pima SRO743 Caractéristiques techniques

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
