Phytec FireWire-CAM-011H Manuel utilisateur

A product of a PHYTEC Technology Holding company

FireWire-CAM-011H

FireWire-CAM-012H

FireWire-CAM-111H

FireWire-CAM-112H

Manual

Edition May 2006

FireWire-CAM-011H/-012H

©PHYTEC Messtechnik GmbH 2006 L-680e_1

In this manual are descriptions for copyrighted products that are not explicitly

indicated as such. The absence of the trademark (™) and copyright (©) symbols

does not imply that a product is not protected. Additionally, registered patents and

trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is believed to be

entirely reliable. However, PHYTEC Messtechnik GmbH assumes no

responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither gives

any guarantee nor accepts any liability whatsoever for consequential damages

resulting from the use of this manual or its associated product. PHYTEC

Messtechnik GmbH reserves the right to alter the information contained herein

without prior notification and accepts no responsibility for any damages which

might result.

Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any

liability for damages arising from the improper usage or improper installation of

the hardware or software. PHYTEC Messtechnik GmbH further reserves the right

to alter the layout and/or design of the hardware without prior notification and

accepts no liability for doing so.

Rights - including those of translation, reprint, broadcast, photomechanical or

similar reproduction and storage or processing in computer systems, in whole or

in part - are reserved. No reproduction may occur without the express written

consent from PHYTEC Messtechnik GmbH.

For further information:

EUROPE NORTH AMERICA

Address: PHYTEC Technologie Holding AG

Robert-Koch-Str. 39

D-55129 Mainz

GERMANY

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

USA

Ordering

Information:

+49 (800) 0749832

[email protected]

1 (800) 278-9913

[email protected]

Technical

Support:

+49 (6131) 9221-31

[email protected]

1 (800) 278-9913

[email protected]

Fax: +49 (6131) 9221-33 1 (206) 780-9135

Web Site: http://www.phytec.de http://www.phytec.com

1st Edition May 2006

Table of Contents

1Delivery Contents................................................................................1

1.1 Accessories................................................................................... 1

1.2 What you Need for the Initial Start-Up........................................ 3

1.3 Features or the FireWire-CAM-011H / 012H.............................. 5

1.4 Features of the FireWire-CAM-111H / 112H.............................. 5

1.5 Important Notes............................................................................ 6

1.6 Declaration of Conformity ...........................................................7

1.7 Overview of Connectors and Settings..........................................8

1.7.1 Connectors....................................................................... 8

1.7.2 Settings ............................................................................ 9

2First Steps ..........................................................................................11

2.1 Hardware-Installation on a Standard PC....................................11

2.1.1 Der FireWire Connection..............................................11

2.1.2 Installation of a FireWire Interface Card (PC).............. 14

2.2 Laptop Installation...................................................................... 16

2.2.1 The FireWire Connection.............................................. 16

2.2.2 Installation of a FireWire Interface Card (Laptop) .......19

2.3 Installation of the Driver Software............................................. 21

2.4 Mounting a Lens......................................................................... 27

2.5 Installation of the Demo Program ..............................................30

2.6 Starting Up the Camera with the Demo Program ...................... 34

2.6.1 The First Live Image..................................................... 34

2.6.2 Problem Solving............................................................ 36

2.6.3 Adjusting Camera Settings............................................ 37

3The Camera in Detail........................................................................43

3.1 Camera Connections .................................................................. 43

3.1.1 IEEE 1394 Interface...................................................... 43

3.1.2 External Triggering, FCAM-111H /112H Only ........... 43

3.2 Connecting the Lens................................................................... 45

3.3 Mechanical Attachment.............................................................. 48

3.4 Camera Settings.......................................................................... 50

3.4.1 Camera Settings: Standards...........................................50

3.4.2 Camera Settings in Detail.............................................. 50

3.5 The Spectral Behavior................................................................ 54

3.5.1 FireWire-CAM-011H / -111H (monochromatic) ......... 54

3.5.2 FireWire-CAM-012H / -112H (Color) .........................55

3.6 How to Maximize Image Quality............................................... 59

3.6.1 Lens ............................................................................... 59

3.6.2 Lighting ......................................................................... 59

3.6.3 Camera Setup ................................................................ 65

FireWire-CAM-011H/-012H

4©PHYTEC Messtechnik GmbH 2006 L-680e_1

4The Software Concept......................................................................71

4.1 Layers Standards of the FireWire-CAM Series ......................... 71

4.2 Accessing the Camera Driver .................................................... 73

4.3 Working with the Filter Graph Editor........................................ 74

4.3.1 How to Get the Filter Graph Editor .............................. 74

4.3.2 Working with the Filter Graph Editor........................... 74

4.3.3 How the Camera Appears in the Filter Graph Editor ... 75

5Technical Data...................................................................................77

6Dimensions......................................................................................... 79

Table of Contents

Table of Figures

Figure 1: FireWire Connecting Cable 6-Pin/6-Pin Type........................... 1

Figure 2: FireWire Connecting Cable 6-Pin/4-Pin/Power Type ............... 2

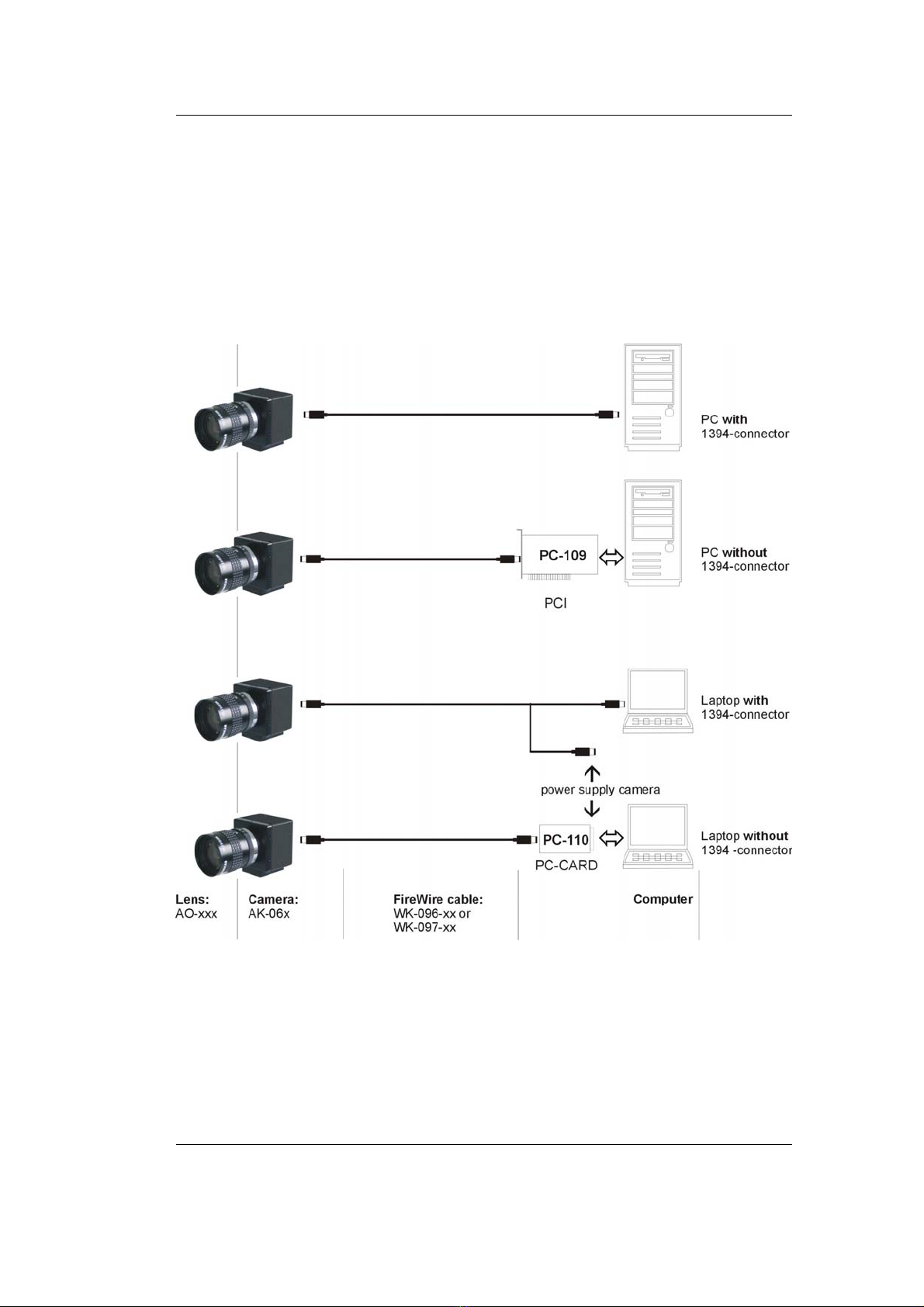

Figure 3: Components of a FireWire System ............................................ 3

Figure 4: VCAM-011H and VCAM-012H ............................................... 8

Figure 5: VCAM-111H and VCAM-112H ............................................... 8

Figure 6: 6-Pin FireWire Socket.............................................................. 11

Figure 7: FireWire and i.LINK Logos..................................................... 12

Figure 8: FireWire Connecting Cable 6-Pin/6-Pin Type......................... 12

Figure 9: Insertion of the Card into the PCI Slot..................................... 15

Figure 10: 4-Pin FireWire Socket.............................................................. 16

Figure 11: FireWire and i.LINK logos ...................................................... 16

Figure 12: FireWire Connecting Cable 6-Pin/4-Pin Type......................... 17

Figure 13: Power Connections: 6-pin/4-pin+power type .......................... 19

Figure 14: Power Connection: PC-110 Card............................................. 21

Figure 15: Title Menu of the „Vision Tools“ CD...................................... 22

Figure 16: Installation Menu for the FireWire Camera............................. 23

Figure 17: Driver Installation, Step 1 ........................................................ 24

Figure 18: Driver Installation, Step 2 ........................................................ 25

Figure 19: Driver Installation, Compatibility Warning............................. 25

Figure 20: Driver Installation, Step 3 ........................................................ 26

Figure 21: Lens Assembly (C-Mount)....................................................... 27

Figure 22: Flange Back Distances and Mounting of C-Mount (Top) /

CS-Mount (Bottom) Lenses ..................................................... 28

Figure 23: Title Menu of the‚ Vision Tools‘ CD....................................... 31

Figure 24: Installation Menu for the FireWire Cameras ........................... 31

Figure 25: Demo Installation, Step 1......................................................... 32

Figure 26: License Agreement, Step 2 ...................................................... 32

Figure 27: License Key, Step 3.................................................................. 33

Figure 28: Installation Completed, Step 4 ................................................. 33

Figure 29: The Program „PHYTEC Vision Demo“ .................................. 34

FireWire-CAM-011H/-012H

6©PHYTEC Messtechnik GmbH 2006 L-680e_1

Figure 30: PHYTEC Vision Demo – Select Device ................................. 35

Figure 31: PHYTEC Vision Demo – Live View Function Activated....... 35

Figure 32: Camera Setting „Device Settings“........................................... 38

Figure 33: Camera Setting „Properties Exposure“.................................... 39

Figure 34: Camera Setting „Properties Image“......................................... 40

Figure 35: Camera Setting „Properties Color“.......................................... 40

Figure 36: Camera Setting „Properties Device“........................................ 41

Figure 37: Further possible Settings of the PHYTEC-Vision-Demo........ 41

Figure 38: Connections FCAM-111H and FCAM-112H ......................... 43

Figure 39: Mounting Plate......................................................................... 48

Figure 40: Attachment of the Mounting Plate........................................... 49

Figure 41: Mounting Options of the FireWire-CAM................................ 49

Figure 42: Spectral Response (FireWire-CAM-x11H) ............................. 54

Figure 43: Bayer Pattern Filter (Colour Sensor) ....................................... 56

Figure 44: Spectral Filter Characteristics

(FireWire-CAM-012H / -112H) .............................................. 57

Figure 45: FireWire-CAM-012H / -112H : UR Rejection Filter .............. 58

Figure 46: PHYTEC Ring Light Order No.: VZ-001-x, VZ-002-x .......... 60

Figure 47: Light-Field- (Left) and Dark-Field-Lighting (Right) .............. 61

Figure 48: The Shadow Projection............................................................ 62

Figure 49: The Structured Light................................................................ 63

Figure 50: The Silhouette Projection......................................................... 64

Figure 51: Transillumination..................................................................... 65

Figure 52: Dimensions .............................................................................. 79

Delivery Contents

1Delivery Contents

The standard scope of supply includes the following components:

•the camera

•a C/CS-mount adapter

•a tripod adapter (bolted together with the camera)

•the software-CD SO-221

•this manual

1.1 Accessories

For the operation of the camera you normally need some additional

components.

You can obtain following material designed to be compatible with the

camera from PHYTEC:

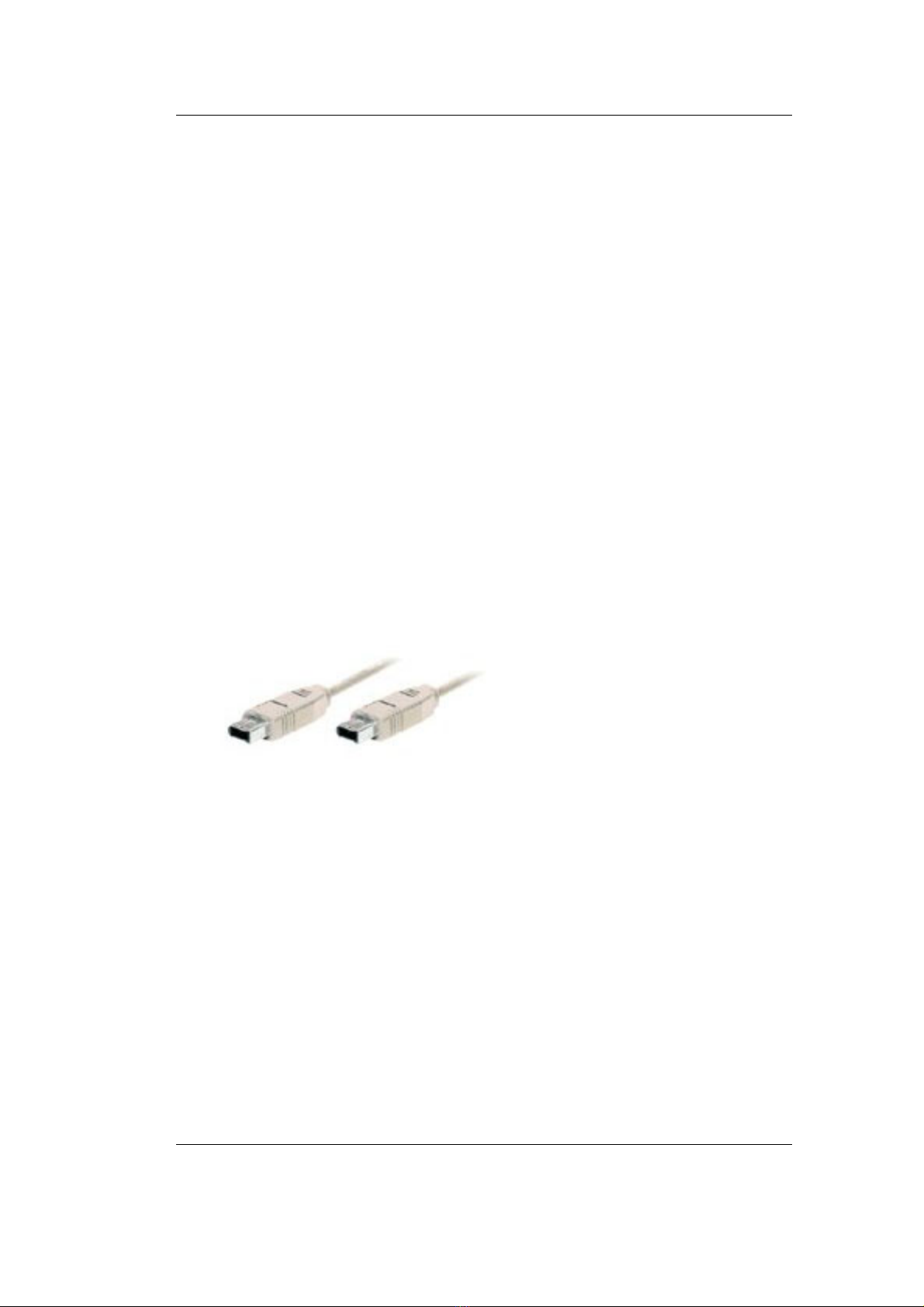

Figure 1: FireWire Connecting Cable 6-Pin/6-Pin Type

•FireWire Connecting Cable (6-pin/6-pin type), 1.8 m

Order number WK096-1.8

•FireWire Connecting Cable (6-pin/6-pin type), 3.0 m

Order number WK096-3.0

•FireWire Connecting Cable (6-pin/6-pin type), 4.5 m

Order number WK096-4.5

FireWire-CAM-011H/-012H

2©PHYTEC Messtechnik GmbH 2006 L-680e_1

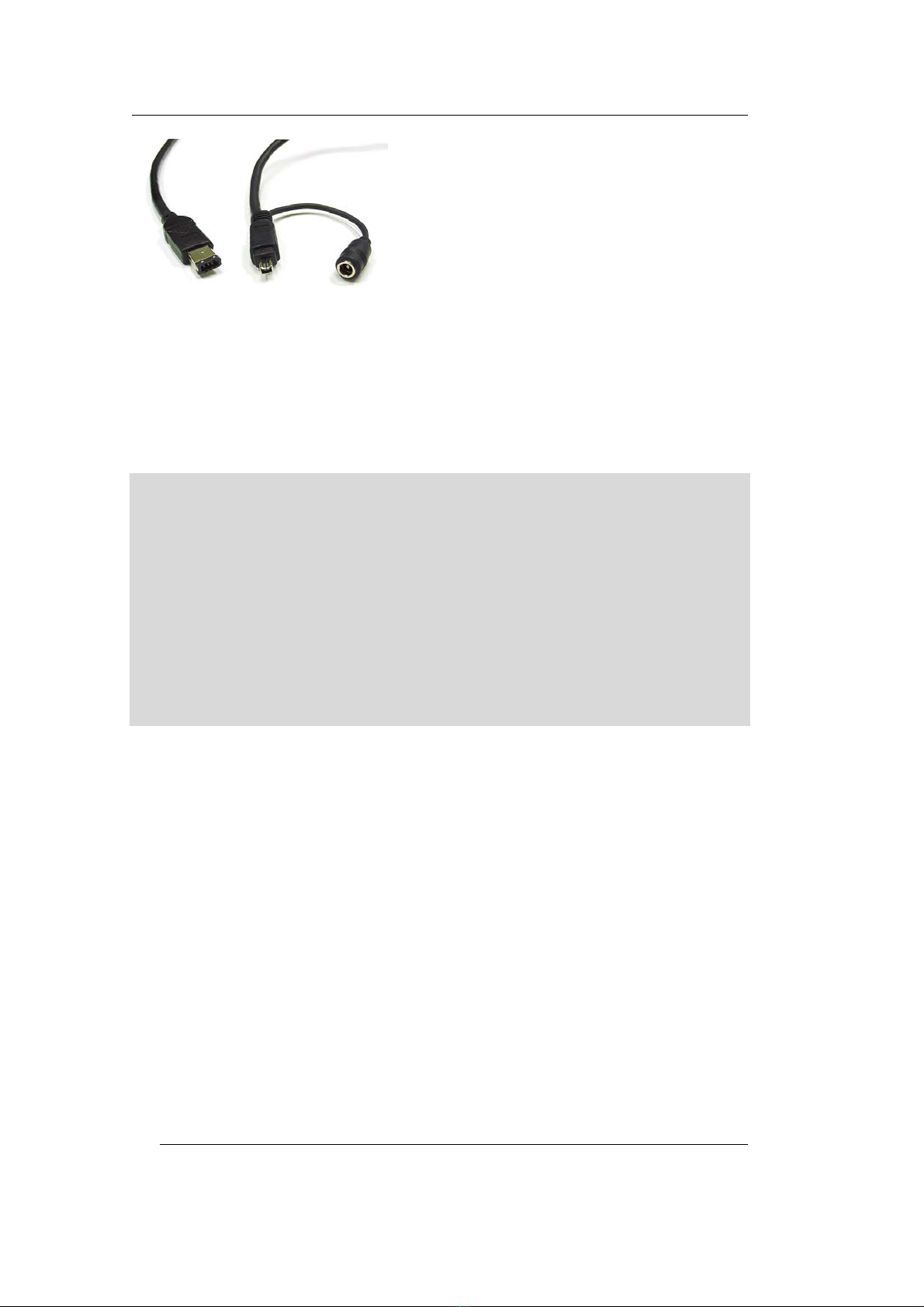

Figure 2: FireWire Connecting Cable 6-Pin/4-Pin/Power Type

•FireWire Connecting Cable (6-Pin/4-Pin/Power Type), 2 m

Order number. WK113-2.0

Hint:

•The FireWire cables with a 4-pole plug are usually needed for

connecting the camera to a laptop.

The 4-pin FireWire connection does not provide supply voltage.

When using such a cable you need a separate mains adapter for the

power supply.

•Please note that the full data rate is specified for a cable length of

up to 4.5 m. The usage of longer cables is possible but the data rate

will be reduced according to the bus specifications. This means

that you possibly cannot use the full image resolution or framerate.

•AC-adapter 12 V / 600 mA for separate power supply

Order code SV001 (suitable for 230 V 50 Hz AC mains voltage

only)

•Video lenses:

In our product range we keep a variety of high-quality lenses for

several purposes. We will gladly assist you in choosing an

adequate lens.

•Additional accessories:

Depending on your application you may need further components.

We are happy to assist you in case any questions should occur.

Delivery Contents

1.2 What you Need for the Initial Start-Up

For the initial basic start-up you usually need some further

components besides the FireWire-CAM itself.

These are partially dependent on the computer with which you use the

camera. In Figure 3 you get a first overview of the appropriate

accessories:

Figure 3: Components of a FireWire System

FireWire-CAM-011H/-012H

A C- or CS-Mount lens. Please note however that the high quality

of digital cameras should not be reduced by using lenses of low

quality (see section 3.6, “How to Maximize Image Quality”).

PHYTEC provides a wide range of compatible high-quality lenses.

A PHYTEC FireWire camera.

In case the IEEE 1394 bus does not provide supply voltage (which

is common to almost all laptop solutions), you will need an extra

mains adapter (e.g. the SV001, see above). You can use a stabilised

quality-mains adapter of your choice alternatively if it provides 8

to 30 VDC and 500 mA. Please read section 1.5,“Important

Notes"

A cable for the connection between camera and IEEE 1394 bus.

This will usually be the IEEE 1394 interface (host controller) of

your computer. PHYTEC provides several IEEE 1394 cables. You

can use any other cable alternatively if they comply with the IEEE

1394 standard. Please read section 1.5,,“Important Notes"

A computer (PC, laptop) that meets the following requirements

Caution!

The host computer has to meet following requirements:

•1394 interface, compatible with the standards IEEE 1394-1995 and

IEEE 1394a (OHCI), 400 MBit/s

•processor: Pentium II, 300 MHz or higher

recommended: Pentium II, 500 MHz, 128 MB RAM or higher

for “FireWire-SDK”: PIII, 800 MHz or higher

•Graphics adaptor with 24 or 32-bit colour depth

•Operating system: Windows 2000/SP2 or Windows XP

•DirectX 8.1 or higher

Note:

In case you purchased a Starter-Kit, most components needed are

already contained.

Please compare the contents of your kit with the list of required

components first.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Phytec Appareil photo numérique

Phytec

Phytec FireWire-CAM-001 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
