Physio Logic Insta-Therm Manuel utilisateur
Instant-read Ear Thermometer
Instruction Manual
Insta-Therm
TM
016-640
2
3
2
Contents
Introduction....................................................................4
Important notes .............................................................5
Exterior appearance and functions................................5
Operating instructions ................................................6-7
Battery replacement ......................................................8
Display messages .........................................................9
Technical specifications............................................9-10
Care and cleaning .......................................................10
Protection.....................................................................11
Troubleshooting ...........................................................11
4
Introduction
Dear customer, thank you for purchasing your new AMG
®
Physio Logic Insta-Therm™ Ear Thermometer. This
thermometer will enable you to take an accurate and instant
measurement whenever needed.
Instant reading:
• New technology requires only 0.1 second to take a
measurement
• No waiting while the electronic system processes and
displays the temperature reading.
Comfortable:
• Ergonomic-shaped design guarantees that taking a
temperature is done comfortably.
Easy to clean and disinfect:
• The newly designed infrared probe with its waterproof lens
can be thoroughly cleaned with alcohol.
Energy-efficient:
• Automatically shuts itself off after one minute of idling to
ensure a long battery life lasting for at least 5000
measurements.
Long life:
• The state of the art infrared detection technology ensures
that your unit will last a long time.
Accurate:
• 512 scanning sequences per second ensures reliable
accuracy with a deviation of +/- 0.2°C (0.4°F).
Compact:
• Small and lightweight (only 36 g) body is ideal for home-use
and travelling.
User-friendly:
• One-button easy operation and easy-to-read LCD display
give convenience with one finger operation.
5
SCAN
Water-proof probe
LCD Display
Power and
Scan Button
Battery
Cover
In order to obtain accurate measurements, make sure to read
this instruction manual thoroughly and carefully before using.
Keep it handy for future reference.
Important notes
• The ear thermometer is a delicate electronic device. Please
handle with care.
• The thermometer body is NOT waterproof except for the
infrared probe, direct contact of the body with water or other
liquids must be avoided.
• Do not expose the thermometer to direct sunlight.
• Keep it in its' storage case and out of the reach of children.
Store at normal room temperature and humidity.
• The ear thermometer is produced with high quality
materials.
• Use of this ear thermometer should not replace a visit to
your doctor.
• This thermometer is designed for taking temperatures from
the ear canal only. DO NOT use it for measuring rectal, oral
or underarm temperature.

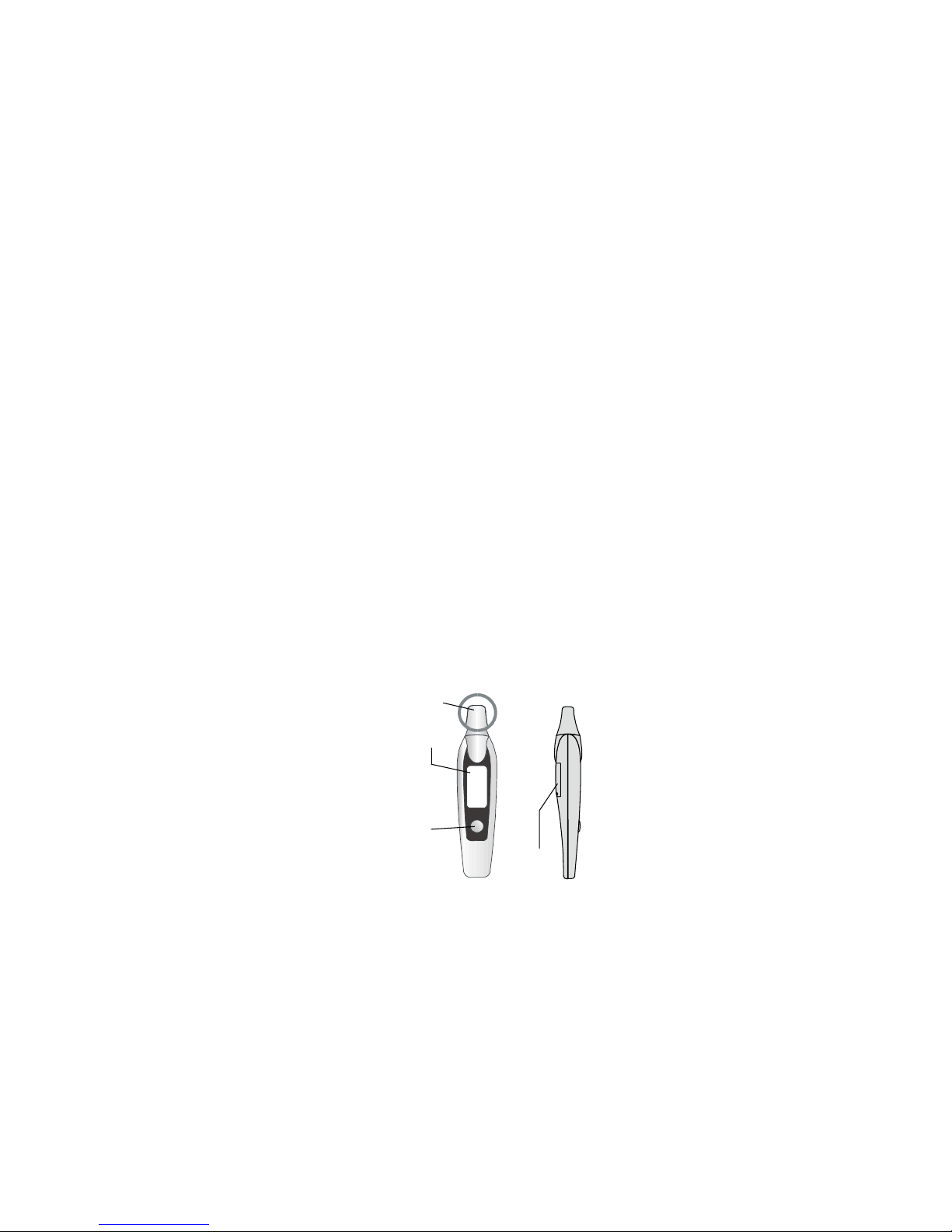

Exterior appearance and functions
6
Operating instructions
1. Press the SCAN button for one
second (A specific design to avoid
accidentally turning it on), the
system will start itself and self test
in 1 second as shown in Figure 1.
2. Once the self-testing is completed,
the last temperature measured
will be shown on the display
(see Figure 2) which indicates
the thermometer is now ready to use.
3. Insert the probe into the ear canal.
Be sure to position the probe
properly to allow the probe tip
to scan down the ear canal to the
eardrum and so obtain an accurate reading (see Figure 3).
Press the SCAN button without releasing it to activate the
automatic scanning sequences.
4. Remove the probe from the ear canal after completing the
reading.
5. Release the SCAN button to see
the temperature reading. You will
hear a beep sound to indicate
the end of measurement. The
temperature reading accompanying with an indicating face
will be shown on the display (see Figure 4).
6. A smiling face indicates a temperature lower than 38°C
(100.4°F). While a upset face coming with one long
followed by two short beep sound indicate a temperature
higher than 38°C (100.4°F) (see Figure 5 and 6).
7

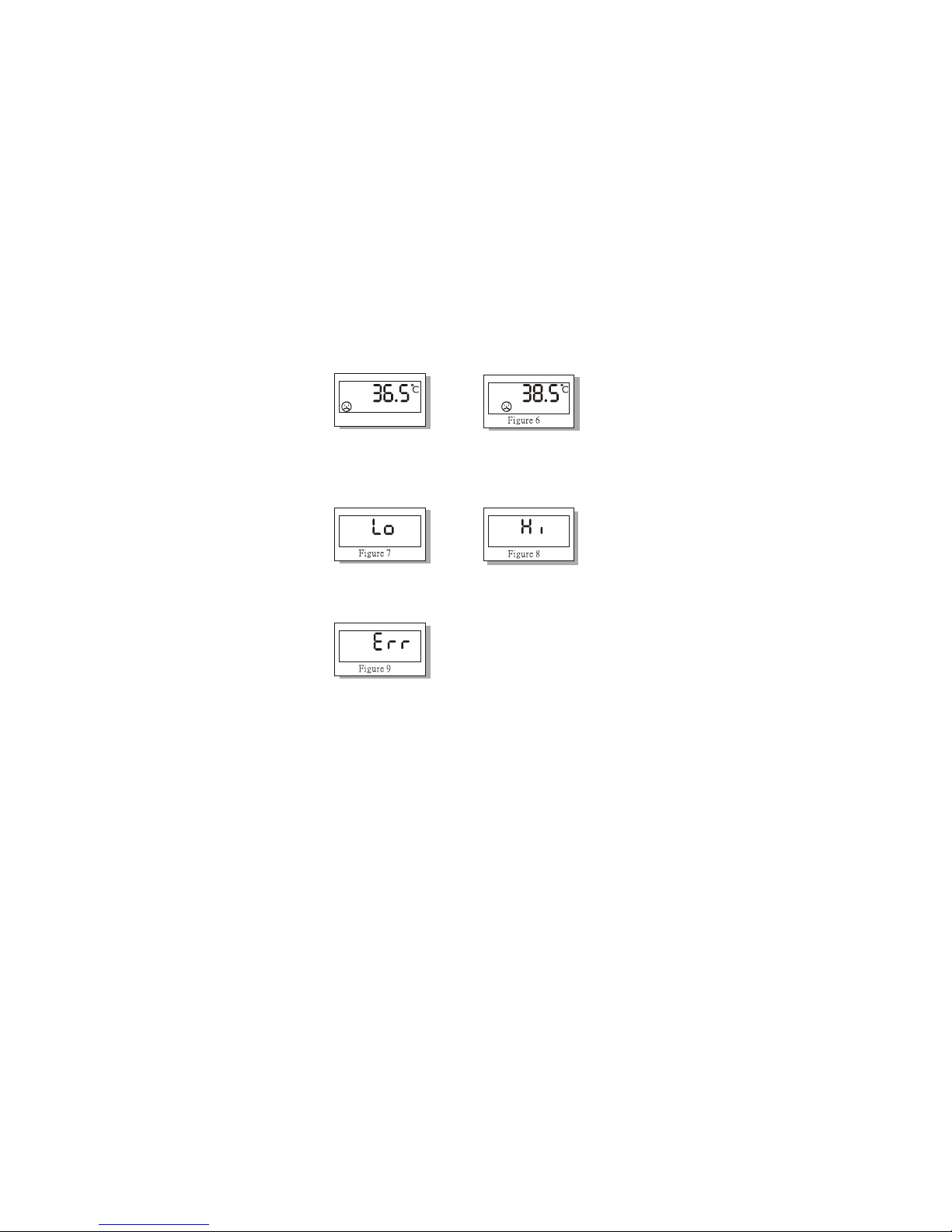

7. A “Lo” or “Hi” symbol will appear when the temperature is
out of the measuring range (see Technical specifications
on page 8 for details) as shown in Figure 7 and 8.
8. The remark “Err” appears if the operating temperature is
not within the permissible range (see Figure 9).
9. Multiple readings should be at least 5 seconds apart to
ensure precise temperature readings.
10.Once finished taking measurements, leave the
thermometer idle and it will automatically shut itself off
after one minute.
Note:
This is a Celsius thermometer.
Figure 5
8
Battery replacement and installation
1. Remove the screw off the battery lid.
2. Open the battery lid and remove the original battery.
3. Use a new CR-2032 Lithium battery.
4. Insert the battery into the battery compartment with the (+)
symbol facing upwards.
5. Replace the battery lid and fasten with the screw.
Replace the battery when the “low battery” warning
symbol appears on the display.
Dispose of the battery in a safe manner, keeping it away
from children and heat.
This thermometer meets the requirements of:
ASTM E 1965-98:
“Standard specification for infrared thermometers for
intermittent determination of patient temperature”.
9
Display messages
Degree of temperature:
Celsius:
Scanning sequence in progress:
Low battery warning:
Smiling face indicating temperature
lower than 38°C (100.4°F):
Upset face indicating temperature
higher than 38°C (100.4°F):
Technical specifications
Measuring range:
34°C to 43°C (93.2°F to 109.4°F)
Measuring accuracy:
± 0.2°C (0.4°F): from 36°C to 39°C (96.8°F to 102.2°F)
± 0.3°C (0.5°F): less than 36°C (96.8°F) or greater
than 39°C (102.2°F)
Display resolution: 0.1°C
Response time:
A temperature reading is obtained in merely 0.1 second.
10
Fever alarm:
An upset face coming with one long followed by two short
beep sounds.
Easy-cleaning and eco-design:
The probe tip is equipped with waterproof lens allowing
water rinsing. No extra probe cover is required.
Power saving:
Automatic shut off after one minute of idling.
Warning indication:
“Low battery” symbol and “Lo” / “Hi” symbol indicating out of
measuring range.
Battery life:
Good for at least 5000 measurements.
Operating environment:
16°C to 40°C (60.8°F to 104°F) with relative humidity up to
95% (non condensing).
Care and cleaning
Clean the uniquely-designed waterproof probe with a soft,
alcohol-moistened cloth after each use. Clean the body of the
ear thermometer with a soft, dry cloth. NO WATER RINSING
OF THE THERMOMETER BODY is allowed. Never use an
abrasive cleanser or submerge the body of the ear
thermometer in water or other liquids.
