1. Welcome
Congratulations on choosing the Phonak TVLink S.
It expands the way you hear your world by wirelessly
connecting your hearing aids to your TV and other
entertainment or communication devices.
Please read this user guide carefully to discover how
to benefit from all the features of your TVLink S.
Please also carefully read the “Important information”
section in chapter 6.
Phonak – life is on www.phonak.com
6
The complete Phonak TVLink S system consists of the
following elements:
* The TVLink S extension package contains the stand-
alone TVLink S basestation with power supply and all
cables.

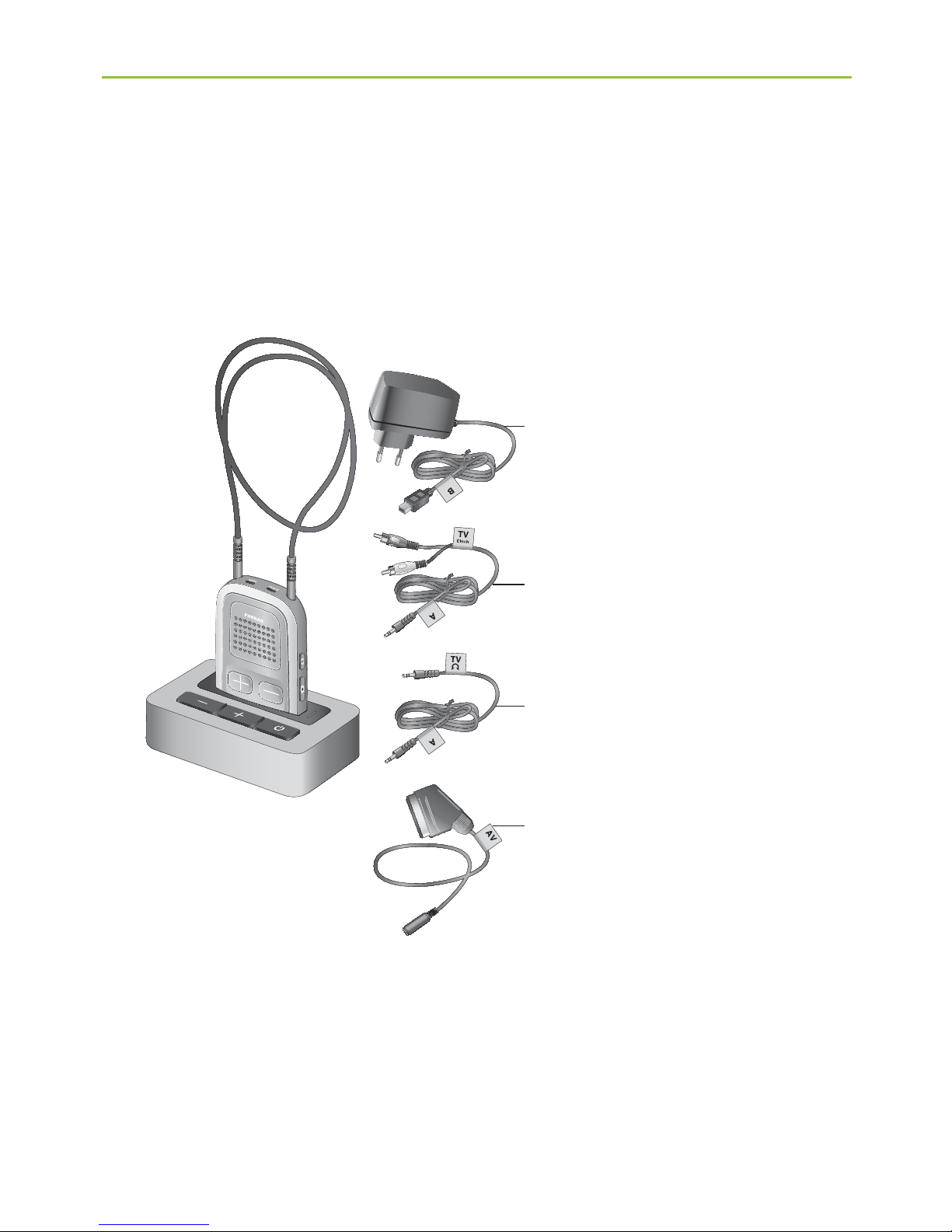

2. Getting to know your TVLink S
(h) Power supply with
mini-USB plug and
country adapter
(i) Audio cable for
RCA/Cinch sockets
(j) Audio cable for
3.5 mm jack sockets
(k) SCART/Peritel
adapter (optional)
ComPilot*
Phonak TVLink S
basestation
7
Device description
The Phonak TVLink S connects your hearing aids
wirelessly to your TV or other audio devices. The
system consists of three main elements:
Your hearing aids, the ComPilot and the Phonak
TVLink S basestation.
Up to 30 meters
(100 ft)
Cable
ComPilot TVLink S
basestation
hearing
aid
8
2. Getting to know your TVLink S
Phonak ComPilot streamer and remote control
Buttons
/Main ( )
0Volume +/- ( )
1Home ( )
2Connect ( )
3ON/OFF switch ( )
Inputs
4Microphone openings
5Audio input (3.5 mm jack)
6FM input (Europlug)
7Charging input (mini-USB)
Indicators
8Audio indicator
9Power indicator
Neckloop
:Neckloop sockets
;Neckloop (with antenna)
<Neckloop plugs
4
power
audio
/
0
3
89
:
1
<
2
;
567
9
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Phonak is under license.
Other trademarks and trade names are those of their respective owners.
For detailed information on the ComPilot such
as features, light indicator explanations, other
input sources, etc., please refer to the ComPilot
user guide which is delivered with each ComPilot.
10
Phonak TVLink S basestation
The TVLink S basestation is connected to your TV (or any
other audio source) and wirelessly sends audio signals
from your TV to ComPilot within a range of up to
30 meters (100 ft). The TVLink S basestation also serves
as a charging cradle for ComPilot when ComPilot is not
in use.
Buttons
(a) ON/OFF button
(b) TV signal volume (up)
(c) TV signal volume (down)
Inputs
(d) Power input (mini-USB)
(e) Audio input (3.5 mm jack)
(f) ComPilot charging slot
(g) Status light
(b)(c)
(f) (g)
(d) (e)
(a)
TVLink S basestation
2. Getting to know your TVLink S
