Vacuum cleaner SmallStar
FC8234/01
12/05
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Color : Oyster Metallic
- Power consumption : 1600 W
(IEC) 230 V
- Vacuum : 24 Kpa
- Dust storage capacity : 2 L
- Cord length : 6 m
- Filter system : Double layer S-bagTM
: Permanent motor
protection filter
: HEPA exhaust filter
- Noise : 82 dB
- Size L x W x H : 340 x 250 x 210 mm
- Weight : 5.5 Kg
ACCESSORIES
- Nozzle : All purpose floor nozzle D272
- Tubes : 2 Piece metal telescopic tube
+ extension tube
- Accessories : Crevice, plumeau and
small nozzle
- Coupling : Conical coupling
OPTIONAL (accessories)
- FC8021 Synthetic S-Bag : 8838 021 03010
- FC8022 Clinic S-Bag : 8838 022 03010
- FC8023 Anti Odour S-Bag : 8838 023 03010
FC8234/01
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- First remove the dust bag.
- Remove the dustcover using a screwdriver (see picture).
- Remove the Cord Winder Button by pulling it upwards
(see picture).
A
B
- When the dustcover and the cord winder button have been
removed, the 5 screws Athat need to be unscrewed to
disassemble the upper housing, are accessible (see picture).
A
A
A
A
A
- To disassemble the cord winder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).
- During re-assembling, take care the wires are positioned in
the guides correctly.
REPAIR INSTRUCTION
- The spare parts have been standardized as much as possible.
- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn.
- Item 6, air valve, opens to cool the motor if the air
displacement is too low or if the airflow is blocked.
ELECTRICAL DIAGRAM
M
SPEED
CONTROL UNIT
CORD WINDER
C
2-7
FC8234/01
PARTS LIST
3-7
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
4222 459 49951
4222 459 50321
4222 459 50601
4222 459 50611
4222 459 50251
4222 459 50821
4222 459 49941
4222 459 50151
4222 459 49921
4222 459 50661
4222 459 50631
4222 459 50371
4222 459 48841
4222 459 49851
4222 459 49861
4222 459 49891
4222 459 50731
4222 459 50501
4222 459 50681
4222 459 50651
4222 459 49781
4222 459 49821
4222 459 50581
4222 459 50901
4222 459 50591
4222 459 50091
4222 459 50551
4222 459 49731
4222 459 50421
4222 459 50401
4322 006 97732
4222 459 50461
4222 459 50571
4222 459 50751
4222 459 49701
4222 459 50921
4222 459 50811
4222 459 50771
4322 006 01400
4322 004 21121
4222 459 49671
4222 459 49901
4222 459 50841
4222 459 49711
4222 459 49691
Dustbag holder assy Dark Raven
Dustcover sealing
Motor filter
Motor filter grille
Dustcover panel Oyster Metallic SmallStar
Safety valve assy
DBFI assy
Dustcover base assy Star White
Cordwinder pedal Star White
Pedal spring
On/Off pedal Star White
Exhaust grille assy Oyster Metallic
HEPA exhaust filter
Cordwinder lever
Cordwinder without cordset
Cover speed control Star White
Rear cover Oyster Metallic
Knob speed control Electric Orange
Potmeter assy
PCB assy speed control
Cord outlet cover Electric Orange
Cord outlet Electric Orange
Motor cover
Suction inlet case Oyster Metallic
Motor cover seal
Dustchamber Electric Orange
Lower housing Oyster Metallic
Casterwheel assy Star White
Front motor seal
Front motor cover Domel
Motor Domel 1600 W / 230 V
Inner motor cover Domel
Motor Buffer
Rear silencer
Bottom silencer
Wire socket
Rear wheel bush
Rear wheel assy Electric Orange
Cordset 6.3 m Europe
Hose assy incl. Dragon Bend
2 piece Telescopic metal tube incl. extension
Crevice nozzle Dark Raven
Small nozzle Dark Raven
Brush nozzle Dark Raven
All Purpose nozzle D272 conical Dark Raven
= changed
FC8234/01

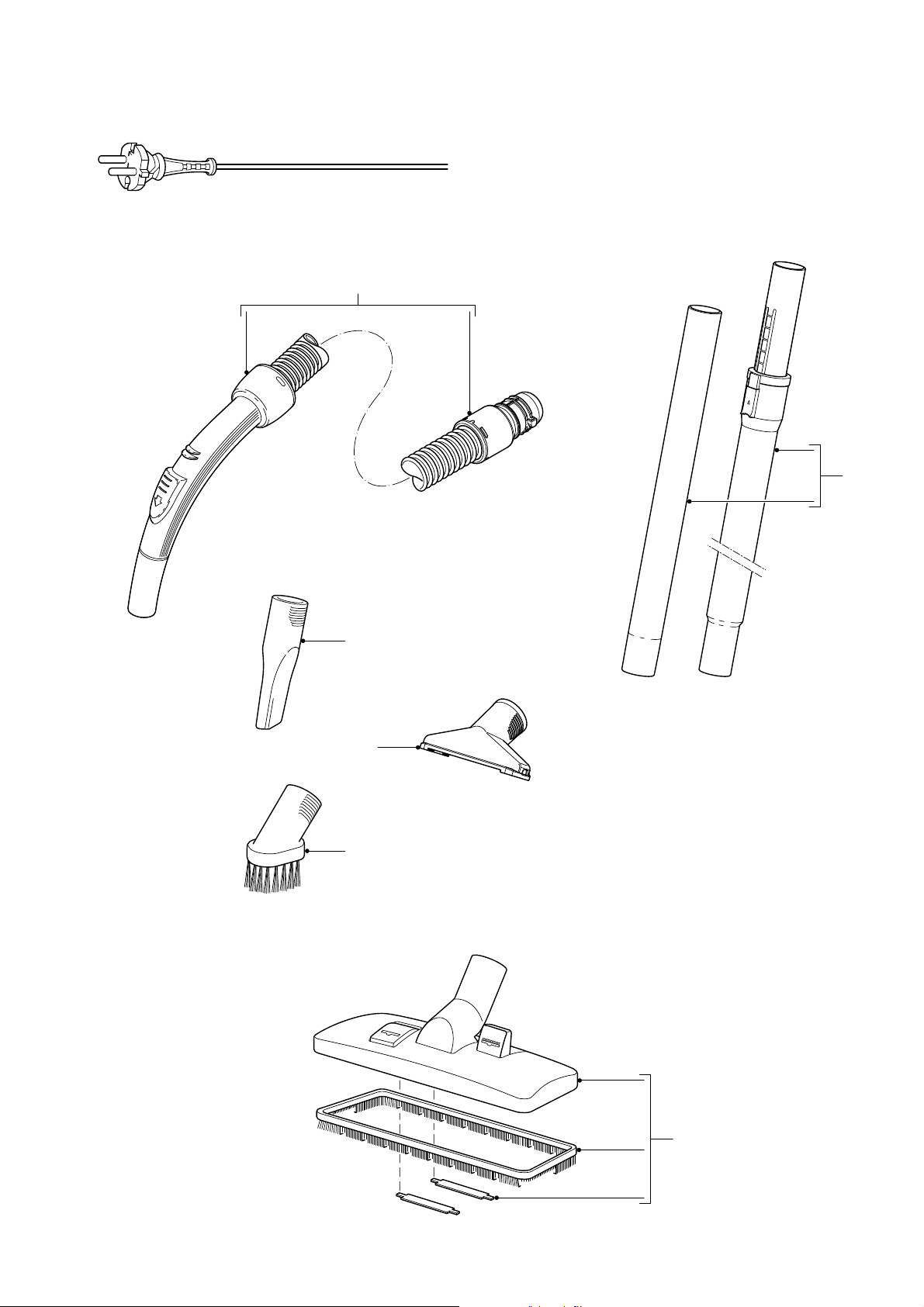

EXPLODED VIEW
13
9
10
2x
4
3
8
1
212
11
5
6
7
4-7
FC8234/01
EXPLODED VIEW
A
A
A
Z
14
15
22
21
20
19
18
17
16
5-7
FC8234/01
EXPLODED VIEW
B
4x
A
A
Z
33
2x
31
30
29
37
2x
36
24
26
27
25
23
34
35
32
38
2x
28
6-7
FC8234/01
EXPLODED VIEW
45
41
42
43
44
Europe 39
40
7-7
