Philips FC9106 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Specialist Vacuum cleaner

FC9106

04/02

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour /A : Cherry wood

Version /B : 2000 W logo

- Maximum air displacement : 37 l/sec.

- Maximum vacuum water column : 310 cm

- Power consumption (IEC) 230 V : 1500 W

- Duststorage capacity : 3 L

- Type number dustbag : FC8021

- Cord length (depends on version) : 7 metres

- Filter system : Paper dustbag

: Exhaust AFS air filter

: Motor inlet filter

- Dimensions of cleaner : 460 x 315 x 270 mm

- Dimensions of packaging : 595 x 395 x 295 mm

- Net weight : 5.88 kg

- Gross weight : 9.135 kg

OPTIONAL (accessories)

- FC8021 S-bags

- FC8030 AFS-filter

- FC8031 HEPA Air Filter

- FC8034 Upgrate kit Active Carbon Filter

- HR6988 Turbo brush nozzle

- HR8040 Polishing nozzle

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Open the appliance, first remove

the exhaust filter grille (item 20),

and then remove the 2 screws -

Cof the switch control panel

(item 15).

- Undo and remove the 9 screws -

Cin the upper housing (item 8).

You will require a screwdriver

with a 14.5 cm-long shank for

this. Depending on the version

screwdriver 9965 000 08332 for

cross head or onwards 0234

screwdriver 4322 009 08490 for T15 can be used.

- The component configuration shown in the exploded view

may differ in case of specific versions. The components are

distinguished by means of code numbers.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver no.

T10, which is one of a set consisting of T20; T15; T10; T9;

T8; T7 and T6 (code number 4822 395 50145).

C2x

C9x

FC9106 /A /B

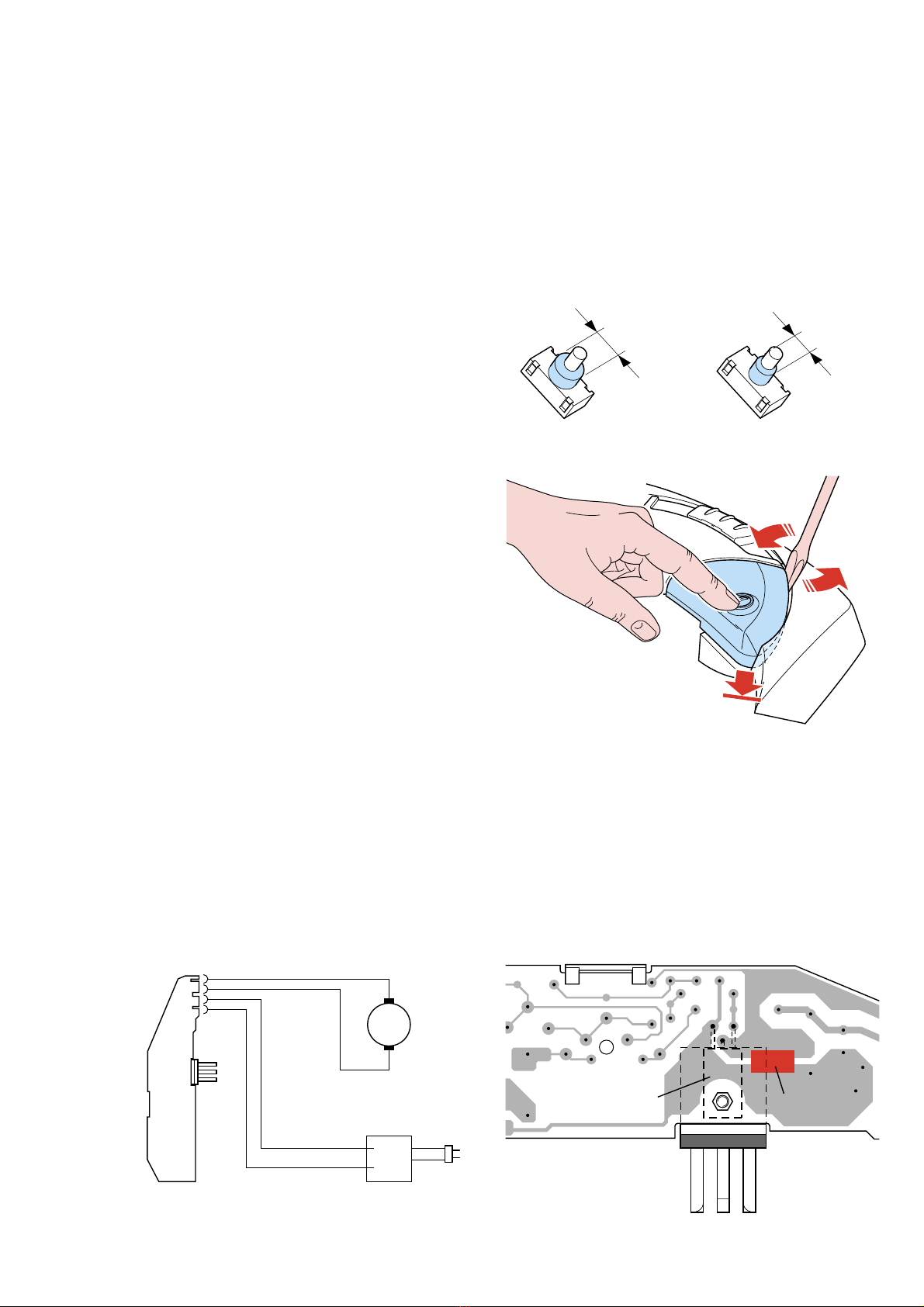

REPAIR INSTRUCTION

- Item 4, cotton dustbag, is used in countries in which paper

dustbags are not available.

- If the reel half spring unit is replaced, shaft Amust be

lubricated with silicone grease. Do not apply any silicone

grease to or spill any grease on terminals (43) or conductors

(42).

- Item 40 is provided with a long cord-winder spring, but

both long and short cords can be used in combination with

this spring. (L = 9.3 m)

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn

- Item 13, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- To adjust the telescopic tube (item 59) to the required

length, push the adjustment collar in the direction of the

arrow while sliding the top section of the telescopic tube

into or out of the lower section.

- If the function of the electronic control unit (item 12) is

not required, the Triac must be short-circuited in the

manner shown in the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust the

pores of the dustbag may become clogged, causing the

passage of air through the dustbag to become obstructed.

As a result, the dustbag-full indicator will indicate that the

dustbag needs to be replaced, eventhough the dustbag is not

full at all.

- Item 72, sealing ring must be replaced if appliance whistles.

- Due to introduction of a new switch (item 11) 0320

onwards, which is not interchangable with the old switch

soldered on the PCB (item 12).

- The switch lever assy (item 11a) is also modified.

To recognize the switches:

Old New

∅13 mm ∅10 mm

To replace the knobs:

New spares are:

11 Switch soldered version - 4322 006 50600

11a Switch lever assy - 4322 009 08980

parts of 15 Switch and Cord winder knob - 4322 009 09000

ELECTRICAL DIAGRAM

MOTOR

POWER

MODULE

Black

Blue

Brown

CORD WINDER

Short-circuit

Triac

2-6

FC9106 /A /B

PARTS LIST

3-6

Pos Service code Description

11a

13a

13b

4322 009 08090

4322 003 18280

4322 003 18150

4822 480 10113

4322 004 93290

4322 003 18300

4322 001 73310

4322 005 12550

4322 003 18050

4322 003 20410

4322 000 37300

4322 009 07040

4322 006 21480

4322 006 50600

4322 009 08420

4322 009 08980

4322 006 22560

4322 005 12200

4322 005 12210

4322 003 18090

4322 009 08160

4322 003 17890

4322 003 18100

4322 000 37450

4322 005 12180

4322 009 08230

4322 000 37460

4322 004 92910

4322 001 73280

4322 003 18000

4322 000 37420

4322 000 37430

4322 003 18070

4322 003 18910

4322 003 11990

4322 003 17970

4322 001 73300

4322 003 18040

4322 003 18010

4322 003 18020

Dust cover Cherry wood

Dust cover lock grey

Dustbag holder

S-paper dustbags FC8021

Cotton dustbag

Cordwinder lever

Sealing rim

Dustbag detector

Upper housing l.grey

Clamp upper/lower housing

Triple ﬁlter

Grill + triple ﬁlter

Switch soldered version

Switch sold. vers. 0320 onwards

Switch lever assy

Switch lever assy 0320 onwards

PCB slide turn 230V

Dustbag full indicator

Air valve

Handle l.grey

Panel slide Cherry wood

Lower housing l.grey

Handle lock

Silencer 4 wall

Caster assy l.grey

Exhaust grille Cherry wood

Exhaust diffusor

Electr.static ﬁlter FC8030

Filter sealing

S-class sealing

Silencer 1 wall

Silencer 2 bottom

Cord outlet l.grey

Rear wheel lock red

Receipt. housing A.C.

Rear wheel soft ch. w.

Motor buffer back

Inlet sealing

Motor cap top

ANS disc

Pos Service code Description

4322 001 73290

4322 009 06430

4322 000 37440

4322 003 18030

4322 009 07940

4322 001 72360

4322 009 07950

4322 009 07970

4322 006 01440

4322 006 01760

4322 006 01680

4322 006 01720

4322 006 01410

4322 006 01670

4322 006 01460

4322 003 18850

4322 005 12720

4322 007 16000

4322 004 22570

4322 003 18870

4322 005 12530

4322 004 22520

4322 001 99120

4322 007 45550

4322 004 22560

4322 004 22490

4322 004 22540

4322 005 11040

8838 041 01010

4322 003 19110

5322 390 20011

4322 002 82550

4322 002 82080

Motor bufferring front

Motor A 1441 230V

Silencer 3 ans

Motor cap bottom

Reel half spring unit (L = 9m)

Brake tyre

Reel half contact unit

Contact ring plate

Argentina L = 9.3 m

Australia L = 9.3 m

Taiwan L = 6.3 m

U.K. / H.K. L = 9.3 m

Euro 4.8 mm pins L = 9.3 m

Swiss L = 9.3 m

Italy L = 9.3 m

C-bend B1

C-bend B1 hose sw assy

Leaf spring assy

Plumeau assy

Crevice nozzle

Acc. bridge assy

Telesc. tube act. coupling silver

Tube bush

Tube spring

Small nozzle

R&C nozzle standard l.grey

Polishing nozzle act. coupling

Polishing disc

Polishing brushes

Sealing ring

Silicon grease for shaft

Screw 3.5 x 12 T10

Screw 3.5 x 19

FC9106 /A /B

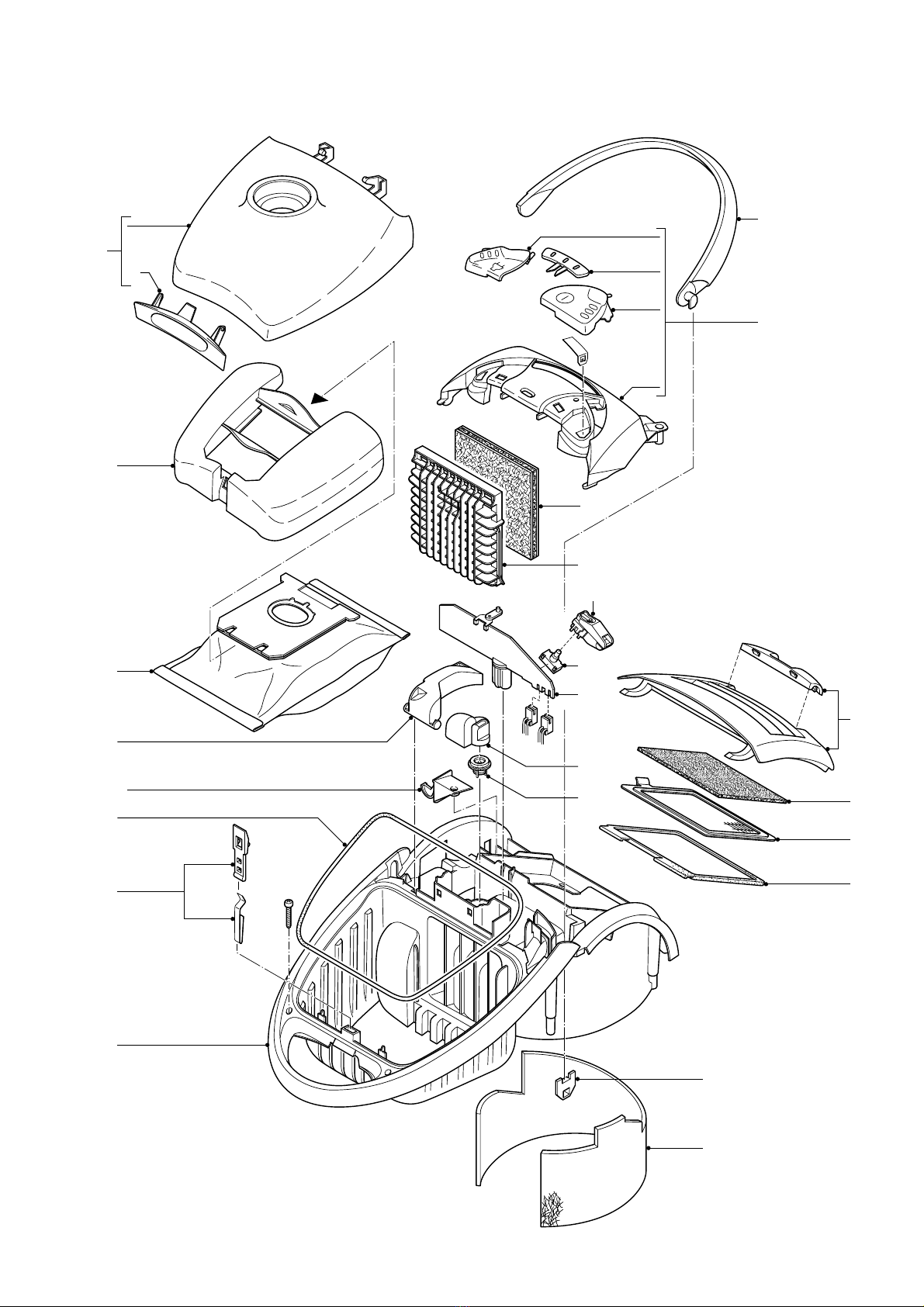

EXPLODED VIEW

11a

13a

13b

4-6

FC9106 /A /B

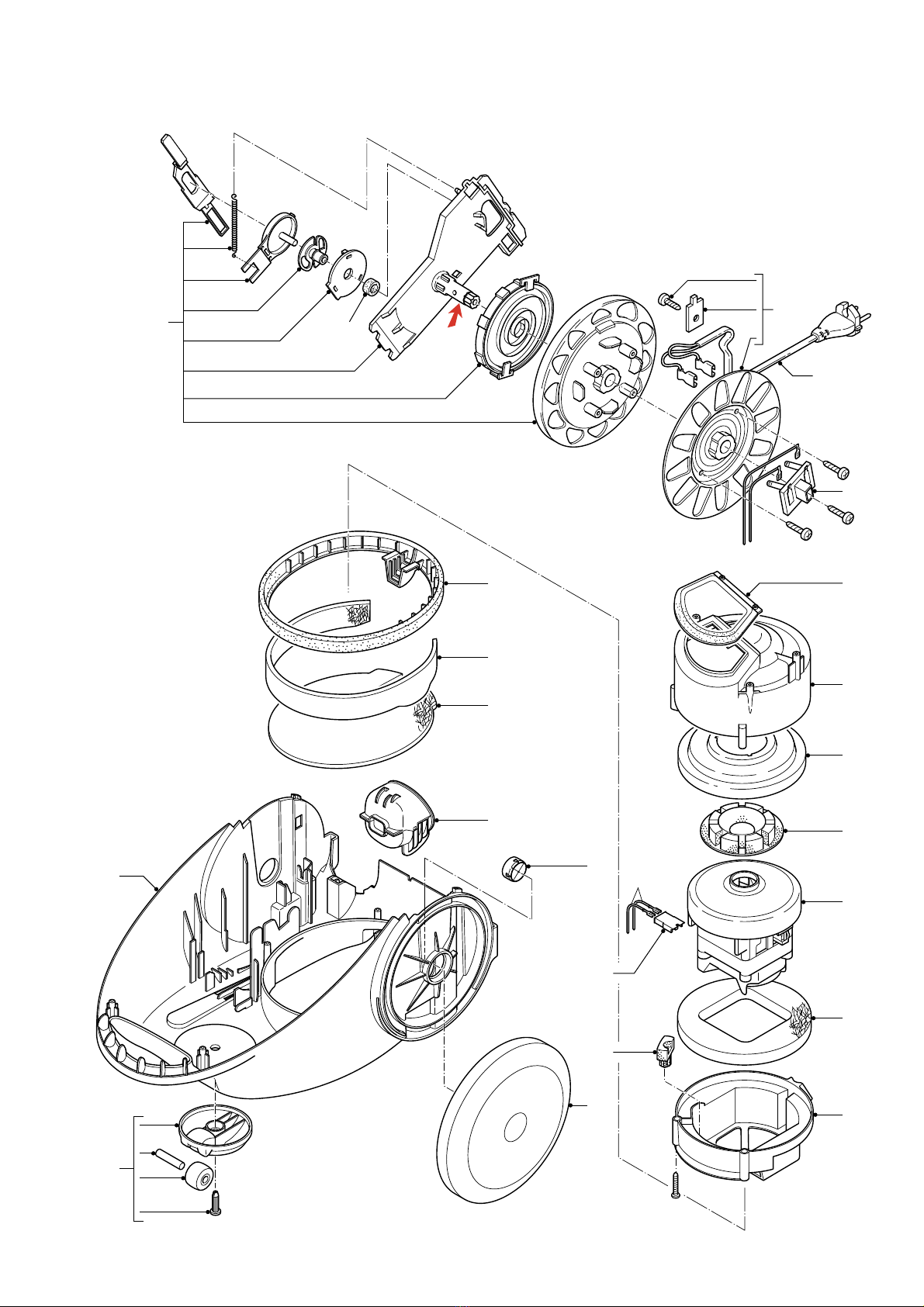

EXPLODED VIEW

black

brownblue

44÷49

40 41

5-6

FC9106 /A /B

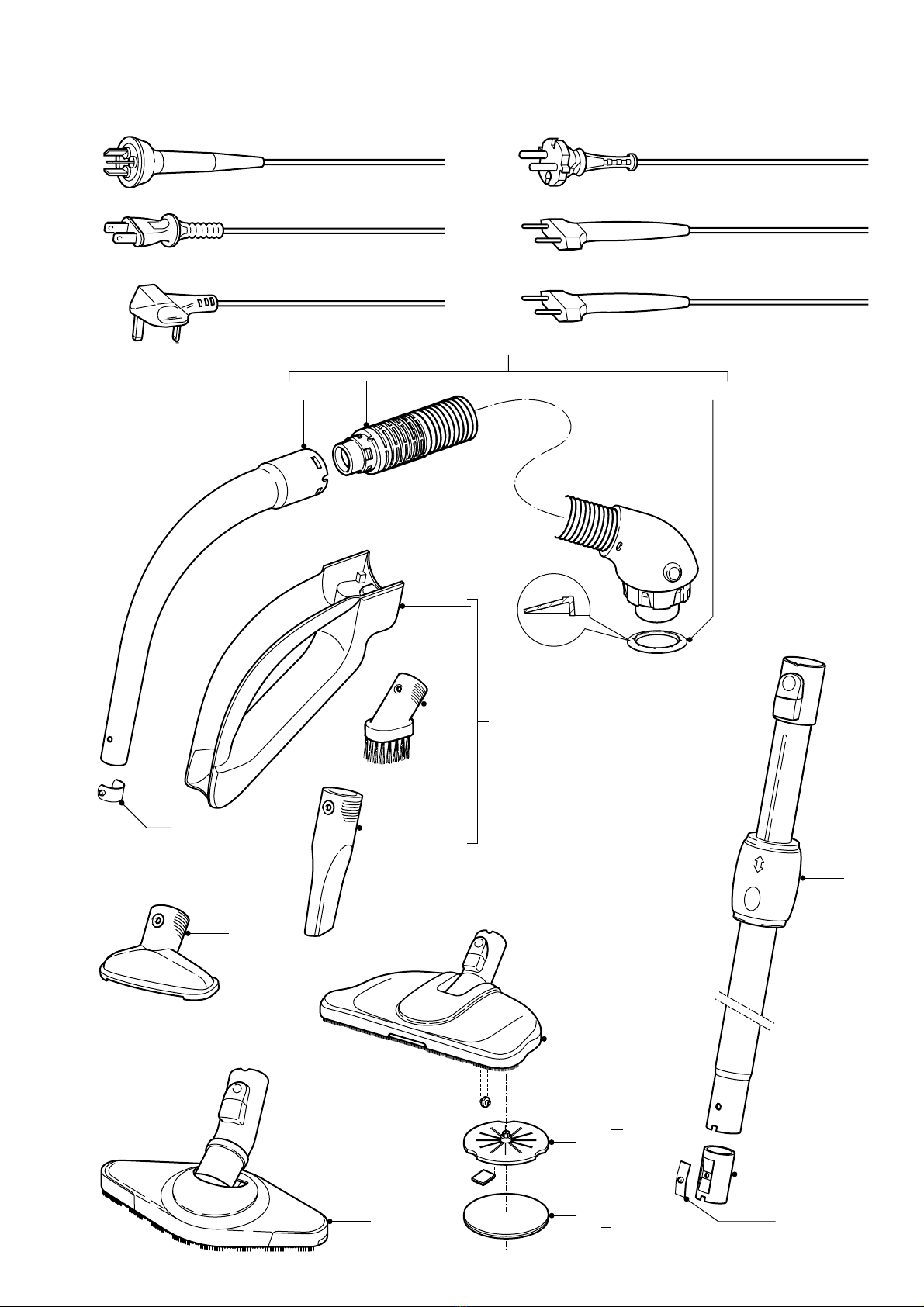

EXPLODED VIEW

Argentina

Australia

Taiwan 45

Europe Ø 4.8mm 47

Swiss 48

Italy 49

46U.K. / H.K.

50 72

6-6
