Philips FC9082 Manuel utilisateur

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9082

10/03

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Dark Raven/Delft Blue

- Power consumption : 1800 W (IEC) 230 V

- Maximum Air displacement : 40 l/s

- Vacuum : 30 kPa

- Duststorage capacity : 3 L

- Cord length : 8 m

- Fiter system : Classic S-Baglong

performance

: 3 layer permanent motor

protection filter

: Ultra clean air washable

HEPA13 exhaust filter

- Net weight : 7.5 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tube

- Handgrip : Ergonomic handgrip

- Accessories : Brush, crevice nozzle and

small nozzle

- Accessory storage : Active accessory holder in tube

- Coupling : Button coupling

OPTIONAL (accessories)

- FC8021 : S-bag Classic

- FC8022 : S-bag Clinic

- FC8023 : S-bag Anti-Odour

- FC8038 : Ultra clean air washable HEPA13 exhaust filter

FC9082

- To open the appliance, first remove the exhaust filter cover

and filter.

- Remove the hinge lock-pin (see pictures).

- Remove the dustcover by simultaneously pushing the click

hook in the hinge and bending the hinge outside with a

screwdriver (see picture).

- To be able to remove the upper housing the cord outlet

must be removed using a screwdriver in the lower section

(see picture).

- After removing the 6 screws (A) the upper housing can be

removed.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver

no. T10, which is one of a set consisting of T20; T15; T10;

T9; T8; T7 and T6 (code number 4822 395 50145).

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn.

- Item 16, safety valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- To prevent the switch getting damaged by too much force,

a protective ring (pos. 53) was added in the later versions.

If this part is missing it must still be placed as

modification!

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

2-7

= changed

FC9082

PARTS LIST

ELECTRICAL DIAGRAM

MOTOR

POWER

MODULE

Black

White

CORD WINDER

Brown

3-7

Pos Service code Description

4222 459 45586

4222 459 45614

4222 459 45583

4222 459 45611

4222 459 45616

4222 459 45612

4322 004 93350

4222 459 45615

4222 459 45613

4322 001 74110

4222 459 45625

4222 459 45624

4222 459 45592

4822 480 10228

4322 003 33280

4322 005 16990

4222 459 45595

4222 459 45618

4222 459 45617

4222 459 45619

4222 459 45589

4322 006 23880

4222 459 45590

4222 459 45593

4222 459 45594

4222 459 45606

4322 001 73440

Hinge pin

Dustc. assy FC9082 Dark raven

Dustbag detector incl. spring

Dustbagholder Dark raven

Handle assy Steel grey

Exhaust grille Dark raven

HEPA ﬁlter

Cord outlet kit Delft blue

HEPA lock grille Dark raven

Exhaust seal

Support right Dark raven

Support left Dark raven

Control wheel ring Chrome

Inlet ﬁlter

Inlet grille

DBFI/valve assy

Brake lever

CW button Dove blue

On/Off button Dove blue

Control wheel Delft blue

Switch lever

PCB assy Pilatus HV

Pedal spring

Backpanel/Dustchamber

Silencer 3

Motor housing top

Bufferring front

Pos Service code Description

39*

4322 009 09430

4222 459 45607

4222 459 45608

4322 001 73450

4222 459 45609

4222 459 45621

4222 459 45622

4322 009 00080

4322 005 26610

4222 459 45596

4222 459 45623

4322 006 07410

4322 006 07390

4322 006 07400

4222 459 45602

4222 459 45601

4222 459 45600

4222 459 45620

4222 459 45626

4322 005 27890

4322 005 27840

4322 003 35580

4322 005 27880

4322 004 20480

4322 004 20320

4222 459 48641

Motor Domel 1761 220-240 V

Silencer 4

Motor bracket

Buffer back

Motor housing bottom

Front handle inside Steel grey

Front handle outside Steel grey

Cordwinder no cord!

Contact plate

Rubber knee bend dustchamber

Casterwheel kit Dark raven

Cordset UK/HK 9 m

Cordset Euro 4.8 mm 9 m

Cordset Swiss 9 m

S-Class sealing

Silencer 2

Silencer 1

Lower housing Steel grey

Bend type 5/hose/connection assy

Dark raven

Accessory holder Dark raven

2p telescopic tube act. bush

Dark raven

Crevice nozzle Dark raven

Small nozzle Dark raven

Brush nozzle Dark raven

Tri-active nozzle Dark raven

Protective switch ring

* Standardized colour

= changed

FC9082

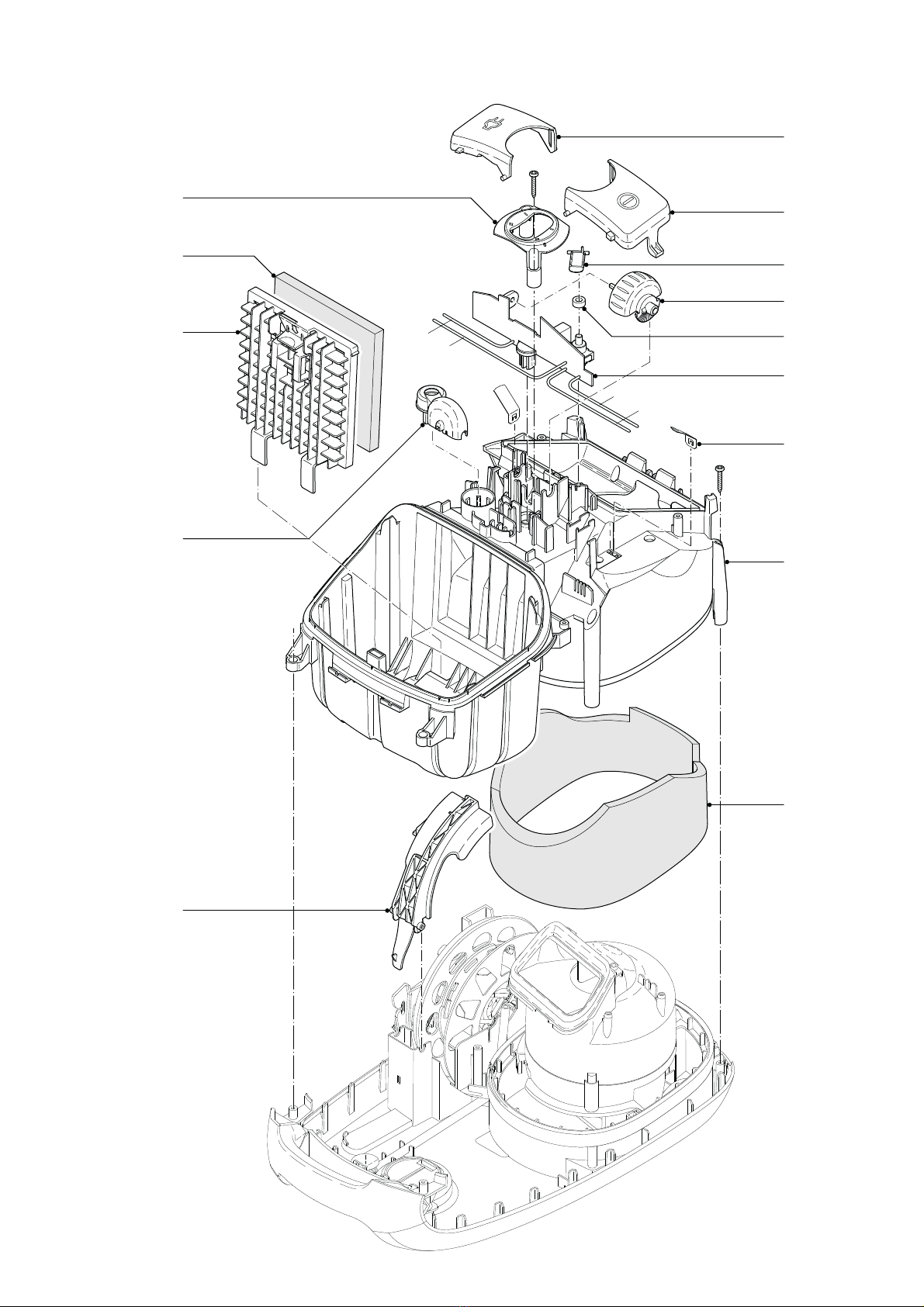

EXPLODED VIEW

4-7

FC9082

EXPLODED VIEW

Black

White

Brown

5-7

FC9082

EXPLODED VIEW

39 ÷41

White

Brown

Black

6-7

FC9082

EXPLODED VIEW

Europe Ø 4.8mm 40

Swiss

39U.K. / H.K. 41

7-7
