Philips FC7020 Manuel utilisateur

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Sweep and Steam Cleaner

FC7020/01

FC7020/71

FC7020/81

14/07 Version 1.2

PRODUCT INFORMATION

Safety

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

• Colour : Star white and

resilient blue

Design features

• Dust chamber and watertank : Translucent

Performance

• Power consumption : 1500 W

• Noise level (Lc IEC) : <75 dB

• Input power (max) : 1500 W

Steam Management

• Heating-up time : <30 s

• Runtime (steaming) : 20 min

• Steam capacity : 20 g/min

• Steam temp. at nozzle : >100 °C

• Watertank size : 450 ml

Usability

• Adjustable telescopic stick : 100 - 120 cm

• Cord length : 6 m

• Removable stick assembly : From body (with a screw)

• Stand by mode : Auto steam shut-off

Weight and dimensions

• Dimensions microfiber pad : 27 x 11 cm

• Dimensions nozzle : 28 x 18 x 4.5 cm

• Dimensions appliance : 16 x 32 x 112 cm

• Weight (kg) : <3 kg

ACCESSORIES

• 1 parking pad

• Cleaning : 2 microfiber pads, Fast rotating brush

OPTIONAL (accessories)

• FC8056 : 2 microfiber pads and 1 filter assy

FC7020/01 /71 /81

2-8

• To replace the Rotating Brush (14) of the nozzle:

Turn the appliance upside down, open the Roller Brush

cover (18) by lifting it. Take the brush out by lifting it on

the right side and moving it out sideways to the right.

• To place the Brush, position the Brush over the Roller

Holder assy (13) then “click” the Brush into place at the

Roller Brush cover and close the Roller Brush cover.

• To replace the Brush Motor (15), Driving belt (12) and

Roller Holder assy (13):

Remove the 10 screws (D) on the bottom of the Nozzle

and push the 3 clicknocks on the front side with a

screwdriver, now the components can be reached.

• To replace the pump (10):

First remove the Water Tank (3) and Filter assy (4).

Remove the 4 screws (C), and remove the cover.

Now the pump is visible. Remove the clips from the

hoses and the valve and replace the pump.

C C

Remark:

• You can use the delivered Pin (5) in the small plastic bag

for “unclogging” the little hole on the bottomside of the

Nozzle in case some calcium is present in the hole.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

FC7020/01 /71 /81

3-8

REPAIR INSTRUCTION

• If the Cordset needs to be repaired, in the repair centers

you need to add a connection box yourself.

• Because from wk. 1347 onwards the connection box has

been replaced by a plastic cap, see pictures.

Old situation:

New situation:

FC7020/01 /71 /81

4-8

0.47µF

KBP310

220V

50Hz

SW2

Brush On/Off switch

Steamer

switch

SW1

Heating On/Off switch

M+

M–

0.5A

L1-2

C1-2

C1-1

L1-1

Motor Pump

2.2nF

4.7µF

400V

0.47µF

C1 51Ω/2W

39k

330k

4007

721

Heater Steam

D10

4007

TP2 TP1

Heating

Element

1250W

Open

100°C

Closed

100°C

47µF

12V

240°C

Frequency

converter

Relay

SRC4078

5348

15mH

30µH

CIRCUIT DIAGRAM

PARTS LIST

Pos Service code Description Remark

9965 100 65711

9965 100 60777

4322 004 93841

9965 100 60767

9965 100 60768

Telescopic tube assy

Water tank

D.Calc lter

Pin for decalcication

Cleaning padholder

4322 004 93831

4322 006 09351

4322 006 09391

4322 006 09361

9965 100 60775

Cleaning pad

Cordset Octopus EU

Cordset Octopus AU

Cordset Octopus China

Front body (incl. Switch)

FC7020/01

FC7020/71

FC7020/81

4322 006 95031

9965 100 60766

9965 100 60771

9965 100 60776

9965 100 60765

Pump M2

Dust tank

Driving belt

Roller Holder assy

Rotating brush

220 - 240 V ~ 50 / 60 Hz 18 W

4322 006 95021

9965 100 60778

9965 100 60774

9965 100 60769

9965 100 70991

Motor H41-5HA1033B

Wheel big

Wheels small

Roller Brush cover

Nozzle assy

230 V 50 Hz

9965 100 70993

9965 100 70992

9965 100 70994

Hose clamp

Shrink tube

Tiewrap

FC7020/01 /71 /81

5-8

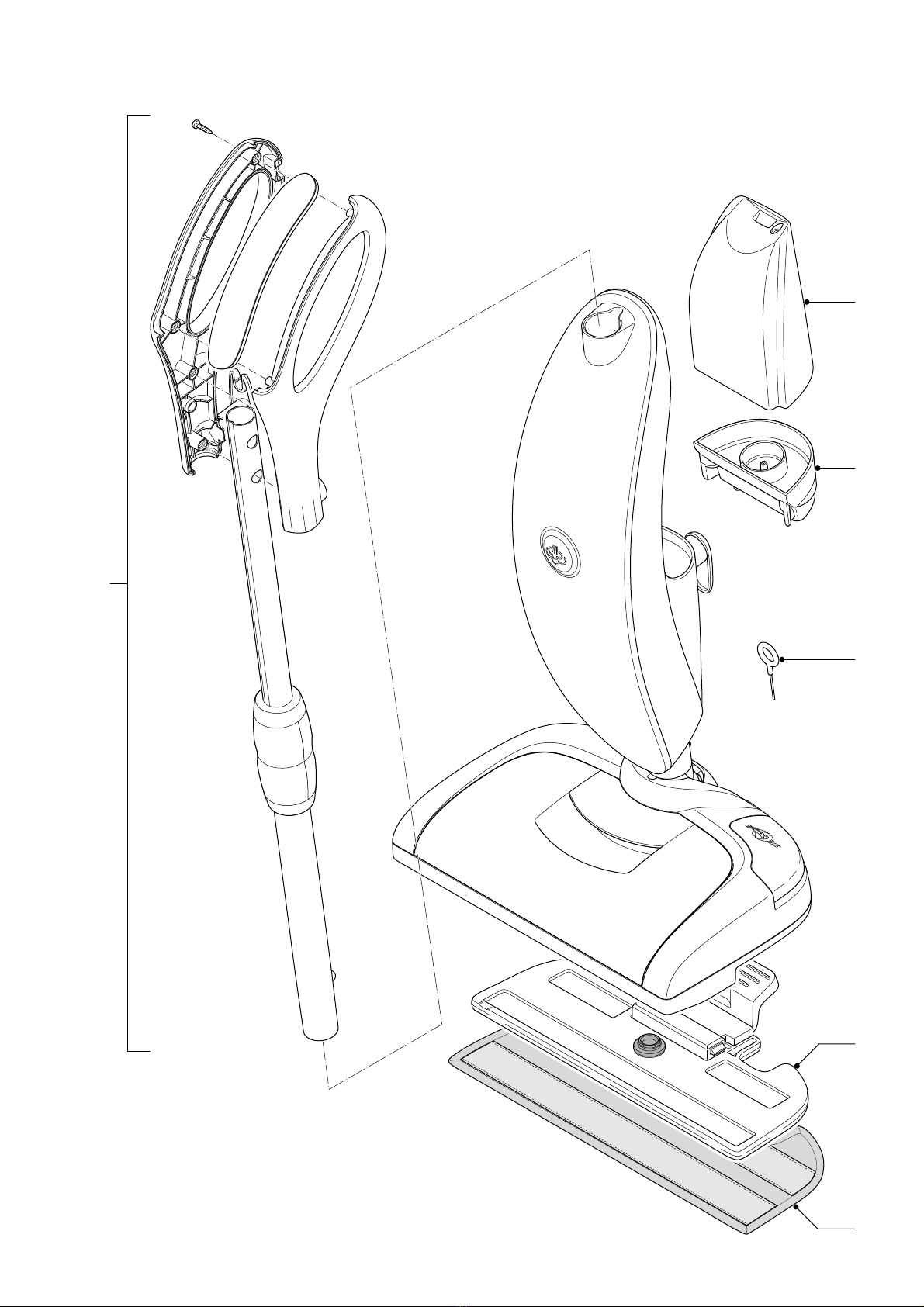

EXPLODED VIEW

FC7020/01 /71 /81

6-8

10x

EXPLODED VIEW

FC7020/01 /71 /81

7-8

10x

17 (2x)

16 (2x)

EXPLODED VIEW

FC7020/01 /71 /81

8-8

Version history

Version 1.1 : FC7020/01 / FC7020/71 / FC7020/81 initial release.

Version 1.2 : In Parts List and Exploded views:

Added: Pos. 19, 9965 100 70991 Nozzle assy

Added: Pos. 20, 9965 100 70993 Hose clamp

Added: Pos. 21, 9965 100 70992 Shrink tube

Added: Pos. 22, 9965 100 70994 Tiewrap
