ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC8722

07/03

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Raven Black

- Power consumption : 1800 W (IEC) 230 V

- Maximum Air displacement : 33 l/s

- Vacuum : 250 mbar / 25 kPa

- Duststorage capacity : 2 L

- Cord length : 7 m

- Fiter system : HEPA cyclone-filtration

system

: Permanent motor

protection filter

: HEPA exhaust filter

- Net weight : 6 kg

ACCESSORIES

- Special nozzle : Turbo Brush nozzle

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Brush, crevice nozzle and small

nozzle

- Accessory storage : Active accessory storage bridge in

handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC8047 Filter Cylinder + Motor inlet Filter

FC8722

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- To open the appliance, first remove the filter cover

(item 17).

- Remove the dust bucket including filter.

- Remove the turn plate cover (item 6) after removing the

2 screws (A).

- Remove the 6 screws (B) at the bottom of the appliance.

For 2 screws a screwdriver with a 14.5 cm long shrank is

required. Screwdriver 4322 009 08490 for T15 is suitable

for this.

- Lift the upper housing by pulling only the middle of the

backside up (use a screwdriver if necessary).

- Remove the potmeter connector from the printed circuit

board.

- Do not forget to reconnect the potmeter when re-assem-

bling the upper housing (connector fits in one way only).

- When the repair is finished, check whether all functions of

the appliance work properly.

Further disassembly advise for the potmeter:

- Remove the turn knob by just pulling it (use a screwdriver

if necessary).

- Remove the 2 screws (C) inside the upper housing, use

TORX screwdriver no. T10, which is one of a set consisting

of T20; T15; T10; T9; T8; T7 and T6 (code number

4822 395 505145).

REPAIR INSTRUCTION

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx 1.5 turns.

- Item 22, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- Both item 22, air valve, and item 23, inlet tube B, must be

replaced in appliances produced before WK626. This to

prevent/solve premature and noisy opening of the valve.

- If the function of the electronic control unit is not required,

the Triac must be short-circuited in the manner shown in

the circuit diagram.

- Filter performance can be improved (less reduction of

suction power in time) replacing both Filter assy (pos. 25)

and Bucket cover assy (pos. 26) by using “improved filter

service kit” 4322 009 09790 (pos. 58).

- Separate “long Filters” are available under code

4322 004 93320 (pos. 57)

ELECTRICAL DIAGRAM

White

Switch

Cordwinder

Potmeter

Blue

Red

Motor Power Module

Blue

White

Triac

Short-

circuit

2-7

= changed

FC8722

PARTS LIST

3-7

Pos Service code Description

9965 000 33690

9965 000 33716

9965 000 33692

4322 004 20130

9965 000 33693

9965 000 33717

9965 000 33695

9965 000 33696

9965 000 33697

9965 000 33698

9965 000 33699

4322 004 93310

9965 000 33700

9965 000 33701

9965 000 33702

9965 000 33703

9965 000 33718

8838 044 01010

9965 000 33706

9965 000 33707

4322 005 19110

9965 000 33708

9965 000 27741

4322 004 93300

9965 000 33719

9965 000 33720

9965 000 33711

4322 009 09420

4322 005 17910

Turn knob

Upper housing assy Raven Black

Potmeter kit

Filter cleaning brush

Turnplate

Turnplate cover Raven Black

Turnplate lever

PCB Assy

Air inlet tube A

Motor cover B

Air Inlet Sealing

Air Inlet Filter

Motor cover B buffer ring

Motor Cover A

Dustbucket support

Motorcover A bufferring

Backgrille assy Raven Black

Hepa Filter

Cooling tube

Safety valve cover

Safety valve assy

Air inlet tube B

Switch

Filter assy

Bucket cover assy Raven Black

Dustbucket assy Raven Black

Cordwinder cover

Cordwinder assy (no cordset)

Contactplate ass’y

Pos Service code Description

9965 000 27730

9965 000 33712

4322 000 38820

4322 001 73450

9965 000 33713

4322 001 73440

4322 003 26030

4322 009 09400

9965 000 33714

4322 006 01410

4322 006 01670

4322 006 01680

4322 006 07470

4322 003 25510

4322 005 19130

4322 007 16000

4322 003 25560

4322 005 17590

4341 004 20510

4822 532 60688

4822 492 62163

4322 004 23280

4322 004 23260

9965 000 33715

4341 004 20490

4322 004 22960

4322 004 93320

4322 009 09790

9965 000 45369

Caster assy

Cord outlet

Silencer A

Buffer Back

Silencer B

Motor buffer front

Bracket

Domel service kit

Lower Housing

Cordset Euro 4.8 pin L = 9.3 m

Cordset Swiss L = 9.3 m

Cordset Taiwan L = 6.3 m

Cordset UK/HK L = 7.3 m

Curve Bend B1

Curve Bend B1/Hose assy

Leafspring

Crevice Nozzle

Accesoire bridge assy

Plumeau assy

Tube bush

Tube spring

Telescopic tube

Tri-Active Nozzle stand

Tap turn assy

Small Nozzle

Turbo Nozzle

Improved Filter

Improved Filter service kit *

Silencer C

* Standardized grey colour.

= changed

FC8722

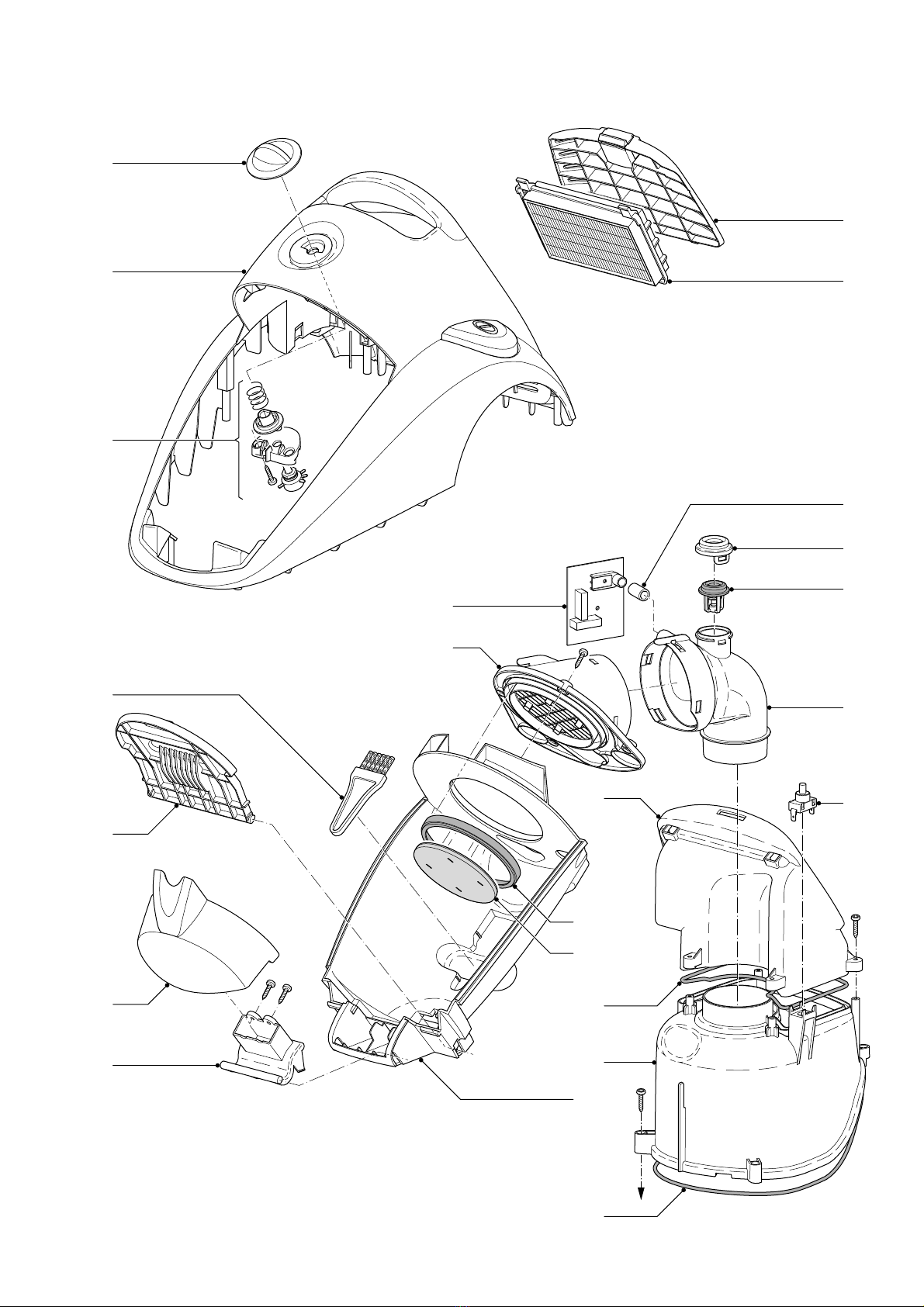

EXPLODED VIEW

4-7

FC8722

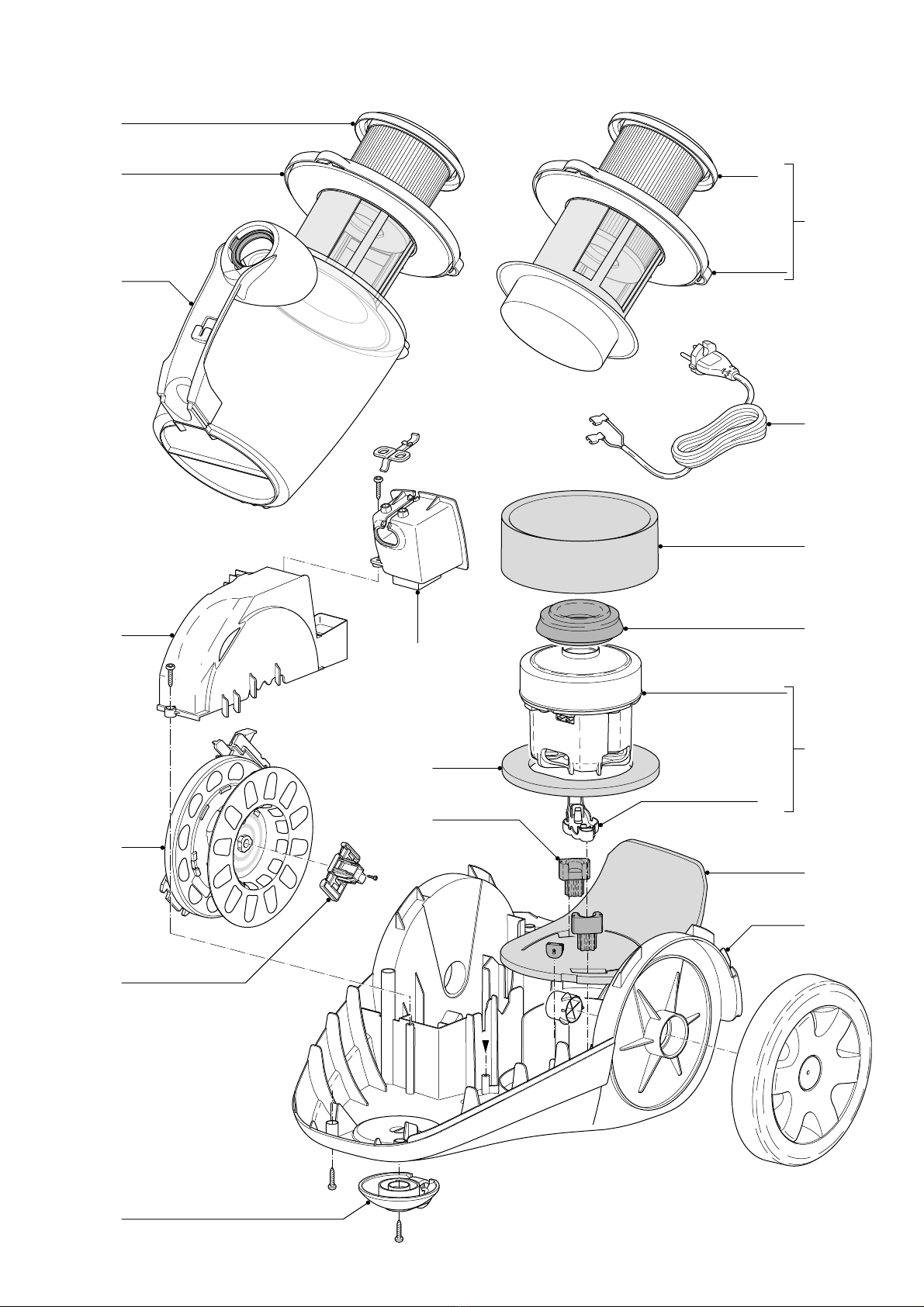

EXPLODED VIEW

40 43

5-7

FC8722

EXPLODED VIEW

Taiwan. 42Europe 40

Swiss 41 43U.K. / H.K.

4849

6-7

FC8722

EXPLODED VIEW

7-7
