ServiceManual

Philips Consumer Lifestyle

SmartPro Easy Robot

FC8794/01

FC8794/31

FC8794/82

18/04 Version 1.5

Product information

•This product meets the requirements regarding

interference suppression on radio and TV.

•After the product has been repaired, it should function

properly and has to meet the safety standards as

officially laid down at this moment.

Performance

•Battery type : Li-Ion

•Battery voltage : 10.8 V

•Charging time : 4 hour(s)

•Runtime : 115 minute(s)

•Suction power (max) : 6 W

•Suction Power (max Pa) : 600

•Sensors : 23 sensors

Usability

•24-hour scheduling

•Cleaning modes : 4

•Types of Floors : Carpet, Hardfloor

Filtration

•Dust capacity : 0.4 L

•Exhaust filter : EPA 12 filter

Nozzles and accessories

•Accessories included : AC power adaptor, Charging

base, Micro fiber pad,

Side brushes, Exhaust filter,

Remote control

Sustainability

•Packaging : > 90% recycled materials

•User manual : 100% recycled paper

Weight and dimensions

•Dimensions of product : 300 x 300 x 58.5 mm

(L x W x H)

•Weight of product : 2 kg

Optional (accessories)

•FC8007/01 Filter + Brush (for Europe)

•FC8007/81 Filter + Brush (for China)

•FC8008/01 2x Mop Pad (for Europe)

•FC8008/81 2x Mop Pad (for China)

Production date

FC8794/01 /31 /82

2-20

Consumer Replaceable Parts

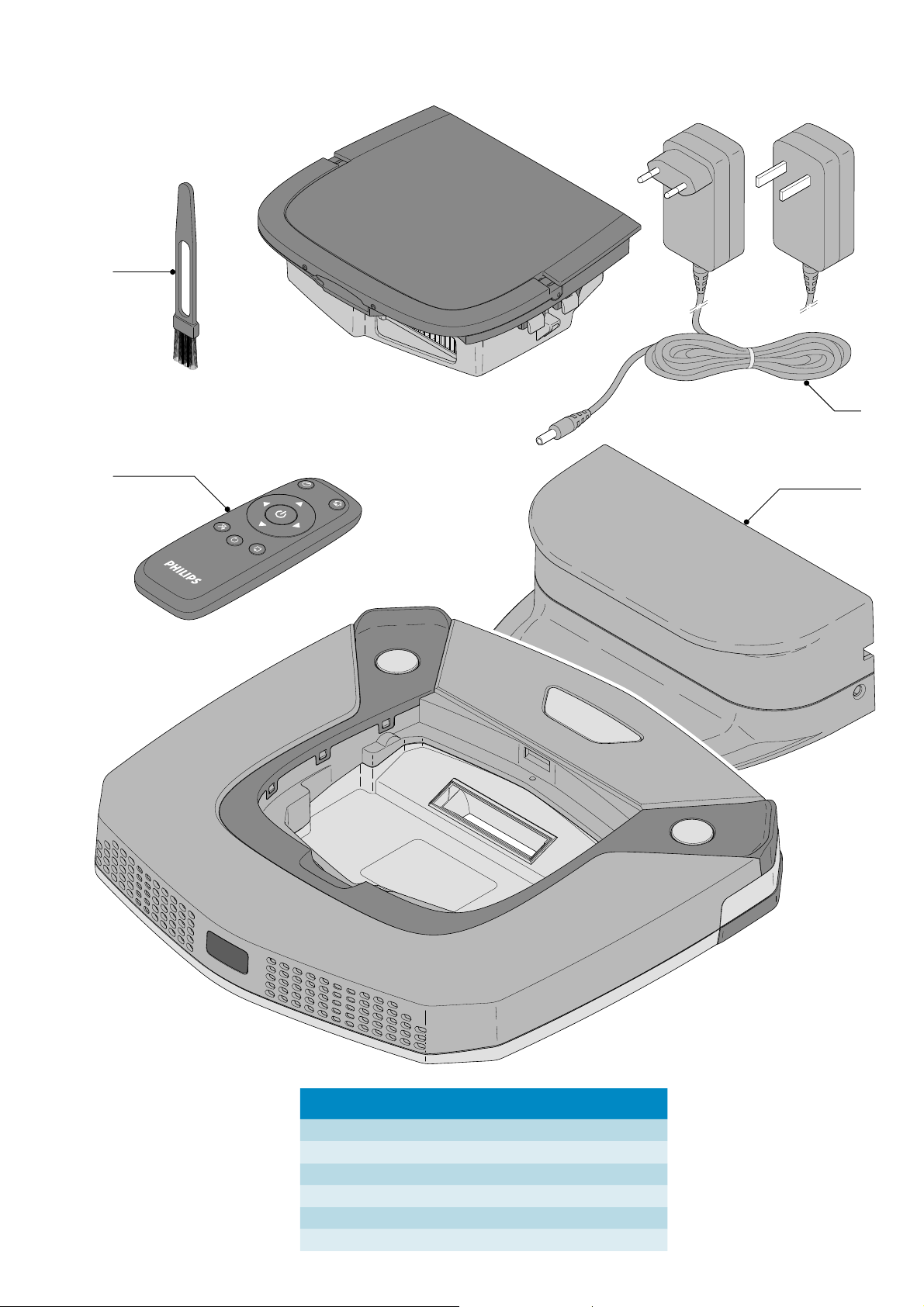

Pos Description Remark Service code

1 Brush 4322 004 26781

2 Remote control 4322 006 22201

3 Switching adaptor EU plug 4322 006 10401

Switching adaptor China plug 4322 006 21891

Switching adaptor Taiwan plug 3000 017 10231

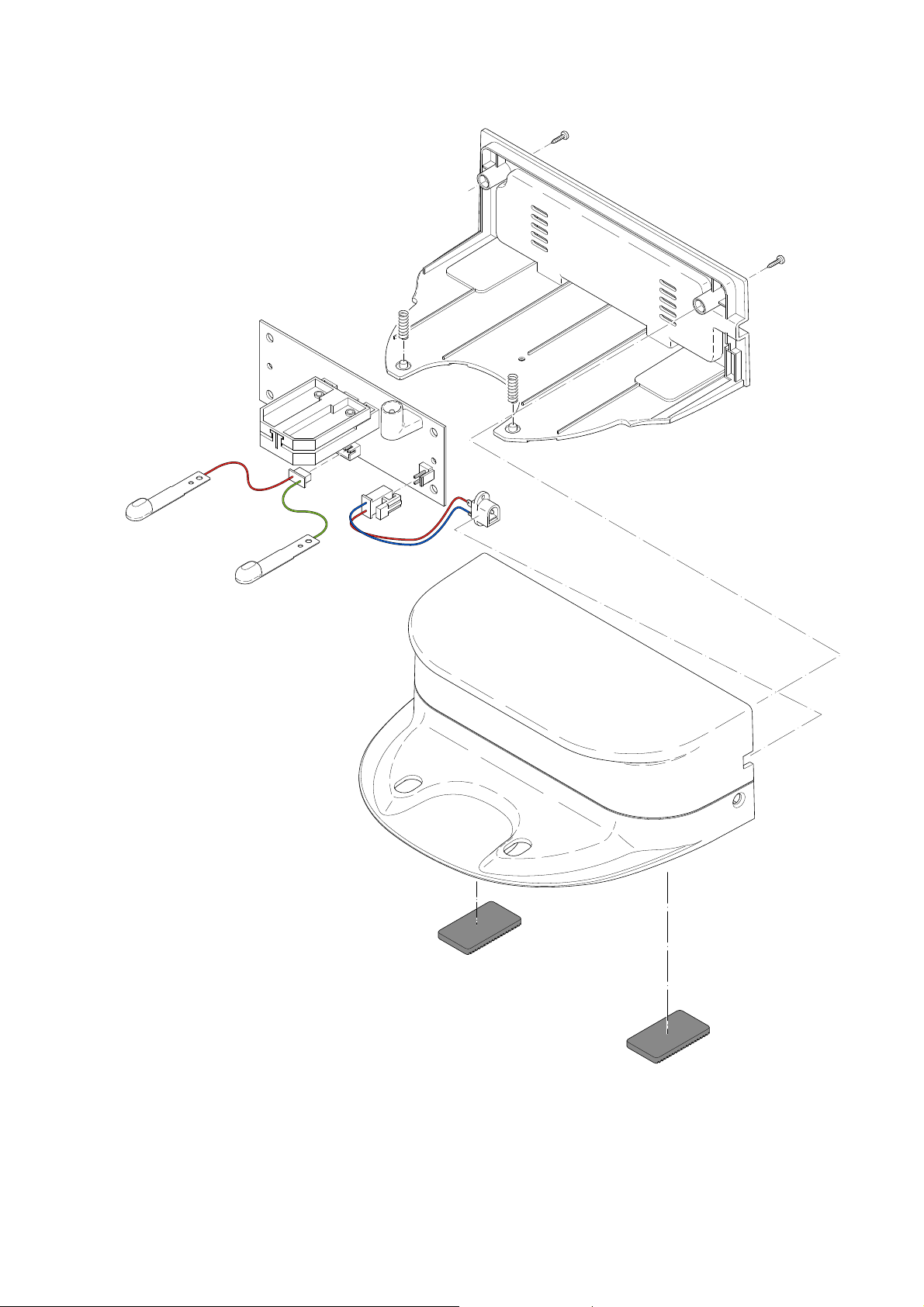

4 Docking station 4322 006 22101

FC8794/01 /31 /82

3-20

Service Parts

Pos Description Remark Service code

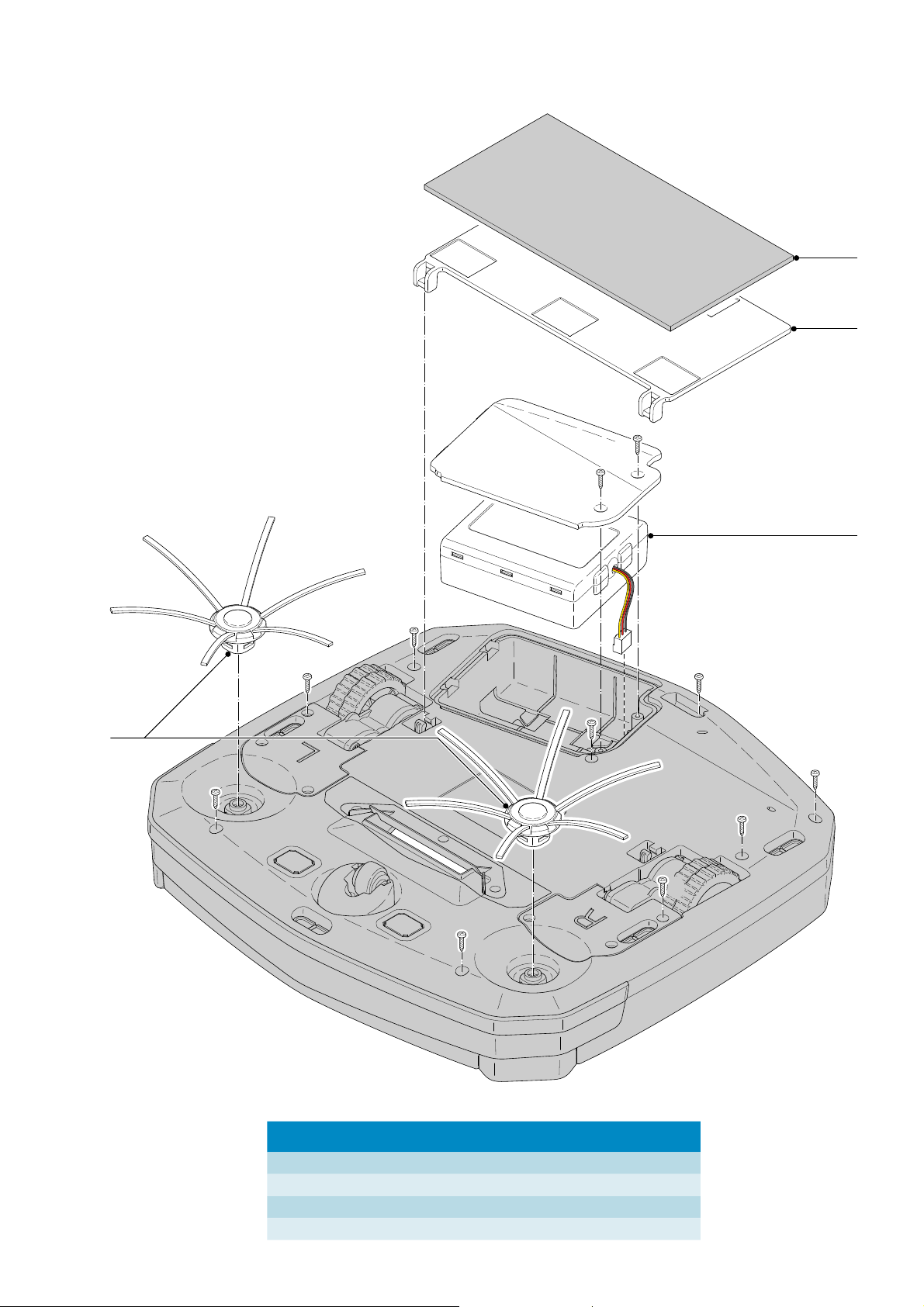

5 1 pair of Side brushes 4322 004 26752

6 Mop pads 4322 004 94441

7 Mop holder 4322 004 26771

8 Rechargeable battery pack assy 2200 mAH 4322 005 38071

FC8794/01 /31 /82

4-20

Service Parts

Pos Description Service code

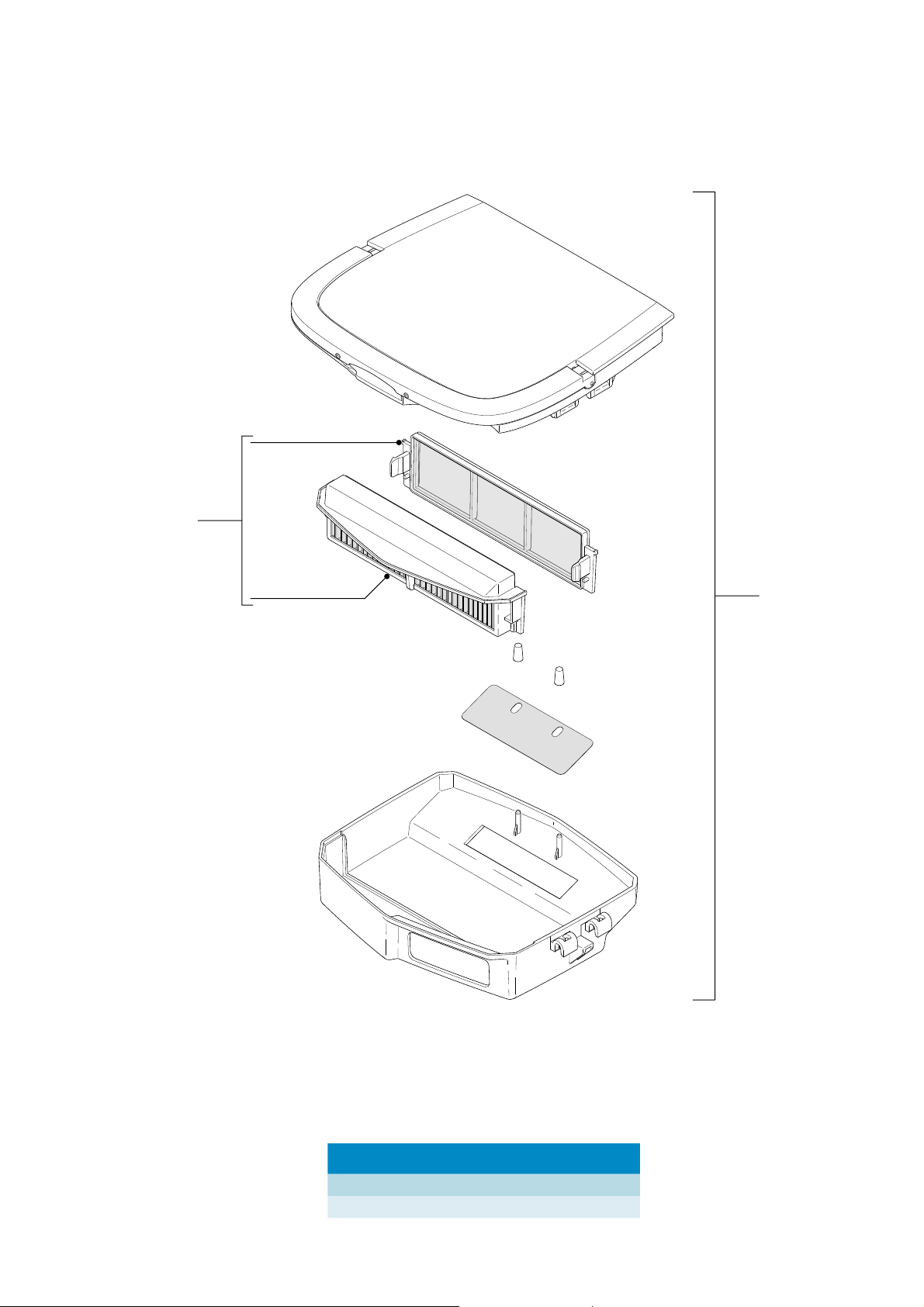

9 Filter castor 4322 004 94431

10 Dustbin assy 4322 005 38111

FC8794/01 /31 /82

5-20

Service Parts

Pos Description Service code

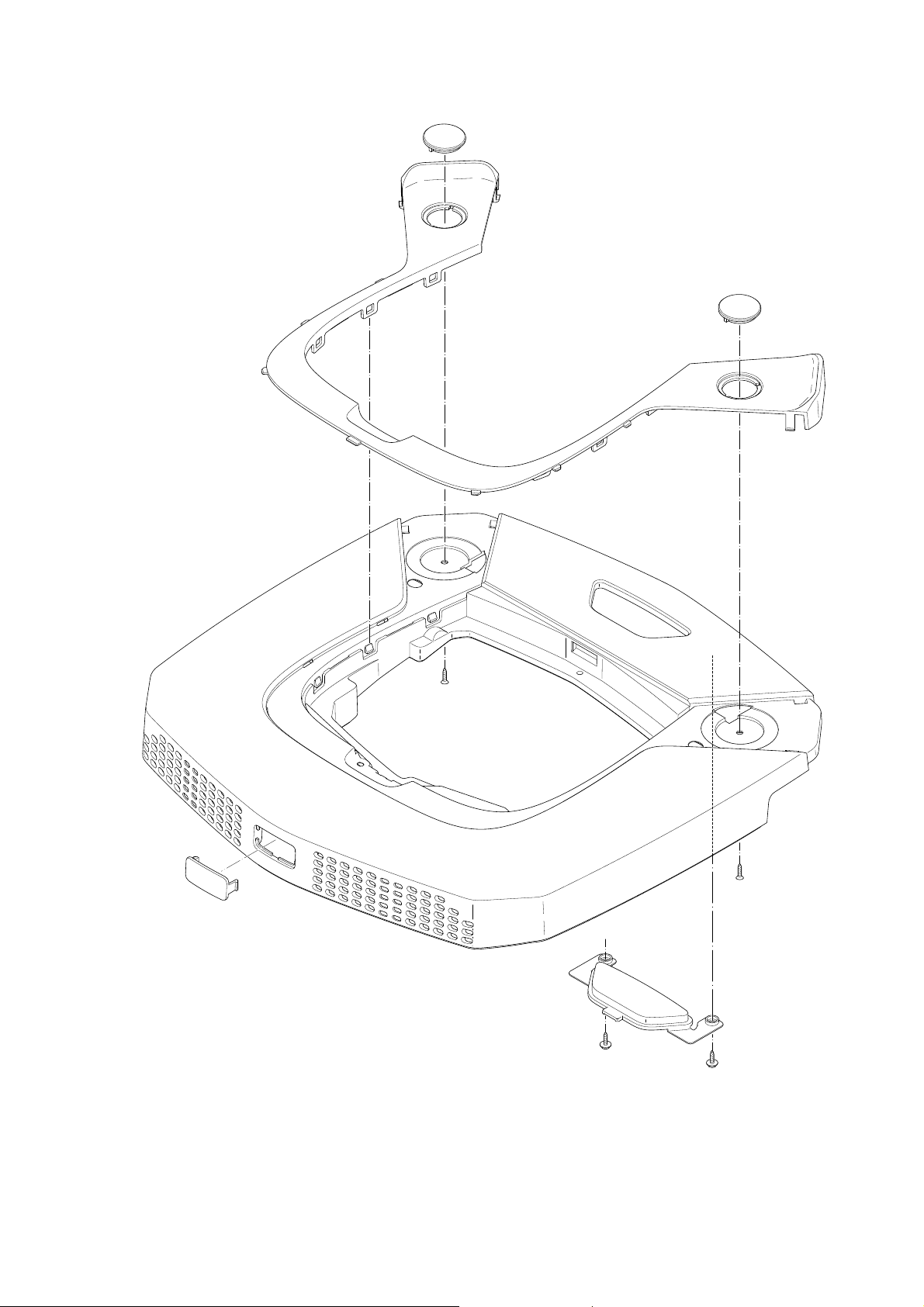

11 Main PCBA 4322 006 26201

12 Bumper PCBA 4322 006 26211

FC8794/01 /31 /82

6-20

Service Parts

FC8794/01 /31 /82

7-20

Service Parts

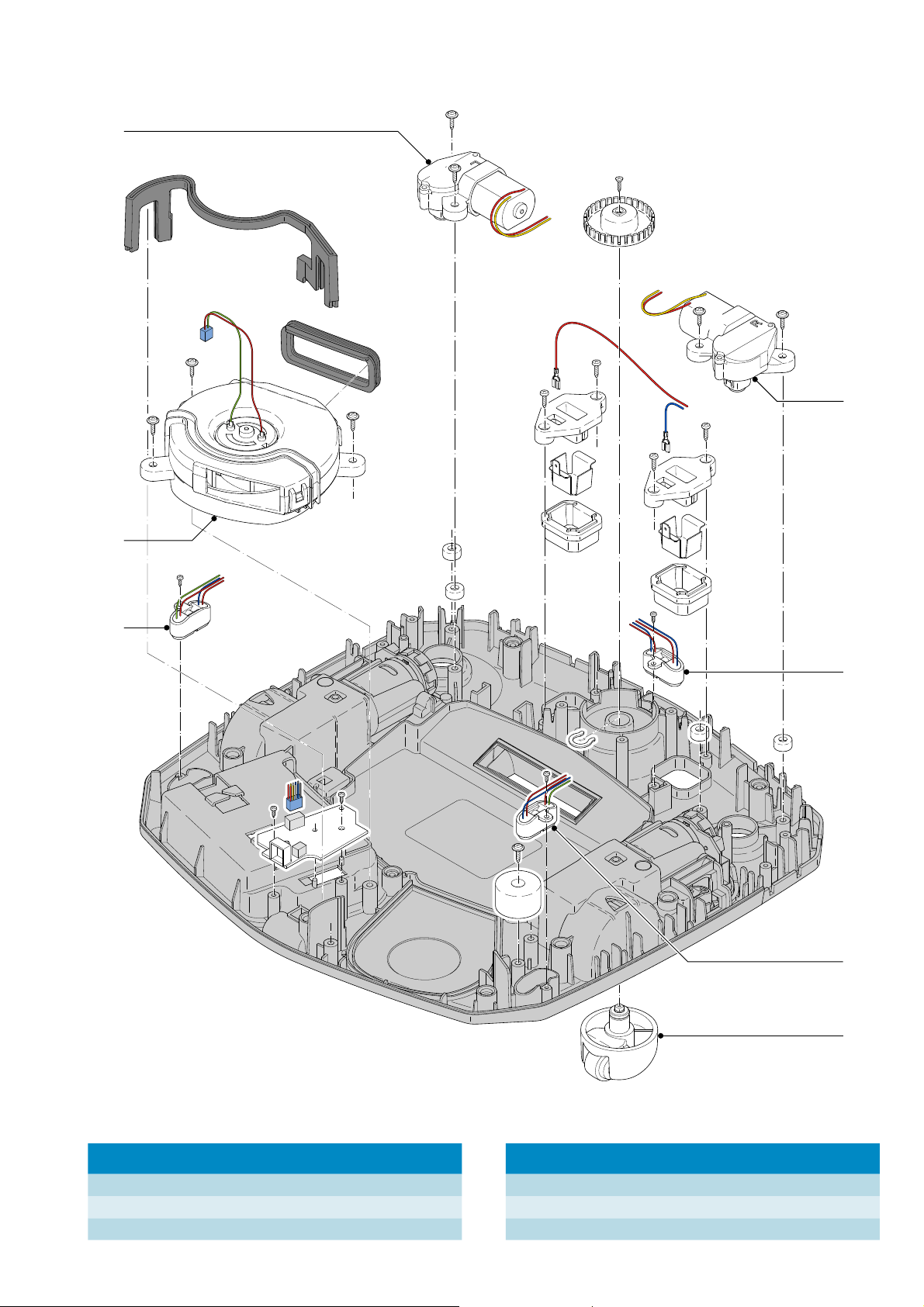

Pos Description Remark Service code

13 Side brush motor assy Left 4322 005 38091

14 Suction motor assy Castor 4322 005 38061

15 Side cli sensor assy 2x 4322 005 38151

Pos Description Remark Service code

16 Side brush motor assy Right 4322 005 38101

17 Front cli sensor assy 4322 005 38161

18 Nose wheel assy 4322 005 38141

FC8794/01 /31 /82

8-20

Service Parts

Pos Description Remark Service code

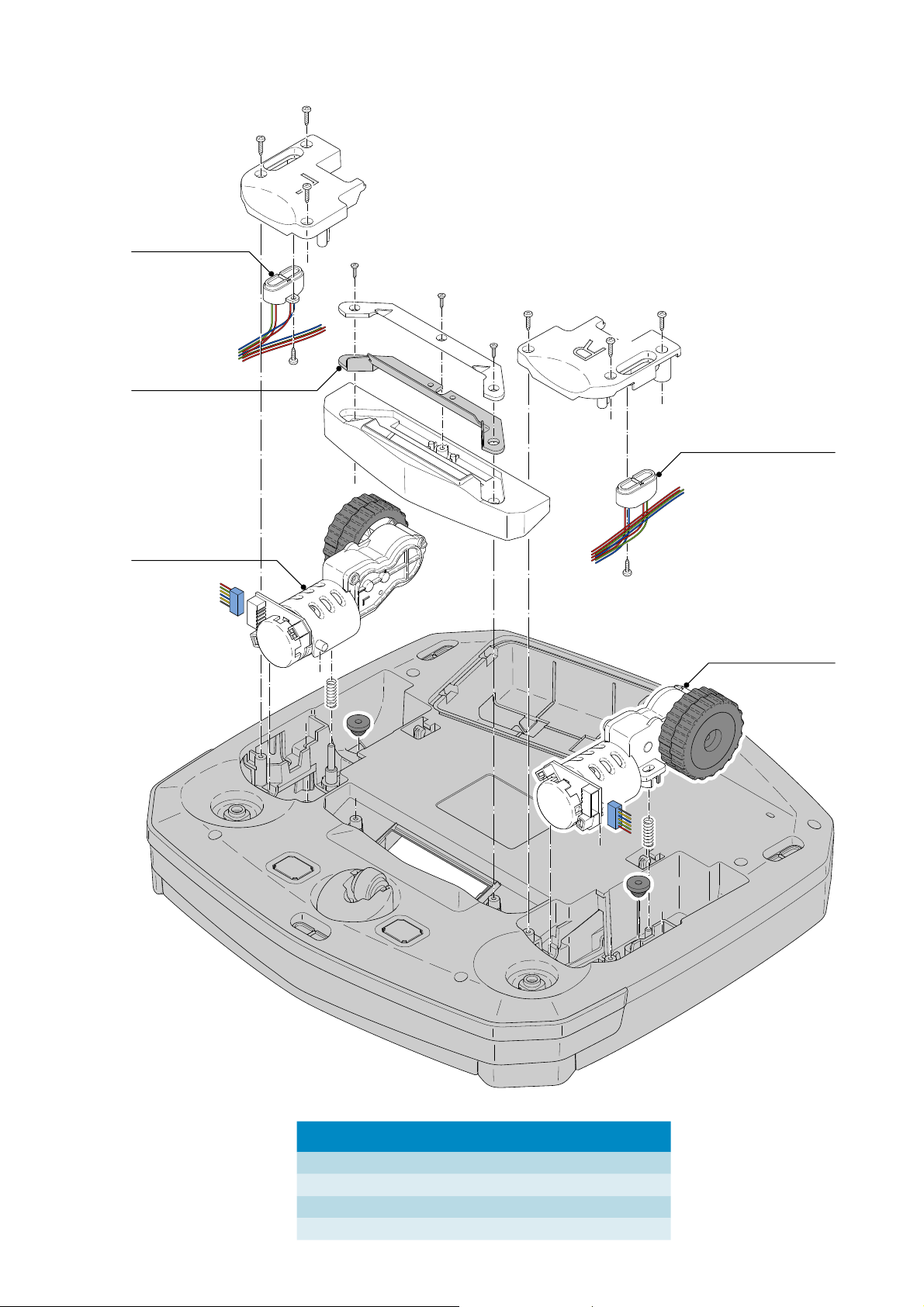

15 Side cli sensor assy 2x 4322 005 38151

19 Nozzle strip 4322 004 26761

20 Left wheel assy 4322 005 38121

21 Right wheel assy 4322 005 38131

FC8794/01 /31 /82

9-20

Service Parts

FC8794/01 /31 /82

10-20

•Remove the Dustbin assy.

•The cover of the Dustbin assy can be unlocked.

•The HEPA filter inside can be replaced.

•Turn the appliance.

The brushes can easily be pulled of and replaced after

hearing the <click> the brush is placed in a correct way.

•To remove or replace the Wheel assy:

Remove the 2 screws Aand screw Bto remove the Cover

plate of the Wheel assy. (see exploded view on page 8)

The Wheel assy can be unplugged by disconnecting the

connector (Left and right).

Disassembly- and Reassembly advice
