Philips FC8654/01 Manuel utilisateur

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Vacuum cleaner

FC8654/01

15/05 Version 1.4

PRODUCT INFORMATION

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

• Colour : Full Red

• Input Power (IEC) : 1800 W

• Suction Power : 425 W

• Noise level : 82 dBA

• Dustcapacity : 4 L

• Filtration : HEPA 10 Filter

• Cord length : 6 m

• Action Radius : 9 m

• Connection : Conical

• Dimensions : 44 x 30 x 20 cm

• Weight : 5 kg

ACCESSORIES

• Standard nozzle : Multi-purpose Nozzle

• Tube : Metal 2-piece telescopic tube

• Accessories : Crevice nozzle and Small nozzle

REPAIR INSTRUCTION

• No specific issues

OPTIONAL (accessories)

• Smart Cleaning Kit 4322 004 25481

• Filter assy FC8059/01

FC8654/01

2-8

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

• First remove the dust bag.

• To replace the Valve assy (10), turn the appliance upside

down and remove bottom plate (16) by removing

screwD. Now by using a screwdriver the valve assy can

be removed (see picture).

• Remove the dustcover assy (1) using a screwdriver

(see picture).

• To disassemble the Back housing (9):

Remove the 4 screws B. (see exploded view).

To reach the 2 screws on the back, first remove the

On/Off button (12) and the small panel, which has 4

snap locks! (see pictures).

• Disconnect the connector from the potmeter PCBA.

• To remove the Turning knob (8) & Potmeter PCBA:

Turn the Back housing upside down and remove the 2

screws C. The potmeter PCBA can now be removed

and replaced.

• Turning knob (8) can be pushed to the outside with a

screwdriver.

• The On/Off switch (20) can be replaced by unplugging

the two wires.

• To replace the main PCBA (19) remove the small 2

screwsE(see exploded view)

• The Cordwinder (17) can be removed by pulling it

in upwards direction and unplugging the two wires,

the Cordwinder can replaced by placing it back in the

opposite direction.

• To replace the Motor assy (22):

Disassemble the Motor housing (21) by removing the 4

screws F(see exploded view).

FC8654/01

3-8

220 - 240V

50Hz

27-¼W

TR1

Motor

TMP

10M-¼W

0.47F

275V

100nF

ZD1

4.7V

½ W

330F

16V

1N4007

10k-1W

47k

12 13

PARTS LIST

ELECTRICAL DIAGRAM

Pos Service code Description Remark

9965 100 68363

9965 100 68384

9965 100 68376

9965 100 68356

4322 004 93931

Dust cover assy

Dust cover lock

Dustbag holder

DBFI assy (Red)

Motor inlet lter

Full Red 20920

Basic Blue 61192

Atlas

9965 100 68372

9965 100 68381

9965 100 68373

9965 100 68367

9965 100 68355

Motor inlet lter frame

Cordwinder button

Turning knob

Back housing

Valve assy

Deep Black 80231

Full Red 20920

9965 100 68357

9965 100 68379

9965 100 68374

4322 004 93941

9965 100 62294

Casterdish assy

On/Off button

Exhaust lter frame

HEPA 10 lter

Rear wheel assy

Deep Black 80231

Atlas

9965 100 68378

4322 005 34991

9965 100 68377

4322 006 25051

9965 100 60949

Bottom housing plate

Cordwinder 6 m round cord

Bottom housing

PCBA

Switch

Deep Black 80231

4.8 Plug Atlas

Deep Black 80231

220 - 230 V Atlas

9965 100 68371

4322 009 00731

4322 004 25421

4322 004 25061

4322 004 25121

Motor housing

Service assy motor

Atlas hose assembly

Metal telescopic tube Conical 35 mm

Small nozzle Conical 35 mm

1800 W Kingclean

Deep Black 80231

4322 004 25111

4322 004 25101

4322 004 25201

Crevice nozzle Conical 35 mm

All oor nozzle # 34 Conical 35 mm

Accessory holder Easylive

Deep Black 80231

FC8654/01

4-8

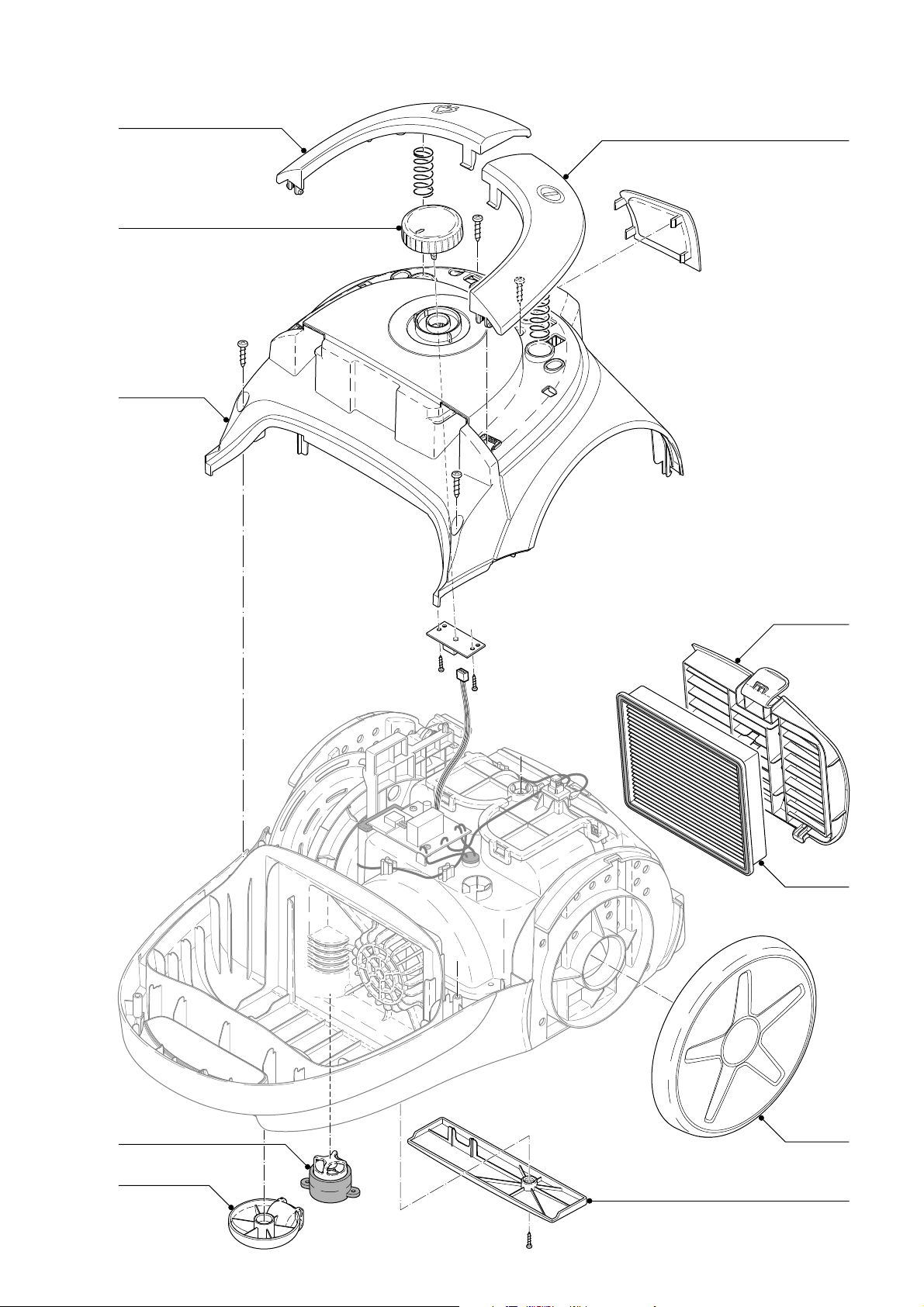

EXPLODED VIEW

FC8654/01

5-8

EXPLODED VIEW

FC8654/01

6-8

EXPLODED VIEW

FC8654/01

7-8

EXPLODED VIEW

FC8654/01

8-8

Version history

Version 1.1 : FC8654/01 initial release.

Version 1.2 : Update pictures for removing the buttons in Disassembly- and Re-assembly advise.

Version 1.3 : In Parts List and Exploded view: Added Pos. 29, 4322 004 25201 Accessory holder Easylive Deep Black 80231.

Version 1.4 : On page 1 at Technical Information: Changed Input Power : 1900 W into Input Power (IEC) : 1800 W.
