Philips 6002 Series Manuel utilisateur
Published by Yingqun.wen 6002 Quality Subject to modification
2017 © TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.
Platform Chassis name Model name
MSD6A638 6002 43PUT6002/56
6002
2017-Dec-8
1.Product inforamtion……….……………………………………………………………………………………3
2.Connections overview……..…..…..………………..…………………………………………………………6
3.Mechanical Instructions………………….…………………………………………………………………….7
Cable dressing (43" 6002 series)……………………………………………………………………7
A s s e m b l y / P a n e l R e m o v a l …… … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. Fac to ry Mo des …… … .. .. . .. . .... . ... .. ... .. . .. . .. . .. . ... . .. . ... .. ... .. . .. . .. . .. . ... . .. . ... .. ... .. . .. . .. . .. . ... . .. . 1 5
5.Software upgrading, Panel PN…...…….....................................………………………………………..16
6.Circuit Descriptions…..……………………….………………………………………………………………18
7.IC Data Sheet……...……………………………………………………………………………………….…..24
8.Circuit Diagrams……………...……………………………………………………………………………….28
Power board Circuit Diagrams …………………………… …………………………………………………28
Main board Circuit Diagrams …………………………… …………………………………………………29
9.Styling Sheet……………….…………………….……………………………………………………………..40
6 00 2 Se ri e s 43 " .. . . . .. . . . .. .. .. . . . . .. . . .. .. . .. . . . .. . . . .. .. .. . . . .. .. .. . . . . .. . . .. . .. .. . . . .. . . . .. .. .. . . . .. .. .. . . . . . 40
3
1. Product information
Product information is subject to change without notice.
For detailed product information，please visit www.philips.com/support
43PUT6002/56
Display Type
Diagonal screen size: 42.51inch
Display resolution: 3840 x 2160p
Input resolution
• 800 x 600p - 60 Hz
• 1024 x 768p - 60 Hz
• 1280 x 768p - 60 Hz
• 1360 x 765p - 60 Hz
• 1360 x 768p - 60 Hz
• 1280 x 1024p - 60 Hz
• 1920 x 1080p - 60 Hz23.5
Video formats
Resolution — Refresh rate
480i, 480p,576i, 576p,720p,1080i,1080p,3840x2160p 24/25/30/50/60Hz
Computer formats
Resolutions (amongst others)
• 720*400@70HZ
• 640*480@60HZ
• 800*600@60HZ
• 1024*768@60HZ
• 1360*768@60HZ
• 1280*720@60HZ
• 1280*960@60HZ
• 1280*1024@60HZ
• 1600*900@60HZ
• 1920*1080@60HZ
Dimensions and Weights
• without TV stand:
Width 969 mm - Height 567mm - Depth 83
mm - Weight 7.3 kg
• with TV stand:
Width 969mm - Height 629 mm - Depth 240
mm - Weight 7.5 kg
Connectivity
I/O port to be clearly indicated
TV*1
HDMI*3
Audio out*1
VGA*1
USB*2
AV IN*1 Coaxial out*1 RJ45*1
Playback YES
Component (HD/SD)@24p/50/60 (HD/SD)@24p/50/60
HDMI Number 3
HDMI 1 HDMI 2.0 /up to 4k@60hz
4:4:4 down
HDMI 2 HDMI 2.0 /up to 4k@60hz
4:4:4 down
4
HDMI 3 HDMI 2.0 /up to 4k@60hz
4:4:4 side
HDMI 4 NA
HDCP v2.2 (on HDMI 2.0 port) YES
HDMI ARC HDMI-2
PC input (VGA) VGA
AV （input）YES
Headphone N/A
Video and Audio out Audio out
Digital audio out (SPDIF)
co-axial/Optical Co-axial Out
RJ45 YES
DLNA/ Certification NA
WiFi 802.11 b/g/n; 1T1R ;
EasyLink (HDMI-CEC) YES
Antenna Tuner /Satellite tuner Antenna Tuner(down)
Wireless connections YES
Wi-Fi Band Concurrent 1T1R
Bluetooth for subwoofer/RC (do not claim commercially) N/A
MHL(Version ) HDMI -3 MHL3.0
Reception
• Image Codecs : JPEG
• Limitations :
– Maximum supported total bit rate for a media file is
30Mbps.
– Maximum supported video bit rate for a media file
is 20Mbps.
– MPEG-4 AVC (H.264) is supported up to High
Profile @ L4.1.
– VC-1 is supported up to Advanced Profile @ L3.
Wi-Fi Certified
This TV supports Miracast certified devices.
Supported media server software (DMS)
• You can use any DLNA V1.5 certified media server
software (DMS class).
• You can use the Philips TV Remote app (iOS and
Android) on mobile devices.
Performance may vary, depending on the capabilities
of the mobile device and the software used.
Sound
Mono/Stereo/Virtual Surround Mono/Stereo/Virtual Surround
Output Power (10% THD) RMS (RMS Watts) 16W
Speaker configuration 8Wx2
Speaker system (Number of on board Speakers ) 2.0
Speaker type built-in(normal)
Auto Volume Levelier / Auto Volume Levelier + N/A
Dolby Digital DecoderType(DD/DD+) DD
5
DTS Studio Sound N/A
DTS 2.0+ Digital out N/A
SPL (>= 84dB @ 2m) 78dB @ 2m
Acoustic frequence range
( 160~8K HZ<=16dB)
160~8K HZ<=16dB
Multimedia
Video Playback Formats MPEG-2/MPEG-4 /
H.264
H265-up to 4K
Subtitles Formats Support SRT、ASS
Music Playback Formats AC3，AAC-LC,HE-AAC,WMA
Picture Playback Formats JPEG、BMP、PNG
Pause TV/USB recording (PVR) YES
Time shift YES
PIP/POP NA
USB USB2.0(*2)
USB Harddisk Format (Power) FAT/NTFS (500mA)
Power
Power
• Mains power : AC 100-240V 50/60Hz
• Standby Energy Consumption:≤0.5W
• Ambient temperature : 5°C to 40°C
6

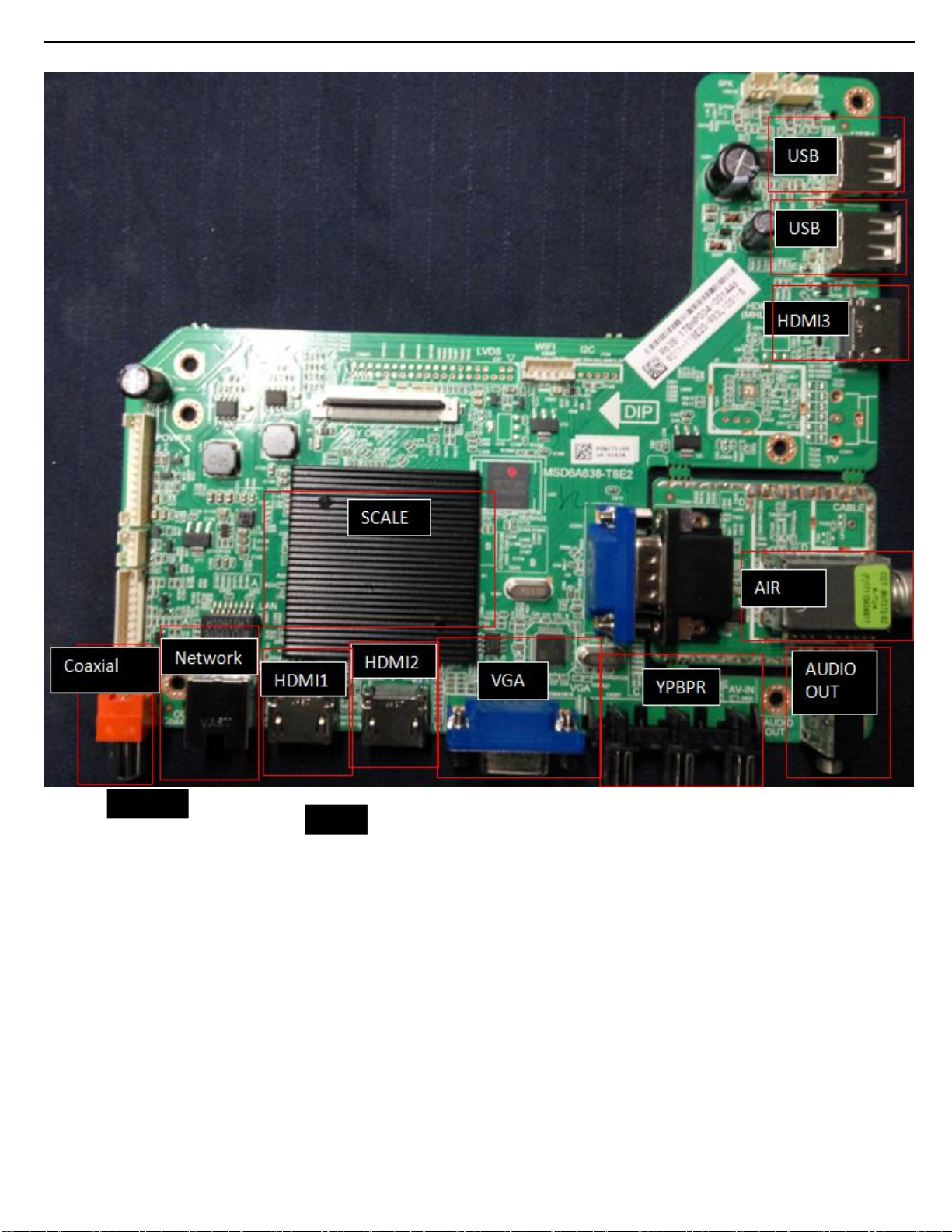

2. Connections Overview
Network
HDMI
7
3. Mechanical Instructions

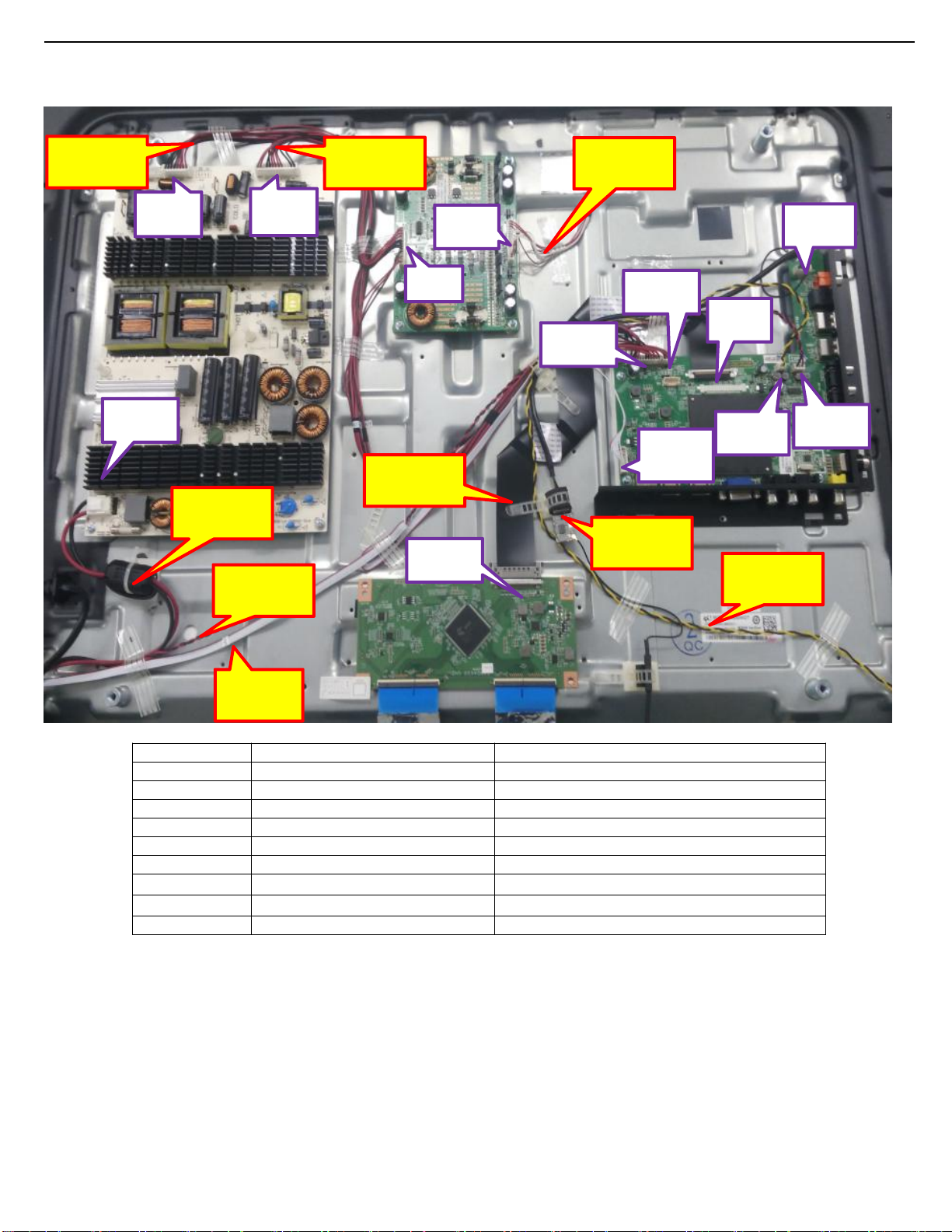

3.1 Cable dressing
Serial no
p
art descri
p
tion function
1 Back li
g
ht wire Connect to CN302
2 Power wire Connect to CN101
3 LVDS wire J455 to T-CON board
4 S
p
eaker wire CN210 to s
p
eaker
(y
ellow black wire
)
5 S
p
eaker wire CN202 to s
p
eaker
(
red black wire
)
6 two-terminal wire CN103 to IR board&LED
7 Supply line CN203、CN101 to supply main board
8 WIFI line CN207 to WIFI board
1
7
CN101
6
CN101
J455
5
CN203
4
CN207
3
CN103
8
CN102
CN302
2
8
CN103
3. Mechanical Instructions
3.1 Cable dressing
Serial no part description function
1 Back light wire Connect to CN3
2 Power wire Connect to PCN1
3 LVDS wire J455 to T-CON board (CN2)
4 Speaker wire CON203 to speaker (yellow black wire)
5 Speaker wire C0N201 to speaker (red black wire)
6 two-terminal wire CN103 to IR board&LED
7 Three port line C0N5、CN1、CN102 to control back light
8 Supply line CON4、CN101 to supply main board
9 WIFI line CN207 to WIFI board
Cable dressing( 43" 6002 series)
3.2 Assembly/Panel Removal
3.2.1 Stand removal
1. Remove the fixation screws [1] 4pcs, that secure the stand
2. Take the stand bracket out from the set.
2
6
CN101
8
PCN1
J455
5
CN1
7
4
1
CN207
3
C0N4
CN103
9
CN201
CN203
CN2
CN3
CON5
CN102
9
3.2.2 Disassemble back cover
1. Use electric screwdriver to disassemble Ф3×10mm screw,and put it at appointed position. Figure 1/3
2. Put removed decorative part at the appointed position
3. Use electric screwdriver to dismantle M6*25 P head black zinc plating machine screw,and put it at appointed position. Figure 1
4. Use electric screwdriver to disassembleΦ3×6 countersunk head black zinc plating machine screw, and put it at appointed
position. Figure 1
5. Use electric screwdriver to dismantle Ф3×5mm flat head black zinc plating machine screw,and put it at appointed position.
Figure 1
6. When dismantle back cover-M,dismantle the side with M/B interface firstly,prevent interface damaged
7. Put removed back cover-M at appointed position.After self-check OK,flow it into next station by foot switch
.
3.2.3 Disassemble tape/ aluminum foil
1. Tear off fiber tapes from the back plate and put them at appointed position,as Figure show.
2. Tear off aluminum foil from the back plate and put it at appointed position,as Figure show.
3. After self-check OK,flow it into next station by foot switch
11
10
3.2.4 Dismantle left/right back cover,key module
1. Use electric screwdriver to dismantle 2pcs Ф3×5mm flat head black zinc plating machine screws，and Put at the appointed
position. Figure 1
2. Unplug speaker wire and key wire from the socket of M/B,use cutting nippers to cut off cable tie on the back cover.Then take down rocker
switch from back
3. Take down speaker’s module from the speaker pillar on the left /right back cover, put them at the appointed position.
Take down key module from back cover,and then put removed back cover at appointed position
4. Use electric screwdriver to dismantle Φ3×5mm flat head and tail blue zinc plating self-tapping screw, and put them at the
appointed position. Figure 1
5. Split key module into keypad,key wire and button array,and put them at the appointed position.
6. After self-check OK,flow it into next station by foot switch
