Colour television

Operating instruction

21PT2324

cover pg 1-2_21PT2324 02/17/04, 10:52 AM1

IMPORTANT

Before you begin:

Make sure your package includes the following items:TV and mains cord,

remote control, Instruction manual, antenna cable (optional) and Coaxial

cable (optional).

Attention:

1. Read your manual first – your Philips TV comes with a well-designed

remote control and onscreen display to ensure your TV is easy to

operate.

2. The tips provided in this manual will save you time and money as

charges for TV installation and adjustments of customer controls are

not covered under the warranty.

3. For information outside of this manual, such as sales locations and

other Philips products, please visit www.philips.com which will

automatically link you to your local Philips website.

4. Please refer to the ‘Troubleshooting Tips’on page 11 before calling for

service.

5. In case of a need to call for service, we recommend you to call from

your room where your TV is located and have on hand your remote

control, warranty card,TV model and serial number.

6Do not discard packaging materials:

•without thorough inspection for parts and that accessories that may be

packed separately inside the carton.

• during the warranty period should you need to exchange the set.

Recycling:

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste, specialist companies collect used

appliances and dismantle them after retrieving any materials that can be

used again (ask your dealer for further details).

cover pg 1-2_21PT2324 02/17/04, 10:52 AM2

Disclaimer: Graphics in this manual are for illustration purpose and may not represent the

actual product

General Operating manual-21PT2324 1

Ta b le of Contents

Installation

Installing your television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

The keys on the TV set . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Auto Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Manual Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation

Picture settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Sound settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Feature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 8

Active Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Personal Zapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Peripherals

Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Side connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Practical information

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

p1-2_21PT2324 02/20/04, 4:41 PM1

2 Operating manual-21PT2324 General

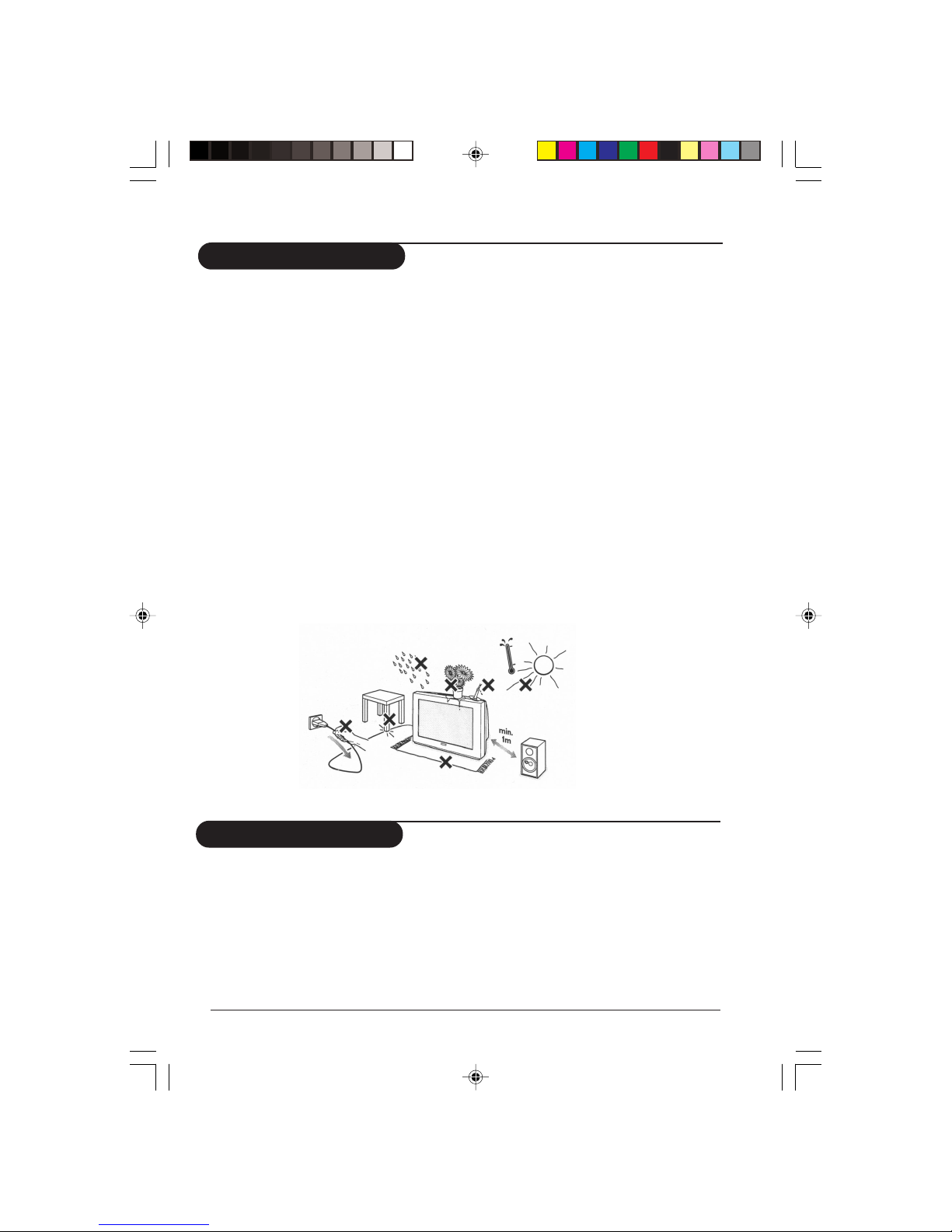

Safety information

•Disconnect mains plug when :

–the indicator light below the TV screen is flashing continuously.

–abright white line is displayed across the screen.

–there is a lightning storm.

–the set is left unattended for a prolonged period of time.

•cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois

leather or soft cloth.

•No naked flame sources, such as lighted candles, should be placed on top of the TV or in

the vicinity.

• Do not place your TV set under direct sunlight or heat.

•Leave at least 10 cm around each side of TV set to allow for proper ventilation.

•Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain

or water.

•No objects filled with liquids should be placed on top the TV so as to avoid dripping

or splashing of liquids on the set.

Useful information

•Do not leave your set on standby mode for a prolonged period of time. Switch off set

to allow it to be demagnetised. A demagnetised set supports good picture quality.

• Do not shift or move the set around when it is switched on. Uneveness in colour in

some parts of the screen may occur.

•Never attempt to repair a defective TV yourself.Always consult a skilled service

personnel.

p1-2_21PT2324 02/17/04, 11:06 AM2

Installation Operating manual-21PT2324 3

Positioning the television set

Installing your television set

Place yourTV on a solid, stable surface,

leaving a space of at least 10 cm around the

appliance.

Connections

10 cm10 cm

10 cm

•Insert the aerial plug into the x socket at

the rear of the set.

If you are using an indoor aerial, reception

may be difficult in certain conditions. You

can improve reception by rotating the

aerial. If the reception remains poor, you

will need to use an external aerial.

•Insert the mains plug into a wall socket.

Diagram may differ from the actual plug.

Remote control

Insert the two R6-type batteries (supplied)

making sure that they are the right way

round.

The batteries supplied with this appliance do

not contain mercury or nickel cadmium.

If you have access to a recycling facility, please do

not discard your used batteries (if in doubt,

consult your dealer).

Switching on

To switch on the set, press the on/off key.

A red indicator means that the television is on

standby mode. Refer to the next page on ‘Remote

Control keys’ for the various keys that you could

use to switch on the set An indicator light will

flash when it is receiving signal from the remote

control.

The keys on the TV set

The television set has 4 keys which are

located at the front.

The VOLUME – or + key is used to adjust the

sound levels.The CHANNEL ^ or v key is

used to select channels.

To access or exit the main menu,

press down the VOLUME – and + keys,

simultaneously.

To select an item in the main menu,

press the CHANNEL ^ or v key.

To select an adjustment, press down the

VOLUME – or + key.

p3-6_21PT2324 04/14/04, 3:36 PM3

4 Operating manual-21PT2324 Installation

Remote control keys

Standby

Lets you place theTV set on standby.

To turn on the TV, press CH + or –,

2,AV,A/CH or digit keys.

AV channel selection

Press several times to select AV1

and FRONT.

Personal Zapping

You can surf up to 10 personal

channels for each key (p. 9)

Delete Personal Zapping list

Deletes stored channels from

Personal Zapping list (p. 9)

Smart Picture

Used to access a series of stored

settings: DVD/VCD, Rich, Natural,

Soft, Multimedia or Personal.

No function

Mute

To mute or restore sound.

Channel selection

To access the next or previous

channel.The number and sound

mode are displayed for a few

moments whenever you select a

new channel.

On screen display

To display/clear the on screen

information. Press the key for 5

seconds to activate permanent

display of channel number.This key

is also used to exit from the menu.

Sleeptimer

Selects a period of time after

which the TV will go into standby

mode automatically.

Add Personal Zapping list

Adds and stores channels into

Personal Zapping list (p. 9)

Smart Sound

Used to access a series of stored

settings:Theatre, Music,Voice or

Personal.

To call up or exits menus.

Cursor

These 4 keys are used to move

around the menus or provide direct

access to the different picture

formats (p. 7-9)

Volume

To adjust the sound level.

Digit keys

Direct access to the channels. For

a 2-digit channel, enter the 2nd

digit before the dash disappears.

Alternate channel

Switched between the current and

the previous channel.

p3-6_21PT2324 03/15/04, 3:05 PM4

Installation Operating manual-21PT2324 5

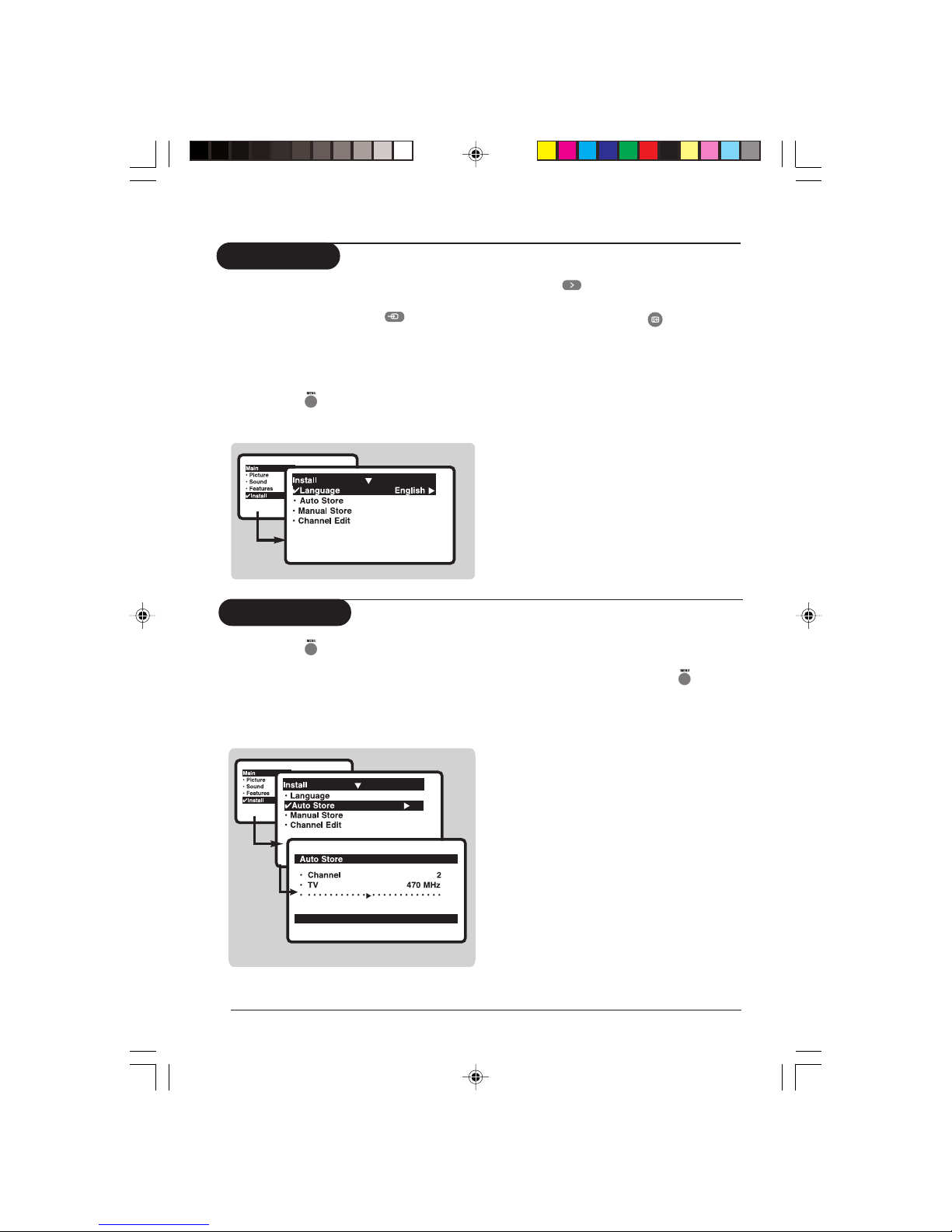

Language

When there is no signal input to the TV, you

may encounter instability of the screen display.

In this instance, please use the key to select

an AV channel.

The Language feature is used to change the

display language for menus.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Language.

“Use the key to select a language of

your choice.

‘To quit the menus, press .

Auto Store

This menu is used to store all available

channels automatically.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Auto Store.

All the available TV channels will be stored.

This operation takes a few minutes.The

display shows the progress of the search and

the number of channels found.

At the end of the search, the menu disappears.

To exit or interrupt the search, press .

If no channels are found, consult the possible

solutions on p. 11.

Auto Store

p3-6_21PT2324 02/17/04, 1:32 PM5

6 Operating manual-21PT2324 Installation

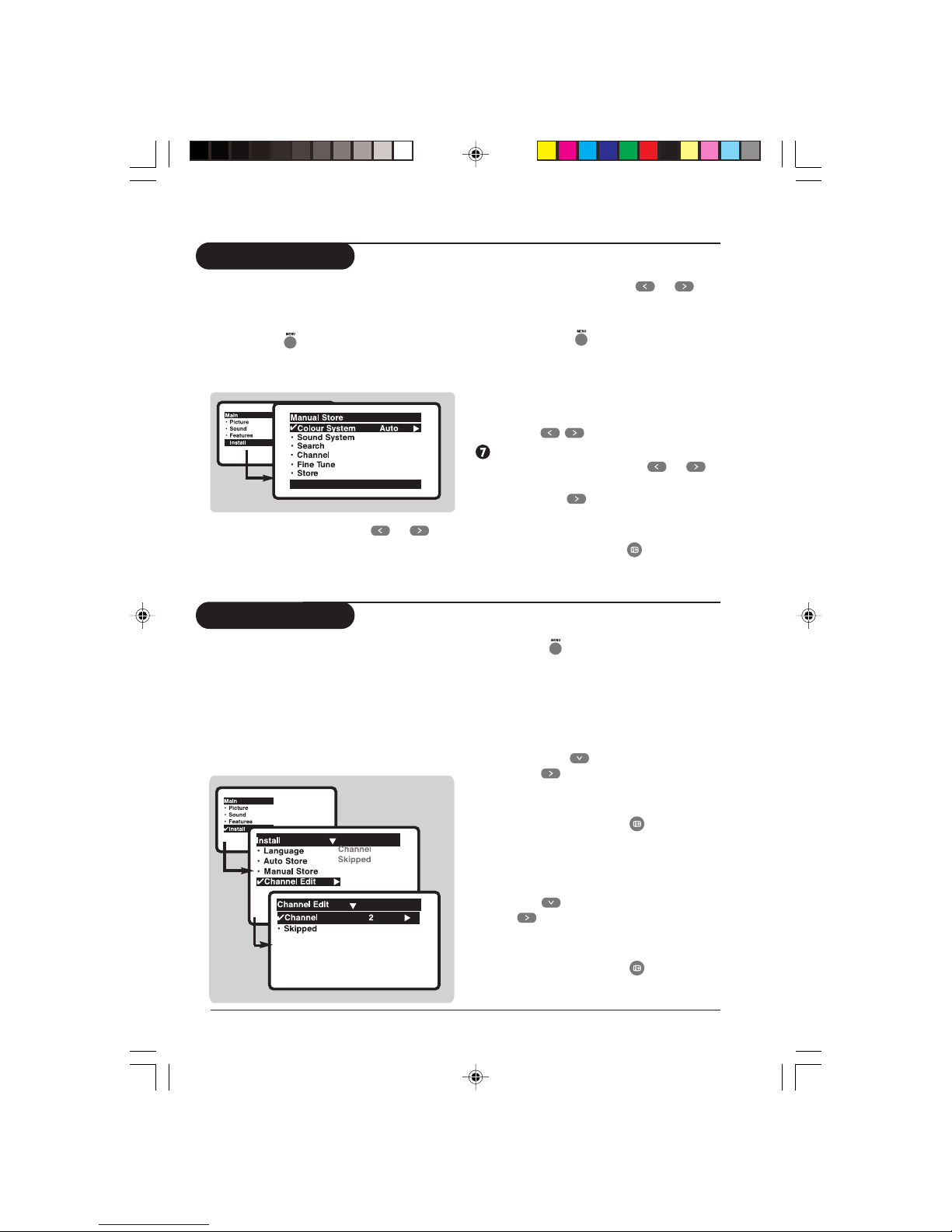

Manual Store

‘Sound System: use the or key

to select the desired sound system; Auto,

BG, I, DK or M.

(Search: Press . The search starts.

Once a channel is found, the scanning

stops. Go to the next step.

If no picture is found, consult the possible

solutions (p. 14)

§Channel: enter the required channel

with the , or digit keys.

Fine Tune: if the reception is not

satisfactory, adjust using the or

keys.

!Store: Press . The channel is stored.

çRepeat steps “to ‘for each channel

you wish to store.

0To quit the menus, press .

This menu is used to store channels one at a

time.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Manual Store.

“Colour System: use the or key

to select the desired colour system;

Auto, PA L , Secam D/K, NTSC 3.58

or NTSC 4.43.

Channel edit

This feature allows you to skip or edit

channels which have bad or weak TV signal or

channels you do not watch often.

Once a channel is skipped, you cannot have

access to it by the Channel + or – key.You can

only access the channels by the digit (0-9) keys.

&Press the key.The Main menu is

displayed on the screen.

éWith the cursor, select the Install menu

followed by the Channel Edit menu.

“Enter into the menu and select the

channel number you wish to skip by the

digit keys.

‘Then use the key to select Skipped.

Use the key to select On.

(Repeat steps “and ‘for each

channel you wish to skip.

§To quit the menus, press .

To restore skipped channels

&Repeat steps &to “ above.

éUse the key to select Skipped and

the key to select Off.

“Repeat steps &and é for each

channel you wish to skip.

‘To quit the menus, press .

p3-6_21PT2324 07/29/04, 3:24 PM6

Operation Operating manual-21PT2324 7

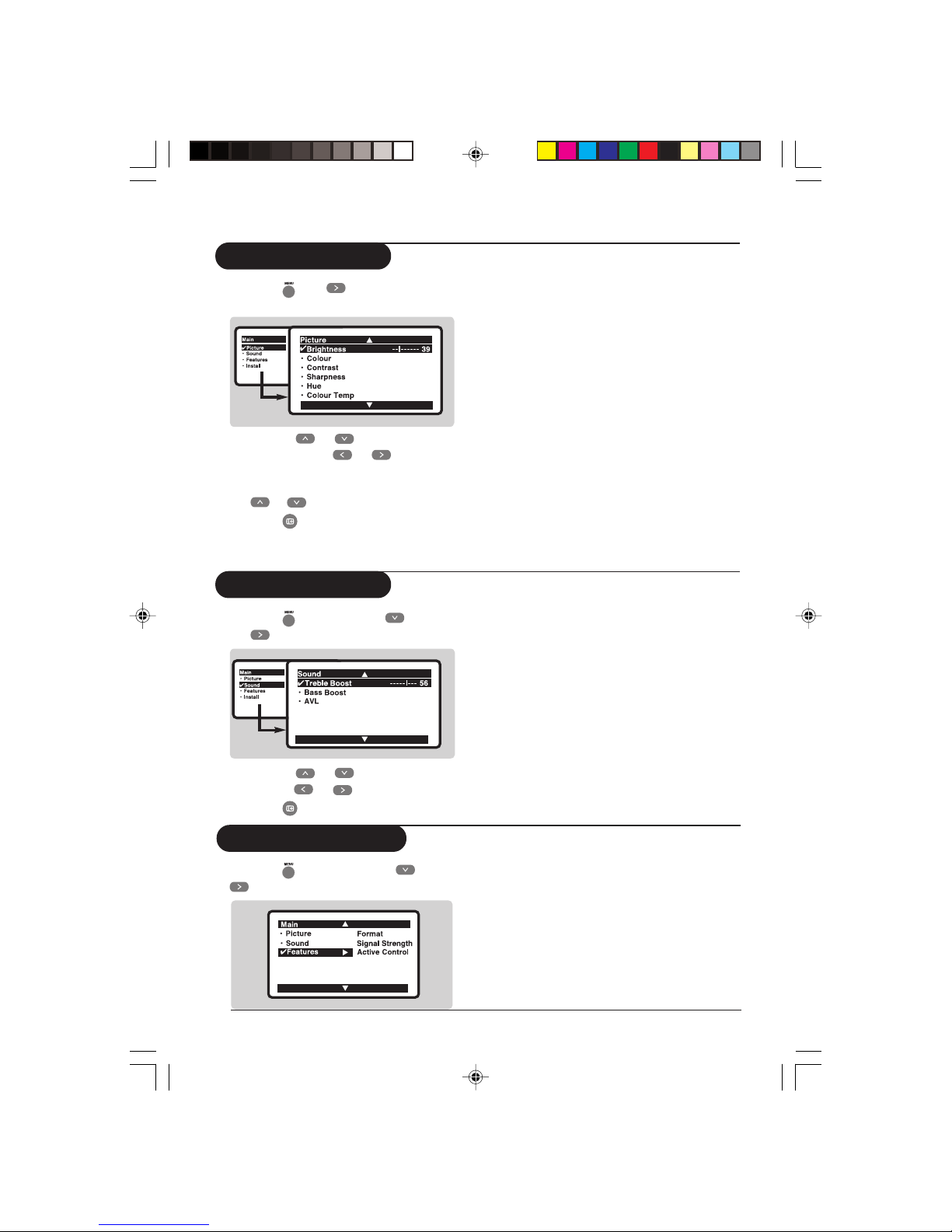

Picture settings

&Press then . The Picture menu is

displayed:

Description of the adjustments:

• Brightness: this changes picture brillance.

• Colour: this changes the intensity of the

colour.

• Contrast: this changes the difference

between the light and dark tones.

• Sharpness: this changes the picture

definition.

• Hue: this adjusts the skin colour tone.

• Colour Temp.: this changes the colour

rendering: Cold(bluer), Normal(balanced) or

Warm(redder).

•NR: attenuates picture noise (snow) in

difficult reception conditions.

•Contrast +: automatic adjustment of the

picture contrast which permanently sets the

darkest part of the picture black.

éUse the or keys to select a

setting and the or keys to adjust.

Note: during the picture adjustment, only

the selected line remains displayed. Press

or to display the menu again.

“Press to exit.

Sound settings

&Press , select Sound ( ) and press

. The Sound menu is displayed.

éUse the or key to select a setting

and the or key to adjust.

“Press to exit.

Description of the adjustments:

• Treble Boost: this alters the high frequency

sounds.

• Bass Boost: this alters the low frequency

sounds.

•AVL (Automatic Volume Leveller): this is used

to limit increases in sound, especially on

channel change or advertising slots.

Features settings

&Press , select Features () and press

. The Features menu is displayed:

Description of the features:

•Format: see explanation on the next page.

• Signal Strength : see explanation on the

next page.

• Active Control : see explanation on the

next page.

p7-9_21PT2324 04/20/04, 9:12 AM7

8 Operating manual-21PT2324 Operation

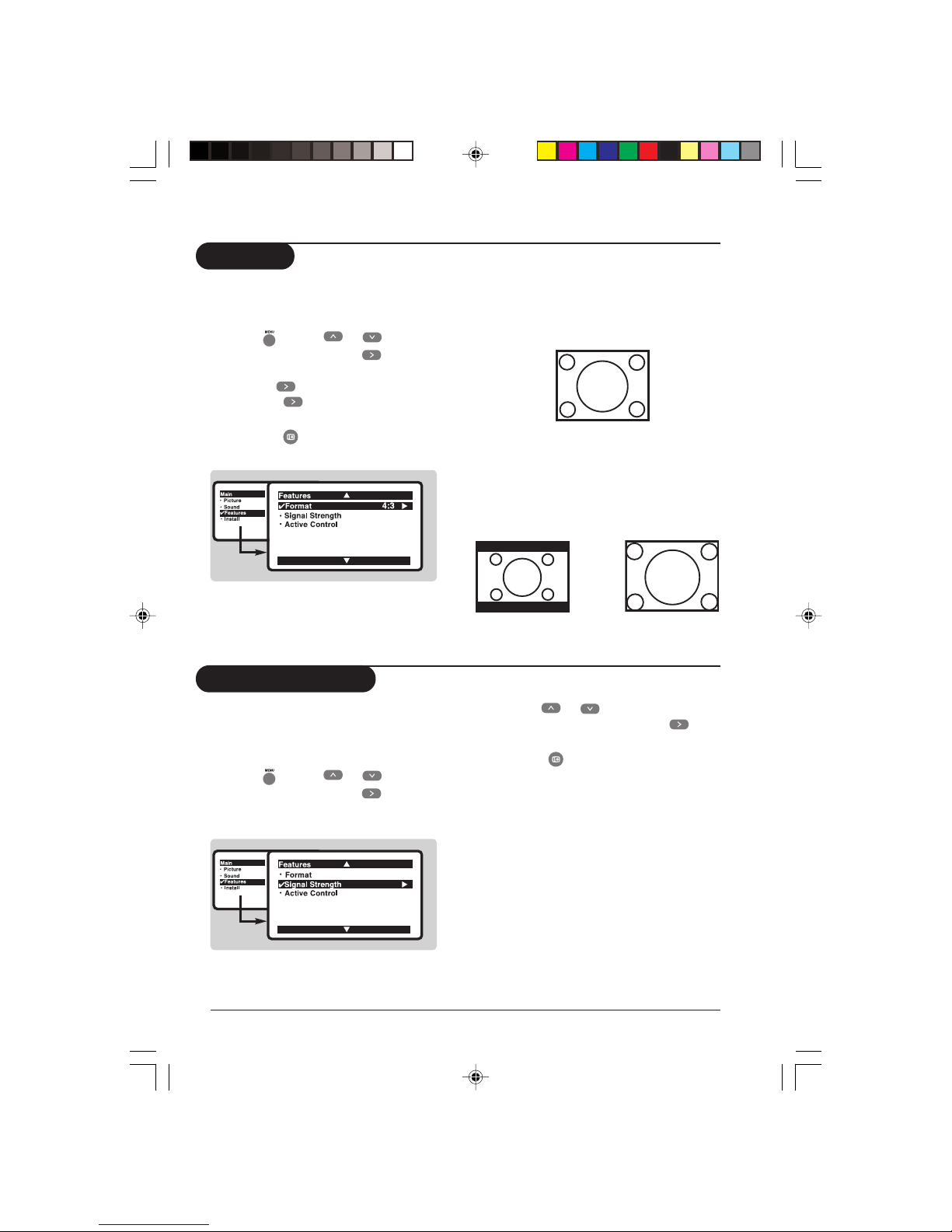

Format

This feature enhances your viewing pleasure

by providing you with a choice of two picture

formats:- 4:3 and Expand 4:3.

&Press , use the or key to select

Features and press the key.

The Features menu is displayed.

éUse the key to select Format and

press the key to select 4:3 or

Expand 4:3.

“Press the key to exit.

Description of function:

4:3 – select this format if you want to display

a conventional picture using the full surface of

the screen.

Expand 4:3 – select this format if you want

to expand pictures transmitted in a

‘letterbox’ format (black horizontal bars at

the top and bottom of the screen) to fill up

the entire screen.

4:3

Letterbox

Expand 4:3

Signal Strength

This feature display the signal strength level at

the bottom of the screen. Select the option

ON to activate the display each time you

switch to a new channel.

&Press , use the or key to select

Features and press the key.

The Features menu is displayed.

éUse the or key to select

Signal Strength and press the key

to select On.

“Press the key to exit.

p7-9_21PT2324 02/24/04, 2:44 PM8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 65 4 Series Manuel utilisateur

Philips

Philips 46PFL8606T/12 Manuel utilisateur

Philips

Philips 15PT2966 Manuel utilisateur

Philips

Philips 19PR19C Manuel utilisateur

Philips

Philips 7607 Series Manuel utilisateur

Philips

Philips 21PT2125B Manuel utilisateur

Philips

Philips Magnavox MX3290B Manuel utilisateur

Philips

Philips 28PT7308/12 Manuel utilisateur

Philips

Philips 5766 Series Manuel utilisateur

Philips

Philips 32PFL7403D/10 Manuel utilisateur

Philips

Philips 43PUS8535 Mode d’emploi

Philips

Philips HC9913C Manuel utilisateur

Philips

Philips 14PV135 Manuel utilisateur

Philips

Philips 27 IN REAL FLAT TV 27PT91S Manuel utilisateur

Philips

Philips GR2.2AA Manuel utilisateur

Philips

Philips 36PT41B Manuel utilisateur

Philips

Philips 21PT5307 Manuel utilisateur

Philips

Philips MAGNAVOX TS3258 Manuel utilisateur

Philips

Philips 42FD9935 Manuel utilisateur

Philips

Philips 42FD9934/69S Manuel utilisateur

Philips

Philips Matchline 33PT712B Manuel utilisateur

Philips

Philips 36PW9607 Manuel utilisateur

Philips

Philips 7555 Series Manuel utilisateur

Philips

Philips 32PHD5813/55 Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
