Your remote control 2

Preparation 3

Installation 4

Store TV channels 4

Select the menu language and country 4

Automatic installation 5

Manual installation 5

Give name 6

Reshuffle the programme list 6

Select favourite TV channels 6

Install TV setup 7-8

Keys on top of the TV 8

EasyLink features are based on the “one touch operation” approach.This

means that a sequence of actions are executed at the same time in both

the television and the video cassette recorder, provided both are fitted

with the EasyLink function and connected with the eurocable

supplied with your video recorder.

Installation

Operation

Use of the remote control 9-11

Use of the menus

Picture menu 12

Sound menu 12-15

Features menu 16

NEXTVIEW 17-21

PiP - Picture in Picture 22

Teletext 23-24

Connect peripheral equipment

Connecting and selecting equipment 25-28

Remote control functions for peripherals 28-29

Recording 30

Tips 31

Index 31

Glossary 32

Help?

If this instruction manual does not give an answer or if

‘Tips’ do not solve your TV problem, you can call your

Local Philips Customer or Service Centre. See the

supplied World-wide guarantee booklet.

Please, have the Model and Product number which

you can find at the back of your television set or on

the packaging, ready, before calling the Philips helpline.

Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2030.3 gb 22-05-2001 10:29 Pagina 1

Mha

SMART

ACTIVE

CONTROLSMART

213

546

879

®Ò‡π

†

æb

Mqa

MOVIE SPORT CHILD NEWS OTHER

VCR DVD SAT

TUNER CD

OK MENU

TAPE CDR

SMARTSMART

PICTURESOUND

¬V P

◊

fh Uf

yÚ

pπ

yÚ

®q

bﬁcd

INSTANT

ZOOM

Preparation

Your remote control

Preparation

Teletext p. 24

Utime display/subpage selection

fsolution to puzzles

display PDC/VPS code

henlarge

Preduce image noise p. 11

Smart Controls

Msmart sound p. 10

hactive control p. 10

asmart picture p. 10

Picture in Picture p. 22

bPiP on/off

cswitching screens

dstill picture

ﬁmulti screen p. 10

Bswitch to standby p. 9

ion screen info p. 9

0previous programme p.9

◊video recorder function p. 9

Xbilingual choice/sound info p. 11

TXT language group selection p. 23

EasyLink p. 28

®INSTANT recording start

qpicture format p. 11

bteletext on/off p. 23

Ïmain menu on/off p. 12

cursor to select

your choice p. 4

Installation p. 4

Vvolume up/down p. 9

¬sound mute p. 9

Pprogramme selection p. 9

Peripherals p. 28

wselection of EXT1,EXT2,EXT3

or FRONT

TV, videorecorder (VCR), DVD,

Satellite (SAT), TUNER,CD,TAPE or

cd-recordable (CDR) selection.

Colour keys

- select TV channels by theme p. 11

- direct teletext page or

subject selection p. 24

Audio- and video equipment

p. 28-29

Ono function

Sfreeze the picture p. 9

hold teletext page p. 24

Qsurround modes p. 9

æNEXTVIEW on/off p. 9

OK activate your choice

2030.3 gb 22-05-2001 10:29 Pagina 2

&Place the TV on a solid surface.

For ventilation, leave at least 5 cm free all around the TV.

Do not place the TV on a carpet.

To prevent any unsafe situations, do not place any objects on top of the TV.

Avoid heat, direct sunlight and exposure to rain or water.

Insert the aerial plug firmly into the aerial socket xat the back of the

TV. For best picture quality use the suppressor-aerial cable supplied.

“Insert the mains plug in the wall socket having a mains voltage of 220V-

240V.

To prevent damaging the mains (AC) cord which could cause a fire or electric

shock, do not place the TV on the cord.

‘Remote control: Remove the cover of the battery compartment.

Insert the 2 batteries supplied (Type R6-1,5V).

Press the TV key to be sure your remote control is in the TV mode.

The batteries supplied do not contain the heavy metals mercury and cadmium.

Nevertheless in many countries exhausted batteries may not be disposed of with

your household waste. Please check on how to dispose of exhausted batteries

according to local regulations.

Note: this remote control functions with TVs which use the RC6 signalling standard.

(Switch the TV on : Press the power switch Aon the front of your TV.

A green indicator on the front of the TV lights up and the screen comes on.

If the indicator is red, press the -P+ keys on the remote control.

The green lamp blinks every time you press a key on the remote control.

When you switch on your set for the first time, the menu LANGUAGE

automatically appears on the screen. The explanation appears in different languages

one at a time. Choose your own language and press the OK key on the remote

control.

Go on to page 4.

3Preparation

Preparation

æb

VCR

MOVIE OTHERNEWSCHILDSPORT

TV DVD SAT

CDTUNER TAPE CDR

CABLE

R6 / AA

min.

R6 / 1,5 V

2030.3 gb 22-05-2001 10:29 Pagina 3

&Open the door of the remote control.

Press U and fat the same time.

4Installation

Installation

Select the INSTALLATION menu

&Use the cursor in the up/down, left/right directions to select a menu item.

Press the OK key to activate.

“Use the Ïkey to return or to switch the menu off.

To use the menus

Store TV channels

After the new or extra TV channels have been stored, the TV automatically transfers

those TV channels to the video recorder if it is equipped with the EasyLink function.

The message EasyLink : Downloading ...... appears on the screen. The

programme list of the video recorder is now the same as the one of the TV. If the TV

is connected to a video recorder which supports the NEXTVIEWLink function, the TV

also automatically transfers the language and country selections to the video

recorder.

First, select your language and country.

&Select Menu Language and press the OK key.

Select your language and press the OK key.

Use the cursor up/down to scroll through the list and to bring up other

languages which are not displayed on the screen at present.

“Select Country and press the OK key.

‘Select the country where you are now located and press the OK key.

Use the cursor up/down to scroll through the list and bring up other

countries which are not displayed on the screen at present.

Select Other when none of the countries applies.

You can now search for and store the TV channels in two different ways:

using automatic installation or manual installation (tuning-in channel by

channel).

Select your choice and press the OK key.

Select the menu language and country

MENU TITLE

Subject 1

Subject 2

Subject 3

JSubject 4

Subject 5

Subject 6

JSubject 4 L M

pπ

213

æb

TV VCR DVD SAT

TUNER CD TAPE CDR

¬V P

MOVIE OTHERNEWSCHILDSPORT

OK MENU

select menu item

activate

return or switch

main menu off

MENU TITLE

Menu language

JINSTALLATION

MENU TITLE

....

JCountry

MENU TITLE

English

....

JMenu language

213

546

879

◊

X®qP

yÚ

ZOOM

INSTANT

2030.3 gb 22-05-2001 10:29 Pagina 4

Searching for and storing TV channels is done channel by channel.

You must go through every step of the Manual installation menu.

Selection mode is only present and lights up if the country selected also

offers the channel option (C-channels for aerial channels, S-channels for cable

channels).

You can choose either channel or frequency mode.

&Select the TV system

Select the country or part of the world from where you want to receive the

TV channel.

If you are connected to a cable system, select your country or part of the

world where you are now located.

Press the cursor down and enter the programme number with the digit keys.

“Search for a TV channel

Press the cursor left/right.

The frequency or the channel number increases until a TV channel is found.

Direct selection of a TV channel

If you know the frequency, the C- or S-channel number, enter it directly with

the digit keys 0 to 9.

Ask for a list from your cable company or dealer, alternatively consult the

Table of frequencies on the inside backcover of this handbook.

‘Fine tune

In case of poor reception, you can improve the reception by adjusting the

frequency with the cursor left/right.

(To store your TV channel, select Store and press the OK key.

Repeat steps &to (to store another TV channel.

§To exit from the menu press the Ïkey on the remote control.

In the Automatic installation menu select Start and press the OK key to

activate the searching. All TV channels are searched for and stored

automatically.

If a cable system which broadcasts ACI (Automatic Channel Installation) or a

TV channel transmitting a teletext page with the frequencies and programme

names of all the TV channels which can be received, is detected, the search is

stopped and a programme list appears.

The programme list is automatically filled with all the programme numbers

and names of the TV channels transmitted.

It is possible that the cable company or the TV channel displays a broadcast

selection menu. Layout and items are defined by the cable company or the TV channel.

Make your choice with the cursor and press the OK key.

To exit from the menu press the Ïkey on the remote control.

Go on to page 6.

5Installation

Manual installation

Automatic installation

Start

Stop

TV is searching

One moment please ...

JStop K

Automatic installation

Start

Stop

1 BBC1

2 BBC2

3 CNN

....

JStart K

Manual installation

(Selection mode)

System

Programme no.

Fine tune

Store

JSystem K

2030.3 gb 22-05-2001 10:29 Pagina 5

6Installation

Give name

It is possible to change the name stored in the memory or to assign a name

to a TV channel which has not yet been entered. A name with up to 5 letters

or numbers can be given to the programme numbers 0 to 99. For example

SUPER, BBC1,...

Between 99 and 0 you can also name any peripherals that are connected to a

euroconnector.

&Select Give name in the INSTALLATION menu and press the OK key.

Select the programme number.

“Press the OK key.

‘Select the character with the cursor up/down.

(Select the following position with the cursor right.

§Select the following character.

èPress the OK key when finished.

!Press the Ïkey to return to the INSTALLATION menu.

Space, numbers and other special characters are located between Z and A.

According to your preference you can change the order of the stored TV

channels.

&Select Reshuffle in the INSTALLATION menu and press the OK key.

Select the programme number you want to exchange.

“Press the OK key.

‘Select the new number you want to exchange it with.

(Press the OK key.

Repeat the operation until all TV channels are allocated as you like.

§Press the Ïkey to return to the INSTALLATION menu.

Reshuffle the programme list

After leaving the installation you can browse through the TV channels by

pressing the - P + keys. Only those TV channels which are in the favourite list

will be displayed. Non-favourite TV channels can still be selected with the digit

keys. By default all stored channels are added to the favourite list.

&Select Favourite programmes in the INSTALLATION menu and press

the OK key.

Select your favourite programme number.

“Select Ye s or No with the cursor left/right.

‘Repeat for every TV channel you want to make a favourite or a

non-favourite TV channel.

(Press the Ïkey to return to the INSTALLATION menu.

In order for NEXTVIEW to function properly, the first TV channel from the favourite list

should also broadcast the correct local date and time via teletext.

Select Favourite TV channels

INSTALLATION

Menu Language

Country

Automatic installation

Manual installation

Give Name

Reshuffle

Favourite programmes

SETUP

JGive name

Give name

EXT1

EXT2

EXT3

FRONT

1 BBC1

2 BBC2

3 ....

4 ....

5 ....

Reshuffle

EXT1

EXT2

EXT3

FRONT

1 CNN

2 BBC2

3 ....

4 ....

5 ....

J1 CNN

Favourite programmes

0 ... No

1 ... Yes

2 ... No

3 .... No

4 .... Yes

5 ....

J2 ... Yes

2030.3 gb 22-05-2001 10:29 Pagina 6

7Installation

The Setup menu allows you to adjust initial settings, i.e. those which are not

related to the installation of the TV channels.

The Setup menu contains items that control the settings of the TV’s functions,

features, services and peripherals you may have connected.

&Use the cursor in the up/down, left/right directions to select the menu item.

Use the OK key to activate.

“Use the Ïkey to return or switch menu off.

Digital sources

See Connect Peripheral Equipment, p. 26 to connect your digital equipment,

like a DVD, a digital satellite tuner or a similar digital device.

Define Decoder/Descrambler programme numbers

If a decoder or a descrambler is connected, see p. 25, you can define one or

more programme numbers as decoder programme numbers.

Press the cursor left/right to select the input used to connect to your

decoder Off,EXT1 or EXT2.

Select Off if you do not want the selected programme number being

activated as a decoder programme number.

Select EXT2 when the decoder is connected to your EasyLink video recorder.

When selecting the decoder, the message EasyLink: Downloading Presets....

appears on the screen.

Information Line

Select On and after the selection of a TV programme or after pressing the

ikey on the remote control, a TV channel which broadcasts teletext may

transmit the name of the TV channel, the programme name or another

message.This is displayed on screen next to information about sound and

DNR setting.

When selected Off, only sound and DNR information is displayed after the

selection of a TV channel or after pressing the ikey.

Factory settings

Select Factory settings and press the OK key to restore picture and sound

settings, predefined in the factory.

Extra front speakers

See Connect Extra loudspeakers,Amplifier, p. 27.

If no extra front speakers/amplifier are connected, do not change the

predefined factory setting which is No (TV).

Rear speakers

See Connect Extra loudspeakers,Amplifier, p. 27.

If no rear speakers/amplifier are connected, do not change the predefined

factory setting which is No (TV).

Install TV Setup

INSTALLATION

Menu language

Country

Automatic installation

Manual installation

Give name

Reshuffle

Favourite programmes

SETUP

JSETUP

Decoder/Descrambler

Programme

Decoder status

JProgramme

SETUP

Digital Sources

Decoder/Descrambler

Information line

Factory settings

Extra front speakers

Rear speakers

Auto Surround on/off

NEX

IEW

provider none, 0...99

INSTALLATION

JDigital sources

2030.3 gb 22-05-2001 10:29 Pagina 7

8Installation

Auto Surround

Sometimes the broadcaster transmits special signals for Surround Sound

encoded programmes.

Dependent on your speaker configuration, the TV automatically switches to

the best surround sound mode when Auto Surround is switched On.

When rear speakers are connected and selected, Dolby Pro Logic will be

reproduced.When no rear speakers are connected, 3D surround will be

reproduced. Overruling this surround mode remains possible.

NEXTVIEW provider

Most broadcasters in Europe are offering teletext pages containing the day’s

programme schedule.These pages can be requested by switching the TV to

Teletext Guide.

An increasing number of broadcasters are offering an extended programme

guide service called NEXTVIEW.

NEXTVIEW is a new way of presenting programme schedules and offers more

features than basic teletext.With NEXTVIEW it is possible to show for instance

all the movies or children programmes for tonight or the following days.

If you select None as NEXTVIEW provider, the TV will capture all data from

the available TV channels which broadcast NEXTVIEW. Broadcaster defined

menus will not be available.

If you select a programme number of a TV channel stored in the favourite list

as NEXTVIEW provider, the selected TV channel will provide NEXTVIEW data

and additional information of its own broadcasts as well as from other (non

selected) TV channels.

Normally you will select the NEXTVIEW provider that transmits most

information in your language.You can make the best selection via information

from TV announcements or from the newspapers.

Important:

In order for NEXTVIEW to function properly, the first TV channel from the favourite list

should also broadcast the correct local date and time via teletext.

Please check at startup if the time and date are correct in the NEXTVIEW screen.

Remark:

Not all TV channels support NEXTVIEW.

How to make use of NEXTVIEW, see p. 17.

Installation

Select Installation and press the OK key to return immediately to the

INSTALLATION menu.

‘To exit from the menu press the Ïkey repeatedly.

SETUP

Digital sources

Decoder/Descrambler

Information line

Factory settings

Extra front speakers

Rear speakers

Auto Surround

NEX

IEW

provider none, 0...99

INSTALLATION

NEX

IEW

provider none/o...99

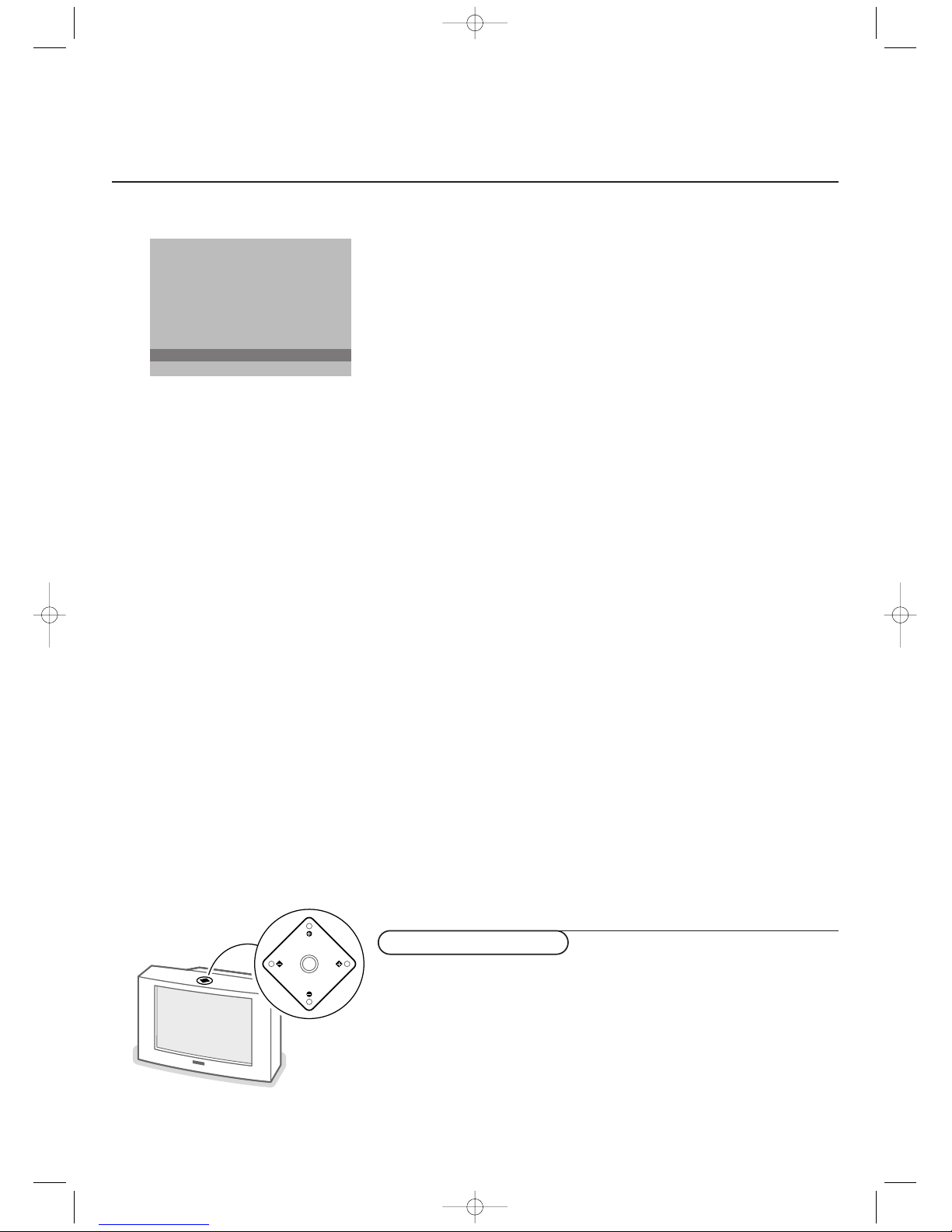

Should your remote control be lost or broken you can still change some of

the basic picture settings with the keys on top of the TV.

Press the Mkey repeatedly to select Volume,Brightness,Colour,Contrast.

Press the P- or + keys to carry out the selected adjustment.

When the menu adjustment is not displayed, the P- or +keys enable you

to select the TV channels, the V- or + keys to adjust the volume.

The selected adjustment automatically switches off when no action has been

executed for 10 seconds.

Keys on top of the TV

2030.3 gb 22-05-2001 10:29 Pagina 8

Mha

SMART

ACTIVE

CONTROL

SMART

PICTURESOUND

213

546

879

®Ò‡π

†

æb

TV VCR DVD SAT

TUNER CD TAPE CDR

¬V P

◊

MOVIE SPORT CHILD NEWS OTHER

OK MENU

9Use of the remote control

wSelect peripherals

Press this key repeatedly to select EXT1,

EXT2, EXT3 or FRONT, according to where

you connected the peripherals (see p. 28).

TV VCR DVD SAT TUNER CD TAPE CDR

Press one of these keys to use the remote

control directly in the TV, video recorder,

DVD or satellite mode. A green indicator

lights up. Press the same key again within 3

seconds to use the remote control in the

mode indicated below the key (tuner, CD,

tape or CD-recordable).A red indicator lights

up.

Press the key again to return to the function

mentioned above the key.

BStandby

The set is switched off and the red indicator

(orange when acquiring NEXTVIEW

information) lights up. When acquiring

NEXTVIEW information the TV is switched to

full standby after a period of max. 1 hour and

the red indicator lights up.

To switch the TV on again, press - P + or the

digit keys.

If your EasyLink video recorder has the

system standby function and you press the

standby key for 3 seconds, both the TV and

video recorder are switched to standby.

®Ò‡π†Video recorder see p. 28

Ono function

æNEXTVIEW on/off see p. 17

OK Press this key to activate your choice,

when in the menus.

SFreeze

To activate/de-activate the frozen picture or

to hold the teletext picture.

QSurround mode

Press this key repeatedly to select another

available surround mode: Dolby Pro Logic, 3D

Surround, Dolby 3 Stereo, Stereo or Hall.

iScreen information

Press for 5 seconds to activate/de-activate

the extended or reduced display of TV

channel and programme information on the

screen.

Press briefly to display information about the

selected TV channel and programme, the

sound reception, picture settings, the selected

DNR setting and the remaining time set with

the sleeptimer.

0/9 Digit keys

To select a TV channel.

For a two digit programme number, enter the

second digit within 2 seconds.

To switch immediately to a selected one digit

TV channel, keep the digit key pressed a bit

longer.

0Previous programme

The previously selected TV channel is

displayed.

The ◊indication is only for video recorder.

Use of the remote control

Operation

bTeletext on/off see p. 23

ÏMain menu on/off see p. 12

VVolume

Press + or - to adjust the volume.

¬ Mute

Temporarily interrupt the sound or restore

it.

PProgramme selection

To browse through the TV channels

activated in the Favourite Programme menu.

2030.3 gb 22-05-2001 10:29 Pagina 9

10 Use of the remote control

bcdﬁ

Mah

213

546

879

®Ò‡π

†

æb

TV VCR DVD SAT

¬V P

◊

HC! SQ

MOVIE SPORT CHILD NEWS OTHER

SMARTSMART

ACTIVE

CONTROL

OK MENU

hActive control

Active control is a pro-active and automatic

system.The TV continuously measures and

corrects all incoming signals in order to

provide the best picture possible.Thanks to

the Ambient Light Sensor which measures

the light conditions of the room in which the

TV is situated, the contrast, dynamic contrast,

brightness and colour picture settings are

adjusted automatically. The light sensor is

active when the Active control function is

switched to Medium or Maximum. Press the

hkey repeatedly to select the Active

Control values Off, Minimum, Medium or

Maximum.

Off Sharpness and Dynamic Contrast are

controlled automatically

Minimum Sharpness, Dynamic Contrast

and Noise Reduction are controlled

automatically.

Medium Dynamic Contrast, Colour,

Sharpness and Noise reduction are

controlled automatically.

Maximum Contrast, Dynamic Contrast,

Colour, Sharpness and Noise reduction

are controlled automatically.

Press the cursor in the up/down direction

while the selected Active Control setting

information is on top of the screen.

The Active Control menu appears.

The picture settings are being adapted

continuously and automatically.

The menu items cannot be selected.

Colour enhancement (green enhancement

and blue stretch) is switched on with certain

Smart Picture selections.

Press the cursor in the up/down direction

again to switch off the menu.

Smart Keys

To select predefined picture and sound settings.

M Smart Sound

Each time it is pressed, a different sound setting is selected, corresponding with

specific factory settings of the equalizer.

aSmart Picture

Each time it is pressed, a different picture setting is selected, corresponding with

specific factory settings of Contrast, Colour, Sharpness, Colour Enhancement and

Dynamic Contrast.

Personal refers to the personal preference settings of picture and sound

selected in the picture and sound menu.

Remark: the moment you are in a predefined smart sound or picture setting and you

modify a setting in the picture or sound menu, all values of the menu will overwrite the

previously made settings;

bcd Picture in Picture

Press the bkey to switch PiP on or off.

How to operate PiP, see p. 22.

ﬁ Multi screen

Press ﬁto switch on Multi screen.

A menu line MOSAIC appears.

Select the desired function with the cursor

left/right and press the OK key.

Scan: a scan of the TV channels placed in the

favourite list is performed.

Press the OK key again to have the

continuation of the list.

Photo Finish: the main picture is displayed

in successive frozen picture.

Press the OK key again to have a new

sequence of frozen pictures.

Strobe: the picture is reproduced image by

image.

Press the OK key again to have a faster

speed.

Press ﬁto switch off the multi screen.

2030.3 gb 22-05-2001 10:29 Pagina 10

Table des matières

Autres manuels Philips TV

Philips

Philips 20-LCD TELEVISION 20LCD35 Manuel utilisateur

Philips

Philips 40PFL9704H/12 Manuel utilisateur

Philips

Philips 21PT4406/01 Manuel utilisateur

Philips

Philips 19HFL3232D/10 Manuel utilisateur

Philips

Philips 32HF7445/93 Manuel utilisateur

Philips

Philips 24CI1770 Manuel utilisateur

Philips

Philips 5008 Series Manuel utilisateur

Philips

Philips 28PW6332 - annexe 1 Manuel utilisateur

Philips

Philips Q549.5E LA Manuel utilisateur

Philips

Philips 32PW9523-05M Manuel utilisateur

Philips

Philips PA0113C Manuel utilisateur

Philips

Philips LC320WXD Manuel utilisateur

Philips

Philips 21PT2684 Manuel utilisateur

Philips

Philips MAGNAVOX PS1966C1 Manuel utilisateur

Philips

Philips 32PW962A/05 Manuel utilisateur

Philips

Philips 6916 Series Manuel utilisateur

Philips

Philips 14PT1353 Manuel utilisateur

Philips

Philips 36PW9618/05 Manuel utilisateur

Philips

Philips PFG4009 Manuel utilisateur

Philips

Philips 7805 Series Manuel utilisateur

Philips

Philips 21PT5432/55R Manuel utilisateur

Philips

Philips 6701 Series Manuel utilisateur

Philips

Philips 43PFL6621 Manuel utilisateur

Philips

Philips 15PF9945/37 Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
