Philips 20PT9007D-17B Mode d’emploi

Better

Component Video

Input (CVI)

Provides superior picture quality

by separating the green, blue and

red luminance signals.Typically

used with red/white audio cables.

Basic

Composite Audio/Video

Separate video (yellow) and

audio (red/white) cables that

provide a basic connection from

the set-top box and other devices.

Note:The color of audio inputs

may differ, e.g. Red/white or

red/back.

Provides a basic

connection

for antenna or cable.

Provides both audio

and video.

Basic

Use this guide to achieve the optimal connection for each of your components.

TV can support these different types of cable connection.Please check your

device to see which one applies.

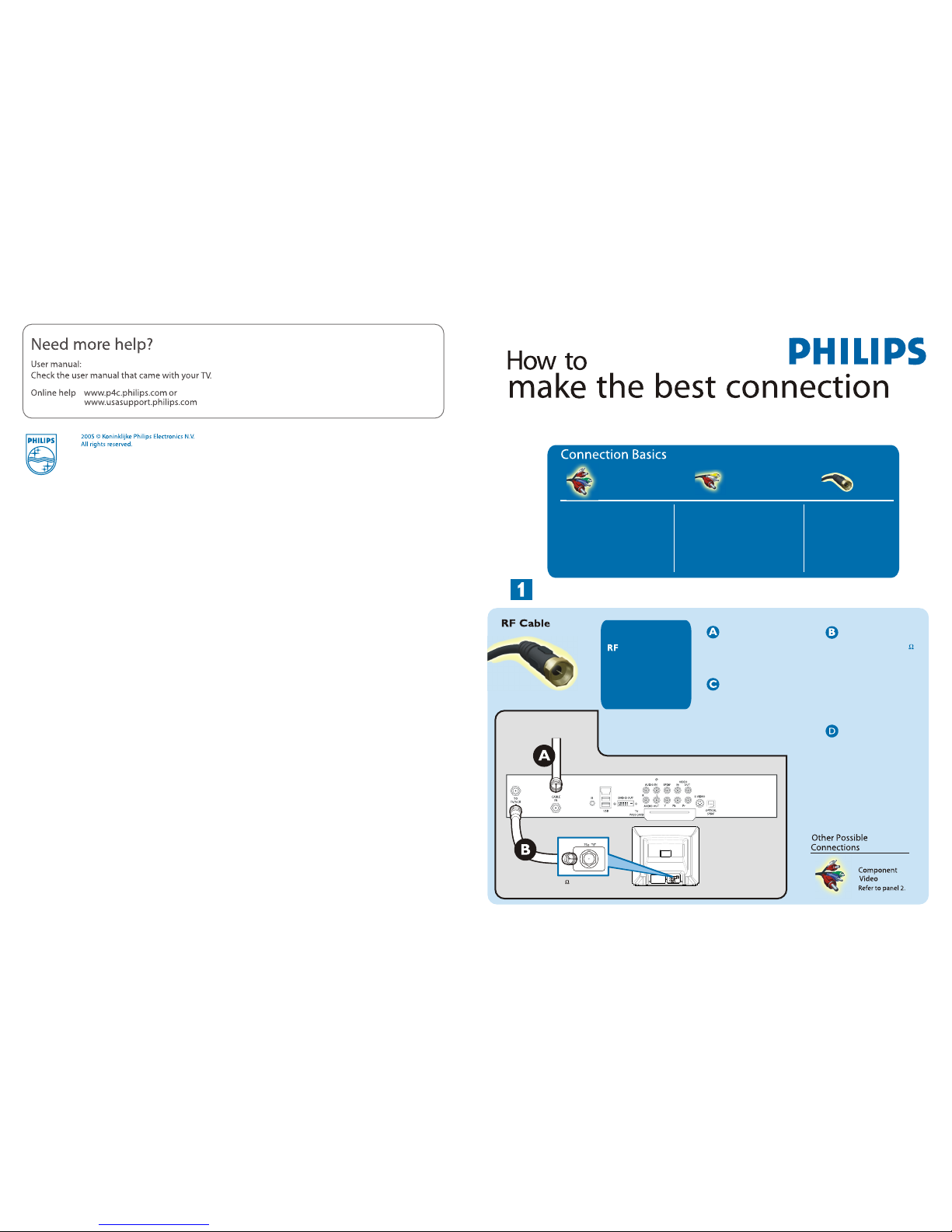

Connecting Set-Top Box toTV

Connect RF cable

from wall to input at

the back of the set-top

box.

Set the out channel of

the set-top box to CH 3

or 4 if available.

Press the Ana/Dig button

on the remote control to

set theTV to analog mode.

Basic

Provides a basic

connection

for antenna or cable.

Provides both audio

and video.

Use second RF cable to

connect the set-top box

to theTV input (75 ).

Note:This connection

gives mono sound. For

stereo sound use also

composite audio/video

connection (refer to

panel 2).

Cable Signal IN

from Cable Company

Back of Set-top Box

75 Input

Set theTV to the same

channel as the set-top

box output channel.

Change the channels at

the set-top box to view

the program.

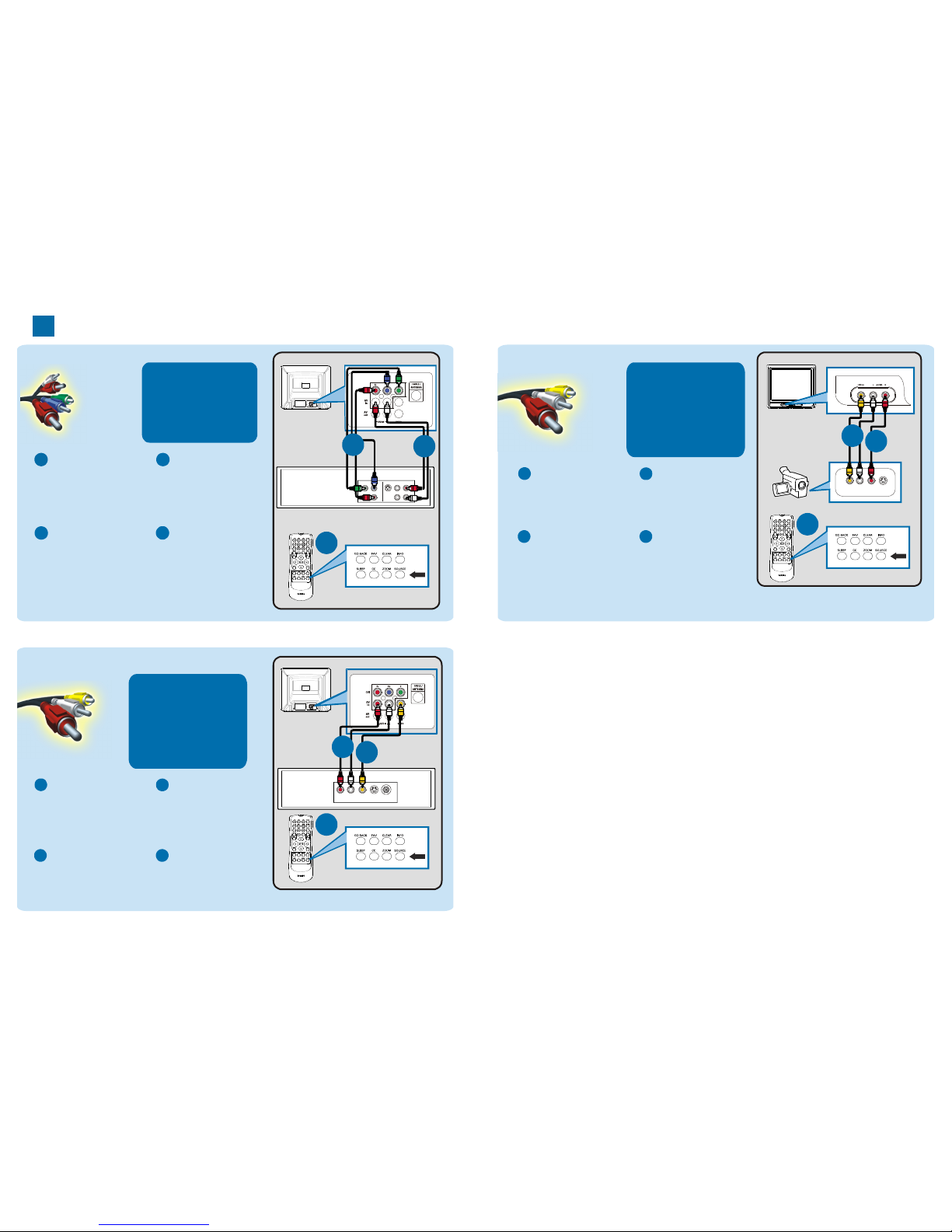

Connecting Input Device toTV (eg. DVD player, Digital Recorder,VCR,Video Camera, Games Console)

Better

Component Video

Input (CVI)

Provides superior picture quality

by separating the green,blue and

red luminance signals.Typically

used with red/white audio cables.

Composite Audio/Video

Basic

Composite Audio/Video

Separate video (yellow) and

audio (red/white) cables that

provide a basic connection from

the set-top box and other devices.

Note:The color of audio inputs

may differ, e.g. Red/white or

red/back.

Connect the video

cable (yellow) to the

VIDEO AV input on

back ofTV and the

corresponding video

output on back

ofVCR.

Turn on theTV and

VCR. Press the

SOURCE button on

the remote control

until AV1 appears on

TV screen.

Connect audio cables

(red/white) to audio

AV inputs on back of

TV and the

corresponding audio

outputs (L & R) on

back ofVCR.

Insert pre-recorded

videotape intoVCR

and press PLAY to

verify correct

connection.

CompositeAudio/Video

TV Front Jack Panel

Basic

Composite Audio/Video

Separate video (yellow) and

audio (red/white) cables that

provide a basic connection from

the set-top box and other devices.

Note:The color of audio inputs

may differ, e.g. Red/white or

red/back.

ComponentVideo Input

Note: for mono devices,connect only white audio cable from

the device s audio output to white audio input on the front ofTV.

Connect the video

cable (yellow) from the

video output on camera

(or other device)to the

video input (yellow)

located on the front ofTV.

Turn onTV and the

device. Press the

SOURCE button on

the remote control

until FRONT appears on

TV screen.

Connect audio cables

(red/white) from audio

outputs on device to audio

inputs (red/white) on the

front ofTV.

Press PLAY on the

device to verify correct

connection.

Insert Component

Video connectors into

their corresponding

jacks on both DVD

player/DVD recorder

andTV (sometimes

labeledY, Pb and Pr).

Connect red/white

audio cables to the

audio output jacks

on DVD player/DVD

recorder and audio

AV inputs onTV.

Turn onTV and DVD

player/DVD recorder.

Press the SOURCE

button on the remote

control until CVI

appears onTV screen.

Insert a pre-recorded

DVD into DVD player/

DVD recorder and

press PLAY to verify

correct connection.

Note: CVI and AV1 share the same audio channels and can t

be used at the same time. If you connect them simultaneously,

you can only hear sound coming from CVI signal.

Video Camera

Video Camera Jack Panel

TV Jack Panel

S-VIDEOVIDEO AUDIO OUT

SOURCE ButtonRemote

Control

SOURCE Button

Back of DVD player / Recorder

TV Jack Panel

Remote

Control

Back ofVCR

TV Jack Panel

S-VIDEO

OUT

VIDEO

OUT

AUDIO OUT

RLANT/CABLE

OUT

SOURCE ButtonRemote

Control

S-VIDEO

OUT

VIDEO

OUT

AUDIO

OUT

COMPONENTVIDEO

YPb
