Philips CSM1000 Manuel utilisateur

CSM1000

www.philips.com/welcome

EN User manual 3

ES Manual del usuario 13

PT-BR Manual do Usuário 25

RU Руководство пользователя 37

=+&1 Ⴌ߀൱Ҭ 49

English

Contents

1 Important 4

Safety 4

Notice 4

2 Your car active subwoofer 5

Introduction 5

What’s in the box 5

Overview of the main unit 6

3 Installation 7

Mount the subwoofer in car 7

Connect wires 7

4 Use your active subwoofer 9

Adjust phase 9

Adjust frequency 9

Adjust volume 9

About the protector indicator 9

5 Product information 10

6 Troubleshooting 11

Any changes or modiﬁcations made to this

device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

2010 © Koninklijke Philips Electronics N.V. All

rights reserved.

Speciﬁcations are subject to change without

notice. Trademarks are the property of

Koninklijke Philips Electronics N.V. or their

respective owners. Philips reserves the right

to change products at any time without being

obliged to adjust earlier supplies accordingly.

1 Important

Safety

Read and understand all instructions•

before you use the apparatus. If damage

is caused by failure to follow instructions,

the warranty does not apply.

This unit is designed for negative ground•

(earth) 12 V DC operation only.

Use only the supplied mounting hardware•

for a safe and secure installation.

Do not connect any active speakers (with•

built-in ampliﬁer) to the speaker terminals

of the unit. Doing so may damage the

active speakers.

To ensure safe driving, adjust the volume•

to a safe and comfortable level.

To avoid short circuit, do not expose the•

apparatus, remote control or remote

control batteries to rain or water.

Never expose the apparatus to direct•

sunlight, naked ﬂames or heat.

Clean the apparatus with soft, damp•

cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the apparatus.

Notice

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and

old equipment.

gTap type screw (M6x8 mm) x 4

hWasher x 4

iMachine screw (Ø5x20 mm) x 4

jVelcro straps x 2

kCushion x 4

2 Your car active

subwoofer

Congratulations on your purchase, and

welcome to Philips!To fully beneﬁt from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the active subwoofer, you can enjoy high-

quality sound performance with powerful bass

and beats.

What’s in the box

Check and identify the contents of your package:

ijk

aMain unit

bMounting plates x 2

cPower cable

dPower control cable

eBattery (+) cable

fSpeaker wire

English

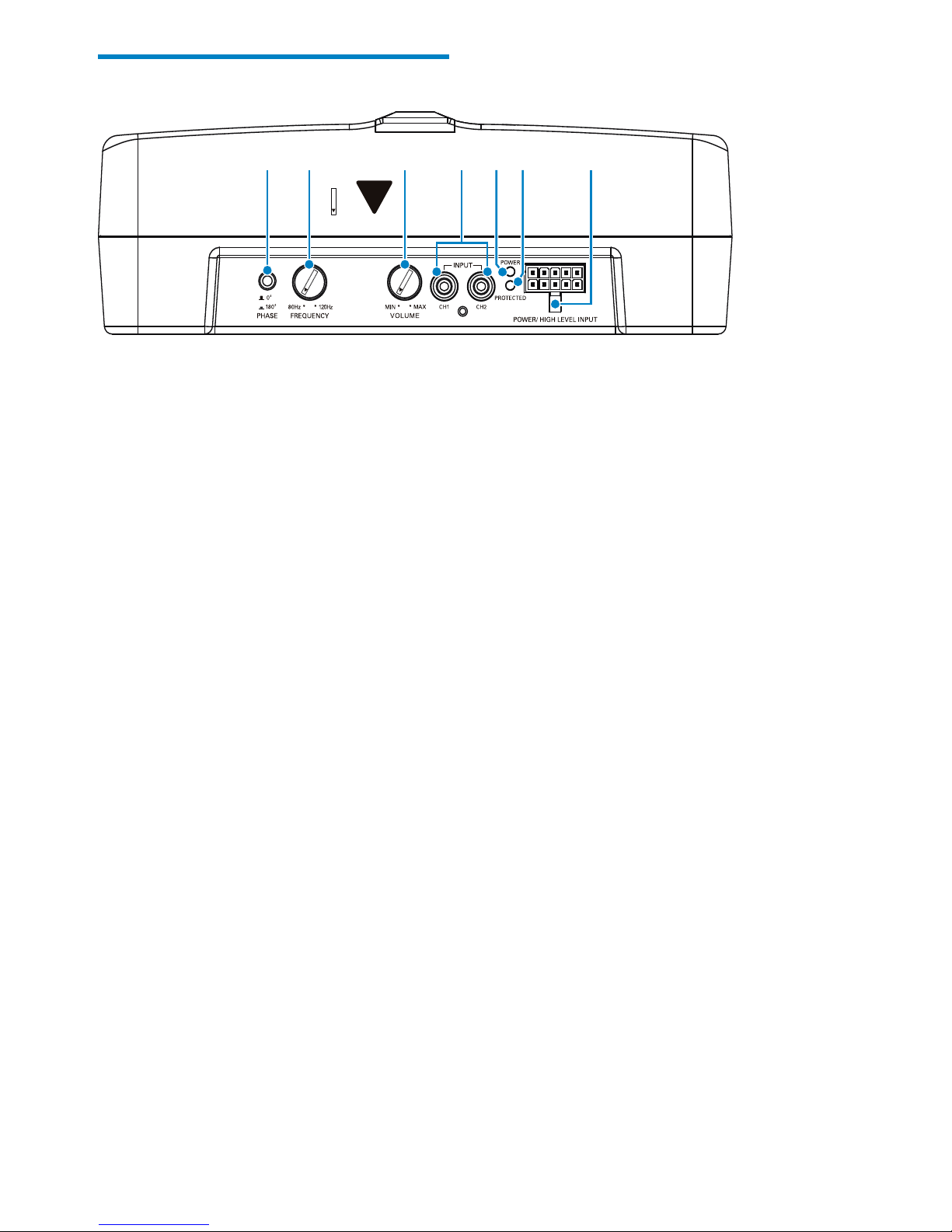

Overview of the main unit

aPHASE

Adjust the phase of subwoofer signal.•

bFREQUENCY

Set LPF (low-pass-ﬁlter) frequency•

from 80Hz to 120Hz.

cVOLUME

Adjust volume from 0 to maximum•

level.

dINPUT (Ch1, Ch2)

To connect car audio with RCA cable.•

ePOWER

Light in blue when power is turned•

on.

fPROTECTED

Lights in red when the protector is•

activated.

gPOWER/HIGH LEVEL INPUT

To connect power supply (+12V-•

DC power supply, ground wire, and

remote control wire) and car audio

with bare wires.

abcefg

Connect wires

Caution

Ensure that all loose leads are insulated with•

electrical tape.

1Connect the subwoofer to your car audio

by:

(option 1) connect to bare speaker•

wires from car audio.

(option 2) connect to the car audio•

directly via an RCA cable.

3 Installation

Note

Follow all mounting and wiring instructions.•

Mount the subwoofer in car

You can mount the subwoofer either under a

seat or on the rear tray.

Note

Make sure that the mounting location is safe•

for drilling and wiring, and it will not interfere

with the mechanical and electrical components

of the vehicle.

For under-seat installation, make sure that it

•

does not obstruct seat mobility.

1Place the subwoofer on the location for

installation.

2Mark the positions of the four screw

holes.

3Drill the holes with driller of

approximately 4mm in diameter.

4Mount the subwoofer with the supplied

screws and brackets.

English

Tip

If your car audio does not have remote output,•

connect the remote input terminal (REM) to

the accessory power supply.

2Make the power connection by:

connect the ground wire from the•

car to the GND socket.

connect the remote wire from the•

car audio to the REM socket.

With this connection, you can turn•

on/off the subwoofer with the car

audio.

connect the power wire from the car•

battery to the +12V socket

Car audio

Left speaker Right speaker

CSM1000

Option 1

Option 2

Car audio

Left speaker Right speaker

CSM1000

Option 1

Option 2

About the protector

indicator

The subwoofer has a built-in protection circuit

to protect the transistors and speakers in

following conditions:

The subwoofer is overheated.•

A DC current is generated in the•

speakers.

The battery voltage is over low or•

over high. Or

The speaker terminals are short•

circuited.

When the PROTECTED indicator

lights up in red, the subwoofer shuts

down automatically. In this case,

please:

1Take out the disc or tape and turn off the

car audio.

2Check the cause of the malfunction.

3If the subwoofer is overheated, let it cool

down.

4 Use your active

subwoofer

Note

Before playing music, position all knobs at the•

minimum level.

Adjust phase

The location of the subwoofer determines the

overall quality of the music. Even you are seat at

sweet spot, the bass effect you heard might not

in-phase with the overall music signal, for the

subwoofer created a phase difference. In this

case, you can change the phase of bass signal to

enhance overall bass response, as well as overall

feeling of the music.

1Press down PHASE.

The bass signal is 180 degree out of»

phase with the original one.

To resume original bass effect, press•

PHASE again to release the button.

Adjust frequency

You can change LPF (low-pass-ﬁlter) frequency

from 80Hz to 120Hz.

1Rotate FREQUENCY to adjust

frequency.

Adjust volume

You can change volume from minimum level (0)

to maximum level.

1Rotate VOLUME.

English

5 Product

information

Note

Product information is subject to change•

without prior notice.

Speaker type Active subwoofer

Maximum output power 550Watt

Rated power 85Watt

Operating frequency 80Hz ~ 120Hz

Phase 0°, 180°

S/N ratio

(rated power: 4ohms)

95dB

Sensitivity

(1% distortion)

100mV at RCA,

1.8V at speaker

level

Operating voltage 14.4V

(10.5V ~ 16V)

Dimensions (DxWxH) 240 x 350 x 80mm

Weight (main unit) 3.9 kg

6 Troubleshooting

To keep the warranty valid, never try to repair

the system yourself.

If you encounter problems when using this

apparatus, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips web site (www.

philips.com/welcome).When you contact

Philips, ensure that the apparatus is nearby

and the model number and serial number are

available.

The sound is too low.

The volume is not set correctly (see•

“Adjust volume”).

The sound is interrupted or stopped suddenly.

The thermal protector is activated.•

Reduce the volume.

The ventilation outlet is blocked. Remove•

any obstructions from the outlet.

Alternate noise is heard.

The power connecting wires are installed•

too close to the RCA pin cords.

The ground wire is not securely•

connected to a metal point of the car.

Negative speaker wires touch the car•

chassis.

Sound is distorted.

Make sure the speaker polarity is correct.•

Adjust phase.•

The protector indicator lights up in red.

The subwoofer is overheated. Cool down•

the subwoofer.

The unit becomes abnormally hot.

Place the subwoofer in a well ventilated•

location.

English
