Philips FWM653 Manuel utilisateur

Version 1.0

FWM653

3141 785 35320

400W Subwoofer Mini Hi-Fi System

-/55/77/BK

Published by LX 1024 Service Audio Subject to modification

system or transmitted, in any form or by any means, electronic, mechanical, photocopying,

or otherwise without the prior permission of Philips.

CONTENTS

�

Technical specification ..................................................................1-2

Version variation ...........................................................................1-2

Service measurement setup..........................................................1-3

Service aids .................................................................................1-4

Instructions on CD playability ................................................2-1..2-2

Block diagram................................................................................3-1

Wiring diagram ..............................................................................4-1

Disassembly diagram............ ................................................5-1..5-2

Tuner board

Circuit diagram .........................................................................6-1

Layout diagram.........................................................................6-2

Main board

Circuit diagram .........................................................................7-1

Layout diagram..................................................................7-2..7-3

Front board

Circuit diagram .........................................................................8-1

Layout diagram..................................................................8-2..8-3

AMP Board

Circuit diagram. ........................................................................9-1

Layout diagram..................................................................9-2..9-3

CD board

Circuit diagram .......................................................................10-1

Layout diagram..............................................................10-2..10-3

MCU Board

Circuit diagram. ...................................................................... 11-1

Layout diagram.............................................................. 11-2..11-3

Exploded view diagram ...............................................................12-1

All manuals and user guides at all-guides.com

all-guides.com

Sound

• Total Sound Power (RMS): 400 W

• Output power (RMS): 4x60W/ch + 160W

• Sound Enhancement: MAX Sound, Dynamic Bass

Boost 3 steps, Incredible Surround, Digital Sound

Control 4 modes, Virtual Ambience Control

• Output Power: 6500W PMPO

Loudspeakers

• Number of Loudspeakers: 3

• Main Speaker: 2" tweeter, Bass Reflex Speaker

System, 5.25" woofer

• Subwoofer driver: 8" woofer

• Subwoofer type: Passive

Audio Playback

• Loader Type: 3 CD Carousel

• Number of Discs: 3

• Playback Media: CD, CD-R, CD-RW, MP3-CD,

WMA-CD

• Disc Playback Modes: 40-Track Programmable,

Repeat/one/disk/program, Shuffle Play

• USB Direct Modes: Play/Pause, Stop, Previous/

Next, Fast Backward/Fast Forward, Repeat,

Shuffle, Delete

Tuner/Reception/Transmission

• Auto digital tuning

• Station presets: 40

• Tuner Bands: MW, FM Stereo

• Tuner Enhancements: Auto Store, Easy Set (Plug &

Play)

Connectivity

• Audio Connections: RCA Aux in, 3.5mm stereo

line in -MP3 link

• USB: USB host

• Microphone: Dual Microphone sockets

• Other connections: FM Antenna, MW Antenna

Convenience

• Alarms: CD Alarm, USB alarm, Radio Alarm, Sleep

timer

• Clock: On main display

• Display Type: LCD

• Karaoke: MIC volume, Echo control

Accessories

• Remote control: 36-key with 2xAAA batteries

• User Manual: Spanish, B-Portuguese

• Quick start guide: Spanish, B-Portuguese

• Guarantee booklet: Global version

• Included accessories: FM/MW Antenna, Batteries

for remote control, *Flat pin adaptor, AC Power

Cord

• Cables: MP3 line-in cable

Dimensions

• Set dimensions (W x H x D): 269 x 310 x 352 mm

• Subwoofer dimensions (W x H x D):

260 x 310 x 426 mm

• Packaging dimensions (W x H x D):

1085 x 498 x 367 mm

• Weight incl. Packaging: 23.5 kg

• Speaker Depth: 292 mm

• Speaker Height: 310 mm

• Speaker Width: 209 mm

Power

• Power supply: 100-240VAC, 50/60Hz

•

TECHNICAL SPECIFICATION

1 - 2

Type /Versions:

Features

Board in used:

FWM653

Service policy

MAIN BOARD

* TIPS : C -- Component Lever Repair.

M -- Module Lever Repair

-- Used

/55 /00 /77 89/39/KB/

Feature diffrence

RDS

VOLTAGE SELECTOR

ECO STANDBY - DARK

Type /Versions:

FWM653

/55 /00 /77 89/39/KB/

VERSION VARIATION

C/M

TUNER BOARD

AMP BOARD

49/

C/M

49/

FRONT BOARD

CD BOARD

MCU BOARD

All manuals and user guides at all-guides.com

1-3

LF Generator

e.g. PM5110

Recorder

Use Universal Test Cassette CrO2 SBC419 4822 397 30069

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion met

e.g. Sound Technology ST170

DUT

or Universal Test Cassette Fe SBC420 4822 397 30071

LEVEL METER

e.g. Sennheiser UPM550

with FF

filter

S/N and distortion meter

e.g. Sound Technology ST1700B

DUT

Use Audio Signal Disc

(replaces test disc 3)

SBC429 4822 397 30184

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

S/N and distortion meter

e.g. Sound Technology ST1700B

Frame aerial

e.g. 7122 707 89001

Tuner AM (MW,LW)

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.

Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).

RF Generator

e.g. PM5326

Ri=50:

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

RF Generator

e.g. PM5326

S/N and distortion meter

e.g. Sound Technology ST1700B

Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).

Ri=50:

Tuner FM

MEASUREMENT SETUP

All manuals and user guides at all-guides.com

1-4

SERVICE AIDS

GB WARNING

All ICs and many other semi-conductors are

susceptible to electrostatic discharges (ESD).

Careless handling during repair can reduce life

drastically.

When repairing, make sure that you are

connected with the same potential as the mass

of the set via a wrist wrap with resistance.

Keep components and tools also at this

potential.

ESD

CLASS 1

LASER PRODUCT

Safety regulations require that the set be restored to its original

condition and that parts which are identical with those specified,

be used

Safety components are marked by the symbol !.

Lead free

All manuals and user guides at all-guides.com

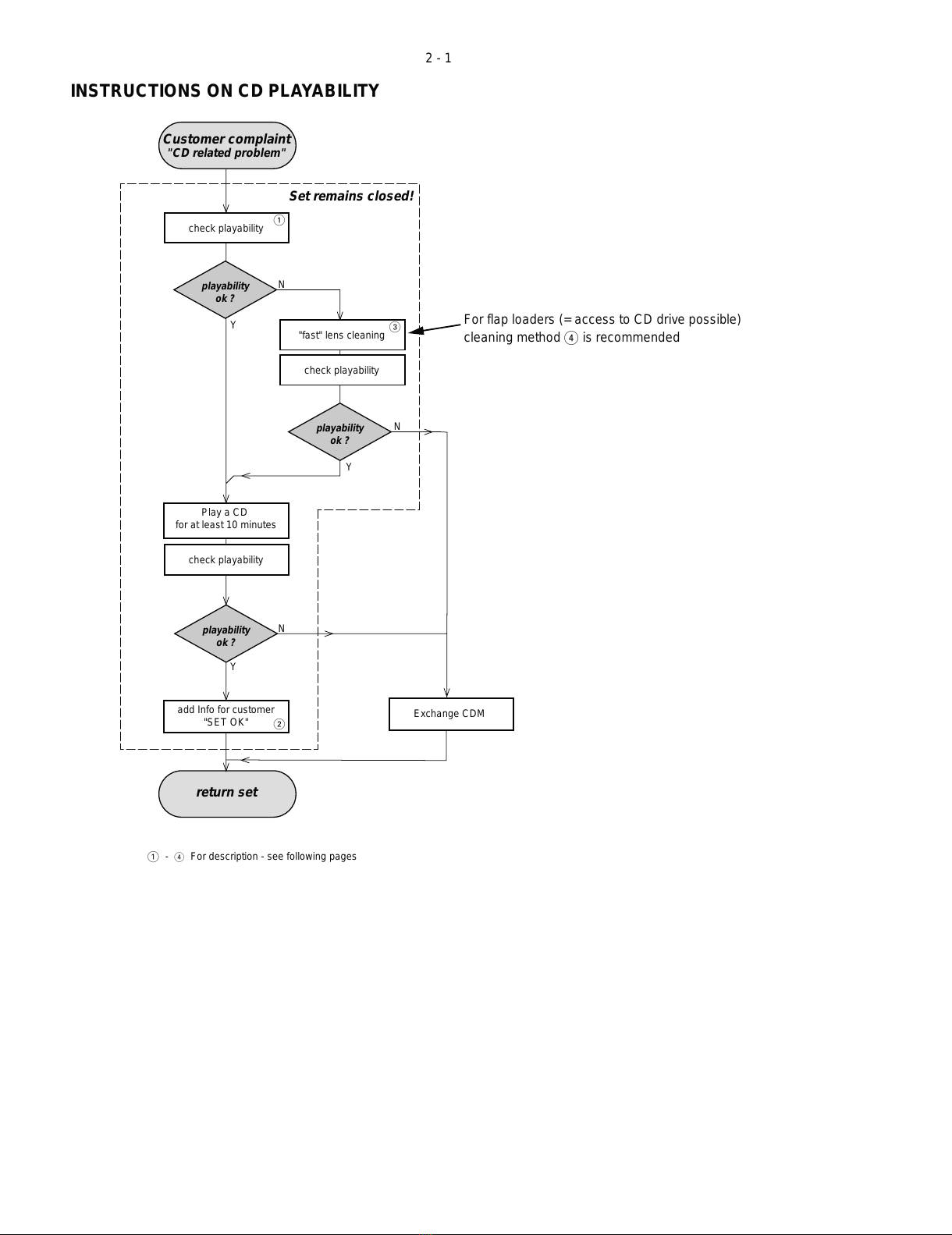

Set remains closed!

Play a CD

for at least 10 minutes

playability

ok ?

playability

ok ?

add Info for customer

"SET OK"

check playability

playability

ok ?

check playability

return set

Customer complaint

"CD related problem"

"fast" lens cleaning

3For flap loaders (= access to CD drive possible)

cleaning method 4is recommended

INSTRUCTIONS ON CD PLAYABILITY

2 - 1

Exchange CDM

1-4For description - see following pages

All manuals and user guides at all-guides.com

PLAYABILITY CHECK

For sets which are compatible with CD-RW discs

use CD-RW Printed Audio Disc....................7104 099 96611

TR 3 (Fingerprint)

TR 8 (600µ Black dot) maximum at 01:00

• playback of these two tracks without audible disturbance

playing time for: Fingerprint 10seconds

Black dot from 00:50 to 01:10

• jump forward/backward (search) within a reasonable time

For all other sets

use CD-DA SBC 444A..................................4822 397 30245

TR 14 (600µ Black dot) maximum at 01:15

TR 19 (Fingerprint)

TR 10 (1000µ wedge)

• playback of all these tracks without audible disturbance

playing time for: 1000µ wedge 10seconds

Fingerprint 10seconds

Black dot from 01:05 to 01:25

• jump forward/backward (search) within a reasonable time

CUSTOMER INFORMATION

It is proposed to add an addendum sheet to the set which

informs the customer that the set has been checked

carefully - but no fault was found.

The problem was obviously caused by a scratched, dirty or

copy-protected CD. In case problems remain, the customer

is requested to contact the workshop directly.

The lens cleaning (method 3) should be mentioned in the

addendum sheet.

The final wording in national language as well as the printing

is under responsibility of the Regional Service Organizations.

LIQUID LENS CLEANING

Because the material of the lens is synthetic and coated

with a special anti-reflectivity layer, cleaning must be done

with a non-aggressive cleaning fluid. It is advised to use

“Cleaning Solvent

The actuator is a very precise mechanical component and

may not be damaged in order to guarantee its full function.

Clean the lens gently (don’t press too hard) with a soft and

clean cotton bud moistened with the special lens cleaner.

The direction of cleaning must be in the way as indicated in

the picture below.

Before touching the lens it is advised to clean the

surface of the lens by blowing clean air over it.

This to avoid that little particles make scratches on

the lens.

INSTRUCTIONS ON CD PLAYABILITY

2 - 2

All manuals and user guides at all-guides.com

all-guides.com

BLOCK DIAGRAM

3-1 3-1

CD SERVO

BU9543

MCU

BX8804

128pin QFP

INPUT

RC5/RC6 CODE

LCD

ET8862Q& KEY

PART

TDA8922CTH

MAIN L/R

INPUT

SENSOR

16M SDRAM

8M SERIAL

FALSH

EN25T80

PICK UP

MOTOR

ADC

WM8782

3CDC

DRIVER IC

TDA7073A

MUX

74LVC157

AUX

TUNER

SI4730 OR

TUENR

PACK

MICRO

PHONE

USB/SD

MOTOR DRIVER

BA5826

IIC

MUL-L/R

IIC

PCM

,DATE PCM

CD L/R

TUNER L/R

CONTROL DATA

CD PCM

BCK,LRCK,

DATE

TDA8920CTH

FUNCTION IC

TDA7468D

3CD LOADER

TDA8922CTH

SUB

FHR

FHL

2 X 50W

MP3 LINE INPUT

AMP

3CDC

All manuals and user guides at all-guides.com

PICK UP

MOTOR

TUNER

SI4730 OR

TUENR

PACK

MICRO

PHONE

3CD LOADER

SUB

FHR

FHL

2*50W

1*200W

MP3

LINE

AMP BOARD

3CDC

8P/120MM

CN903 TO CON301

8P/150MM

CN611 TO CON302

6P/120MM

CN602 TO CON521

5P/150MM

CN607 TO CW105

10P/120MM（AB）

CN607 TO CW105

18P/130MM（AA）

CN603 TO CW101

5P 150/330MM（3+2P）

CN904 TO CN609/CN612

4P/150MM

CN903 TO J6

3CDC KEY

4P/150MM

CN912 TO CN913

4P/220MM（AA）

CN906 TO CN907

USB

4P/220MM

CW104 TO CN904

16P/170MM（AA）

CN501 TO CD RF

6P/200MM

CN505 TO CD MOTOR

5P/200MM（AA）

CN504 TO CON2

3CD

OPEN/CLOSE

2P/200MMCN551 TO

CON1

28P/80MM(AA)

CW101 TO CON589

MICRO

PHONE

MAIN BOARD

KEY BOARD

MCU BOARD

USB BOARD

CD BOARD

14P/180MM（AB）

CN901 TO CW1

POWER SUPPLY

AC CORD

6F (BLACK)

WIRING DIAGRAM

4-1 4-1

All manuals and user guides at all-guides.com

DISMANTLING INSTRUCTIONS

1) Loosen 4 screws to remove the Cover Top of the set.

2) Loosen 3 screws to remove the Panel Left and 3 screws to

remove the Panel Right of the set.

3) Slide out the CDC Tray as shown in the diagram below with

the help of a flat head screw driver.

Dismantling of the CDC Module and Front Panel

Remove CDC Module

4) Remove the Cover Tray CDC as indicated.

Sliding Out The CDC Tray

Front View CDC

Remove Cover Tray CDC

5) Loosen 2 screws A and 2 screws B to remove the CDC

Module as indicated.

6) Remove 2 screws at the bottom to separate the

Front Panel Assembly from the Plate Bottom.

5-1 5-1

All manuals and user guides at all-guides.com

Dismantling of Rear Portion

Dismantling of the PCB Board

1)Remove 3 screws C as indicated to loosen the Tuner Board.

3)Remove 4 screws E and 4 screws I as indicated to loosen the Amp Board.

4)Remove 3 screws F as indicated to loosen the Bottom Cabinet.

5)Remove 4 screws G as indicated to loosen the fan.

2)Remove 5 screws D and 4 screws J as indicated to loosen the Main Board.

2)Remove 2 screws M as indicated to loosen the USB Board.

1)Remove 27 screws K&L as indicated to loosen the KEY1&2 Board.

5-2 5-2

All manuals and user guides at all-guides.com

Autres manuels pour FWM653

Ce manuel convient aux modèles suivants

Autres manuels Philips Système stéréo

Philips

Philips MCD296 Manuel utilisateur

Philips

Philips SBCHC060/05 Manuel utilisateur

Philips

Philips MCM250/19 Manuel utilisateur

Philips

Philips FWM653X/77 Manuel utilisateur

Philips

Philips MC127 Manuel utilisateur

Philips

Philips MC230/15 Manuel utilisateur

Philips

Philips MCM275/BK Manuel utilisateur

Philips

Philips FW-C550 Manuel utilisateur

Philips

Philips FW-M355/22 Manuel utilisateur

Philips

Philips FWM593/55 Manuel utilisateur

Philips

Philips BTM1180 Fiche d'information produit

Philips

Philips FW-R88 Manuel utilisateur

Philips

Philips FW-C38 Manuel utilisateur

Philips

Philips MC145/12 Manuel utilisateur

Philips

Philips FWV780 Manuel utilisateur

Philips

Philips FWD14/98 Manuel utilisateur

Philips

Philips ND 6600 Manuel utilisateur

Philips

Philips MCD355 Manuel utilisateur

Philips

Philips MCD370 Manuel utilisateur

Philips

Philips FWM154/79 Manuel utilisateur

Philips

Philips MCP9350I/22 Manuel utilisateur

Philips

Philips FW 363 Manuel utilisateur

Philips

Philips Micro Hi-Fi System MCM285 Manuel utilisateur

Philips

Philips MC-70 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

LG FB165DAB Manuel utilisateur

Sanyo

Sanyo DC-UB1475M/XE/UK Manuel utilisateur
