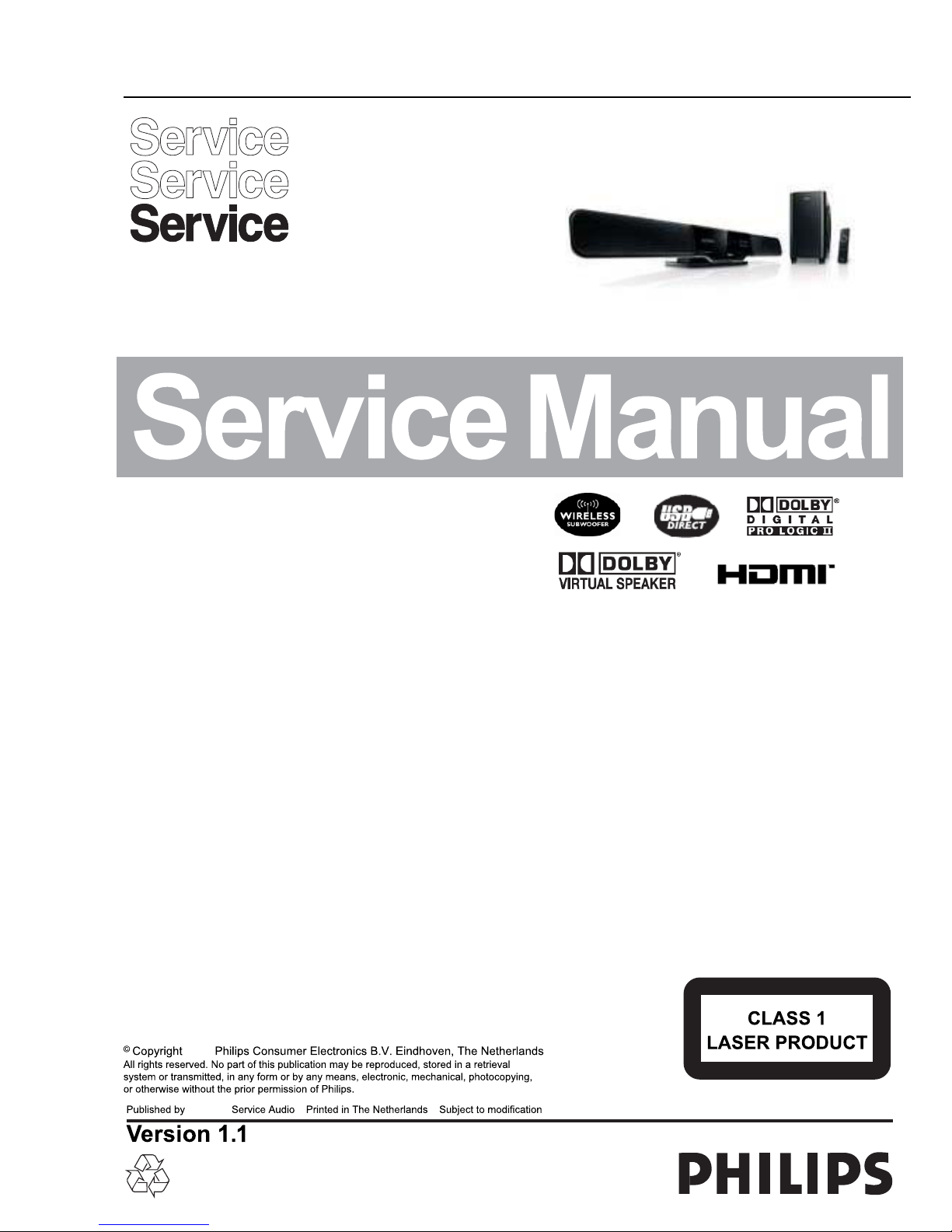

Philips HSB2313 Manuel utilisateur

SoundBar System

TABLE OF CONTENTS

3141 785 33311

DB 0942

2008

HSB2313

Location of PC Boards ............................................. 1-1

Electronic Specification

............................................. 1-2

Measurement Setup ................................................ 1-3

Service Aids............................................................... 1-4

Software Version Check & Upgrade ........................ 2-1

Malfuction Check Chart ............................................. 2-2

Disassembly Diagram................................................ 3-1

Block Diagram ......................................................... 4-1

Wiring Diagram ......................................................... 4-2

Display Board ............................................................... 5

Circuit diagram ...................................................... 5-1

Layout diagram ...................................................... 5-2

Small Boards ............................................................... 6

Circuit diagram ...................................................... 6-1

Layout diagram ...................................................... 6-1

HDMI Board.................................................................. 7

Circuit diagram ...................................................... 7-1

Layout diagram ...................................................... 7-2

Terminal Output Board ................................................ 8

Circuit diagram ...................................................... 8-1

Layout diagram ...................................................... 8-2

Decoder Board ............................................................ 9

Circuit diagram ............................................. 9-1 to 9-4

Layout diagram ...................................................... 9-5

Power Board ...............................................................10

Circuit diagram ....................................... 10-1 to 10-2

Layout diagram ................................................... 10-3

Explode View ......................................................... 11-1

Service Partlist .......................................... 12-1 to 12-2

Factory Partlist .......................................... 13-1 to 13-4

Hdmi Power Board .................................................. 10-4

Location of PC Boards

1-1

VERSION VARIATIONS :

Type /Versions:

Features

Board in used:

HSB2313

Service policy

USB BOARD

OUTPUT BOARD

RADIO RECEIVE BOARD

LAMP BOARD

AC POWER SWITCH ADAPTOR

DISPLAY BOARD

HDMI BOARD

RADIO TRANSMIT BOARD

DECODER BOARD

* TIPS : C -- Component Lever Repair.

M -- Module Lever Repair

-- Used

/55

/58

/61

/79

/93

/94

/96

/98

/37

/12

/05

Feature diffrence

RDS

TDS

VOLTAGE SELECTOR

ECO STANDBY - DARK

CCC

MMM

Type /Versions:

HSB2313

Terminal Out-put Board

HDMI Board

SP Connect Board

Decoder Board

Display Board

1-2

Electronic Specification

AMPLIFIER

Rated Output Power ..........120W+(45W+45W) x 2RMS

S/N ..................................................................>=67dBA

Frequency response .................... 63Hz +3dB+/-3 6KHz

Aux Input ............................................ 1V RMS 16kohm

DISC

Laser Type ................................................................NA

Disc Diameter ............................................................NA

Support Disc ..............................................................NA

Audio DAC..................................................................NA

Total Harmonic Distortion ..........................................NA

S/N ............................................................................NA

TUNER

FM Tuning Range ................................ 87.5 – 108 MHz

Tuning grid ................................................ 50K/100KHz

Sensitivity

- Mono,26dB S/N ..................................................5uV

- Stereo,46dB S/N ............................................ 100uV

Selectivity ............................................................>33dB

Image Rejection ................................................ >25 dB

Total Harmonic Distortion ........................................ 3%

S/N ..................................................................>=67dBA

SPEAKERS

Speaker Impedance ..................................................3ohm

Speaker Driver,base ..................................................6 1/2"

Speaker Driver,tweeter ..............................................1 1/2"

Frequency response ......................40Hz + 3dB+/-3 16KHz

GENERAL INFORMATION

Total Output Power ..........................................200 W RMS

AC Power .................................................................. 230V

Operation Power Consumption ....................................70W

Standby Pwer Consumption ......................................<10W

Eco Standby Pwer Consumption..................................<1W

USB Direct........................................................ Version 1.1

Dimensions

- Main unit (w x h x d)............................ 278.5x92x90mm

- Speaker box(w x h x d) ...................... 225.6x69x90mm

- Subwoofer Speaker box(w x h x d) .... 225.6x69x90mm

Weight

- With Packing ............................................................ 9 KG

- Main unit ............................................................ 0.758KG

- Speaker box .................................................... 0.45x2KG

- Subwoofer..................................................................5KG

*Specifications and external appearance

are subject to change without notice.

1-3

LF Generator

e.g. PM5110

Recorder

Use Universal Test Cassette CrO2 SBC419 4822 397 30069

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion met

e.g. Sound Technology ST170

DUT

or Universal Test Cassette Fe SBC420 4822 397 30071

LEVEL METER

e.g. Sennheiser UPM550

with FF

filter

S/N and distortion meter

e.g. Sound Technology ST1700B

DUT

Use Audio Signal Disc

(replaces test disc 3)

SBC429 4822 397 30184

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

S/N and distortion meter

e.g. Sound Technology ST1700B

Frame aerial

e.g. 7122 707 89001

Tuner AM (MW,LW)

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.

Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).

RF Generator

e.g. PM5326

Ri=50:

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

RF Generator

e.g. PM5326

S/N and distortion meter

e.g. Sound Technology ST1700B

Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).

Ri=50:

Tuner FM

MEASUREMENT SETUP

1-4

SERVICE AIDS

GB WARNING

All ICs and many other semi-conductors are

susceptible to electrostatic discharges (ESD).

Careless handling during repair can reduce life

drastically.

When repairing, make sure that you are

connected with the same potential as the mass

of the set via a wrist wrap with resistance.

Keep components and tools also at this

potential.

ESD

CLASS 1

LASER PRODUCT

Safety regulations require that the set be restored to its original

condition and that parts which are identical with those specified,

be used

Safety components are marked by the symbol !.

Lead free

2-1

Software Version Check & Upgrade

Upgrade software

USB

No USB

Upgrading

Read USB

Software version and date check

2,Press the “ ” button continuously 4 times on remote control,

display showing as below:

1.Download the software form Philips support website

2.Insert the Software USB device,when it is loading ,

VFD display showing as below:

Waiting a minute,till the VFD display as below:

Software upgrade finish.

http://www.philips.com/support

2313 Vxx

1,Insert the power and turn on the main set,VFD display as below:

MM DD

Press the “ ” button again, can check the software date

No power on

Check if the Power Cord

is connected

Check the AC

outlet

No sound

Check the speakers

are connected correctly

Check if the Main

Board provides voltage

(Inductance L24)

Check if the Main Board

has provided voltage

(Inductance L24)

Check if the Main Board

has provided voltage

(Location C74/D7/L51)

Check if the Terminal

Board provides

voltage(DC Socket)

Replace a new

one

Switch on the Timer

No display

Check if the Dc output

is normal

(about 34.5V)

Adjust the volume Check the files or folders in

USB or others devices has

not exceeded the certain limit

Time/Clock does not work

Plug in the power cord

Reset the Time/Clock

No picture on HDMI connection

Check if the HDMI cable

is faulty Replace a new

HDMI cable

Replace a new

Power Board

located in sub-

woofer

Check the USB or other

devices are connected

Check if the USB or other

devices are incompatible

Check the data wire which

connected the Main Board,

if has provided voltage

Check the data wire which

connected the Main Board,

if has provided voltage

Check if the Transistors are

provided voltage

Q301/Q302

Check if has voltage

supply to the USB Board

Check if the CPU IC

has provided voltage

Check if the VFD Board

has provided voltage

Replace a new one

of Terminal Board

Replace a new one

of Terminal Board

Replace a new

DC Cable

Replace a

new one

Replace the IC PT6311

/SC16311/CD16311

Replace the

Main Board

Check if the CPU IC

has provided voltage Replace the

Main Board

Change to ues

the new materials

No Change to ues

the new materials

Check if the IC CX1117

has provided voltage Replace a

new one

Check if the CPU IC

has provided voltage Replace the

Main Board

Malfunction Follow Check Chart

2-2 2-2

Disassembly Diagram

3-1

1.Loosen these Screws 2.Loosen these Screws(both sides) 3.Use thin screwdriver to unclench clasp

9.unclench clasp

5.Loosen these screws to remove Main Board 7.Loosen these screws to remove Display Board

6.Loosen these screws to remove Decoder Board

8.Loosen these screws to remove Output Board

4.Loosen these screws to remove HDMI board

4-1

Block Diagram

Main chipset

MT1389FE-H(DTS)

MT1389DE-H(W/O DTS)

SDRAM

FLASH

MX29LV160

M12L64164A-7T

M3.3V

SERIAL EEPROM

24C02

M3.3V

MCU5V

-24V

VF1 VF2

VFD Driver

PT16311

VFD Display

VFD_3280

IR KEY

MP3 LINE IN

FM Antenna 75OHM

AV2 IN

I-POD

M5V

COAXIAL INPUT

HDMI OUT

CEC3.3V

MCU

R5R0C028

Audio Switch

74HC4052D

LPF

TAS5508

TAS5352DDV

POWER AMP

TRE SPK

3Ohm

MID SPK1

9Ohm

MID SPK2

9Ohm

MCU5V



DC TO DC

AP1501 AMC1117

DC TO DC

AP1530

12V

AMC1117

34.5V

12V

A5V

M5V

M3.3V

M1.8V

TAS5352_12V

MCU5V

3.3V

1.8V

CEC3.3V

STANDBY

M3.3V M1.8V

3.3V

A12V 3.3V

3.3V TAS5352_12V 34.5V

I2C

STANDBY

MCU5V

A12V

2M * 8 bits

PWM PROCESSOR

PWM->AUDIO

(3 Ohm 45W at 15%) * 4 1.5″1.5″1.5″

VFD

VF2

VF1

POWER

-24V

SUPPLY

1.5″

MID SPK3

9Ohm

NE4558

RTC

PCF8563

EEPROM

24C02

MCU5V

I2C

UDA1355H

3.3V

SPDIF IN

&ADC&DAC

AV1 IN AV OUT

Video Switch

2244 JRC

V_12V

I2S

I2C

V_12V

A12V

VIDEO ON

HDMI DATA

DC IN

34.5V

HDMI 1 IN

HDMI 2 IN

CEC/I2C translator

TDA9950

? ??

3:1 HDMI 1.3a receiver

TDA19977

HDMI transmitter

PCA9536D

I2C HDMI

CEC

AMC1117

H5V

H3.3V

H1.8V

3.3V

1.8V

OPTICAL INPUT

HDP1

HPD2

HDMI ON

HDMI5V HDMI5V

34.5v

34.5V

CEC3.3V

A5V

CEC3.3V

A5V

A12V

M3.3V

A12V

M3.3V

H3.3V H3.3V H1.8VH1.8V

H3.3V

74LVC2G04

M3.3V

Buffer

STANDBY

Switch

PT2328

I2S BYPASS DSP

MPEG ON

AMC1117 3.3V

3.3V

MPEG ON

MCU

LPC2138FBD64

H3.3V

NXP

SPDIF OPTICAL

SPDIF HDMI

12C

CEC INT

UART

4-bits I2C-bus

&SMBus I/O port

CEC3.3V CEC3.3V

HDMI REPEATER

CONNECT BOARD

MAIN BOARD

DISPLAY BOARD

Si4705

MX3000

SM9435A

HDMI 5V

HDMI ON

HDMI 5V

SWITCHING POWER 200W

AC220

SUBWOOFER

MUTEAMP

STANDBY SPEAKER

3Ohm

6.5″

FAN

Subwoofer box

POWER AMP

TDA8947J

PBTL

100W THD=20%

FAN Driver

POWER1

SW12V

Subwoofer

MUTE

STANDBY

24.5V

34.5V

LM358

34.5V

17.25V

I2SFM

I2C

MASTER

SLAVE

POWER2

772

3.3V

ECO POWER

TRE SPK

3Ohm

MID SPK1

9Ohm

MID SPK2

9Ohm

1.5″1.5″1.5″1.5″

MID SPK3

9Ohm

EOC POWER

USB

VFD DISPLAY BOARD

HEADPHONE BOARD

CONNECT BOARD CONNECT BOARD

MAIN DECODER BOARD

TERMINAL OUT-PUT BOARD

HDMI BOARD

4-2 4-2

Wiring Diagram

Autres manuels pour HSB2313

Table des matières

Autres manuels Philips Intervenants

Philips

Philips EverPlay BT6900A/00 Manuel utilisateur

Philips

Philips AW9000 Manuel utilisateur

Philips

Philips SPA7351 Manuel utilisateur

Philips

Philips AW9000 Manuel utilisateur

Philips

Philips HTS3111/05 Manuel utilisateur

Philips

Philips SPA1315/10 Manuel utilisateur

Philips

Philips SPA2210 Manuel utilisateur

Philips

Philips Fidelio HTL9100 Manuel utilisateur

Philips

Philips HTS3121/12 Manuel utilisateur

Philips

Philips AJT4400B/37 Manuel utilisateur

Philips

Philips SBCBC710/00 Manuel utilisateur

Philips

Philips Shoqbox SB7200 Series Manuel utilisateur

Philips

Philips HTL2163B Manuel utilisateur

Philips

Philips BT4100 Manuel utilisateur

Philips

Philips Fidelio DS3880W/10 Manuel utilisateur

Philips

Philips 8000 Series Manuel utilisateur

Philips

Philips Fidelio P9 Manuel utilisateur

Philips

Philips SPA2200 Manuel utilisateur

Philips

Philips HTS8160B Manuel utilisateur

Philips

Philips SPA7650/05 Manuel utilisateur

Philips

Philips BTS5000B Manuel utilisateur

Philips

Philips SPA8210 Manuel utilisateur

Philips

Philips Fidelio E5 Manuel utilisateur

Philips

Philips SPA5161F Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
